GAR Onboarding¶
When Google Artifact Registry with images is onboarded into AccuKnox SaaS platform, the images are scanned continuously. The risks and vulnerabilities associated with these images are identified and shown in the scan results. The vulnerabilities are classified based on the CVSS Scores.
Steps to create service account in GCP for onboarding GAR¶

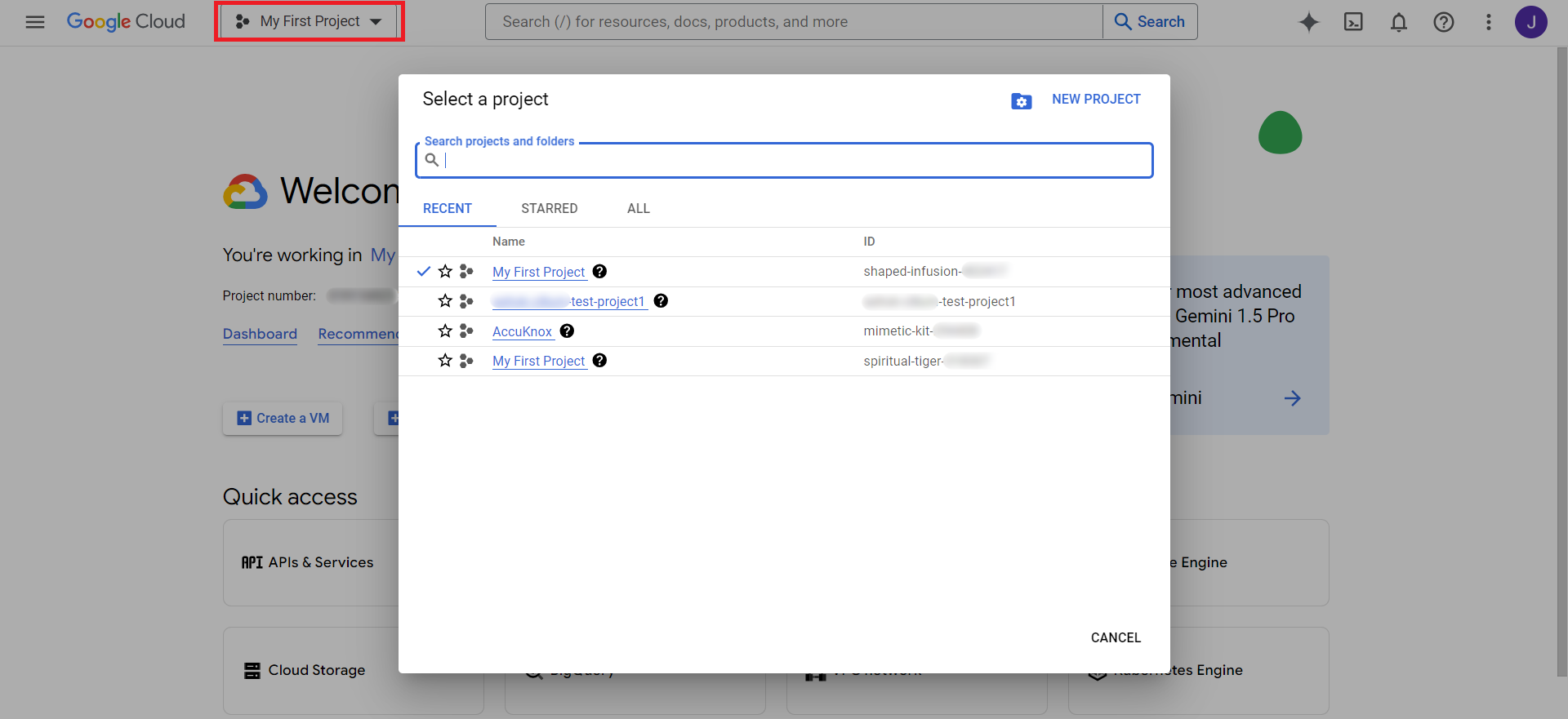

Step 1: Open the GCP Management Console and sign in with your GCP account credentials. Select the Project in which the GAR registry to be scanned is located

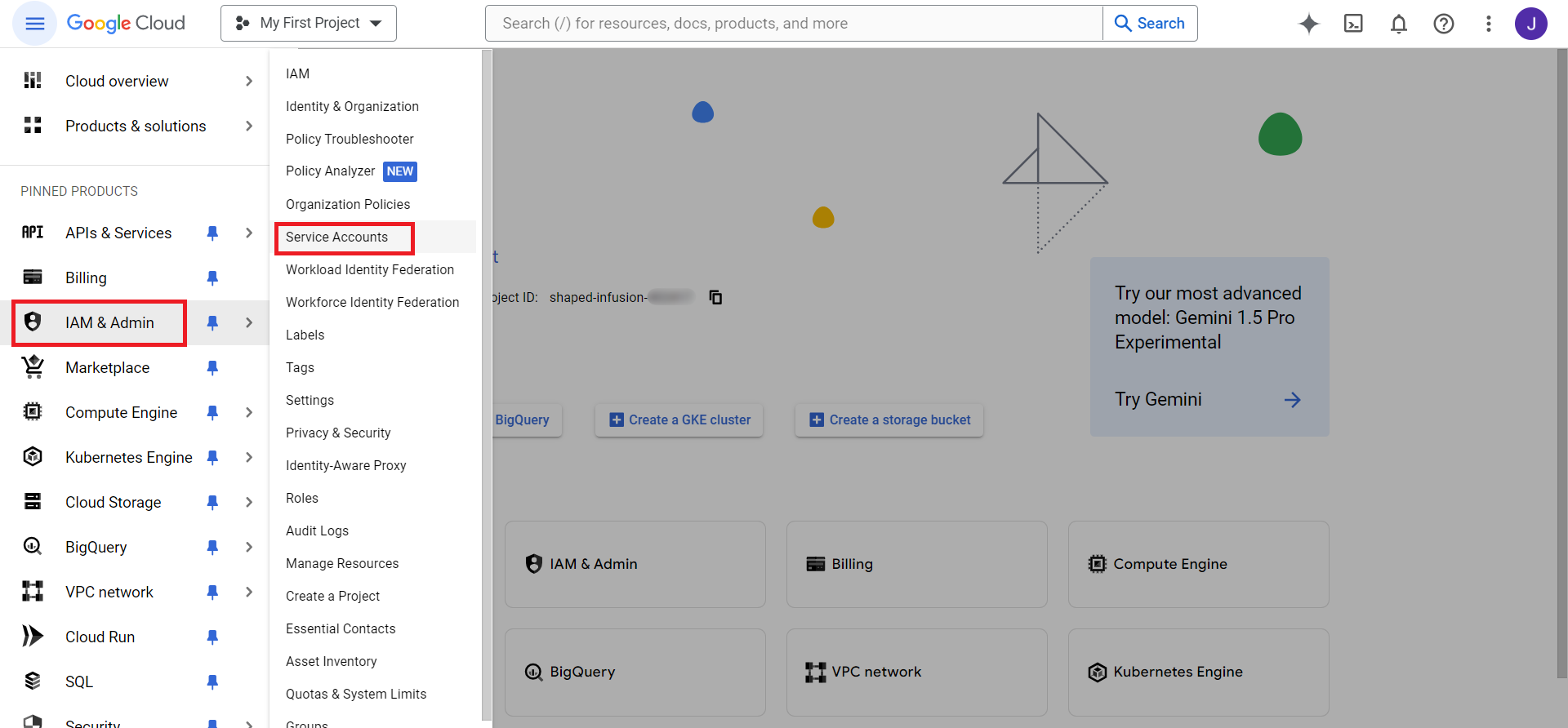

Step 2: In the Navigation Menu, goto IAM & Admin → Service Accounts

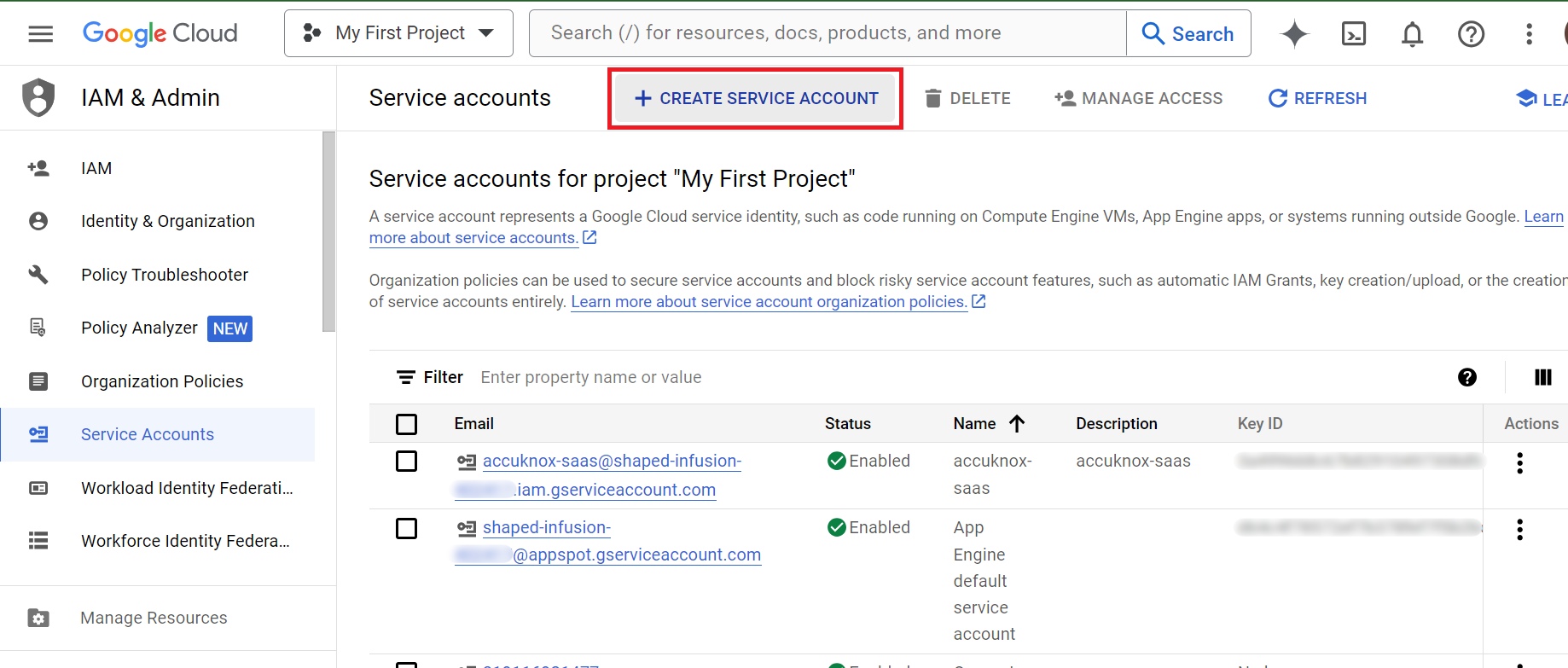

Step 3: Create a Service Account by selecting Create Service Account at the top

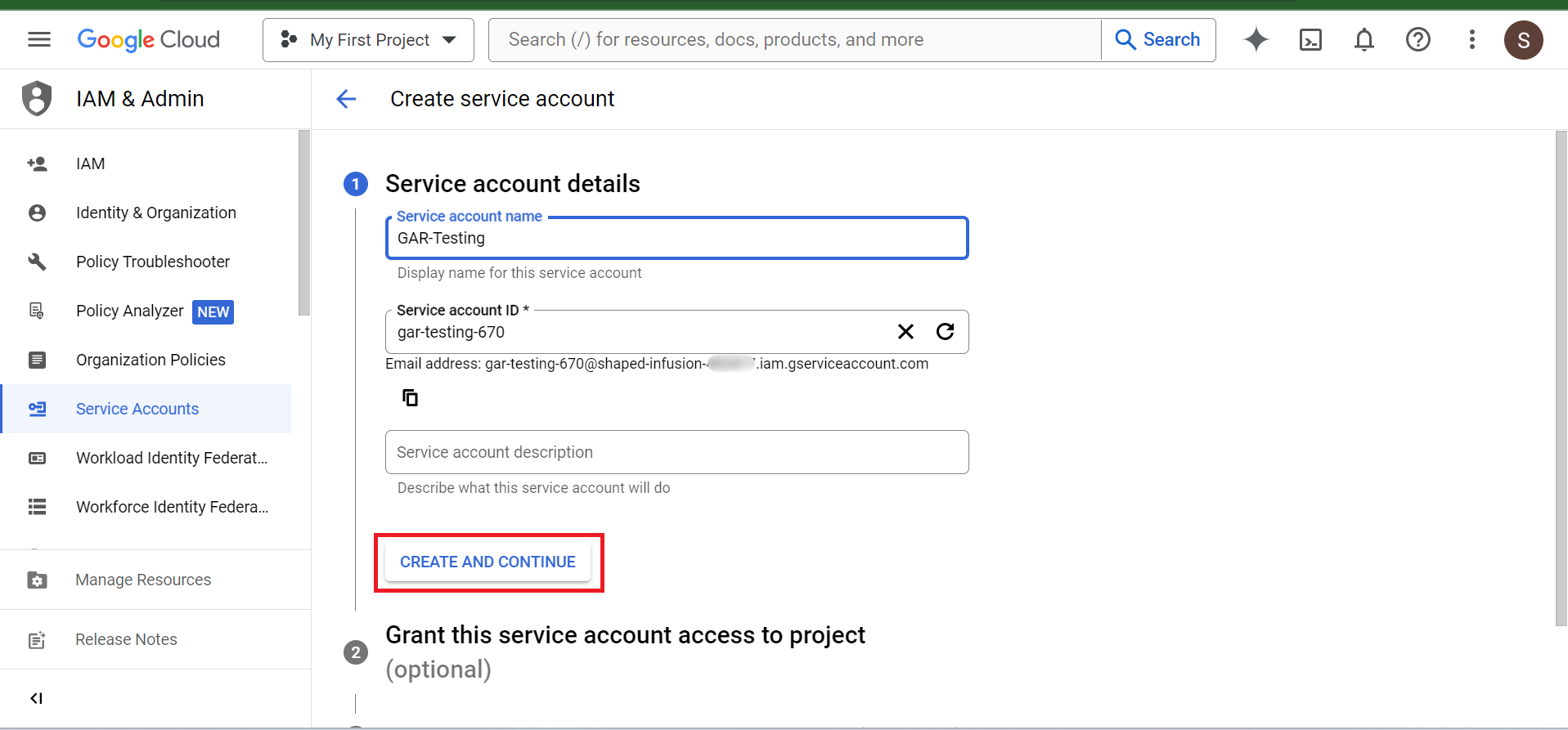

Step 4: Fill the Service Account Details such as name, description and then click Create and Continue

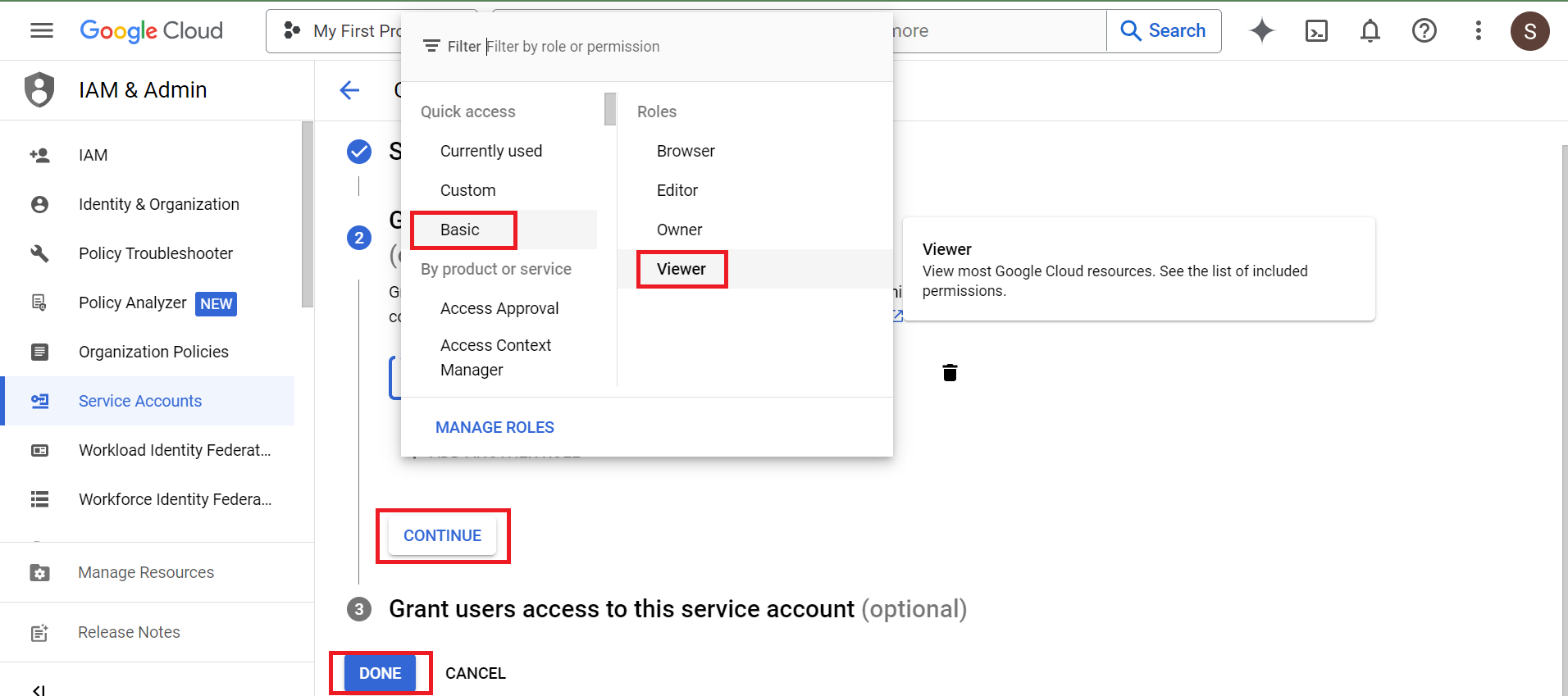

Step 5: Select Role as Basic → Viewer for this Service Account,then click Continue and Done

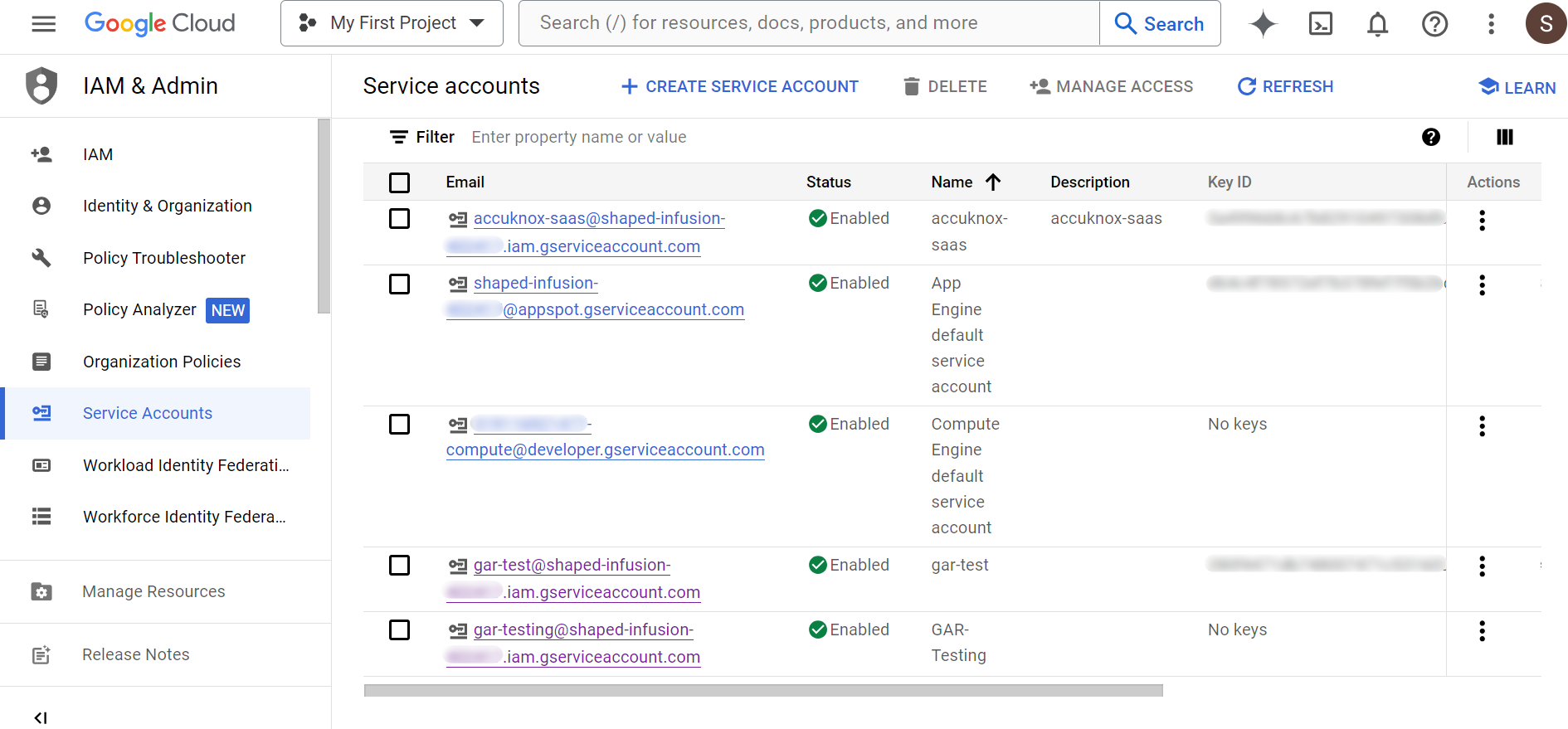

Step 6: Click on the newly created service account from the list

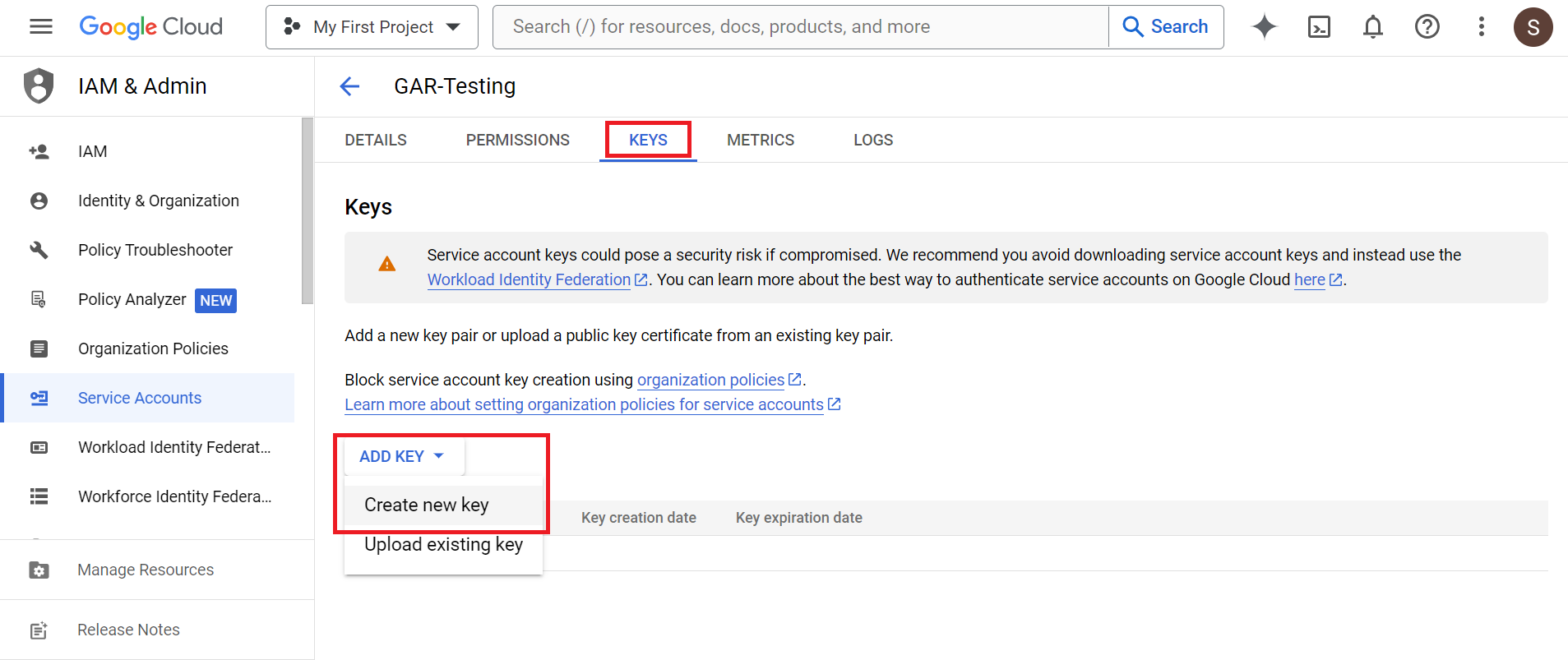

Step 7: Navigate to the Keys Section. Click on ADD KEY and select Create new key

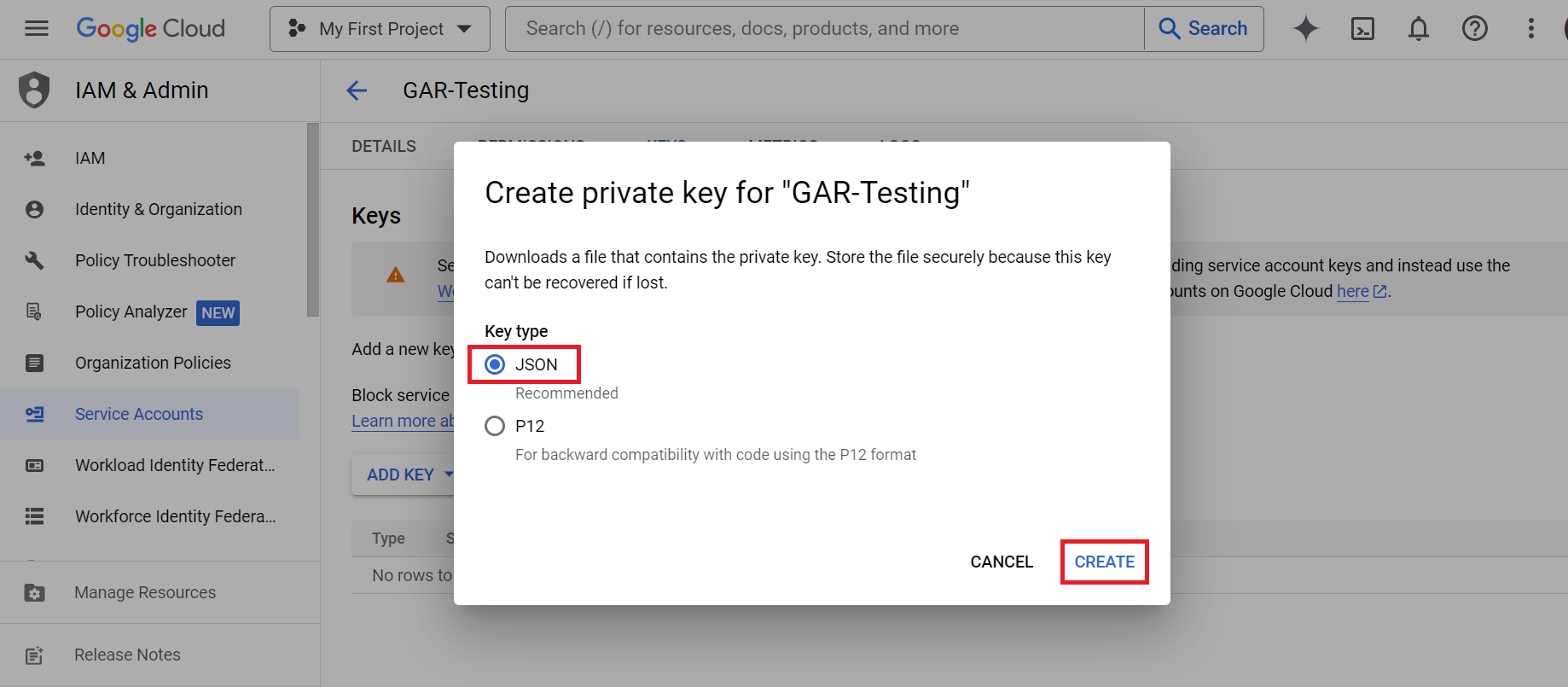

Step 8: Choose the Key Type as JSON for the Service Account then Create
Note: The Private Key will be saved to your system automatically. We will require it for onboarding the GAR registry in AccuKnox SaaS.
Steps to onboard the registry on AccuKnox SaaS¶

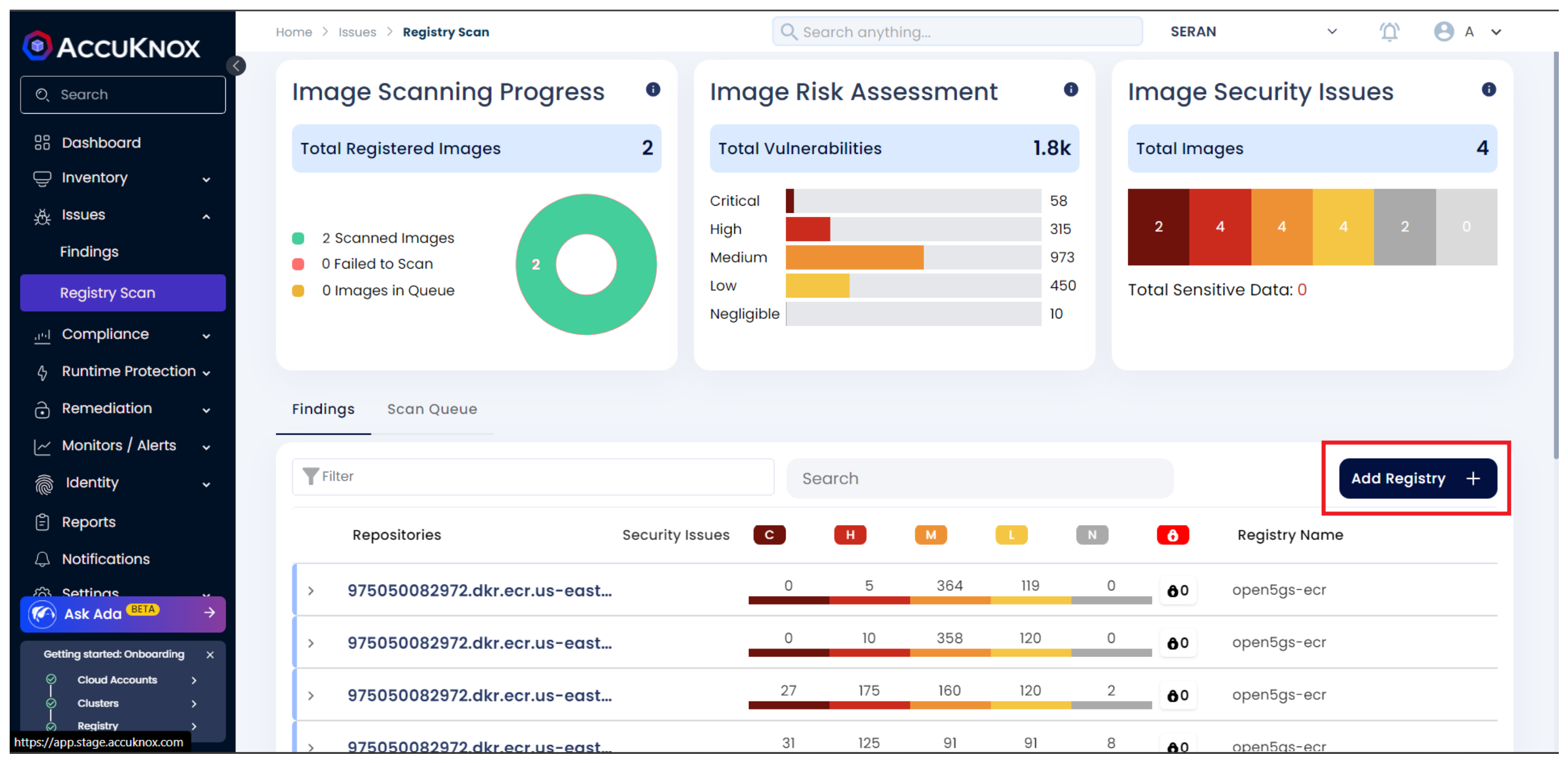

Step 1: Login to the AccuKnox SaaS and Navigate to Issues → Registry Scan. Click on Add Registry

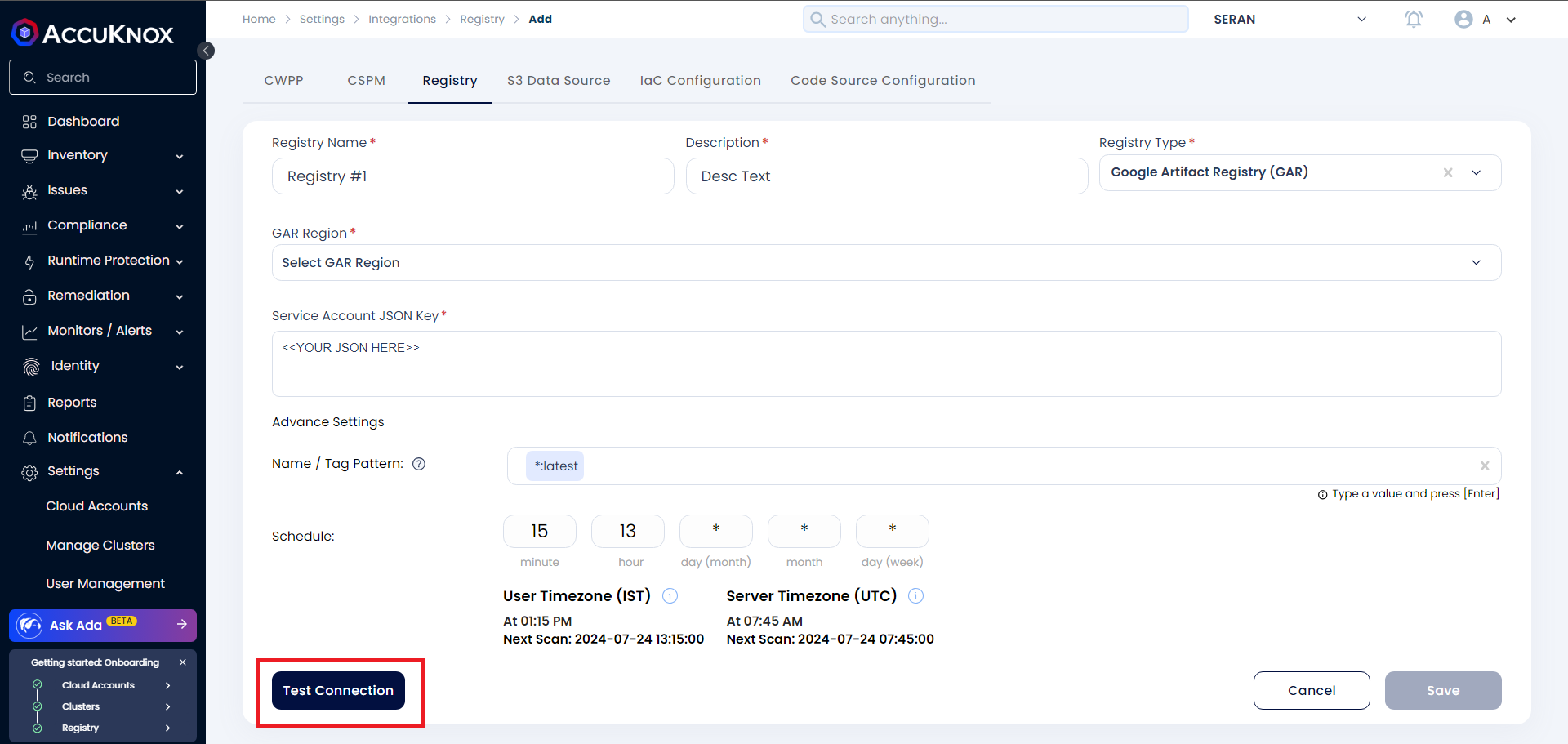

Step 2: Enter the Registry Name, Description, Registry Type, GCP Region where the GAR Registry is hosted and in the next field paste the ENTIRE content of the downloaded JSON key file for the service account.
Click on Test Connection and then click on the enabled Save button

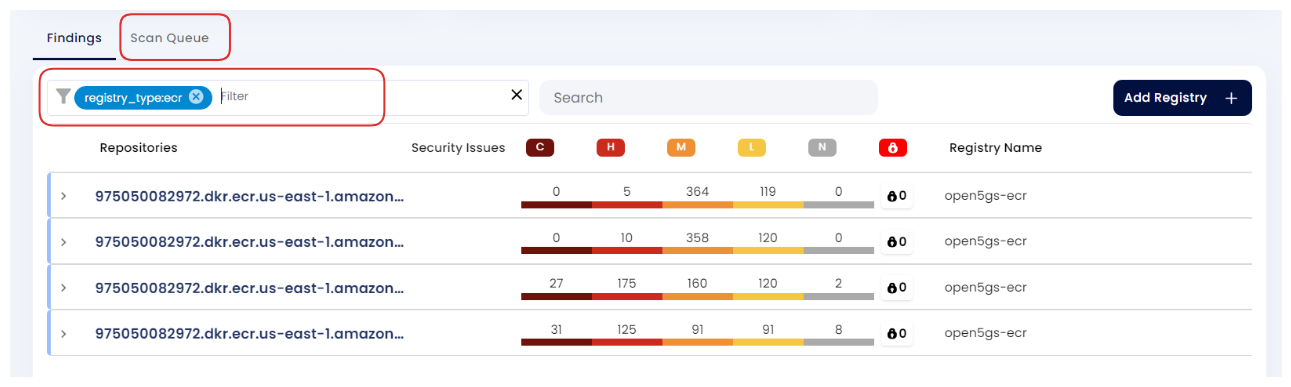

Step 3: A popup appears that the registry is added on successful onboarding. Navigate to Issues → Registry Scan to view the scan results. The status of the scan can be checked from the Scan Queue tab
