Azure Entra SSO with AccuKnox

This guide helps you integrate Azure Entra (formerly Azure Active Directory) with AccuKnox using OpenID Connect (OIDC) for Single Sign-On (SSO).

Prerequisites

  • Azure Entra Admin privileges

  • Access to AccuKnox Tenant for user invitation

Step-by-Step Integration Guide

1. Create Azure Application (App Registration)

  1. Sign in to Azure Portal

  2. Navigate to Azure Active Directory > App registrations

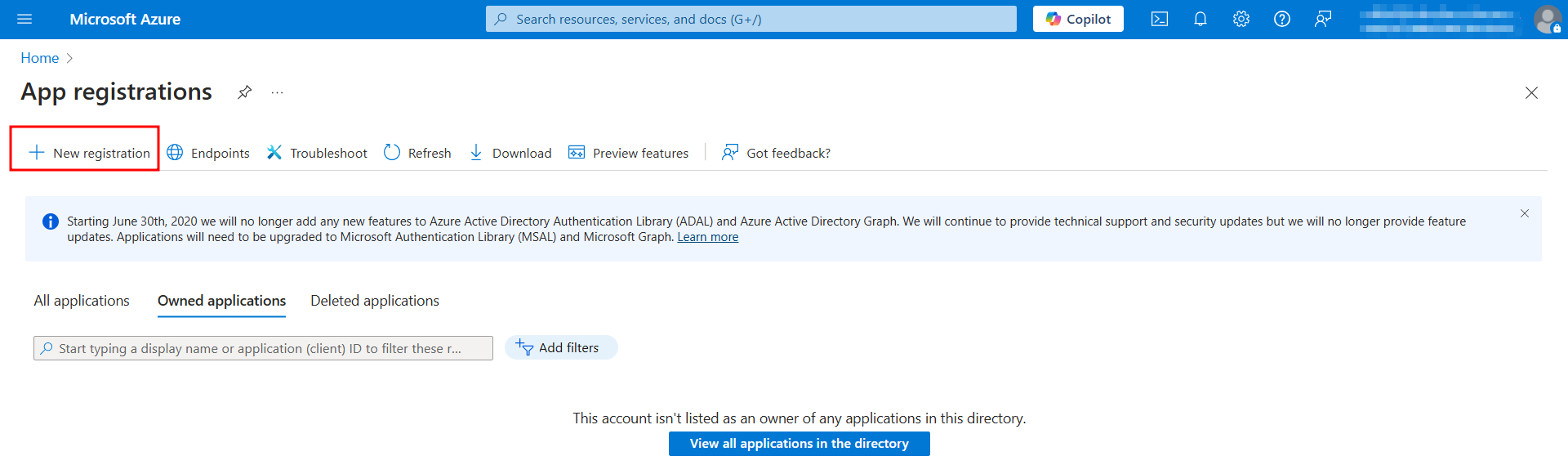

  3. Click New registration image-20250403-100716.png

  4. Name: Any meaningful name (e.g., AccuKnox SSO)

  5. Supported account types: Choose Single tenant

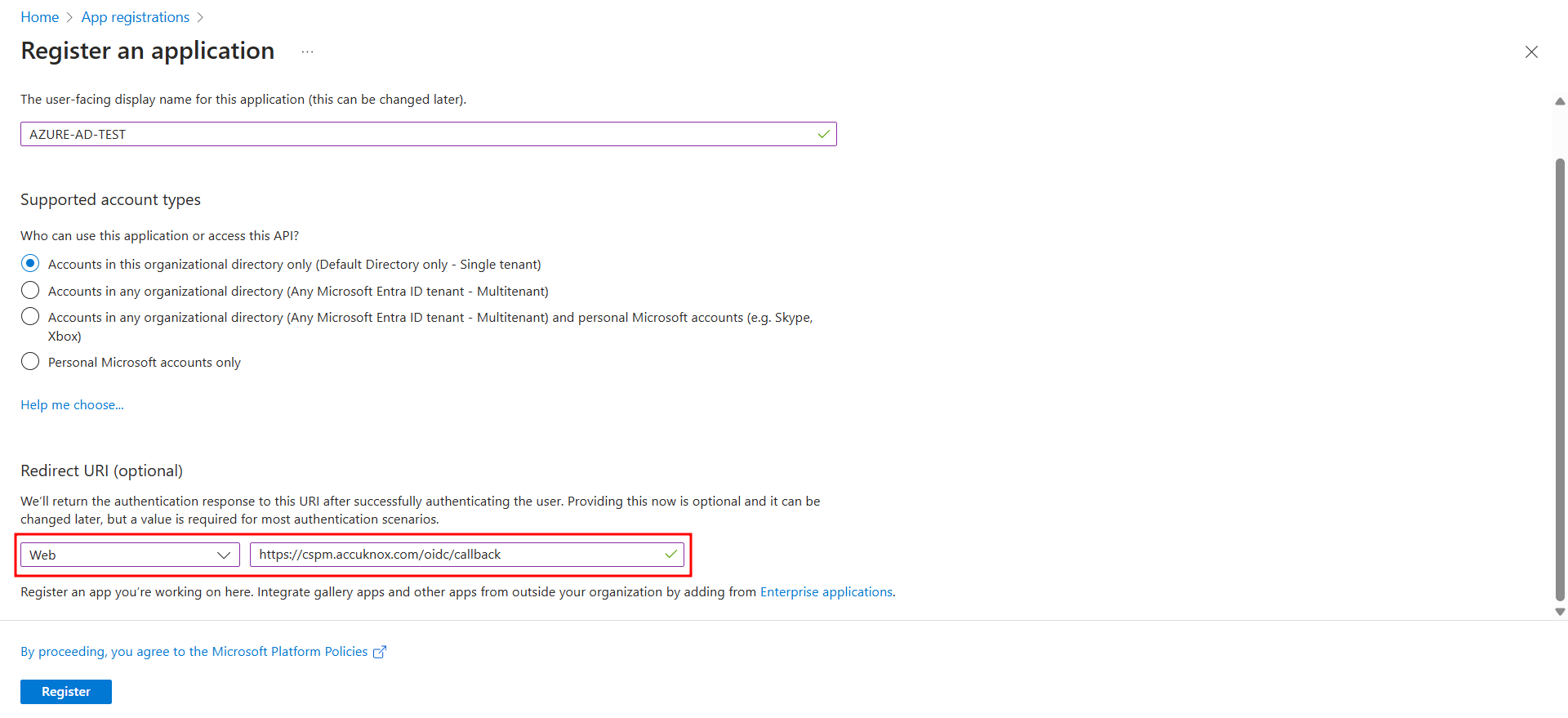

  6. Redirect URI: Type: Web URI: https://cspm.accuknox.com/oidc/callback image-20250406-163133.png

  7. Click Register

2. Gather Required Information

Once you've registered the Azure app, collect the following details to complete your SSO setup with AccuKnox:

Field Description
Name Name of your organization (used during login)
OIDC RP Client ID Application (client) ID
OIDC RP Client Secret Secret value
OIDC OP Authorization Endpoint OAuth 2.0 authorization endpoint (v2)
OIDC OP Token Endpoint OAuth 2.0 token endpoint (v2)
OIDC OP User Endpoint Default: https://graph.microsoft.com/oidc/userinfo
OIDC OP JWKS Endpoint Format: https://login.microsoftonline.com/<Tenant-ID>/discovery/v2.0/keys
Replace <Tenant-ID> with your Directory (tenant) ID from the app overview
OIDC RP Sign Algo Default: RS256

Name

  • This is the name of your organization.

  • It will be used on the AccuKnox login screen during OpenID sign-in.

OIDC RP Client ID

  • Go to the App Overview page.

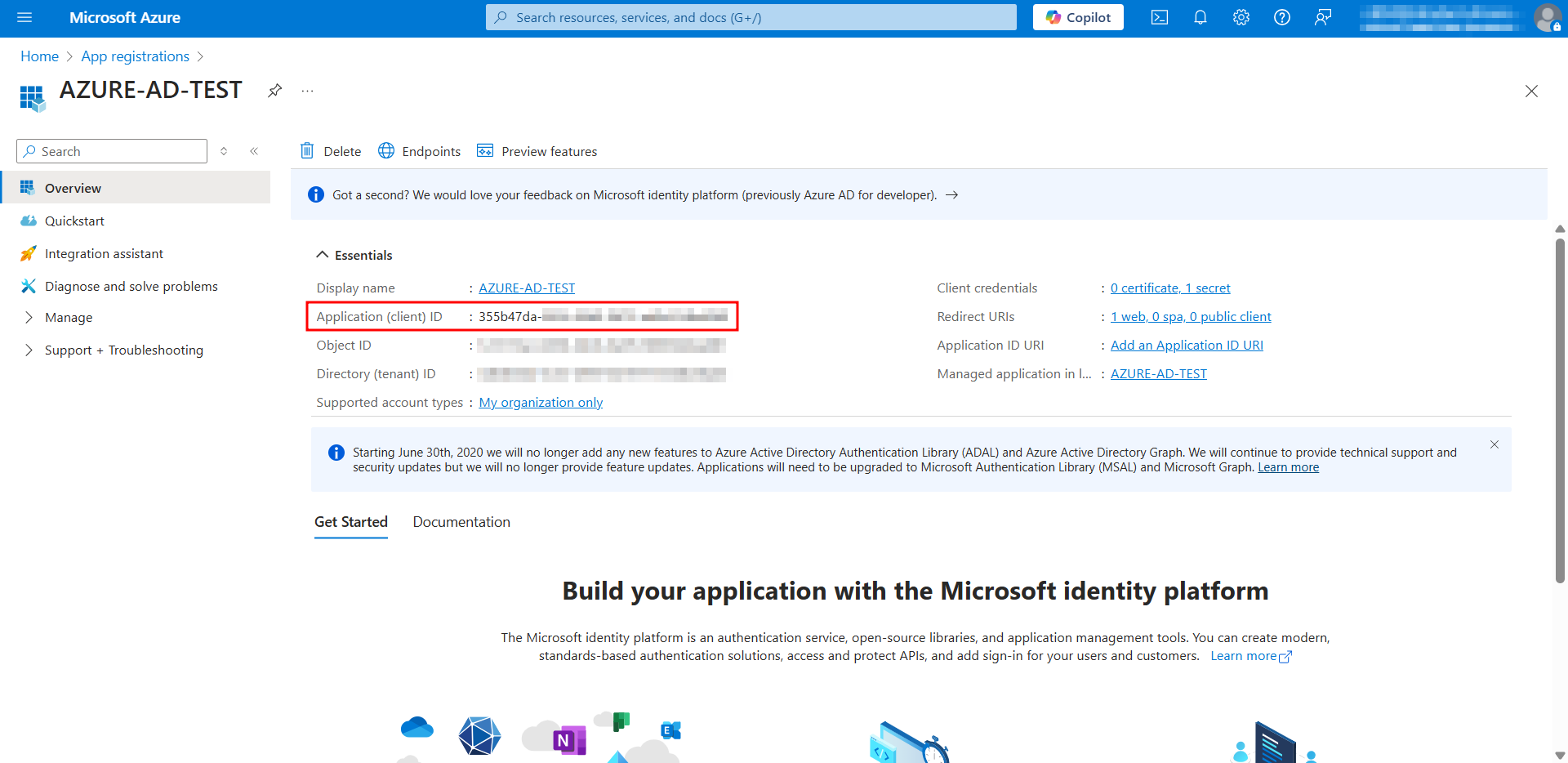

  • Copy the value of Application (client) ID. image-20250406-155751.png

OIDC RP Client Secret

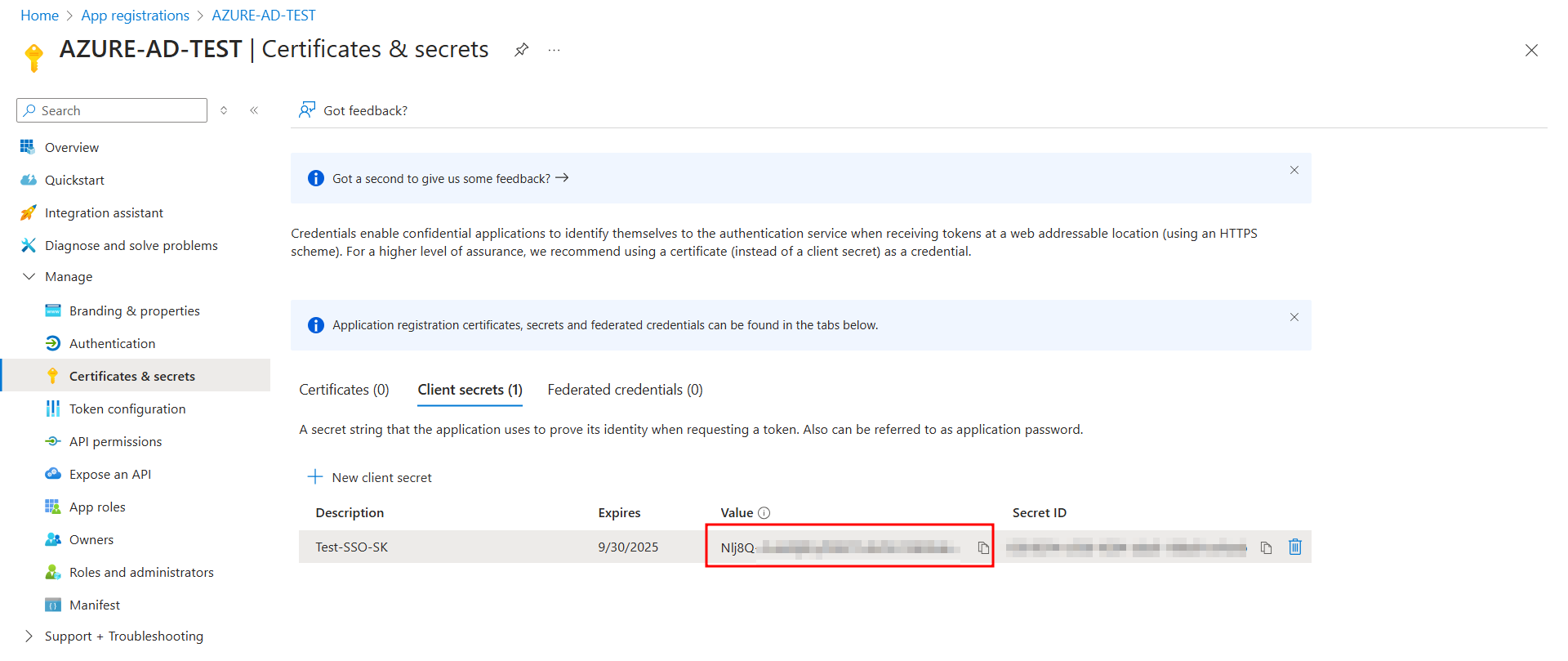

  • Navigate to Certificates & secrets.

  • Click New client secret.

  • Enter a description and expiry period.

  • Click Add and copy the secret value shown.

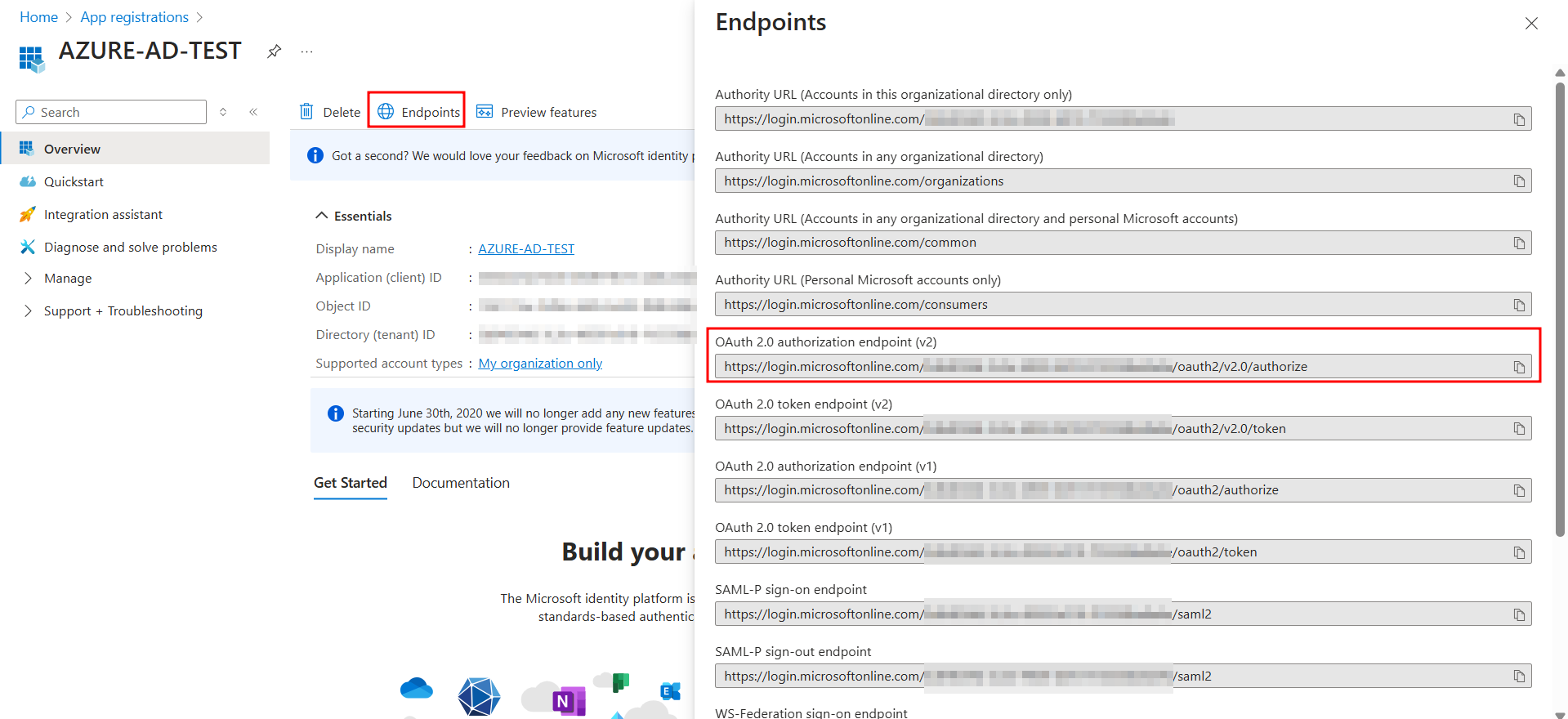

OIDC OP Authorization Endpoint

  • Go to the App Overview page.

  • Click on Endpoints (top-right).

  • Copy the URL under OAuth 2.0 authorization endpoint (v2). image-20250406-161233.png

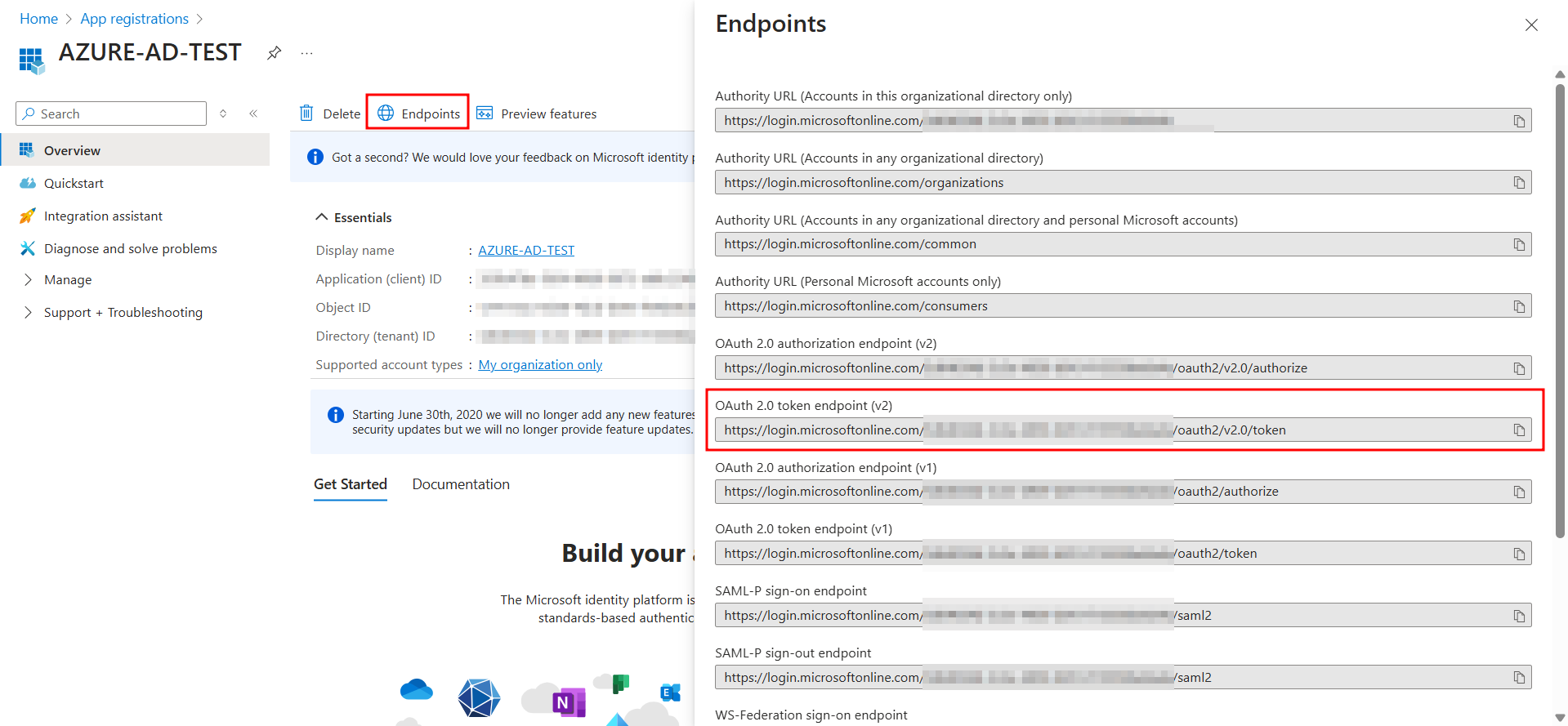

OIDC OP Token Endpoint

  • From the same Endpoints panel.

  • Copy the URL for OAuth 2.0 token endpoint (v2). image-20250406-161350.png

OIDC OP JWKS Endpoint

  • Format: https://login.microsoftonline.com/<Tenant-ID>/discovery/v2.0/keys

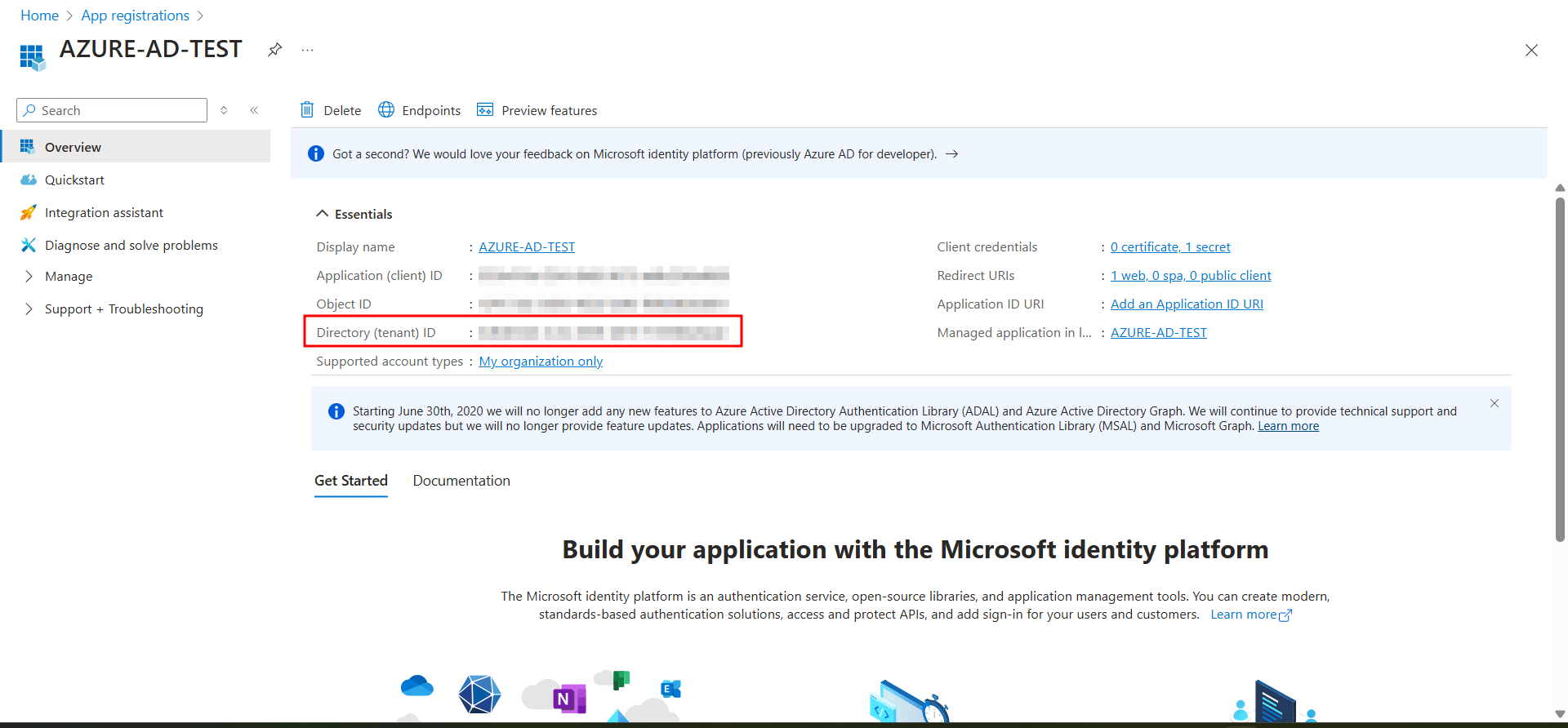

  • Replace <Tenant-ID> with your Directory (tenant) ID, found on the app's Overview page. image-20250406-161519.png

3. Provide the Details to AccuKnox

Once you've collected all the required information (Client ID, Secret, Endpoints, etc.), the next step is to provide it to AccuKnox to complete the SSO integration.

For AccuKnox SaaS Users

  • Share the details securely with the AccuKnox support team.

  • The team will configure the backend for your organization based on the provided information.

For AccuKnox On-Premise Users

User Invitation Process

Invite Azure Users to AccuKnox

  1. Log in to the AccuKnox SaaS console

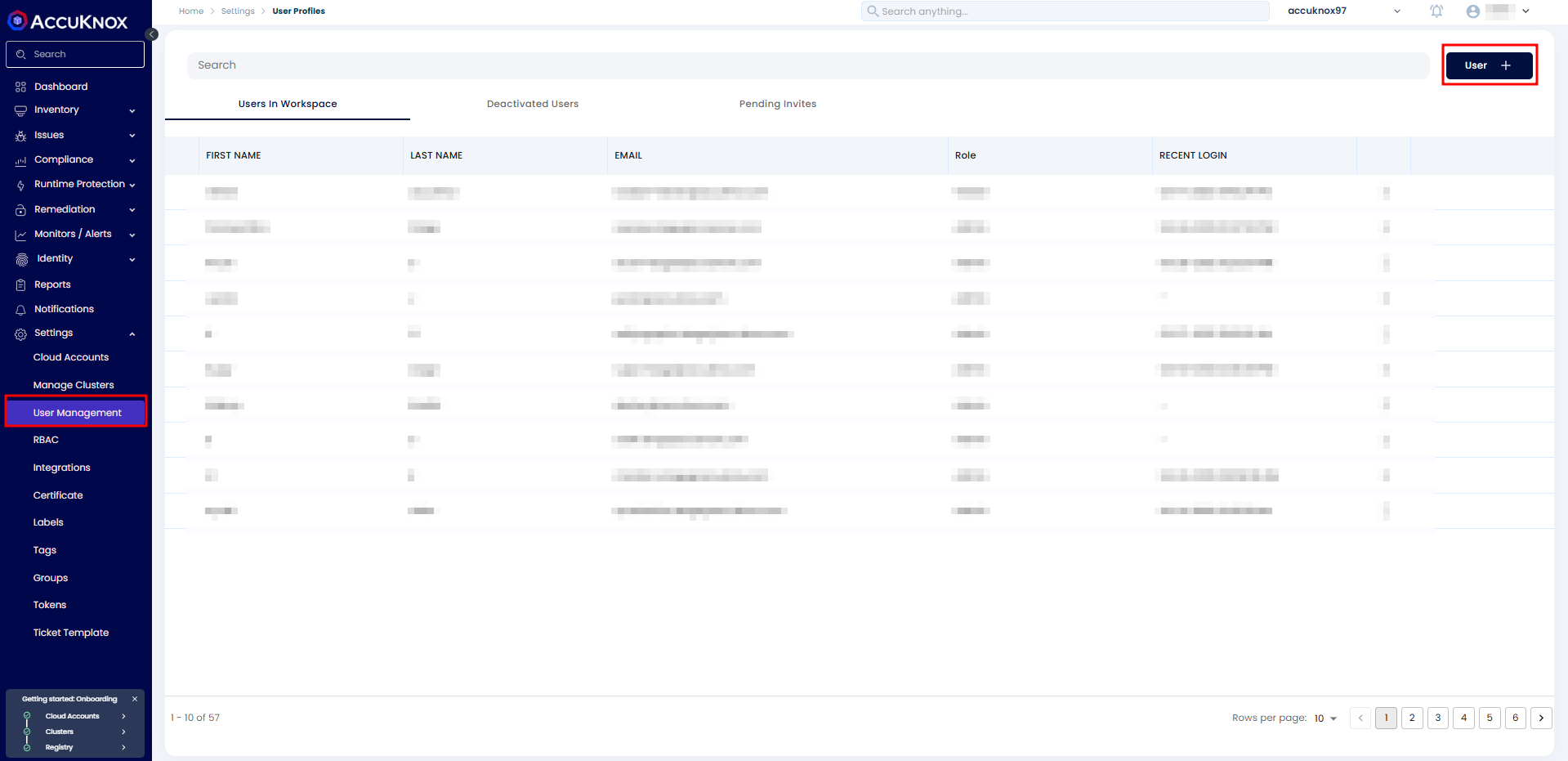

  2. Go to User Management > Invite User image-20250406-161759.png

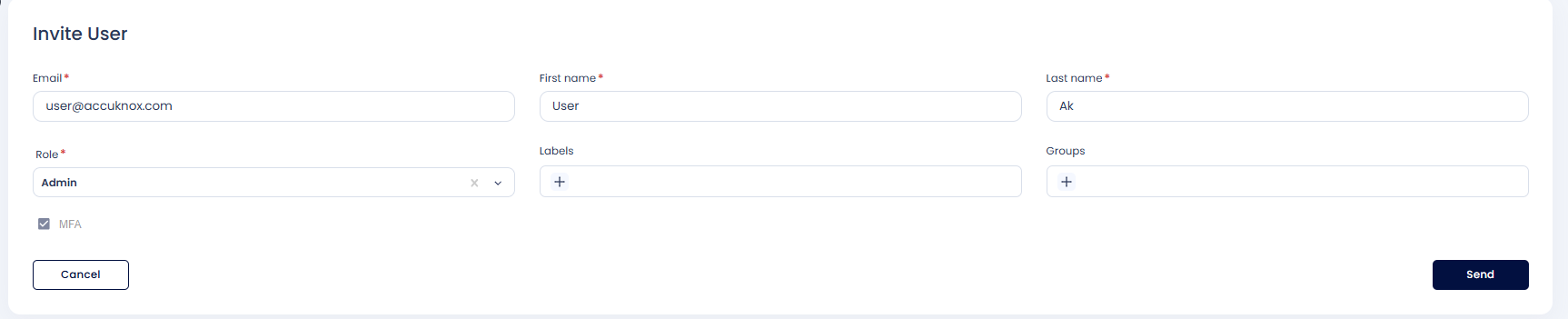

  3. Enter the email address of the user with other details and send invite. image-20250406-161925.png

Note

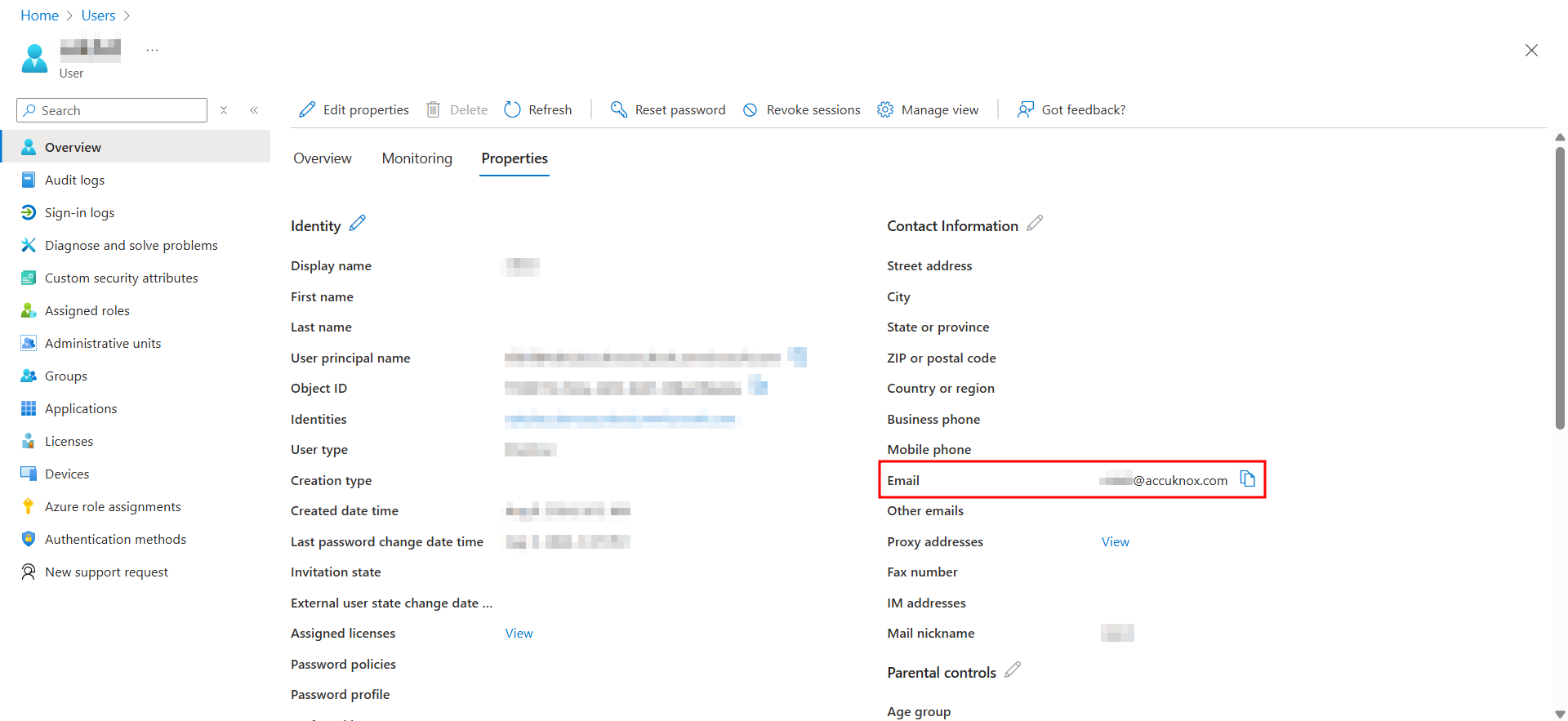

Ensure the invited Azure Entra user has their email field filled in under Contact Information in their Azure profile. The email must exactly match the one used during the AccuKnox invitation. image-20250406-162102.png

Logging in to AccuKnox via Azure Entra SSO

  1. Navigate to the AccuKnox Login Page

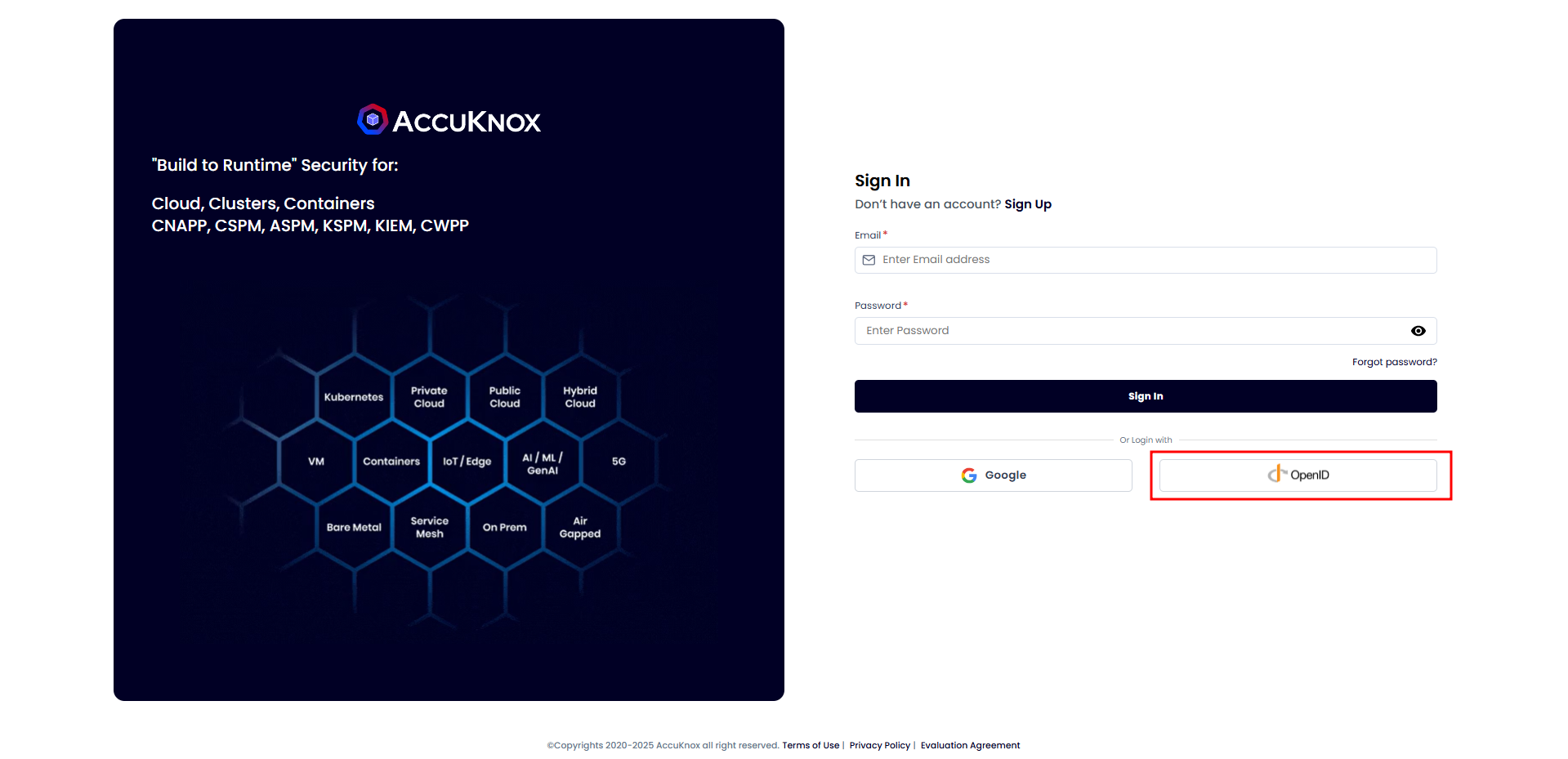

  2. Click OpenID image-20250406-162146.png

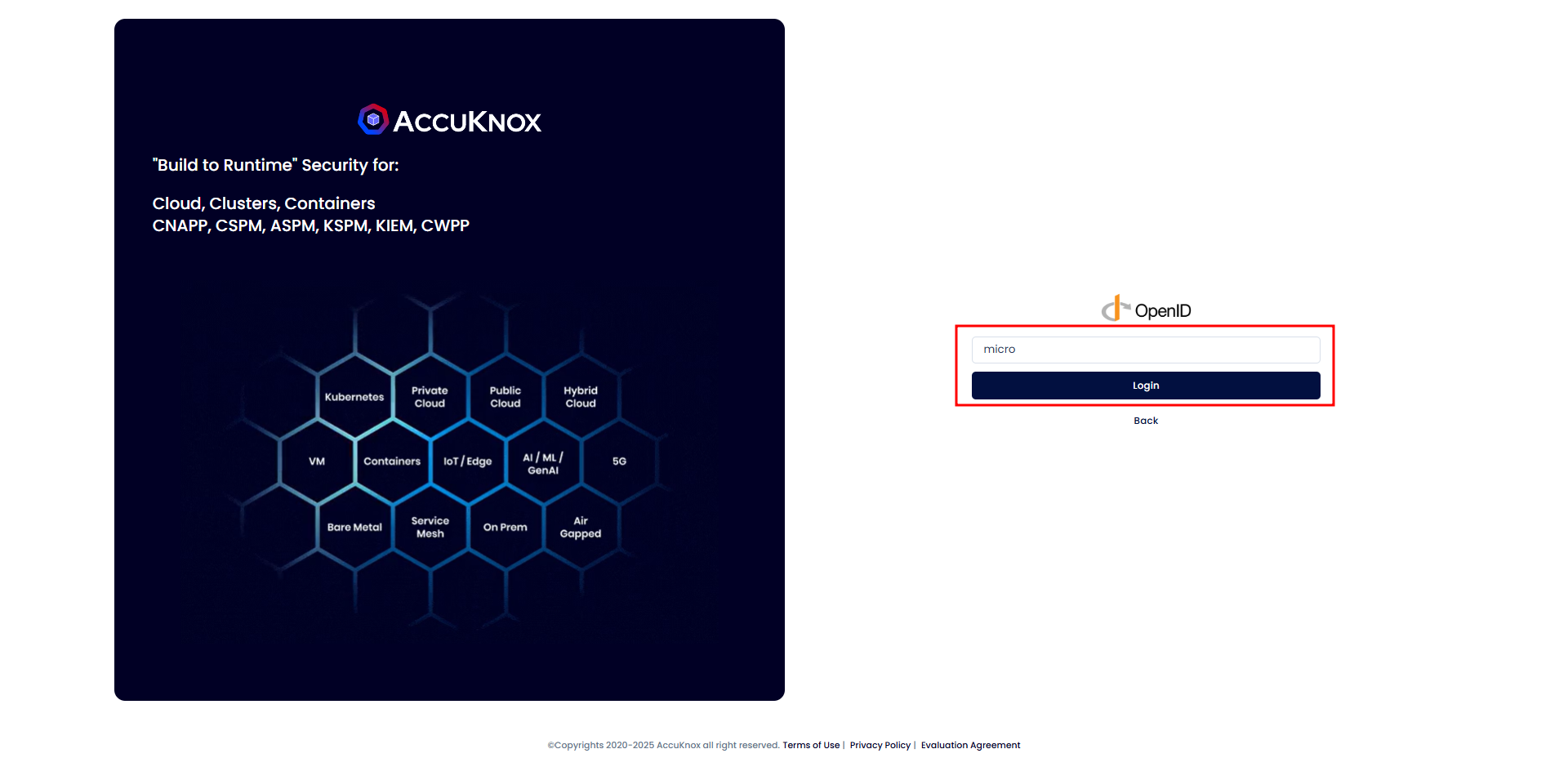

  3. Enter your organization name (as provided above) image-20250406-162406.png

  4. Finally Sign in using your Azure credentials
