Jenkins SAST

By integrating AccuKnox SAST with Jenkins, you can identify and resolve security vulnerabilities proactively during the CI/CD process. This guide provides step-by-step instructions for configuring the integration.

Prerequisites

  • AccuKnox Account: Ensure you have access to the AccuKnox UI.

  • Jenkins Access: Ensure Jenkins is installed and configured.

  • SonarQube Access: Access to SonarQube for scanning.

Step 1: Generate AccuKnox API Token

  1. Log into your AccuKnox account.

  2. Go to Settings > Tokens and click on the Create button. alt

  3. Provide a name for the token and click Generate. finalfinal.png

  4. Copy the generated token and the Tenant ID. alt

Step 2: Create a Label in AccuKnox

Labels in AccuKnox help group similar findings together.

  1. Navigate to Settings > Labels and click Create Label. alt

  2. Save the label and note it down.

Step 3: Generate SonarQube Token

  1. In SonarQube, Under Administrator > Security > Generate Tokens.

  2. Generate user token and copy it. alt

Step 4: Configure Secrets in Jenkins

  1. Go to Jenkins > Manage Jenkins > Manage Credentials. alt

  2. Add the following credentials as secrets:

    • TENANT_ID: Your AccuKnox tenant ID.

    • ACCUKNOX_TOKEN: The AccuKnox API token was created from AccuKnox SaaS.

    • LABEL: The label name was created in AccuKnox.

    • SQ_AUTH_TOKEN: SonarQube token. alt

Step 5: Configure Jenkins Pipeline

Create a Jenkins pipeline with the following stages to run a SAST scan and upload findings to AccuKnox.

pipeline {
    agent any
    environment {
        MAVEN_HOME = '/var/lib/jenkins/workspace/SAST-AccuKnox-Demo/apache-maven-3.9.4'
        WORKSPACE_DIR = '/var/lib/jenkins/workspace/SAST-AccuKnox-Demo'
        PROJECT_DIR = "$WORKSPACE_DIR/addressbook/addressbook_main"
    }
    stages {
        stage('CHECKOUT') {
            steps {
                checkout scmGit(branches: [[name: '*/main']], extensions: [], userRemoteConfigs: [[url: '<https://github.com/udit-uniyal/Devops.git']])>
            }
        }
        stage('Install Maven Build Tool') {
            steps {
                sh 'wget <https://dlcdn.apache.org/maven/maven-3/3.9.4/binaries/apache-maven-3.9.4-bin.tar.gz'>
                sh 'tar -xzvf $WORKSPACE_DIR/apache-maven-3.9.4-bin.tar.gz'
            }
        }
        stage('Compile Application') {
            steps {
                dir(PROJECT_DIR) {
                    sh '$MAVEN_HOME/bin/mvn compile'
                }
            }
        }
        stage('Test Application') {
            steps {
                dir(PROJECT_DIR) {
                    sh '$MAVEN_HOME/bin/mvn test'
                }
            }
        }
        stage('SonarQube Analysis') {
            steps {
                dir(PROJECT_DIR) {
                    withSonarQubeEnv(credentialsId: 'sq-auth-latest', installationName: 'sonarqube-scan') {
                        sh "$MAVEN_HOME/bin/mvn clean verify sonar:sonar -Dsonar.projectKey=vulnerable-project"
                    }
                }
            }
        }
        stage('Run Docker Container') {
            steps {
                dir(WORKSPACE_DIR) {
                    withCredentials([string(credentialsId: 'sq-token', variable: 'SQ_AUTH_TOKEN')]) {
                        sh '''
                            docker run --rm \
                              -e SQ_URL=<https://sq.accuknox.com/> \
                              -e SQ_AUTH_TOKEN=$SQ_AUTH_TOKEN \
                              -e REPORT_PATH=/app/data/ \
                              -e SQ_PROJECTS="^vulnerable-project$" \
                              -v $PWD:/app/data/ \
                             accuknox/sastjob:latest
                        '''
                    }
                }
            }
        }
        stage('Pushing results to AccuKnox') {
            steps {
                dir(WORKSPACE_DIR) {
                    withCredentials([
                        string(credentialsId: 'accuknox-token', variable: 'ACCUKNOX_TOKEN'),
                        string(credentialsId: 'tenant-id', variable: 'TENANT_ID'),
                        string(credentialsId: 'label', variable: 'LABEL')
                    ]) {
                        sh '''
                            for file in SQ-*.json; do
                                curl --location --request POST "<https://cspm.demo.accuknox.com/api/v1/artifact/?tenant_id=$TENANT_ID&data_type=SQ&label_id=$LABEL&save_to_s3=false>" \
                                     --header "Tenant-Id: $TENANT_ID" \
                                     --header "Authorization: Bearer $ACCUKNOX_TOKEN" \
                                     --form "file=@$file"
                            done
                        '''
                    }
                }
            }
        }
    }
}

Pipeline Explanation

  • CHECKOUT: Fetches code from the Git repository.

  • Install Maven Build Tool: Installs Maven for building the project.

  • Compile Application: Compiles the application source code.

  • Test Application: Runs tests on the application code.

  • SonarQube Analysis: Analyzes the code with SonarQube.

  • Pushing results to AccuKnox: Uploads SAST findings to AccuKnox.

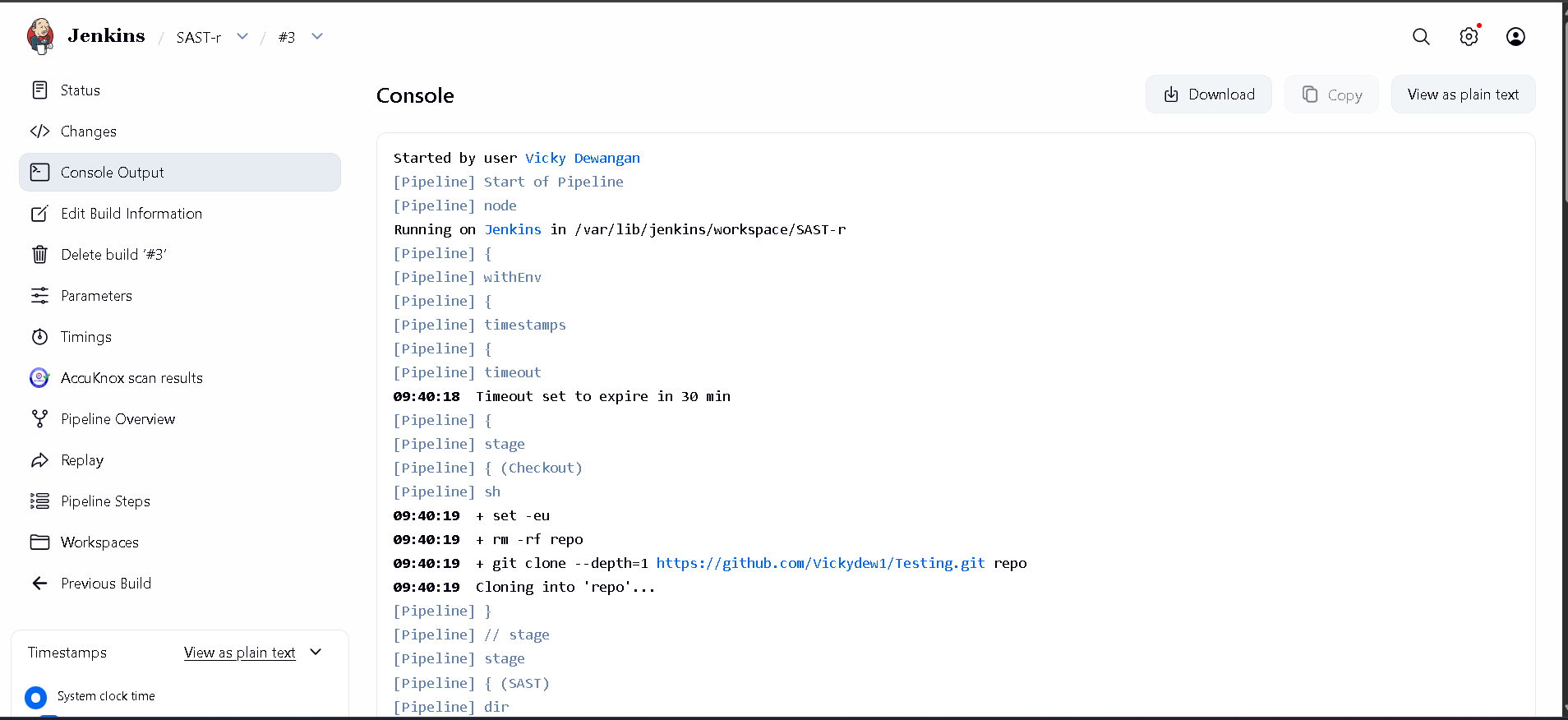

Jenkins console output after successful execution: alt

Step 6: View Findings in AccuKnox

  1. Go to AccuKnox > Issues > Findings.

  2. Select Static Code Analysis Findings to see your results. alt

  3. Click on a finding for more details and use the Create Ticket button to create a ticket. alt
