Integrating SonarQube SAST with AccuKnox in Azure DevOps

This guide shows how to integrate SonarQube SAST scanning into an Azure DevOps Pipeline and automatically forward results to AccuKnox for analysis and mitigation.

Prerequisites

• Azure DevOps Access: Access to your Azure DevOps project where the pipeline will be implemented.

• An active AccuKnox account.

• SonarQube Access: API tokens and project details for performing SAST scans.

Integration Steps

Step 1: Install AccuKnox SonarQube SAST Extension

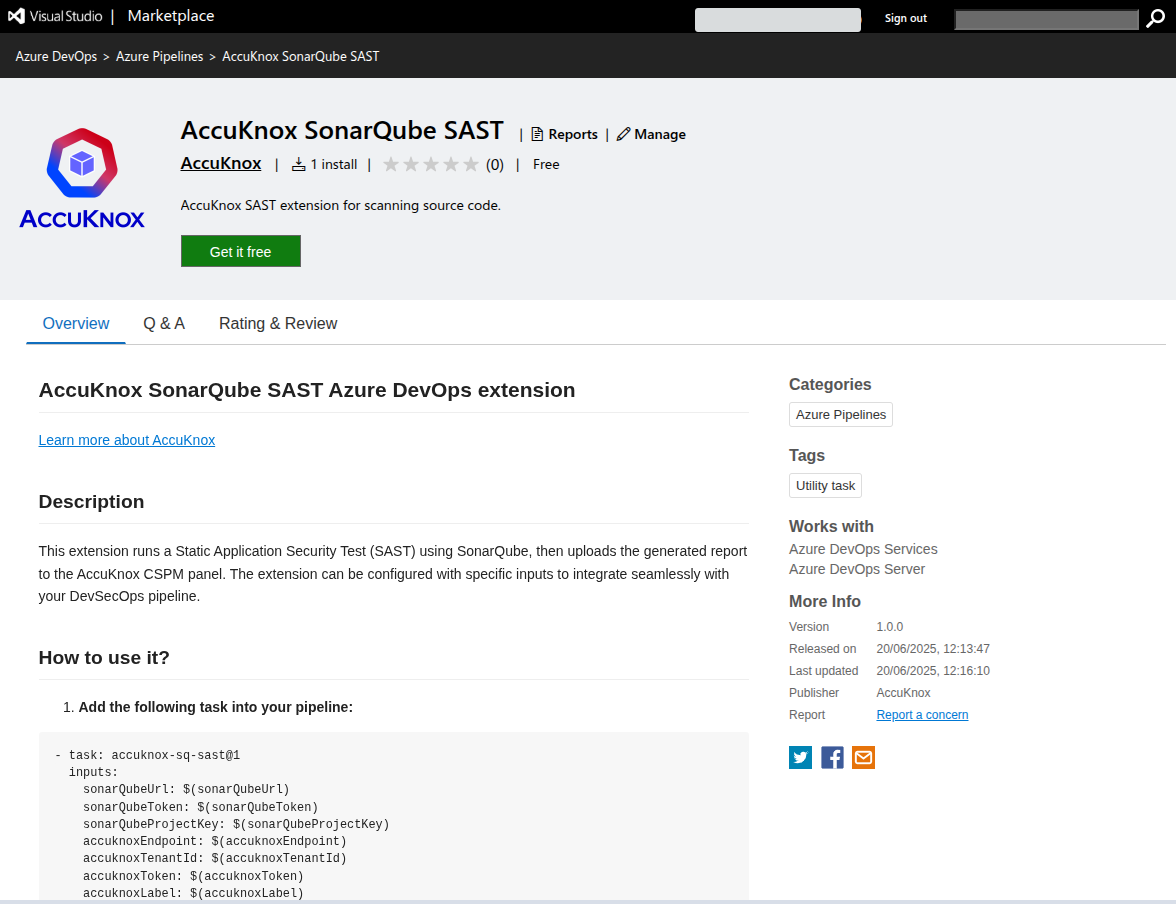

1. Visit the Azure DevOps Marketplace

2. Search for AccuKnox SonarQube SAST and select Get it free to add to your Azure DevOps organization.

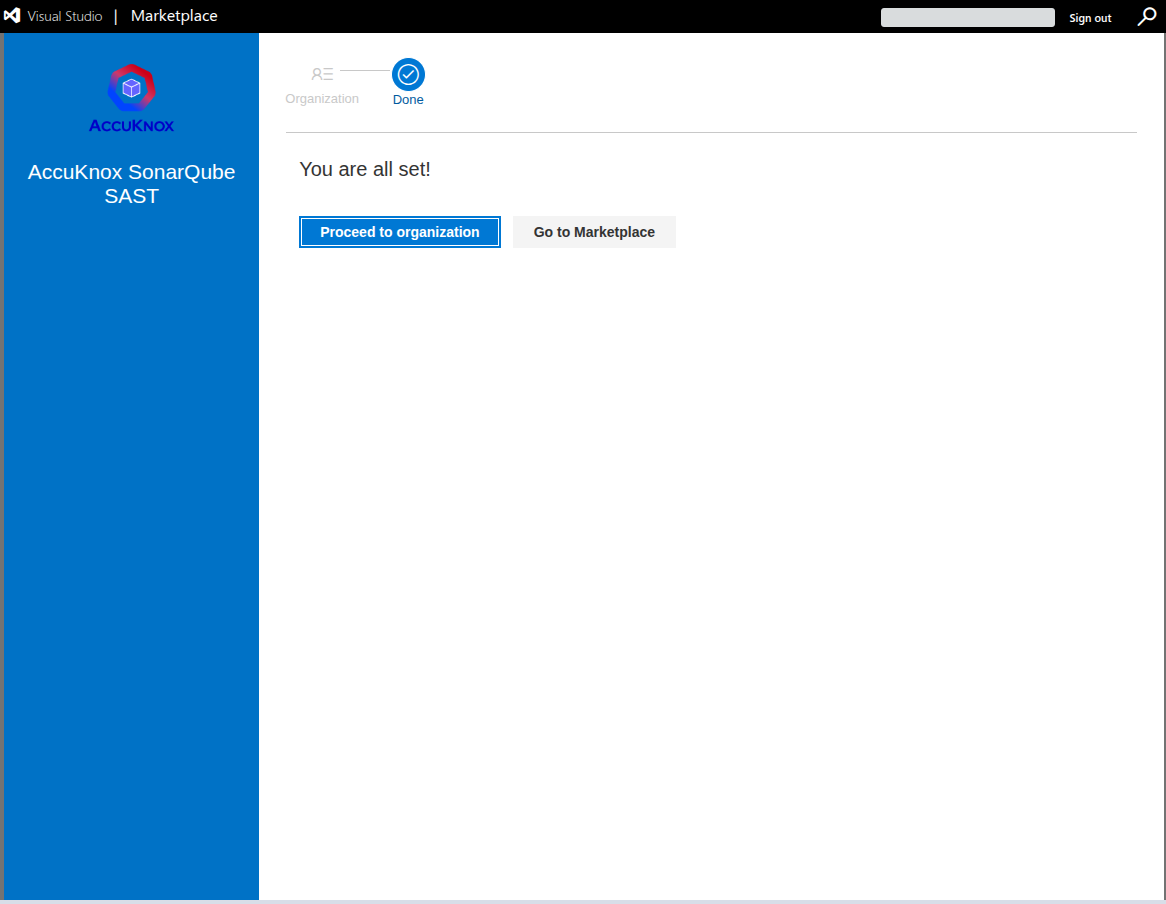

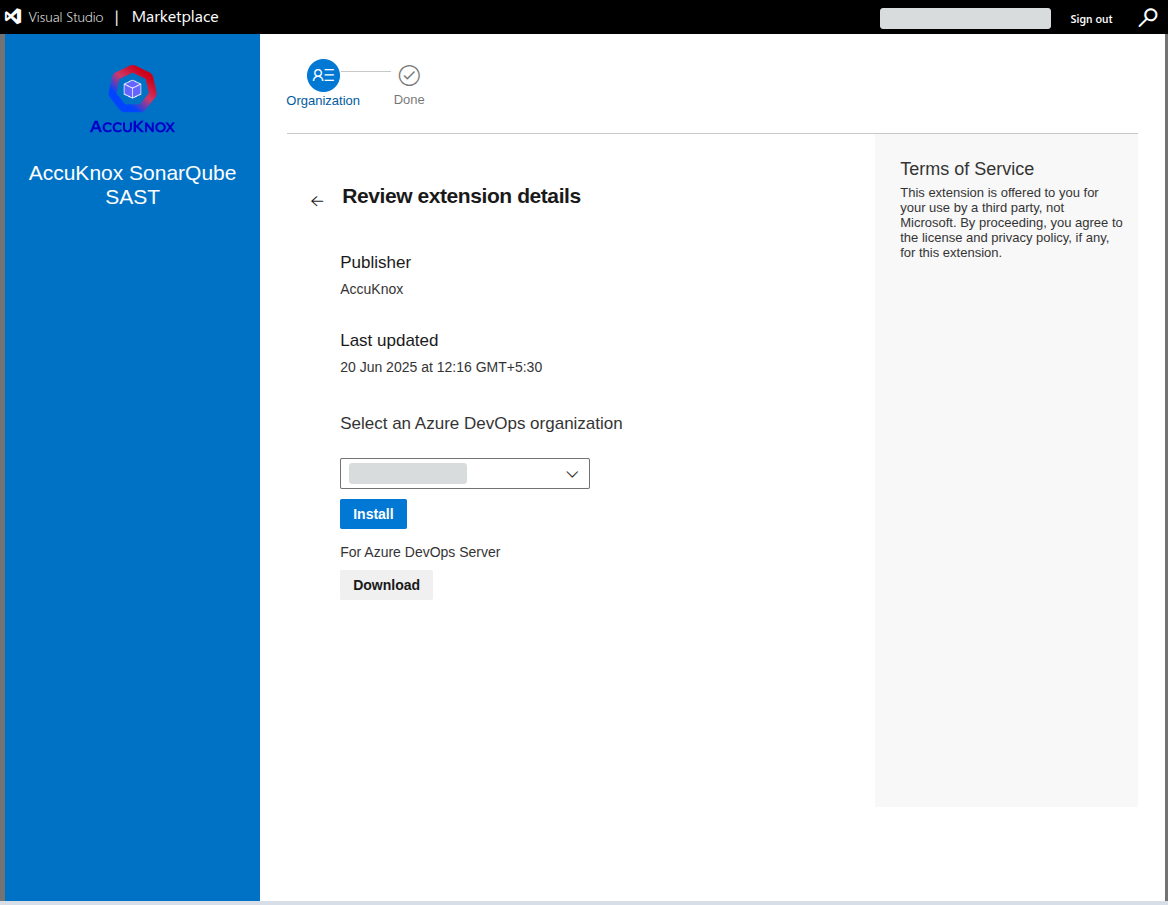

3. Choose your Azure organization and click Install.

4. Once installed, the AccuKnox SAST extension will be available in your pipeline.

Step 2: Configure Azure DevOps Pipeline Variables

1. Navigate to your Azure DevOps project.

2. Go to Project Settings > Pipelines > Library and click + Variable Group.

3. Add the following variables:

Name	Description
accuknoxEndpoint	The URL of the CSPM panel to push the scan results to (e.g., cspm.demo.accuknox.com).
accuknoxTenantId	The ID of the tenant associated with the CSPM panel.
accuknoxToken	Token for authenticating with the AccuKnox CSPM panel. Refer to How to Create Tokens.
accuknoxLabel	The label used to categorize and identify scan results in AccuKnox. Refer to How to Create Labels.
sonarQubeUrl	URL of the SonarQube server.
sonarQubeToken	User API token for SonarQube authentication.
sonarQubeProjectKey	SonarQube project key.

Step 3: Define Azure DevOps Pipeline

In your Azure repo, create/update your pipeline YAML (azure-pipelines.yml) and add the following task to your pipeline's steps section:

steps:-
- task: accuknox-sq-sast@1
  inputs:
    sonarQubeUrl: 'https://sonarcloud.io'
    sonarQubeToken: '$(sonarQubeToken)'
    sonarQubeProjectKey: '<sonarQubeProjectKey>'
    sonarQubeOrganizationId: '<sonarQubeOrganizationId>'
    accuknoxEndpoint: '<accuknoxEndpoint>'
    accuknoxTenantId: '<accuknoxTenantId>'
    accuknoxToken: '$(accuknoxToken)'
    accuknoxLabel: '<accuknoxLabel>'

Inputs for AccuKnox SonarQube SAST Task

Input Value	Required	Default Value	Description
sonarQubeUrl	Yes	None	URL of the SonarQube server. eg. https://sonarqube.example.com
sonarQubeToken	Yes	None	SonarQube user token.
sonarQubeProjectKey	Yes	None	Project key of your SonarQube project.
sonarQubeOrganizationId	No	None	Required only for SonarQube Cloud users
accuknoxEndpoint	Yes	None	AccuKnox domain for sending DAST report. eg. cspm.demo.accuknox.com, cspm.accuknox.com
accuknoxTenantId	Yes	None	Your AccuKnox tenant ID. You can see your tenant ID while creating an AccuKnox token.
accuknoxToken	Yes	None	AccuKnox API token.
accuknoxLabel	Yes	None	AccuKnox label to group similar findings together.
qualityGate	No	false	Quality gate check to fail the build if the quality gate fails. Value should be boolean.
skipSonarQubeScan	No	false	Skip SonarQube scan, for advanced users. Value should be boolean.

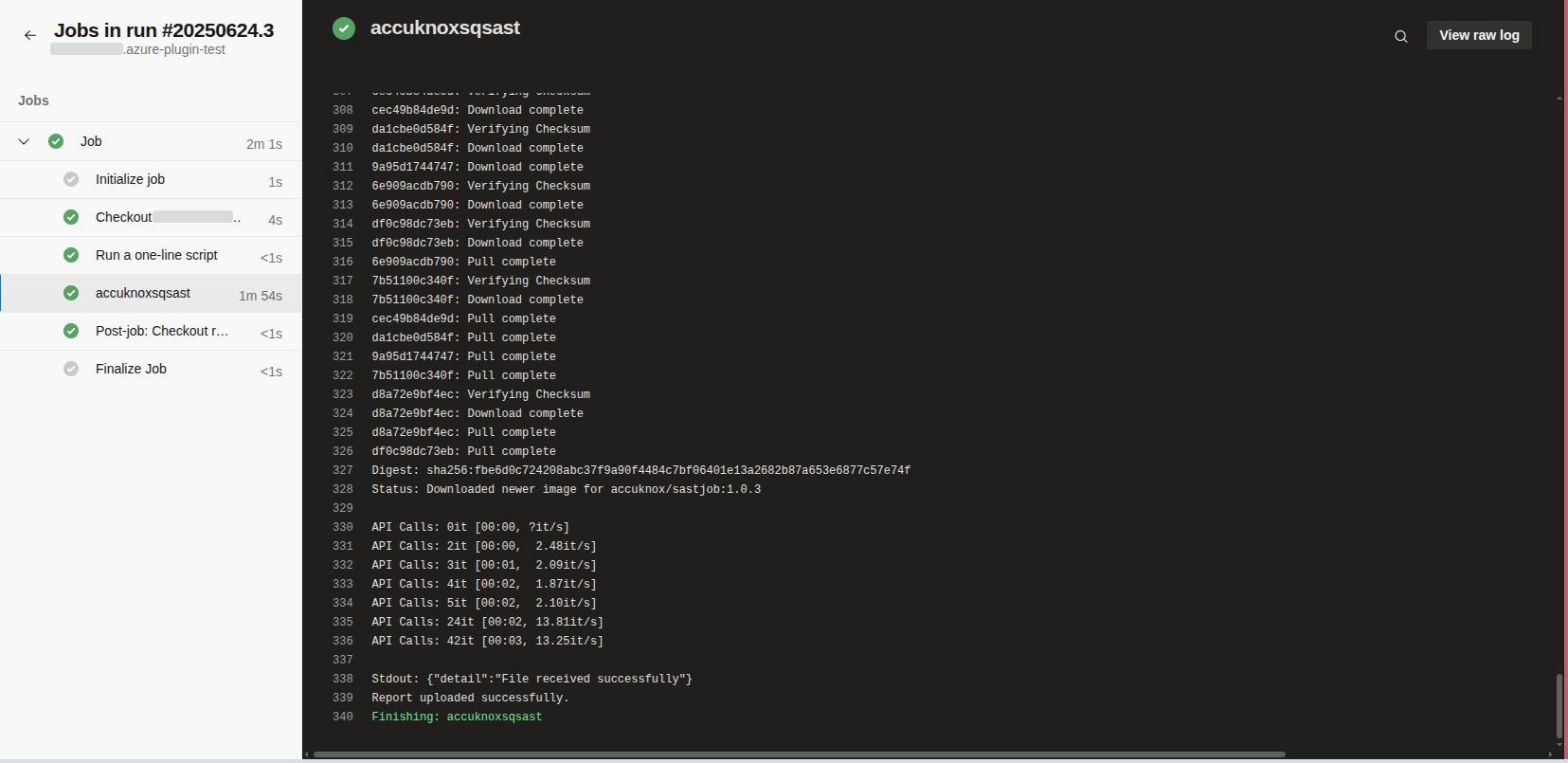

How It Works

1. SonarQube SAST Scan: The extension runs a SAST scan on the specified project using SonarQube.

2. Generate Report: A report is generated based on the scan results.

3. Upload to AccuKnox: The generated report is uploaded to AccuKnox SaaS for centralized monitoring and detailed analysis.

4. Quality Gate Check: The pipeline checks if the project meets the quality standards defined in SonarQube.

Viewing Results in AccuKnox

1. After the pipeline run, log in to AccuKnox.

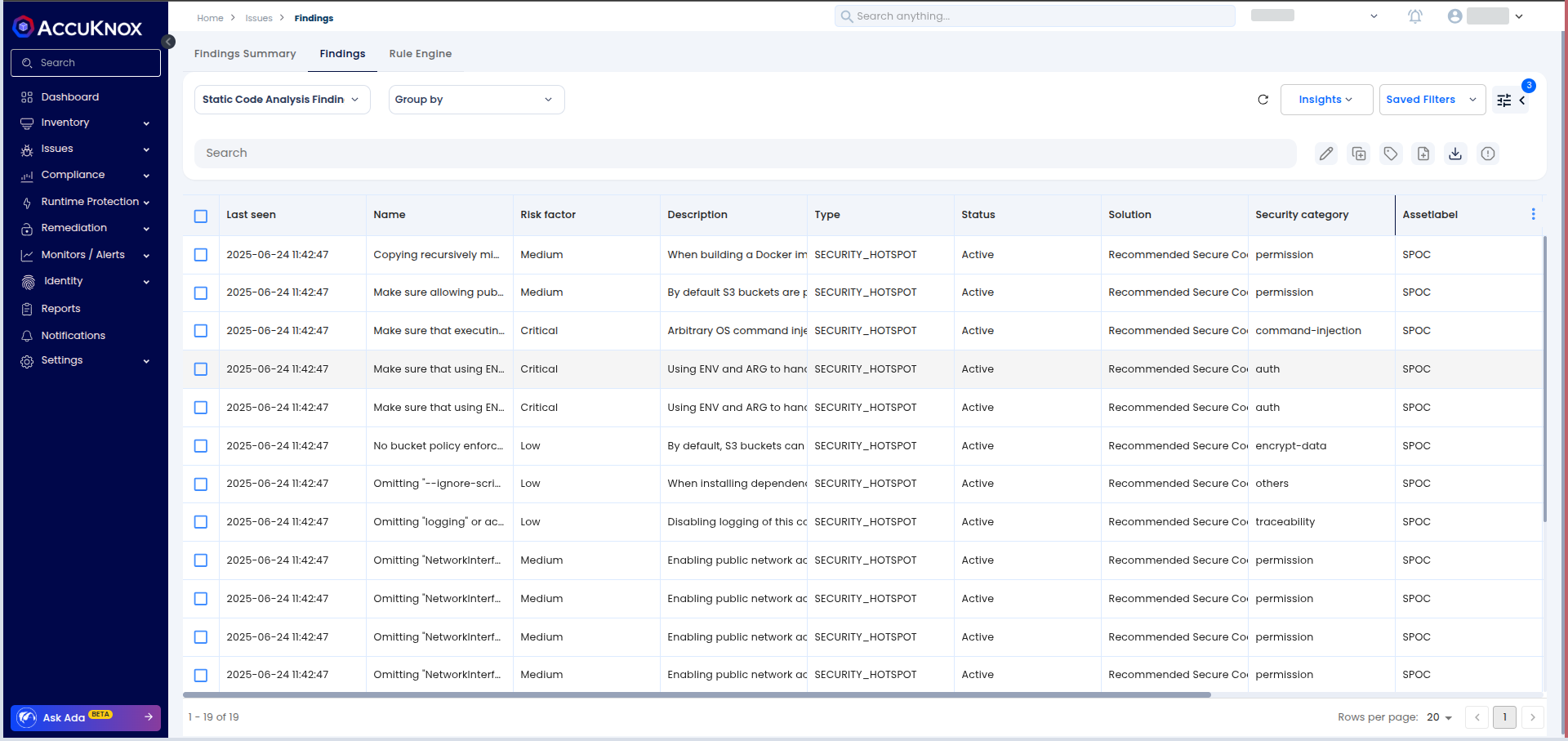

2. Go to Issues > Findings and select SAST Findings.

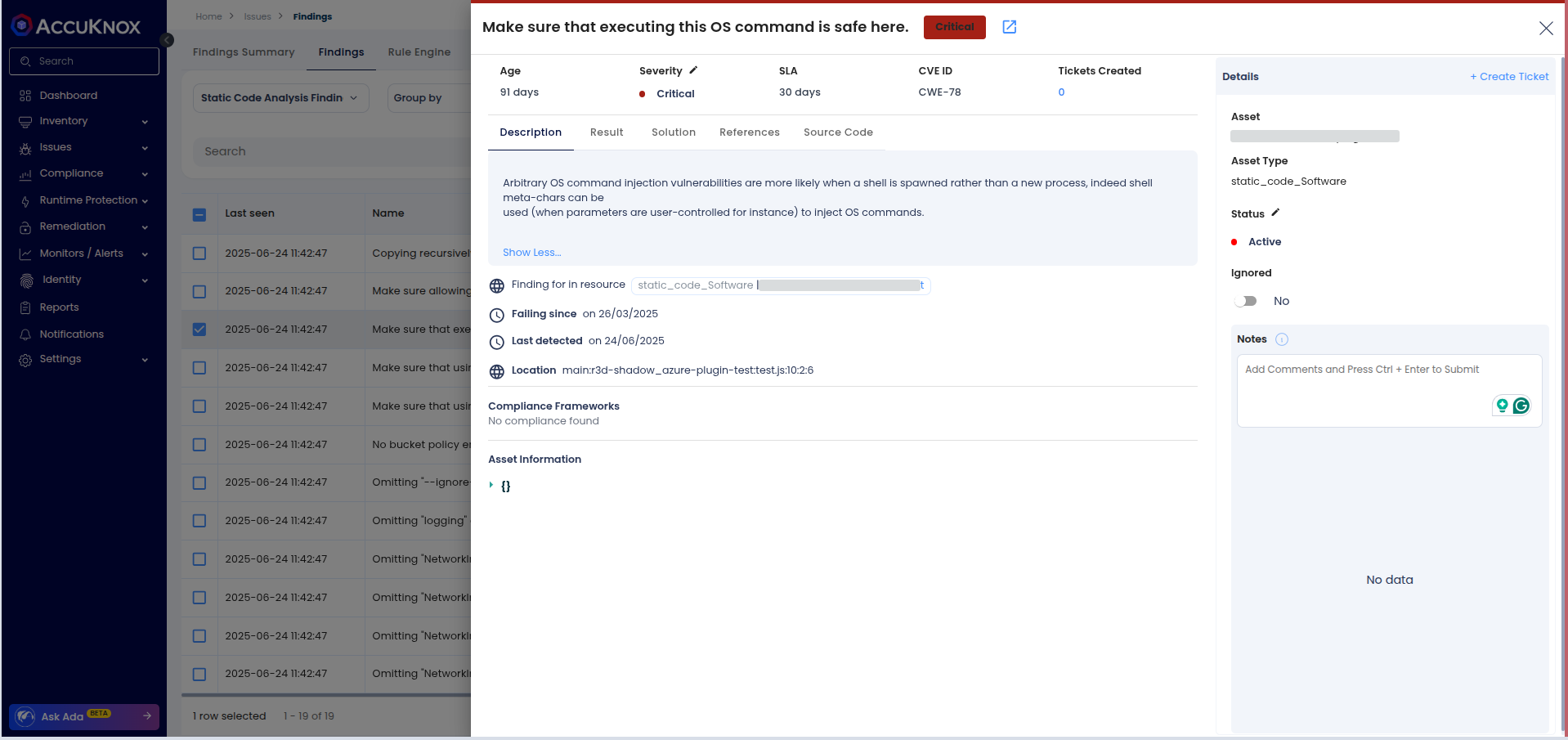

3. Inspect vulnerabilities, apply fixes, and create tracking tickets if necessary.

Benefits of Integration

• Centralized Monitoring: All vulnerabilities across projects are visible in the AccuKnox dashboard.

• Early Detection: Identify security issues early in the development lifecycle.

• Remediation Guidance: Leverage actionable remediation insights provided by AccuKnox.

• Seamless Integration: Easily integrates into Azure DevOps pipelines.

By using the AccuKnox SonarQube SAST Azure DevOps Extension, you can ensure secure code practices in your CI/CD pipelines while leveraging the power of centralized vulnerability management with AccuKnox.
