Checkmarx SAST Integration

Introduction

This guide walks you through integrating Checkmarx Static Application Security Testing (SAST) scans with AccuKnox using a CI/CD pipeline workflow. The scan results, formatted in SARIF, will be enriched with metadata and code snippets and then integrated with AccuKnox for further analysis.

Pre-requisites

• GitHub repository with the appropriate permissions.

• Checkmarx AST API credentials (Client ID, Client Secret, Tenant ID).

• AccuKnox CSPM credentials (Tenant ID, CSPM URL, Token).

Step 1: Obtain Checkmarx and AccuKnox Credentials

Getting Checkmarx Credentials

1. Login to the Checkmarx AST Platform.

2. Navigate to the API Access Management section.

3. Create a new API client, and note the Client ID, Client Secret, and Tenant ID.

Getting AccuKnox Credentials

1. Generate the AccuKnox token

The first step is to generate an AccuKnox token. For generating the AccuKnox token, open up the AccuKnox, Go to Settings > Tokens then click on the create button.

Give your token a name and click on the Generate button.

Once you have generated the the token, click on the copy button and take a note of it. It will be required to configured as a variable in the pipeline. Also copy the Tenant Id and take a note of it.

2. Create a label

In AccuKnox, labels are used for grouping the similar types of assets together. For creating a label navigate to the Settings > Labels and click on the create label button.

Give your label a name and a filename prefix. Take a note of the label and click on the save button.

Step 2: Configure GitHub Workflow

In your GitHub repository, create a workflow file (e.g., .github/workflows/checkmarx-accuknox.yml) with the following content:

	name: Checkmarx Sarif Integration
	on:
	push:
	branches: [ "master" ]
	pull_request:
	branches: [ "master" ]
	schedule:
	- cron: '18 2 * * 5'
	permissions:
	security-events: write
	contents: read
	jobs:
	build:
	runs-on: ubuntu-latest
	steps:
	- name: Checkout repository
	uses: actions/checkout@v2
	- name: Checkmarx scan
	uses: checkmarx/ast-github-action@main
	with:
	base_uri: <https://deu.iam.checkmarx.net/>
	cx_client_id: ${{ secrets.CX_CLIENT_ID }}
	cx_client_secret: ${{ secrets.CX_CLIENT_SECRET }}
	cx_tenant: ${{ secrets.CX_TENANT }}
	additional_params: --report-format sarif --output-path .
	- name: Fix SARIF file levels
	run: |
	jq 'walk(if type == "object" and has("level") then .level |= (if . == "none" or . == "note" or . == "warning" or . == "error" then . else "note" end) else . end)' cx_result.sarif > tmp.sarif && mv tmp.sarif cx_result.sarif
	- name: Append GitHub metadata to SARIF
	env:
	GITHUB_REPOSITORY: ${{ github.repository }}
	GITHUB_SHA: ${{ github.sha }}
	GITHUB_REF: ${{ github.ref }}
	GITHUB_RUN_ID: ${{ github.run_id }}
	GITHUB_RUN_NUMBER: ${{ github.run_number }}
	SOURCE: "GitHub"
	run: |
	GITHUB_URL="${{ github.server_url }}/${{ github.repository }}"
	GITHUB_RUN_URL="${{ github.server_url }}/${{ github.repository }}/actions/runs/${{ github.run_id }}"
	jq --arg repo "$GITHUB_REPOSITORY" \
	--arg sha "$GITHUB_SHA" \
	--arg ref "$GITHUB_REF" \
	--arg run_id "$GITHUB_RUN_ID" \
	--arg run_number "$GITHUB_RUN_NUMBER" \
	--arg github_url "$GITHUB_URL" \
	--arg github_run_url "$GITHUB_RUN_URL" \
	--arg source "$SOURCE" \
	'.runs[0].invocations += [{
	"executionSuccessful": true,
	"toolExecutionNotifications": [],
	"toolConfigurationNotifications": [],
	"properties": {
	"repository": $repo,
	"commit": $sha,
	"ref": $ref,
	"workflow_run_id": $run_id,
	"workflow_run_number": $run_number,
	"repository_url": $github_url,
	"workflow_run_url": $github_run_url,
	"source": $source
	}
	}]' cx_result.sarif > tmp.sarif && mv tmp.sarif cx_result.sarif
	- name: Extract and Embed Code Snippets in SARIF using Python
	id: embed_snippets
	run: |
	python3 <<EOF
	import os
	import json
	def get_code_snippet(lines, start_line, start_column, end_column):
	start_line = max(start_line - 3, 0) # Start from 3 lines before or 0
	end_line = min(start_line + 5, len(lines)) # End 2 lines after the snippet
	snippet_lines = lines[start_line:end_line]
	highlighted_snippet = []
	for i, line in enumerate(snippet_lines):
	line_number = start_line + i + 1 # Correct line number offset
	if line_number == start_line: # Highlight the start line
	highlighted_snippet.append(
	line[:start_column - 1] +
	"<<<HIGHLIGHT>>>" +
	line[start_column - 1:end_column] +
	"<<<END_HIGHLIGHT>>>" +
	line[end_column:]
	)
	else:
	highlighted_snippet.append(line)
	snippet_with_comments = "// Start of snippet\n"
	snippet_with_comments += "".join(highlighted_snippet)
	snippet_with_comments += "// End of snippet\n"
	return snippet_with_comments
	def process_sarif_file(sarif_path):
	with open(sarif_path, "r") as sarif_file:
	sarif_data = json.load(sarif_file)
	for run in sarif_data.get("runs", []):
	for result in run.get("results", []):
	for location in result.get("locations", []):
	physical_location = location.get("physicalLocation", {})
	artifact_location = physical_location.get("artifactLocation", {})
	region = physical_location.get("region", {})
	uri = artifact_location.get("uri")
	start_line = region.get("startLine")
	start_column = region.get("startColumn")
	end_column = region.get("endColumn")
	if uri and start_line and start_column and end_column:
	file_path = os.path.join(".", uri.lstrip("./"))
	try:
	with open(file_path, "r") as source_file:
	lines = source_file.readlines()
	snippet_with_comments = get_code_snippet(
	lines, start_line, start_column, end_column
	)
	region["snippet"] = {
	"text": snippet_with_comments
	}
	except FileNotFoundError:
	print(f"Failed to process file {file_path}: File not found.")
	except Exception as e:
	print(f"Failed to process file {file_path}: {e}")
	with open("tmp_sarif_with_snippets.sarif", "w") as output_file:
	json.dump(sarif_data, output_file, indent=2)
	process_sarif_file("cx_result.sarif")
	EOF
	- name: Upload SARIF file with code snippets
	uses: actions/upload-artifact@v3
	with:
	name: sarif-results-with-snippets
	path: tmp_sarif_with_snippets.sarif
	- name: Push SARIF file to AccuKnox
	run: |
	curl --location '${{ secrets.CSPM_URL }}/api/v1/artifact/?tenant_id=${{ secrets.TENANT_ID }}&data_type=CMX&save_to_s3=true&label_id=${{ secrets.LABEL_ID }}' \
	--header 'Tenant-Id: ${{ secrets.TENANT_ID }}' \
	--header 'Authorization: Bearer ${{ secrets.CSPM_TOKEN }}' \
	--form 'file=@./tmp_sarif_with_snippets.sarif'

view raw checkmarx-accuknox.yml hosted with ❤ by GitHub

Step 3: Set Up GitHub Secrets

Ensure the following secrets are configured in your GitHub repository under Settings > Secrets and Variables:

• CX_CLIENT_ID: Checkmarx Client ID

• CX_CLIENT_SECRET: Checkmarx Client Secret

• CX_TENANT: Checkmarx Tenant ID

• CSPM_URL: AccuKnox CSPM URL

• TENANT_ID: AccuKnox Tenant ID

• LABEL_ID: AccuKnox Label ID

• CSPM_TOKEN: AccuKnox CSPM API Token

Step 4: Running the Workflow

1. Push changes to the repository's master branch or open a pull request.

2. The Checkmarx scan runs, generating a SARIF file.

3. The workflow enriches the SARIF file with metadata and code snippets, then uploads it to AccuKnox for analysis.

Step 5: View findings in AccuKnox

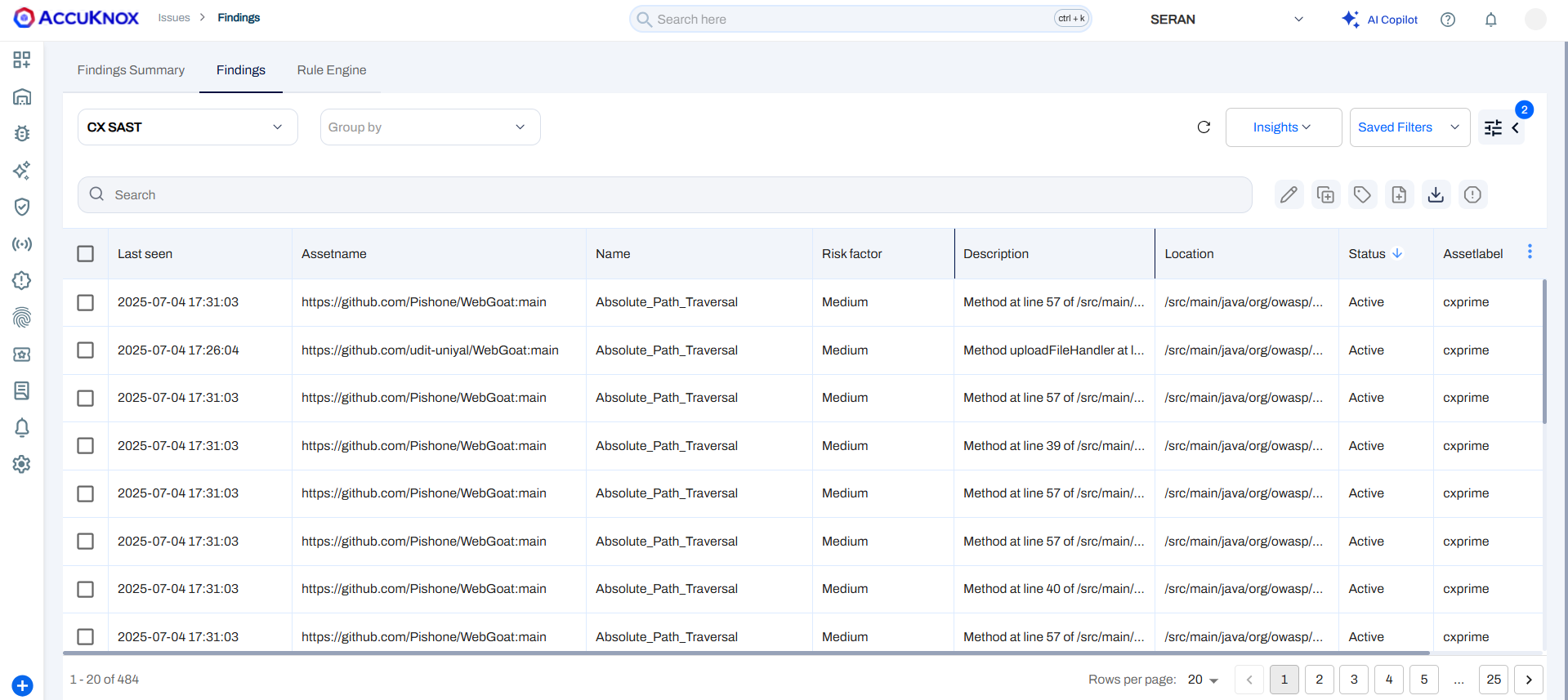

To see your findings navigate to AccuKnox > Issues > Findings and select the CX SAST findings.

Click on any finding to get more details. You can also click on the Create Ticket button to create a ticket.

Conclusion

By following this guide, you've successfully integrated Checkmarx SAST scans into your CI/CD pipeline and connected them with AccuKnox for further insights. You can now analyze and prioritize vulnerabilities within the AccuKnox dashboard
