SonarQube Static Application Security Testing (SQ-SAST) Integration using AccuKnox CircleCI Plugin

This section details the integration of SonarQube-based Static Application Security Testing (SAST) into your CircleCI pipeline using the AccuKnox CircleCI plugin. This integration allows you to statically analyze your source code for vulnerabilities and automatically forward the results to AccuKnox for centralized visibility and triage.

Prerequisites

Before integrating, ensure you have the following in place:

• A running instance of SonarQube or SonarCloud.
• A configured project in SonarQube.
• A CircleCI project connected to your repository.
• Admin access to manage CircleCI Contexts or Environment Variables.
• Access to the AccuKnox Console.

Step 1: Generate Tokens

You'll need to generate API tokens from both SonarQube and AccuKnox.

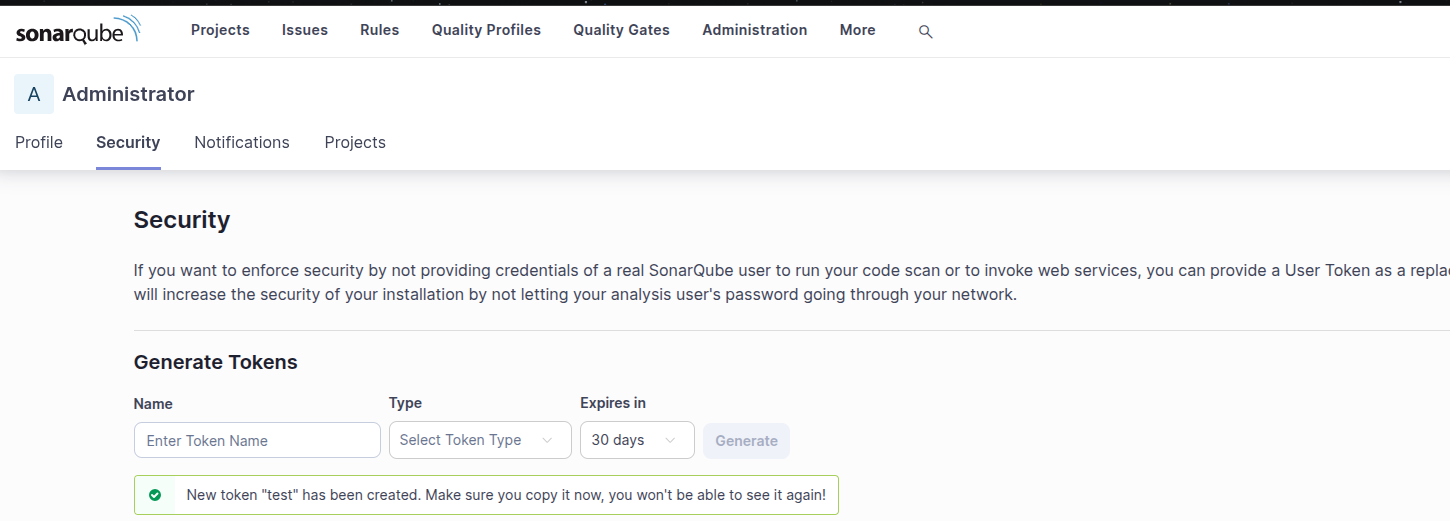

In SonarQube:

1. Go to My Account → Security.
2. Generate a SONAR_TOKEN (user token).

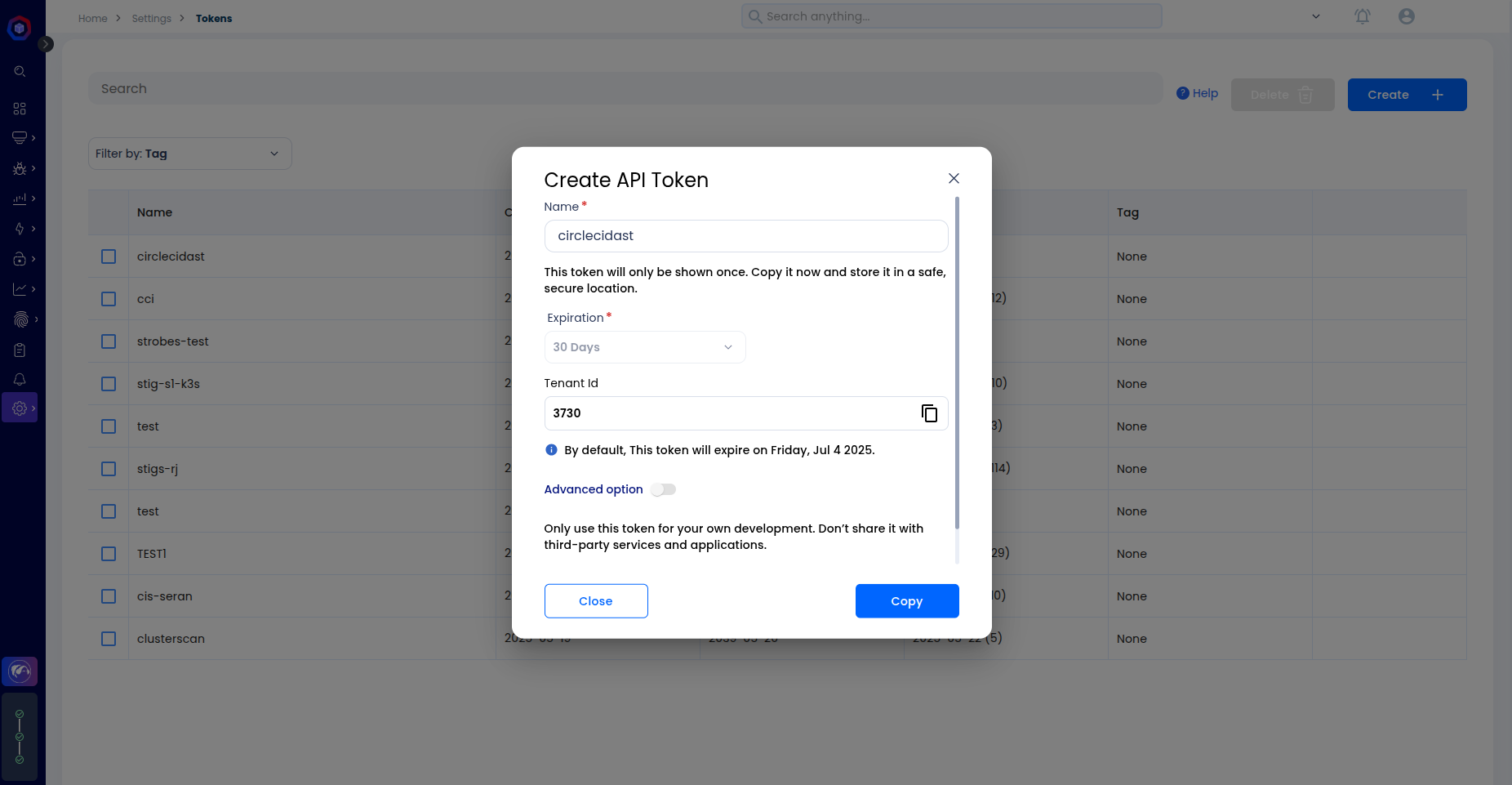

In AccuKnox:

1. Log into your AccuKnox Console.
2. Navigate to Settings → Tokens.
3. Create a new token to securely send scan results from CircleCI to AccuKnox. For detailed instructions, refer to the "How to Create Tokens" documentation.

Step 2: Configure Environment Variables in CircleCI

You can configure environment variables using either CircleCI Contexts (recommended) or Project-level Environment Variables.

Required Environment Variables

Here are the variables you'll need to set:

SonarQube Variables

Variable	Description
SONAR_TOKEN	User token from SonarQube
SONAR_HOST_URL	SonarQube instance URL
SONAR_PROJECT_KEY	Unique project key in SonarQube
SONAR_ORG_ID	Required for SonarCloud Enterprise

AccuKnox Variables

Variable	Description
ACCUKNOX_TOKEN	API Token from AccuKnox Console
ACCUKNOX_ENDPOINT	AccuKnox API endpoint (e.g., https://cspm.demo.accuknox.com)
ACCUKNOX_TENANT	Your tenant ID in AccuKnox
ACCUKNOX_LABEL	Logical label to group scan results

Option A: Using CircleCI Contexts (Recommended)

1. Go to Organization Settings → Contexts.
2. Create a new context (e.g., sonarqube-accuknox-context).
3. Add all the SonarQube and AccuKnox variables listed above to this new context.
4. Attach the context to your job as shown in Step 3.

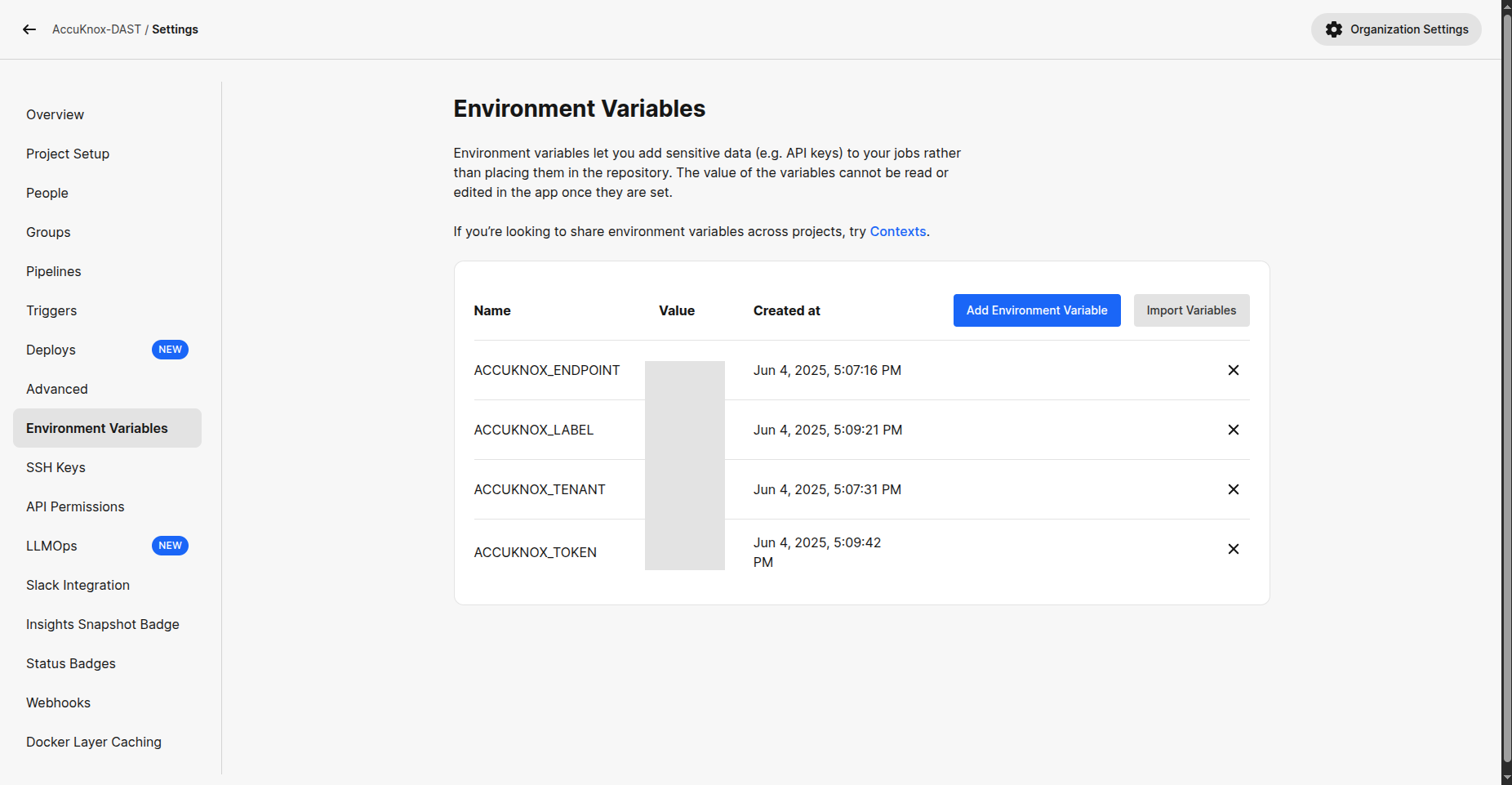

Option B: Project-Level Variables

1. Navigate to Project Settings → Environment Variables.
2. Add the same set of variables under the project settings.

Step 3: Update CircleCI Configuration

Add the sq-sast job to your .circleci/config.yml file and attach the context:

version: 2.1

orbs:
  accuknox-scan: accuknox/scan@1.0.0

workflows:
  accuknox:
    jobs:
      - accuknox-scan/sq-sast:
          context: sonarqube-accuknox-context
          SKIP_SONAR_SCAN: false
          SOFT_FAIL: false

Input Parameters

The accuknox-scan/sq-sast job accepts the following parameters:

Parameter	Description	Default
SOFT_FAIL	Prevents pipeline failure on vulnerabilities if set to true.	true
SKIP_SONAR_SCAN	If true, skips the SonarQube scan step entirely.	false

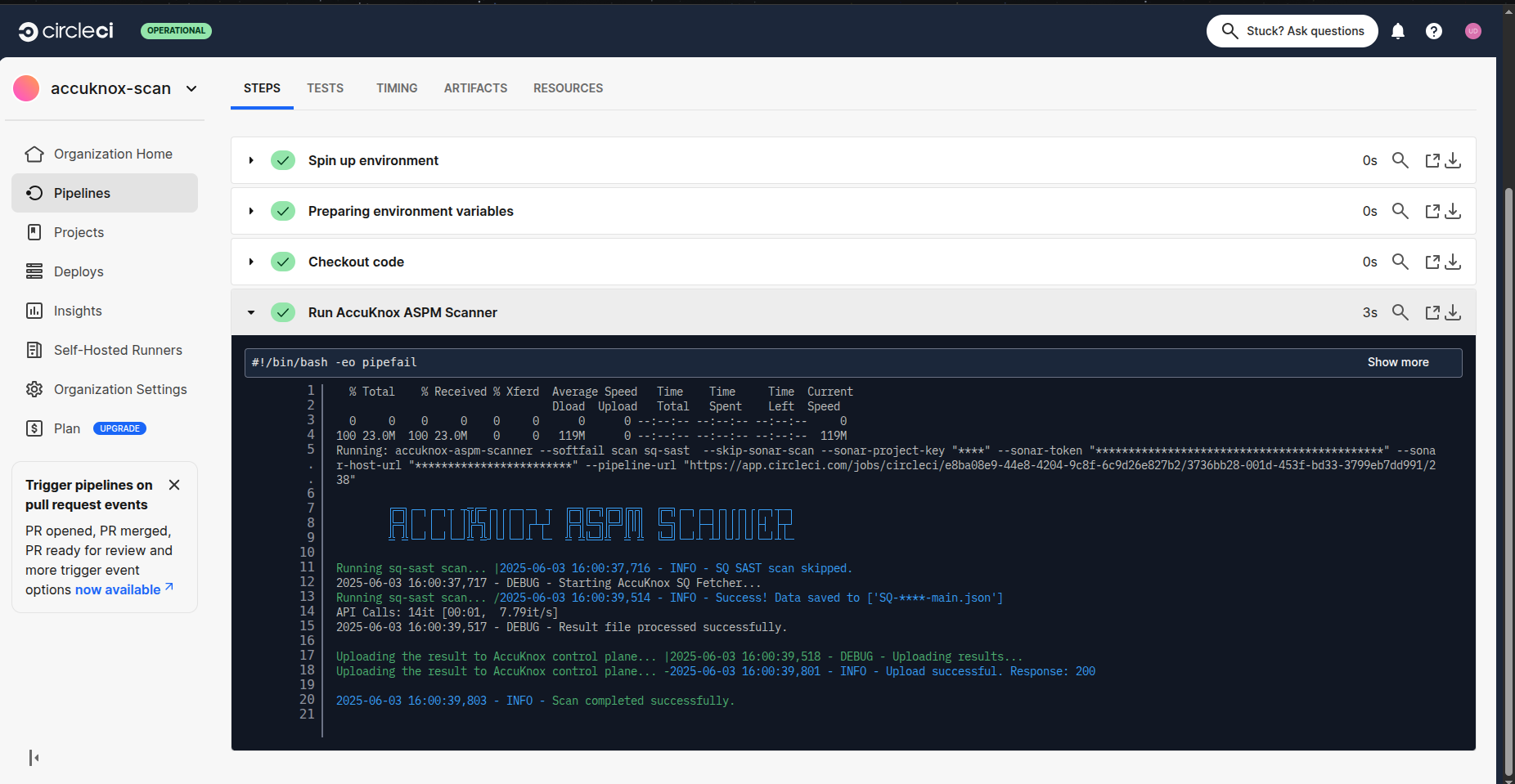

Step 4: View Results in AccuKnox Console

Once the scan completes, you can review the findings in AccuKnox:

1. Log in to the AccuKnox Console.

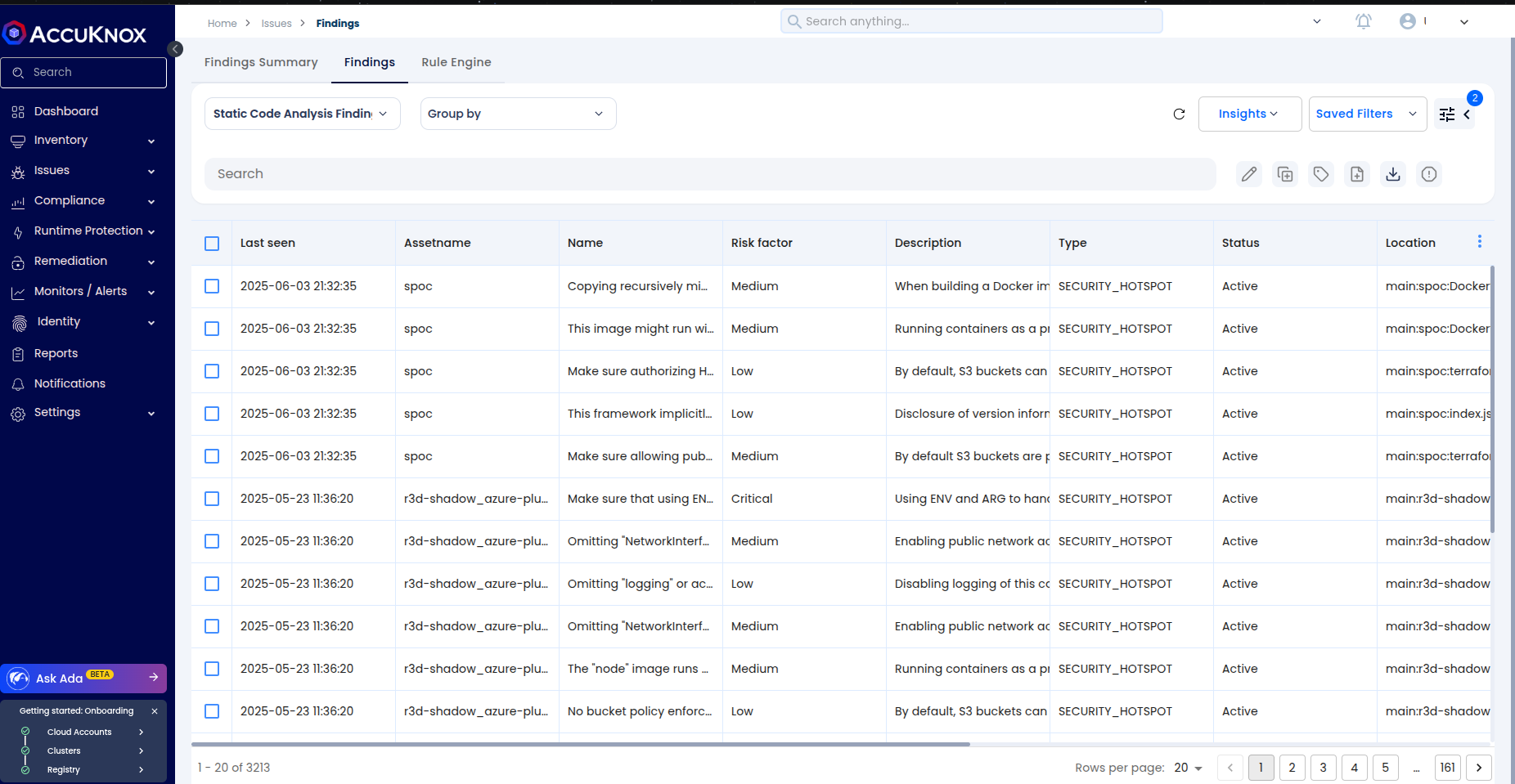

2. Navigate to Issues → Findings → Static Code Analysis Findings.

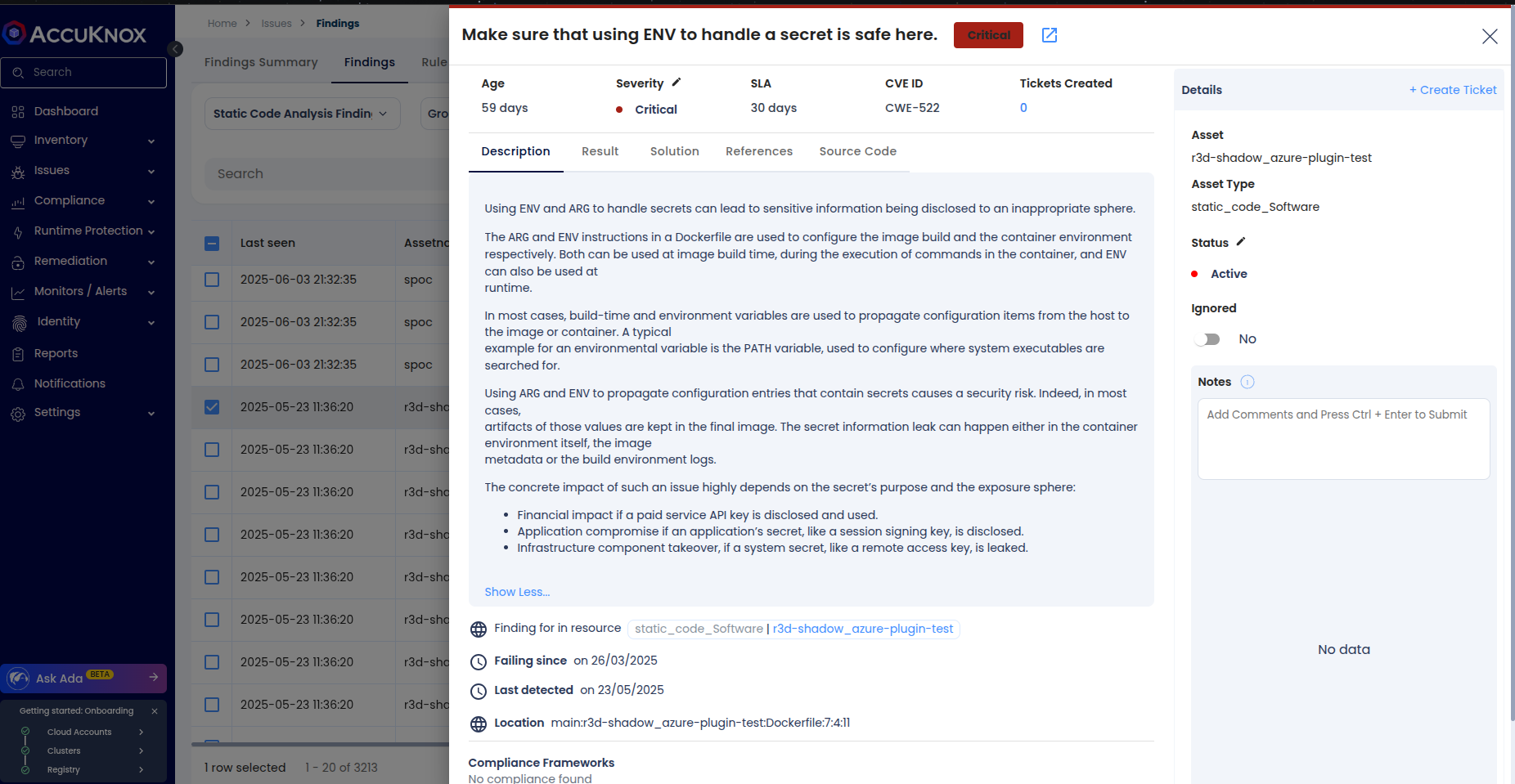

3. Review the results, checking for:

   • Vulnerability description
   • File and line number
   • Severity
   • Suggested remediation steps

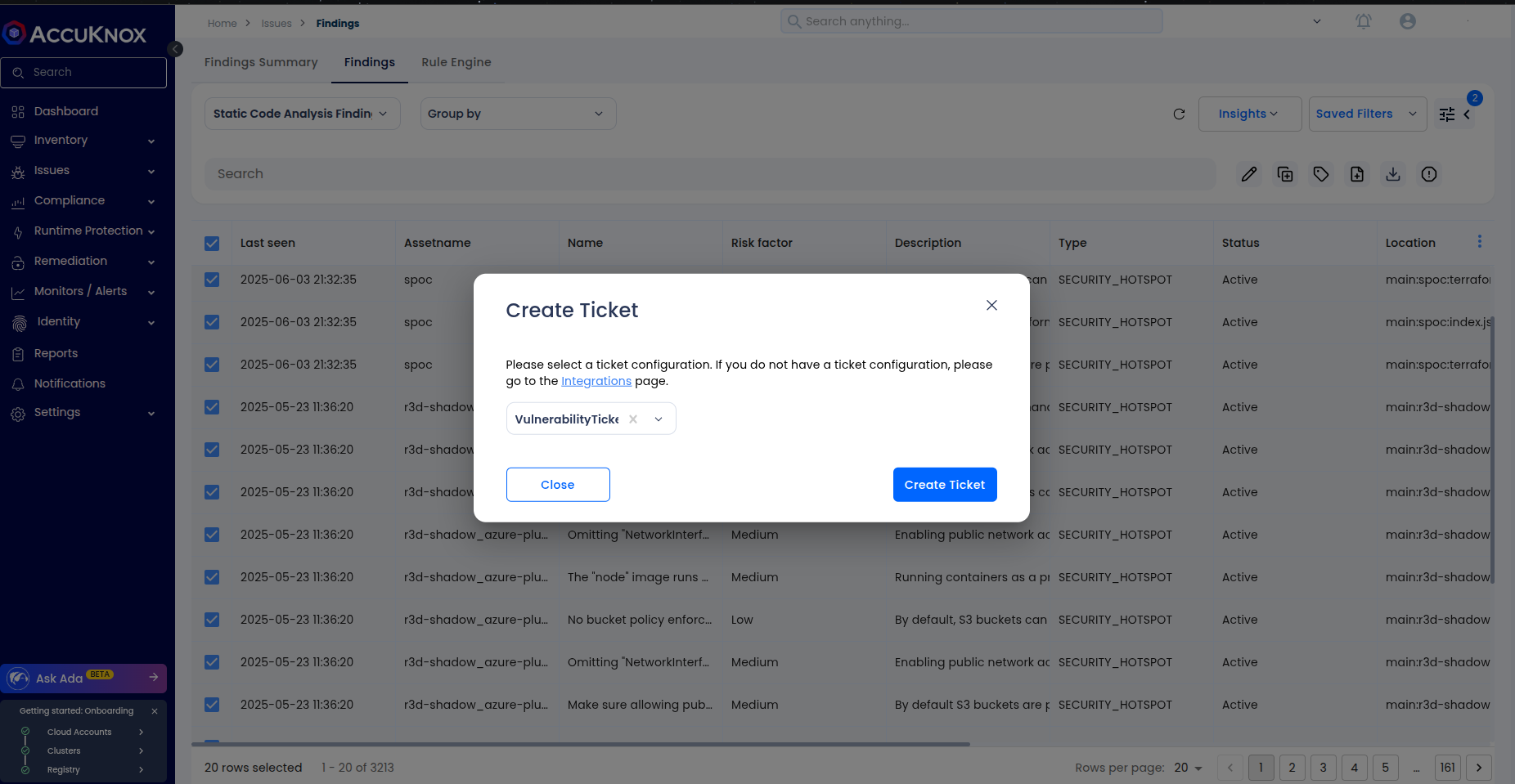

4. Optionally, create a ticket in your internal tracking system (e.g., Jira, GitHub Issues) to assign this to your development team.

Step 5: Remediation Workflow

Follow these steps to remediate identified issues:

1. Review and fix the issues found in the codebase.
2. Push your changes to trigger the CircleCI workflow again.
3. Confirm that resolved issues are no longer listed in both your SonarQube and AccuKnox dashboards.

Summary

By integrating SonarQube with AccuKnox via CircleCI, you achieve a more robust security posture:

• Automate static analysis for every commit.
• Forward findings securely to AccuKnox for centralized triage.
• Align security reviews with your CI/CD lifecycle.

AccuKnox also supports integrations across other CI tools such as GitHub Actions, Jenkins, GitLab, and Azure DevOps.

For more help, contact support@accuknox.com or refer to the AccuKnox Developer Documentation.

Note

Since the AccuKnox CircleCI plugin is currently unverified, you must enable the usage of unverified orbs in your CircleCI project settings. Navigate to Organization Settings → Security and toggle "Allow uncertified public orbs" to true.
