AccuKnox DAST Integration in Jenkins (Pipeline Method)

Prerequisites

Required from AccuKnox Console

✅ Store these values in Jenkins Credentials Manager.

  • Tenant ID
  • Token
  • Label ID

⚙ Required Tools on Jenkins VM

  • Docker (installed and running)
  • Jenkins with pipeline support
  • Internet access to pull AccuKnox DAST container image

What is TARGET_URL?

The TARGET_URL is the address of the web application that will be scanned using AccuKnox DAST. It can be:

🔒 Ensure the Jenkins agent and Docker container can access this URL.

environment {
    TARGET_URL = 'https://ginandjuice.shop/'
}

Jenkins Pipeline Script

pipeline {
    agent any

    environment {
        TARGET_URL = 'https://ginandjuice.shop/' // Your target app URL
    }

    stages {
        stage('AccuKnox DAST Scan') {
            steps {
                dir("${env.WORKSPACE}") {
                    script {
                        sh '''
                            mkdir -p zap-output && chmod 777 zap-output
                            docker run --rm -v "$PWD/zap-output:/zap/wrk/:rw" -t zaproxy/zap-stable zap-baseline.py \
                                -t $TARGET_URL \
                                -J scanreport.json \
                                -I
                        '''
                    }
                }
            }
        }

        stage('Pushing DAST Results to AccuKnox') {
            steps {
                dir("${env.WORKSPACE}/zap-output") {
                    withCredentials([
                        string(credentialsId: 'accuknox-token', variable: 'ACCUKNOX_TOKEN'),
                        string(credentialsId: 'tenant-id', variable: 'TENANT_ID'),
                        string(credentialsId: 'label_dast', variable: 'LABEL')
                    ]) {
                        sh '''
                            curl --location --request POST \
"https://cspm.demo.accuknox.com/api/v1/artifact/?tenant_id=$TENANT_ID&data_type=ZAP&label_id=$LABEL&save_to_s3=false" \
                                --header "Tenant-Id: $TENANT_ID" \
                                --header "Authorization: Bearer $ACCUKNOX_TOKEN" \
                                --form "file=@scanreport.json"
                        '''
                    }
                }
            }
        }
    }
}

Jenkins Credentials Setup

Credential ID Description
accuknox-token Token generated from AccuKnox Console
tenant-id Tenant ID from AccuKnox Console
label_dast Label ID for the DAST scan

📝 Refer to:

Output Files

After a successful scan, the following file is created:

  • zap-output/scanreport.json → Contains the DAST vulnerability scan results This report is sent to the AccuKnox Console for visualization and triaging.

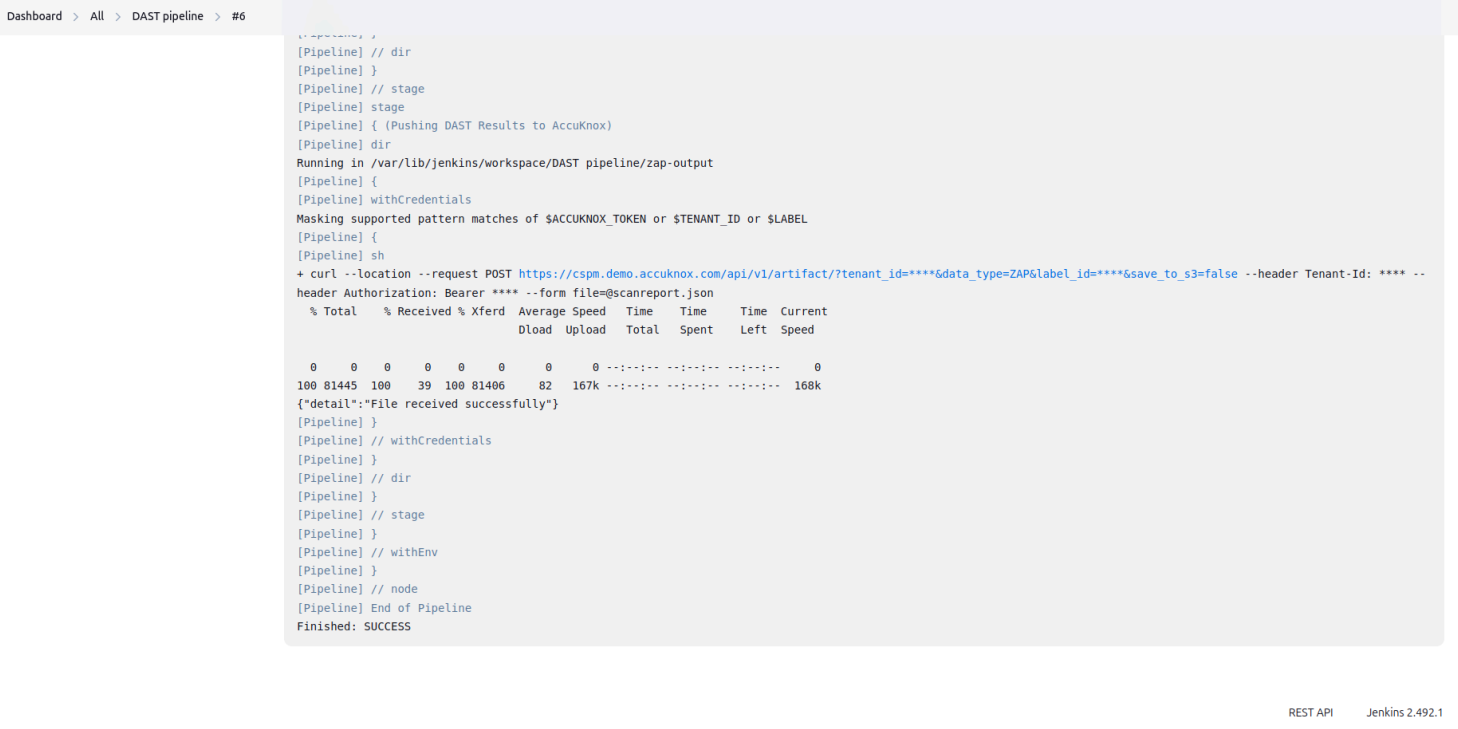

Console Output

output

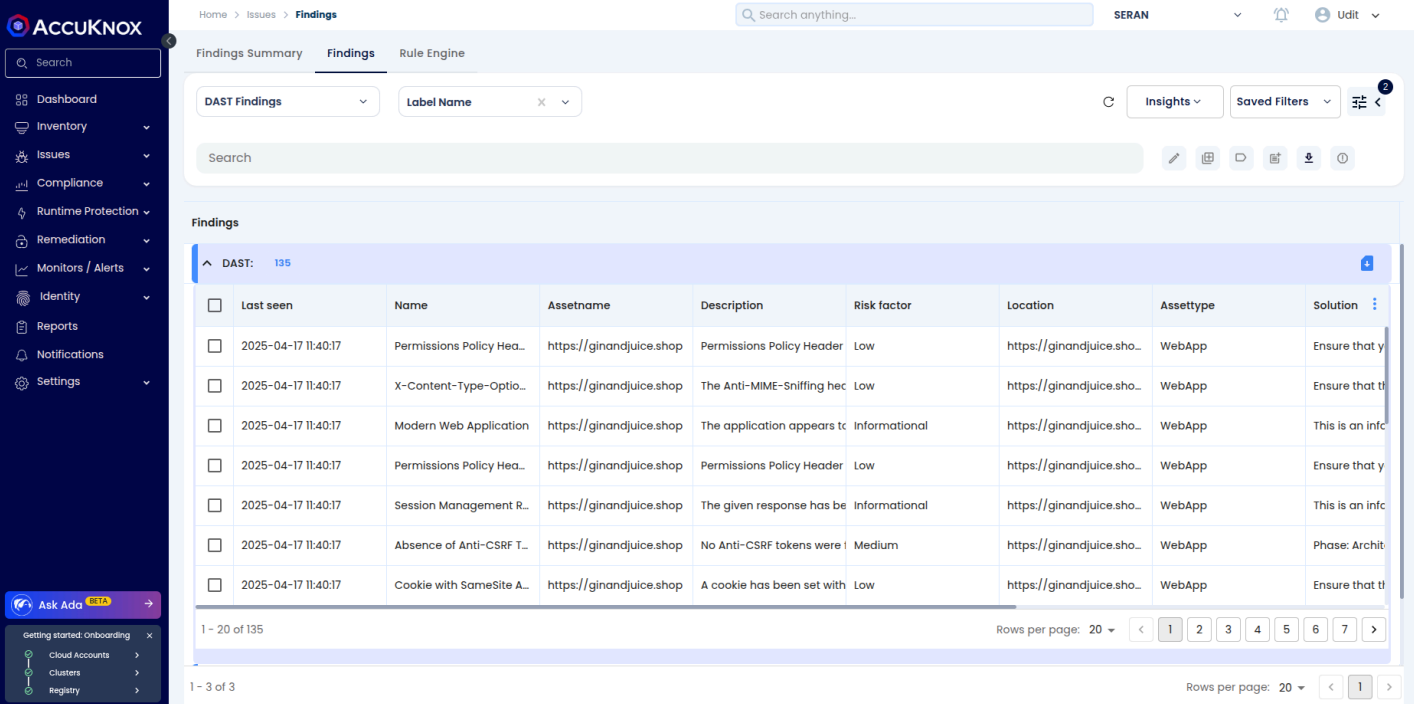

View Results in AccuKnox

After the pipeline executes successfully:

  1. Go to AccuKnox Console
  2. Navigate to Issues → Findings
  3. Filter using the selected label to view DAST findings

dashboard

Optional Cleanup (Post-Scan)

If needed, clean up the workspace after upload:

sh 'rm -f zap-output/scanreport.json'
