SonarQube and Jenkins Integration¶

This document provides instructions for integrating SonarQube with Jenkins and AccuKnox. Refer to this documentation for SonarQube <> Jenkins integration.

Prerequisites¶

From AccuKnox Console:¶

Label: Label Creation
Tenant: Tenant
Token: Token Creation
User Token: Token Creation

From SonarQube:¶

Required credentials for integration.

Note: Store the above values in the Jenkins credentials manager.

Jenkins Pipeline Script¶

Add the following lines after the SonarQube analysis stage in the Jenkins pipeline script. These steps are required to fetch results from SonarQube and send them from the Jenkins VM to the AccuKnox Console.

Note: Update the credentialsId according to the ID you have created for your use.

Example: AccuKnox SAST Job Stage¶

stage('Run AccuKnox-sastjob') {
    steps {
        dir(WORKSPACE_DIR) {
            withCredentials([string(credentialsId: 'sonarqube', variable: 'SQ_AUTH_TOKEN')]) {
                sh '''
                docker run --rm \
                -e SQ_URL=https://sq.accuknox.com/ \
                -e SQ_AUTH_TOKEN=$SQ_AUTH_TOKEN \
                -e REPORT_PATH=/app/data/ \
                -e SQ_PROJECTS=^vulnerable-project$ \
                -v $PWD:/app/data/ \
                accuknox/sastjob:1.0
                '''
            }
        }
    }
}

Example: Pushing Results to AccuKnox¶

stage('Pushing results to AccuKnox') {
    steps {
        dir(WORKSPACE_DIR) {
            withCredentials([
                string(credentialsId: 'accuknox-token', variable: 'ACCUKNOX_TOKEN'),
                string(credentialsId: 'tenant-id', variable: 'TENANT_ID'),
                string(credentialsId: 'label', variable: 'LABEL')
            ]) {
                sh '''
                for file in SQ-*.json; do
                    curl --location --request POST \
                    "https://cspm.demo.accuknox.com/api/v1/artifact/?tenant_id=$TENANT_ID&data_type=SQ&label_id=$LABEL&save_to_s3=false" \
                    --header "Tenant-Id: $TENANT_ID" \
                    --header "Authorization: Bearer $ACCUKNOX_TOKEN" \
                    --form "file=@$file"
                done
                '''
            }
        }
    }
}

Details of AccuKnox-sastjob stage in Jenkins¶

rm -f SQ-*.json # Remove existing reports
docker run --rm -it \
-e SQ_URL=http://35.188.10.229:9000 \
-e SQ_AUTH_TOKEN=<AUTH-TOKEN> \
-e SQ_PROJECTS="^nimbus$" \
-e SQ_ORG="accuknox" /* needed for sonarcloud.io */ \
-e REPORT_PATH=/app/data/ \
-v $PWD:/app/data/ \
accuknox/sastjob:1.0.3

This will create a bunch of SQ-*.json files, one for every project/component found in the SonarQube server.

Configuration Details¶

Variable	Sample Value	Description
`SQ_URL`	`http://35.188.10.229:9000`, `https://sonarcloud.io/`	SonarQube server URL
`SQ_AUTH_TOKEN`	`squ_token`	SonarQube user authentication token
`SQ_PROJECTS`	`^nimbus$`	Projects/components to scan
`SQ_ORG`	`accuknox`	Required for SonarCloud enterprise
`REPORT_PATH`	`/app/data/`	Path to store the report JSON files

Note: Variables marked with * are mandatory configuration options.

Complete Jenkins Pipeline Script Example¶

Repository used for testing: GitHub Repository Branch: main

pipeline {
    agent any
    environment {
        MAVEN_HOME = "${WORKSPACE}/apache-maven-3.9.4"
        WORKSPACE_DIR = "${WORKSPACE}"
        PROJECT_DIR = "${WORKSPACE}/addressbook/addressbook_main"
    }
    stages {
        stage('CHECKOUT') {
            steps {
                checkout scmGit(
                    branches: [[name: '*/main']],
                    extensions: [],
                    userRemoteConfigs: [[url: 'https://github.com/udit-uniyal/Devops.git']]
                )
            }
        }

        stage('Install Maven Build Tool') {
            steps {
                dir(WORKSPACE_DIR) {
                    sh '''
                    wget https://dlcdn.apache.org/maven/maven-3/3.9.4/binaries/apache-maven-3.9.4-bin.tar.gz
                    tar -xzvf apache-maven-3.9.4-bin.tar.gz
                    '''
                }
            }
        }

        stage('Compile Application') {
            steps {
                dir(PROJECT_DIR) {
                    sh '${MAVEN_HOME}/bin/mvn compile'
                }
            }
        }

        stage('Test Application') {
            steps {
                dir(PROJECT_DIR) {
                    sh '${MAVEN_HOME}/bin/mvn test'
                }
            }
        }

        stage('SonarQube Analysis') {
            steps {
                dir(PROJECT_DIR) {
                    withSonarQubeEnv('Sonarqube') {
                        sh '${MAVEN_HOME}/bin/mvn clean verify sonar:sonar -Dsonar.projectKey=vulnerable-project'
                    }
                }
            }
        }

        stage('Run AccuKnox-sastjob') {
            steps {
                dir(WORKSPACE_DIR) {
                    withCredentials([string(credentialsId: 'sonarqube', variable: 'SQ_AUTH_TOKEN')]) {
                        sh '''
                        docker run --rm \
                        -e SQ_URL=https://sq.accuknox.com/ \
                        -e SQ_AUTH_TOKEN=$SQ_AUTH_TOKEN \
                        -e REPORT_PATH=/app/data/ \
                        -e SQ_PROJECTS=^vulnerable-project$ \
                        -v $PWD:/app/data/ \
                        accuknox/sastjob:1.0
                        '''
                    }
                }
            }
        }

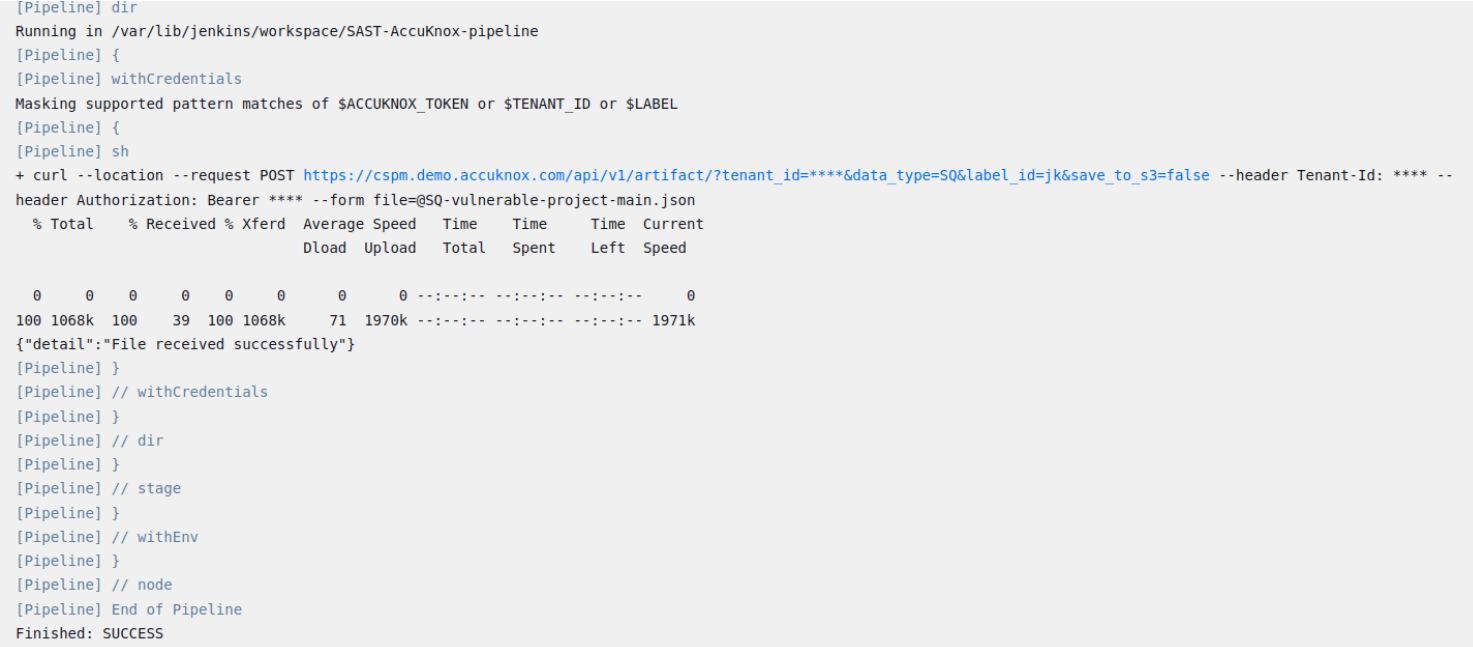

        stage('Pushing results to AccuKnox') {
            steps {
                dir(WORKSPACE_DIR) {
                    withCredentials([
                        string(credentialsId: 'accuknox-token', variable: 'ACCUKNOX_TOKEN'),
                        string(credentialsId: 'tenant-id', variable: 'TENANT_ID'),
                        string(credentialsId: 'label', variable: 'LABEL')
                    ]) {
                        sh '''
                        for file in SQ-*.json; do
                            curl --location --request POST \
                            "https://cspm.demo.accuknox.com/api/v1/artifact/?tenant_id=$TENANT_ID&data_type=SQ&label_id=$LABEL&save_to_s3=false" \
                            --header "Tenant-Id: $TENANT_ID" \
                            --header "Authorization: Bearer $ACCUKNOX_TOKEN" \
                            --form "file=@$file"
                        done
                        '''
                    }
                }
            }
        }
    }
}

AccuKnox Findings

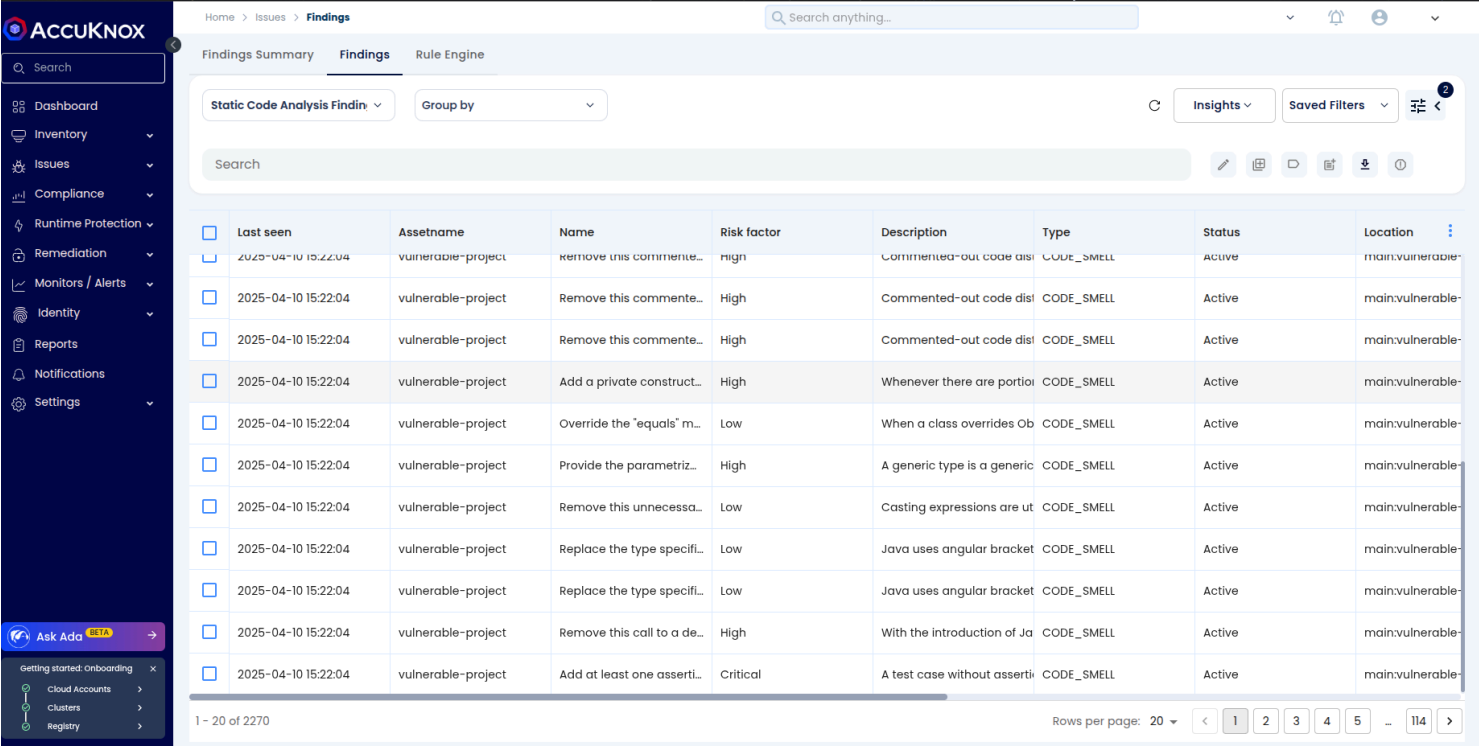

Viewing Findings in AccuKnox Console¶

Navigate to Issues > Findings > Findings in the AccuKnox Console to view the results.

AccuKnox Console Findings
