Azure DevOps pipeline — AccuKnox ASPM Scanner¶

This workflow runs AccuKnox ASPM scans inside an Azure DevOps pipeline. It supports:

Secret scanning
Container scanning
Infrastructure-as-Code (IaC) scanning
Static Application Security Testing (SAST)
Dynamic Application Security Testing (DAST)

Info

Comment out or remove any scan steps you don't need to reduce execution time.

Prerequisites¶

Ensure the build agent/VM has:

Docker
Python 3 and pip

Pipeline YAML¶

Create azure-pipelines.yml at the repository root and paste the following:

trigger:
  - main

pool:
  vmImage: 'ubuntu-latest'

variables:
  ACCUKNOX_ENDPOINT: #Accuknox-endpoint (e.g., cspm.demo.accuknox.com).
  ACCUKNOX_LABEL: '#your-accuknox-label'
  ACCUKNOX_TOKEN: #your-accuknox-token

stages:
- stage: BuildAndScan
  displayName: 'Build and Security Scans'
  jobs:
  - job: RunAccuKnoxScans
    displayName: 'Run AccuKnox ASPM Scans'
    steps:
    - checkout: self
      displayName: 'Checkout Code'

    - task: UsePythonVersion@0
      displayName: 'Use Python 3.x'
      inputs:
        versionSpec: '3.x'
        addToPath: true

    - script: |
        set -e
        python3 -m pip install --user \
          https://github.com/accuknox/aspm-scanner-cli/releases/download/v0.13.4/accuknox_aspm_scanner-0.13.4-py3-none-any.whl --break-system-packages
      displayName: 'Install ASPM Scanner CLI'

    - script: |
        softFailArg=""
        if [ "$SOFT_FAIL" == "true" ]; then
          softFailArg="--softfail"
        fi

        command="git file://."
        args=""
        if [ -n "$RESULTS" ]; then args+=" --results $RESULTS"; fi
        if [ -n "$BRANCH" ]; then args+=" --branch $BRANCH"; fi
        if [ -n "$EXCLUDE_PATHS" ]; then args+=" --exclude-paths '$EXCLUDE_PATHS'"; fi

        fullCmd="$HOME/.local/bin/accuknox-aspm-scanner scan ${softFailArg} secret --command \"${command}${args}\" --container-mode"
        echo "Running: ${fullCmd}"
        eval "${fullCmd}"
      displayName: 'Run Secret Scan'
      env:
        DISABLE_SPINNER: "TRUE"
        RESULTS: ""
        BRANCH: "all"
        EXCLUDE_PATHS: ""
        SOFT_FAIL: "true"

    - script: |
        softFailArg=""
        if [ "$SOFT_FAIL" == "true" ]; then
          softFailArg="--softfail"
        fi

        echo "Building Docker image ${IMAGE}:${IMAGE_TAG}..."
        docker build -t ${IMAGE}:${IMAGE_TAG} -f Dockerfile .

        cmd="image ${IMAGE}:${IMAGE_TAG}"
        if [ -n "$SEVERITY" ]; then cmd+=" --severity $SEVERITY"; fi

        fullCmd="$HOME/.local/bin/accuknox-aspm-scanner scan ${softFailArg} container --command \"${cmd}\" --container-mode"
        echo "Running: ${fullCmd}"
        eval "${fullCmd}"
      displayName: 'Run Container Scan'
      env:
        SOFT_FAIL: "true"
        IMAGE: "test"
        IMAGE_TAG: "latest"
        SEVERITY: "CRITICAL,HIGH,WARNING,MEDIUM,LOW,INFO"

    - script: |
        softFailArg=""
        if [ "$SOFT_FAIL" == "true" ]; then
          softFailArg="--softfail"
        fi

        cmdArgs=""
        if [ -n "$FILE" ]; then cmdArgs+=" --file $FILE"; fi
        if [ -n "$DIRECTORY" ]; then cmdArgs+=" --directory $DIRECTORY"; fi
        if [ "$COMPACT" == "true" ]; then cmdArgs+=" --compact"; fi
        if [ "$QUIET" == "true" ]; then cmdArgs+=" --quiet"; fi
        if [ -n "$FRAMEWORK" ]; then cmdArgs+=" --framework $FRAMEWORK"; fi

        fullCmd="$HOME/.local/bin/accuknox-aspm-scanner scan ${softFailArg} iac --command \"${cmdArgs}\" --container-mode"
        echo "Running: ${fullCmd}"
        eval "${fullCmd}"
      displayName: 'Run IaC Scan'
      env:
        SOFT_FAIL: "true"
        DIRECTORY: "."
        COMPACT: "true"
        QUIET: "true"
        FILE: ""
        FRAMEWORK: ""

    - script: |
        softFailArg=""
        if [ "$SOFT_FAIL" == "true" ]; then
          softFailArg="--softfail"
        fi

        command="scan ."
        fullCmd="$HOME/.local/bin/accuknox-aspm-scanner scan ${softFailArg} sast --command \"${command}\" --container-mode"

        echo "Running: ${fullCmd}"
        eval "${fullCmd}"
      displayName: 'Run SAST Scan'
      env:
        SOFT_FAIL: "true"

    - script: |
        softFailArg=""
        if [ "$SOFT_FAIL" == "true" ]; then
          softFailArg="--softfail"
        fi

        mkdir -p /tmp/scan-dir
        chmod 777 /tmp/scan-dir
        cd /tmp/scan-dir

        args="${DAST_SCAN_SCRIPT} -t ${TARGET_URL} -I"
        fullCmd="$HOME/.local/bin/accuknox-aspm-scanner scan ${softFailArg} dast --command \"${args}\" --container-mode --severity-threshold $SEVERITY_THRESHOLD"
        echo "Running: ${fullCmd}"
        eval "${fullCmd}"
        cd -
      displayName: 'Run DAST Scan'
      env:
        SOFT_FAIL: "true"
        TARGET_URL: "https://juice-shop.herokuapp.com/" #change this to actually endpoint
        DAST_SCAN_SCRIPT: "zap-baseline.py"
        SEVERITY_THRESHOLD: "High"

Variables to update¶

Update the following pipeline variables before running:

ACCUKNOX_ENDPOINT — URL of the AccuKnox CSPM panel (e.g., cspm.demo.accuknox.com).
ACCUKNOX_TOKEN — Token for authenticating with AccuKnox. See How to Create Tokens.
ACCUKNOX_LABEL — Label used to categorize results. See How to Create Labels.

Note

Comment out or remove any scan modules that you don’t need. e.g, if you don't want to run DAST, you can comment out the DAST stages in the azure-pipelines.yml file. This helps reduce execution time and makes the pipeline faster and cleaner.

Secret scan variables¶

Parameter	Description	Example
DISABLE_SPINNER	Disable animated progress output in CI logs	TRUE
RESULTS	File path to store raw scan results (optional)	results/secrets.json
BRANCH	Branches to scan (use "all" or branch name)	all
EXCLUDE_PATHS	Comma-separated paths to exclude	.git/, node_modules/, dist/
SOFT_FAIL	Allow pipeline to continue if findings are detected	true

Container scan variables¶

Parameter	Description	Example
SOFT_FAIL	Allow pipeline to continue on findings	true
IMAGE	Docker image name built in pipeline	myapp
IMAGE_TAG	Image tag to scan	latest
SEVERITY	Comma-separated severity levels to include	CRITICAL,HIGH,MEDIUM

IaC / SAST / DAST variables are configured inline in the YAML under each step (see the env block for defaults).

IaC (Infrastructure as Code) scan variables¶

Parameter	Description	Example
SOFT_FAIL	Continue pipeline even if IaC misconfigurations are found.	true
DIRECTORY	Path to the folder containing IaC files (Terraform, CloudFormation, Kubernetes, etc.).	.
FILE	Specific IaC file to scan (optional).	main.tf
FRAMEWORK	Framework type to target (e.g., `terraform`, `cloudformation`, `kubernetes`).	terraform
COMPACT	Enables concise output for cleaner logs.	true
QUIET	Suppresses non-critical output in logs.	true

DAST (Dynamic Application Security Testing) variables¶

Parameter	Description	Example
SOFT_FAIL	Continue pipeline even if issues are found.	true
TARGET_URL	Web app endpoint to scan.	https://yourapp.example.com/
DAST_SCAN_SCRIPT	Scan script to run (`zap-baseline.py` = quick, `zap-full-scan.py` = full).	zap-full-scan.py
SEVERITY_THRESHOLD	Fail pipeline if findings meet or exceed this severity.	High

Run the pipeline¶

Azure DevOps Pipeline YAML

Commit the azure-pipelines.yml file.
Trigger the pipeline manually or by pushing to the branch defined in trigger:.

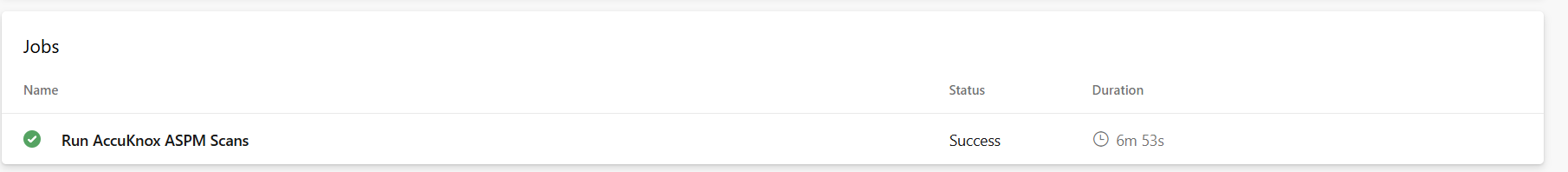

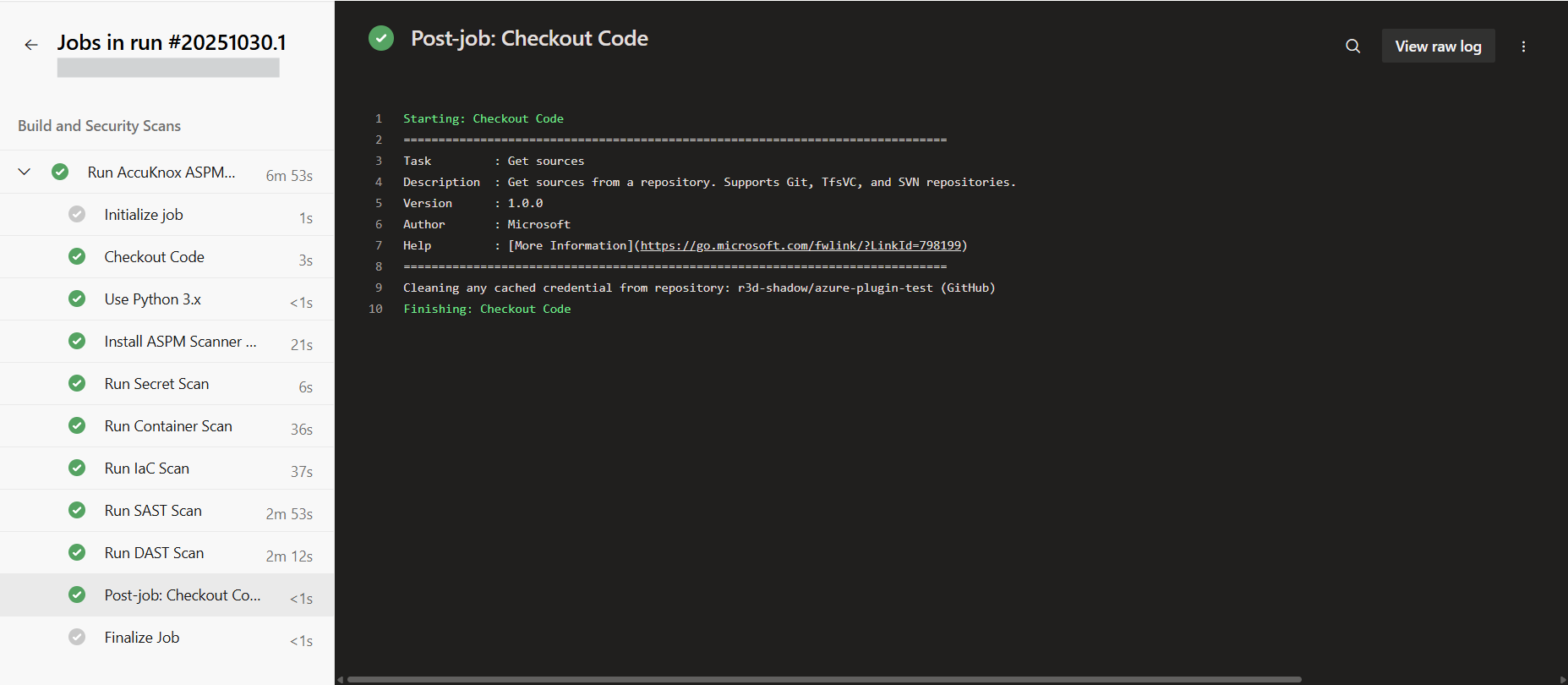

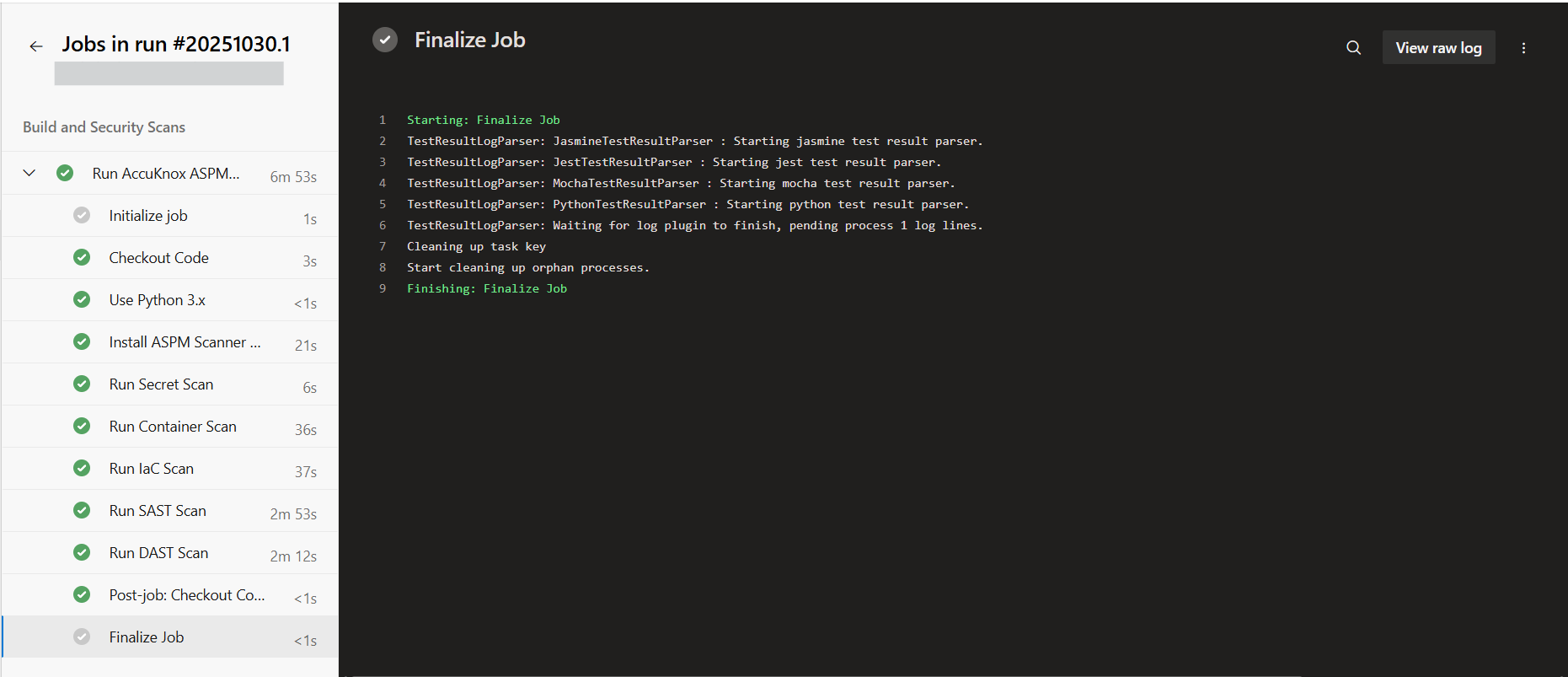

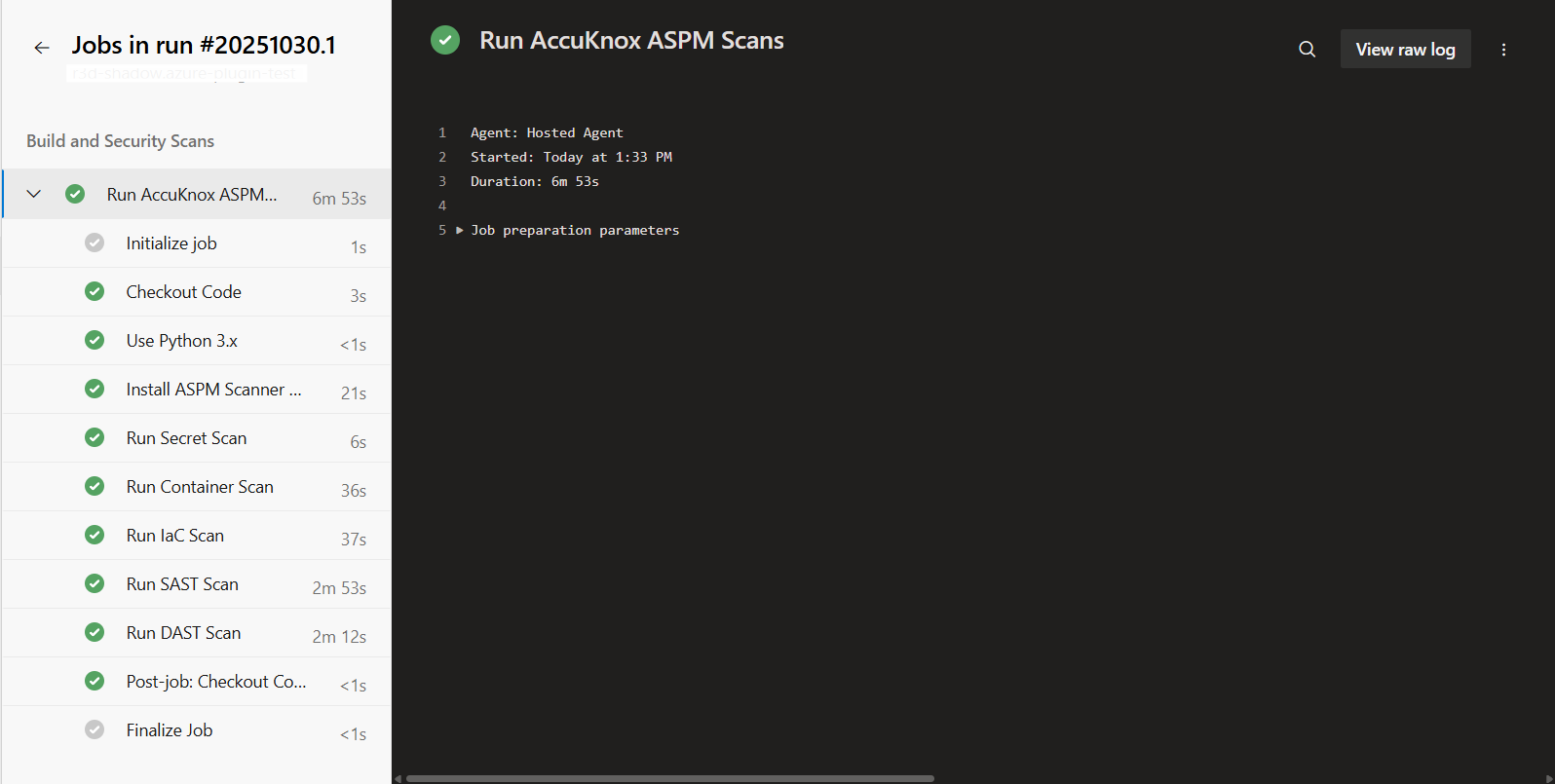

Azure DevOps Pipeline YAML

The pipeline installs the AccuKnox ASPM Scanner CLI.
- Secret Scan — Detects exposed secrets or credentials.
- Container Scan — Analyses Docker images for vulnerabilities.
- IaC Scan — Reviews Infrastructure-as-Code for misconfigurations.
- SAST Scan — Checks source code for security flaws.
- DAST Scan — Performs dynamic application security testing on live targets.
Scan results are sent to the AccuKnox CSPM dashboard for review, further risk analysis and remediation.

Azure DevOps Pipeline YAML

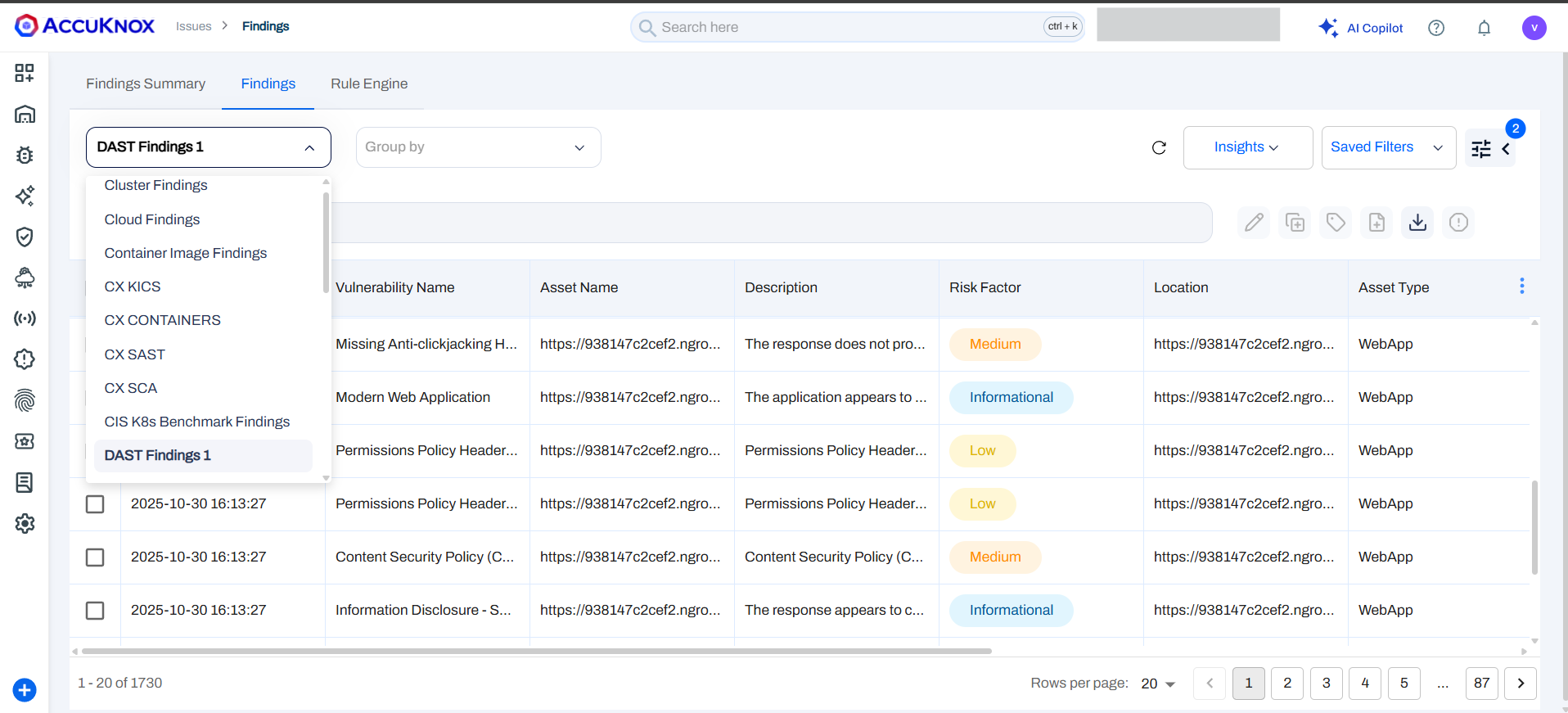

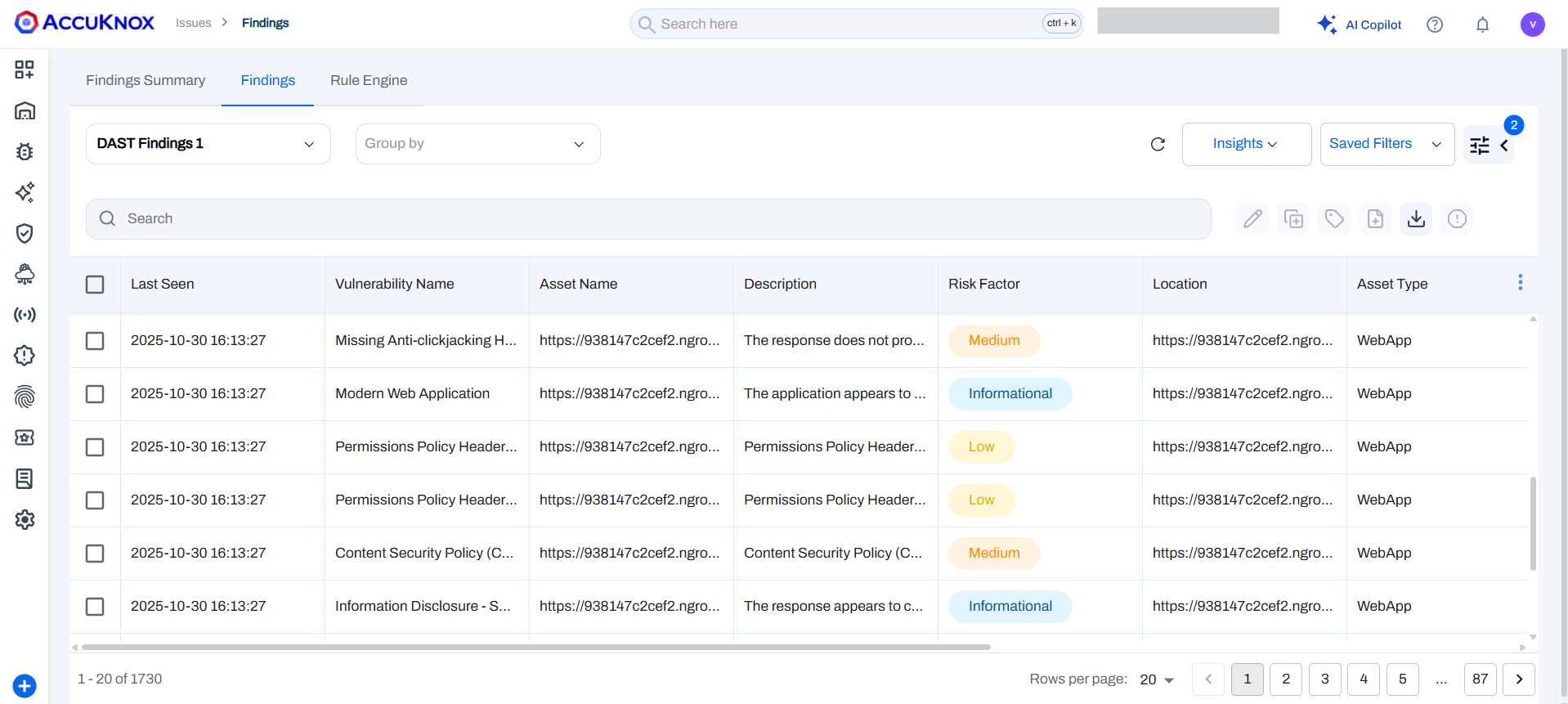

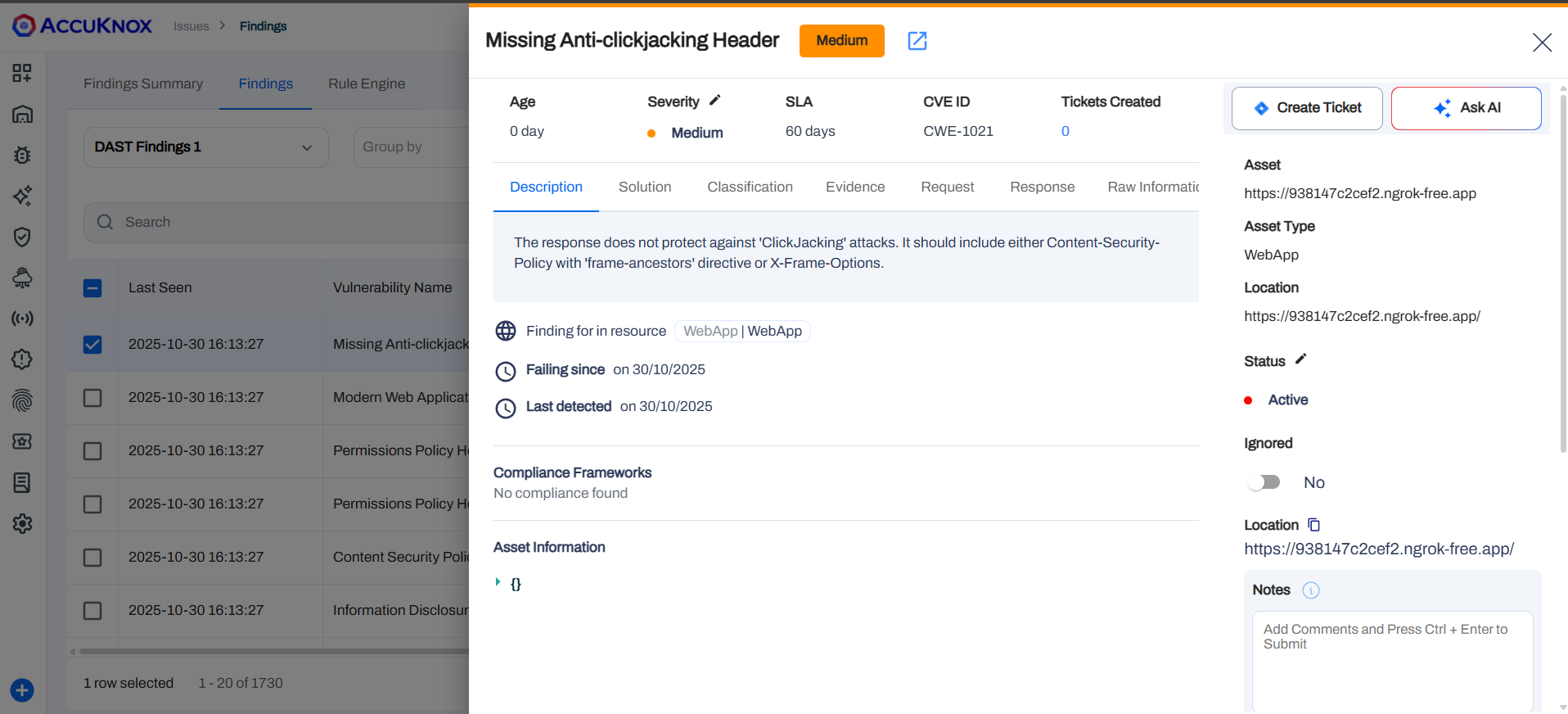

View results in AccuKnox¶

Log in to your AccuKnox dashboard.
Navigate to Issues → Findings.
Select the Scan Type from the dropdown to view results.

Conclusion¶

By following this guide, you’ve successfully integrated AccuKnox ASPM Scanning into your Azure DevOps CI/CD pipeline.

This setup enables automated security testing — including Secret Scans, Container Scans, IaC Checks, SAST, and DAST — every time your code is built or updated.

You can now continuously detect and remediate vulnerabilities early in the DevSecOps lifecycle

With this integration, your CI/CD workflow is not only automated but also security-aware, ensuring compliance and proactive protection for your applications.
