Container Scanning Integration using AccuKnox CircleCI Plugin

AccuKnox’s Container Scanning capability allows you to detect vulnerabilities in your Docker images directly within your CI/CD pipeline. Integrating this with CircleCI helps ensure that insecure containers are flagged and addressed before deployment, significantly enhancing the security posture of your workloads.

Prerequisites

Before integrating container scanning, ensure you have:

• A CircleCI project connected to your codebase and container build workflow.
• Admin access to manage CircleCI Contexts or Project-level Environment Variables.
• Access to the AccuKnox Console.

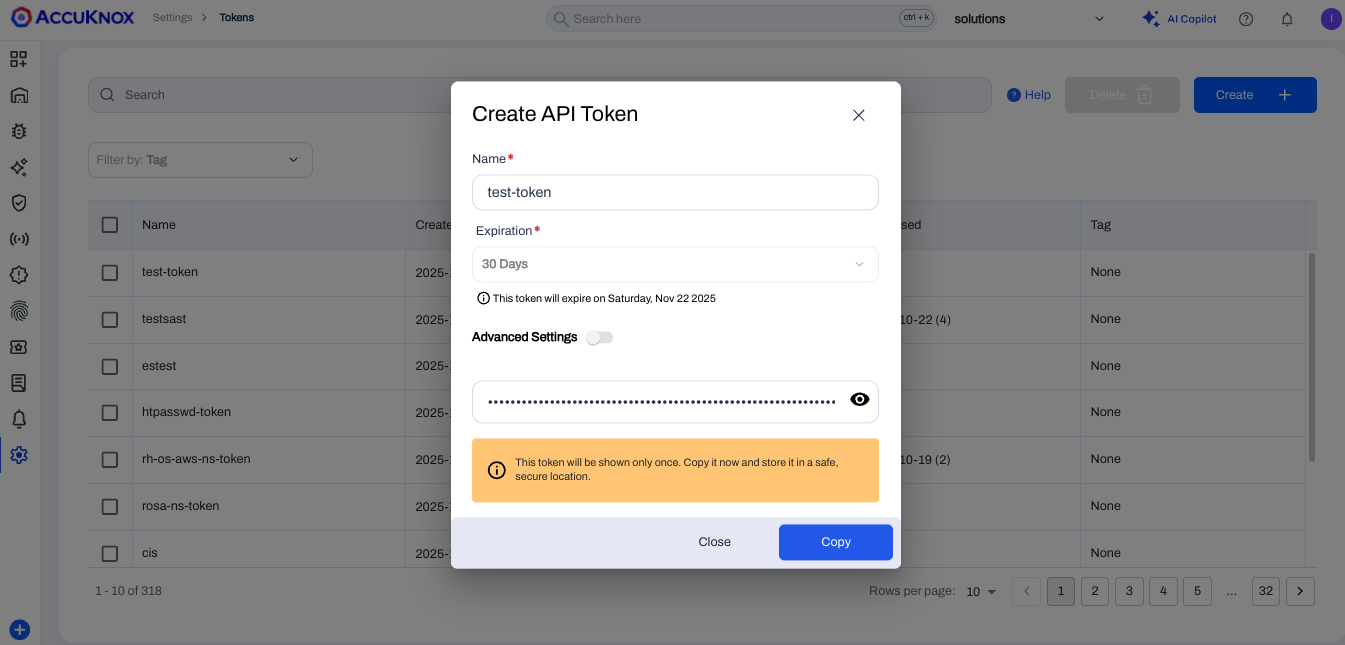

Step 1: Log in to AccuKnox and Generate API Token

To begin, you'll need an API token from AccuKnox:

1. Log into your AccuKnox Console.
2. Navigate to Settings → Tokens.
3. Create a new token to securely send scan results from CircleCI to AccuKnox. For detailed instructions, refer to the "How to Create Tokens" documentation.

Step 2: Set Environment Variables in CircleCI

You have two options for configuring environment variables in CircleCI:

Option A: Use CircleCI Contexts (Recommended)

Using contexts is the recommended approach for managing environment variables across multiple jobs.

1. Go to CircleCI → Organization Settings → Contexts.
2. Create a new context (e.g., accuknox-context).
3. Add the following environment variables to the new context:

Name	Description
ACCUKNOX_TOKEN	API token from AccuKnox
ACCUKNOX_ENDPOINT	AccuKnox API endpoint (e.g., https://cspm.demo.accuknox.com)
ACCUKNOX_TENANT	Your tenant ID from AccuKnox
ACCUKNOX_LABEL	Logical grouping label for scan results

Attach this context to your scan jobs within your .circleci/config.yml file, like so:

- accuknox-scan/container:
    context: accuknox-context
    IMAGE_NAME: circleci
    TAG: test
    SOFT_FAIL: true

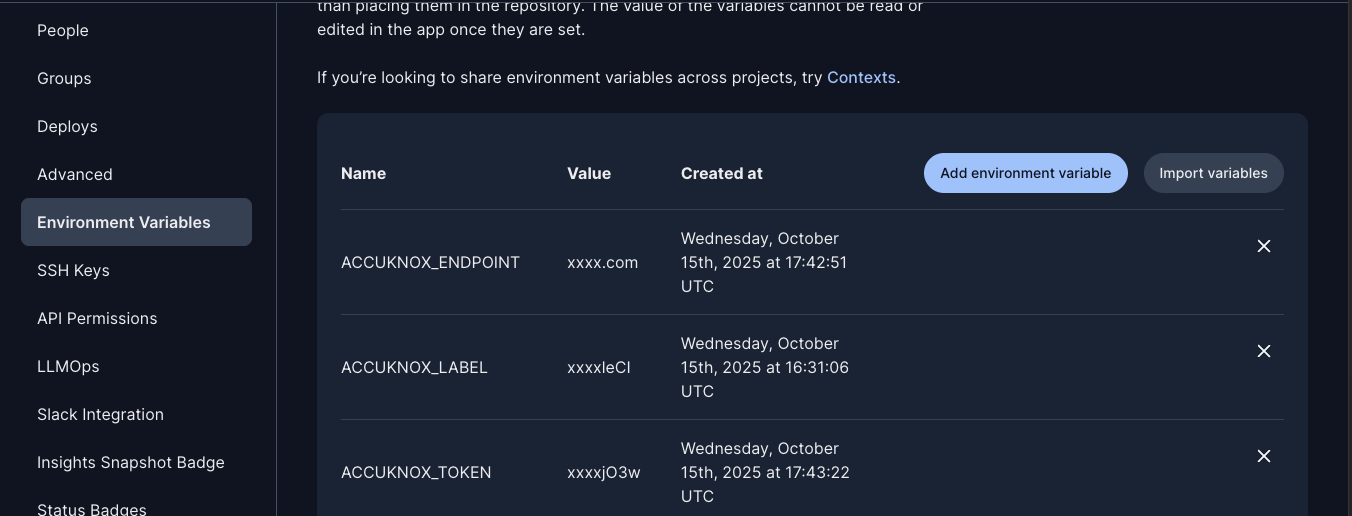

Option B: Use Project-Level Environment Variables

If contexts aren't suitable for your setup, you can use project-level environment variables:

1. Navigate to CircleCI → Project Settings → Environment Variables.
2. Add the same four variables manually as described in Option A.

Step 3: Add the Container Scan Job to Your Pipeline

Update your CircleCI configuration file (.circleci/config.yml) to include the container scan job provided by the AccuKnox plugin:

version: 2.1

orbs:
  accuknox-scan: accuknox/scan@1.0.0

workflows:
  accuknox:
    jobs:
      - accuknox-scan/container:
          context: accuknox-context
          IMAGE_NAME: circleci
          TAG: test
          SOFT_FAIL: true

Explanation of Parameters

The accuknox-scan/container job accepts several parameters to define the image to scan and its behavior:

Parameter	Description	Default Value
IMAGE_NAME	Name of the Docker image to scan.	Required
TAG	Tag/version of the image.	Required
SEVERITY	Comma-separated list of severities: UNKNOWN, LOW, MEDIUM, HIGH, CRITICAL.	UNKNOWN,LOW,MEDIUM,HIGH,CRITICAL
SOFT_FAIL	If true, the job will not fail even if issues are found.	true

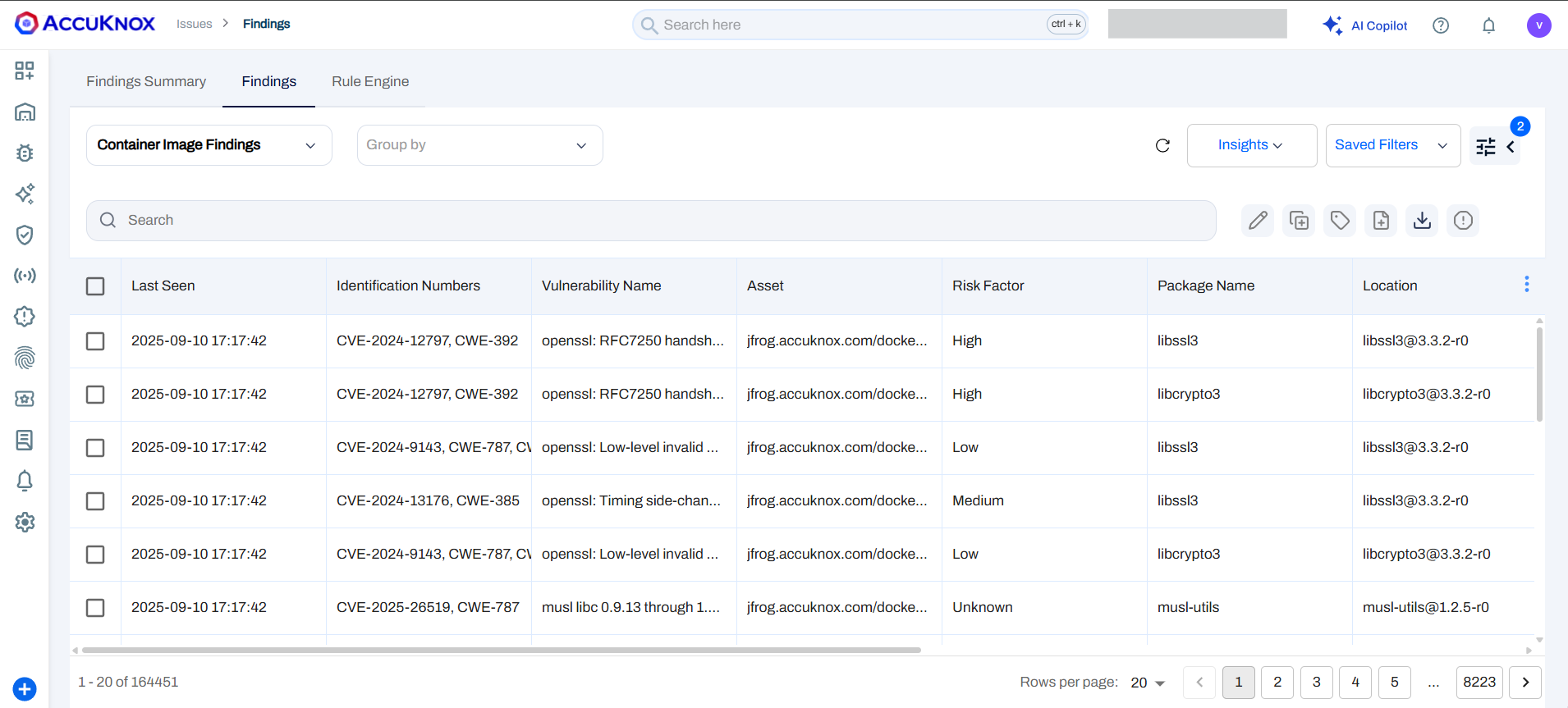

Step 4: View Scan Results in AccuKnox Console

After the pipeline runs, the scan results are sent to AccuKnox:

1. Log in to the AccuKnox Console.

2. Navigate to Issues → Findings → Container Findings.

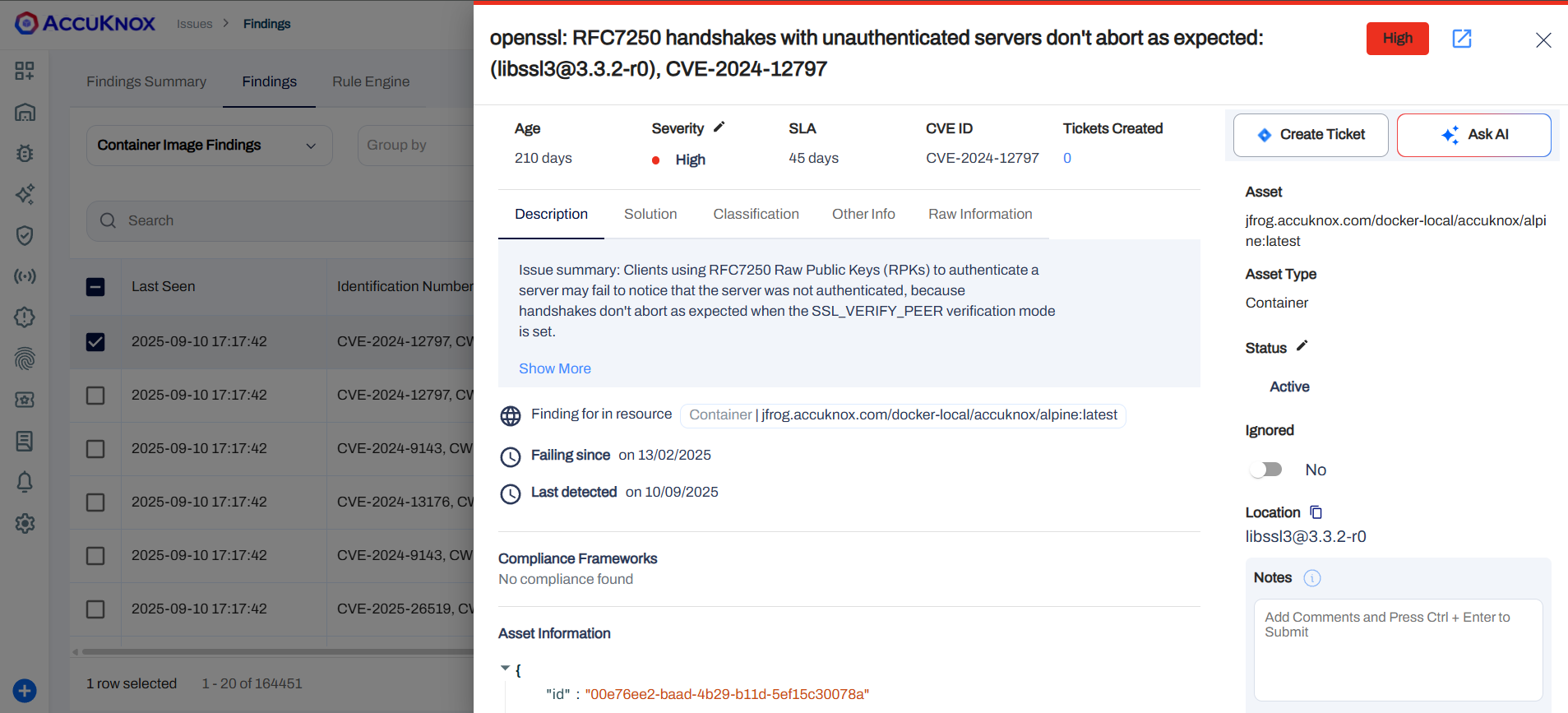

3. Click on individual findings to view details such as: _ Vulnerability name and description _ CVE details _ Affected packages _ Severity and remediation guidance

Step 5: Fix and Verify

Once vulnerabilities are fixed:

1. Rebuild and tag the Docker image.
2. Push updated code/image to trigger the CircleCI pipeline.
3. The CircleCI pipeline will rerun the container scan.
4. Verify that no critical issues are reported in the AccuKnox Console.

Conclusion

By integrating container scanning into your CircleCI pipeline with AccuKnox, your team can continuously validate the security of your images and maintain compliance with best practices. This ensures your container deployments are hardened before they reach production.

For more help, contact support@accuknox.com or refer to the AccuKnox Developer Documentation.

Note

Since the AccuKnox CircleCI plugin is currently unverified, you must enable the usage of unverified orbs in your CircleCI project settings. Navigate to Organization Settings → Security and toggle "Allow uncertified public orbs" to true.
