AccuKnox ASPM DAST on Devtron with GitHub Integration

This document outlines the process of configuring AccuKnox ASPM DAST scans using Devtron and GitHub. The setup ensures that every code push to the configured branch triggers an automated DAST scan.

Prerequisites

  • A running Devtron instance with admin access
  • A GitHub repository containing your application code
  • AccuKnox ASPM DAST API credentials (Tenant ID, Token, Endpoint, Label, etc.)
  • Docker access on the Devtron cluster

Setup Steps

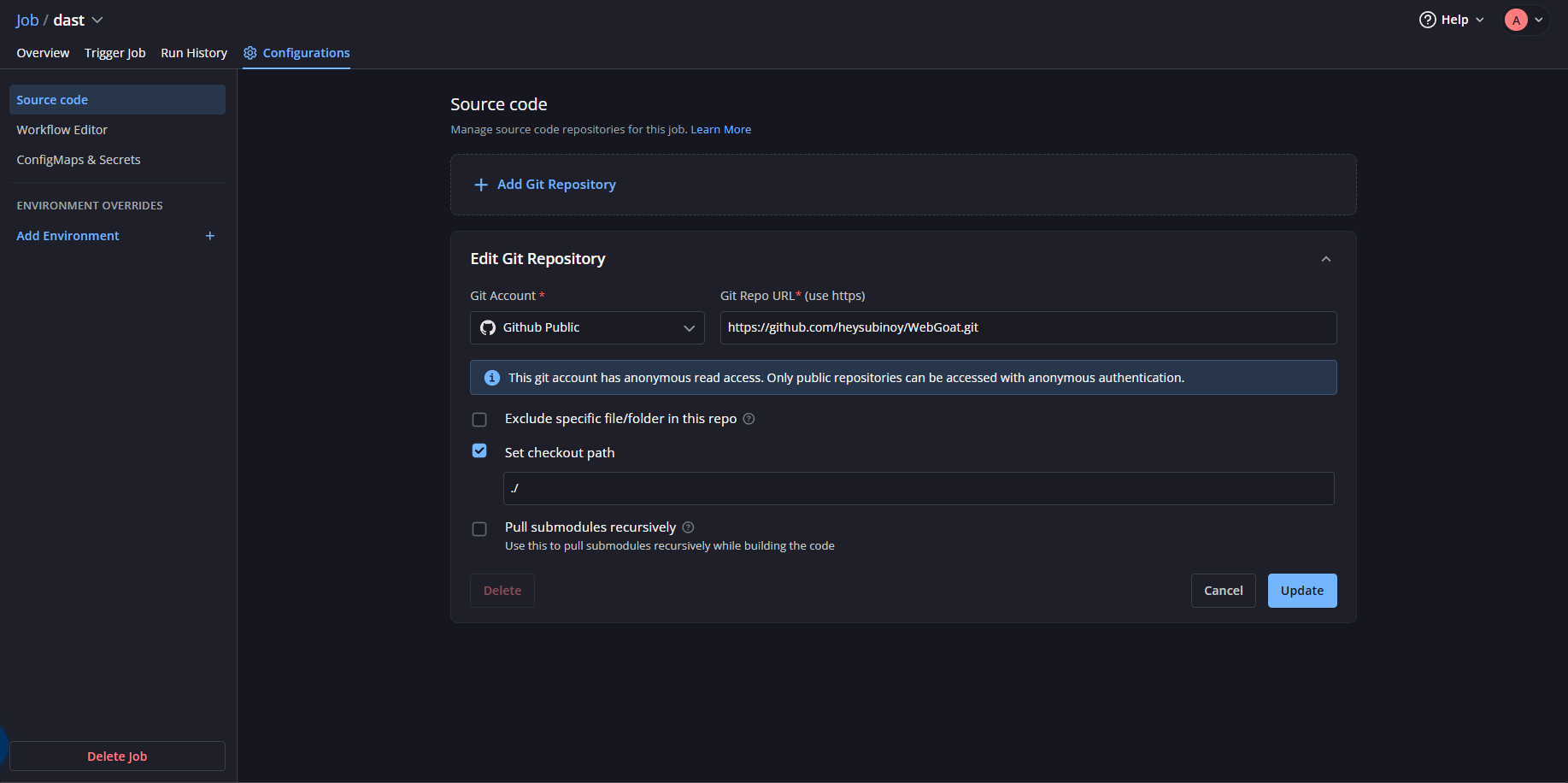

1. Create a Job in Devtron

  1. From the Devtron dashboard, go to Create → Job.
  2. Select Source Code.
  3. Choose your Git Account.
  4. Enter the Git URL of your repository.
  5. Add an empty devtron-ci.yaml to the root of your git directory:
version: v1
pipeline:
  - name: clone-only
    type: CI
    tasks: []

Devtron

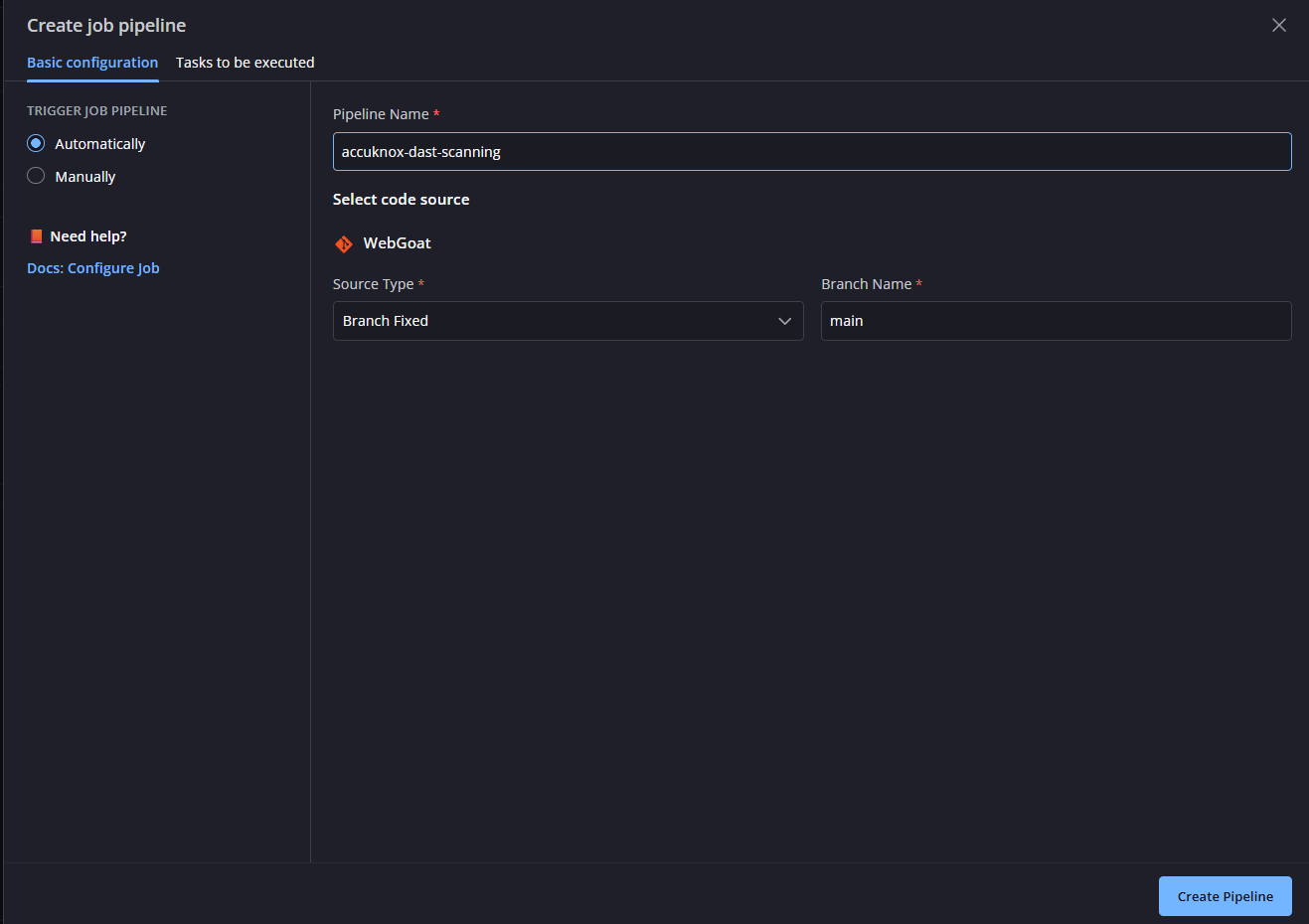

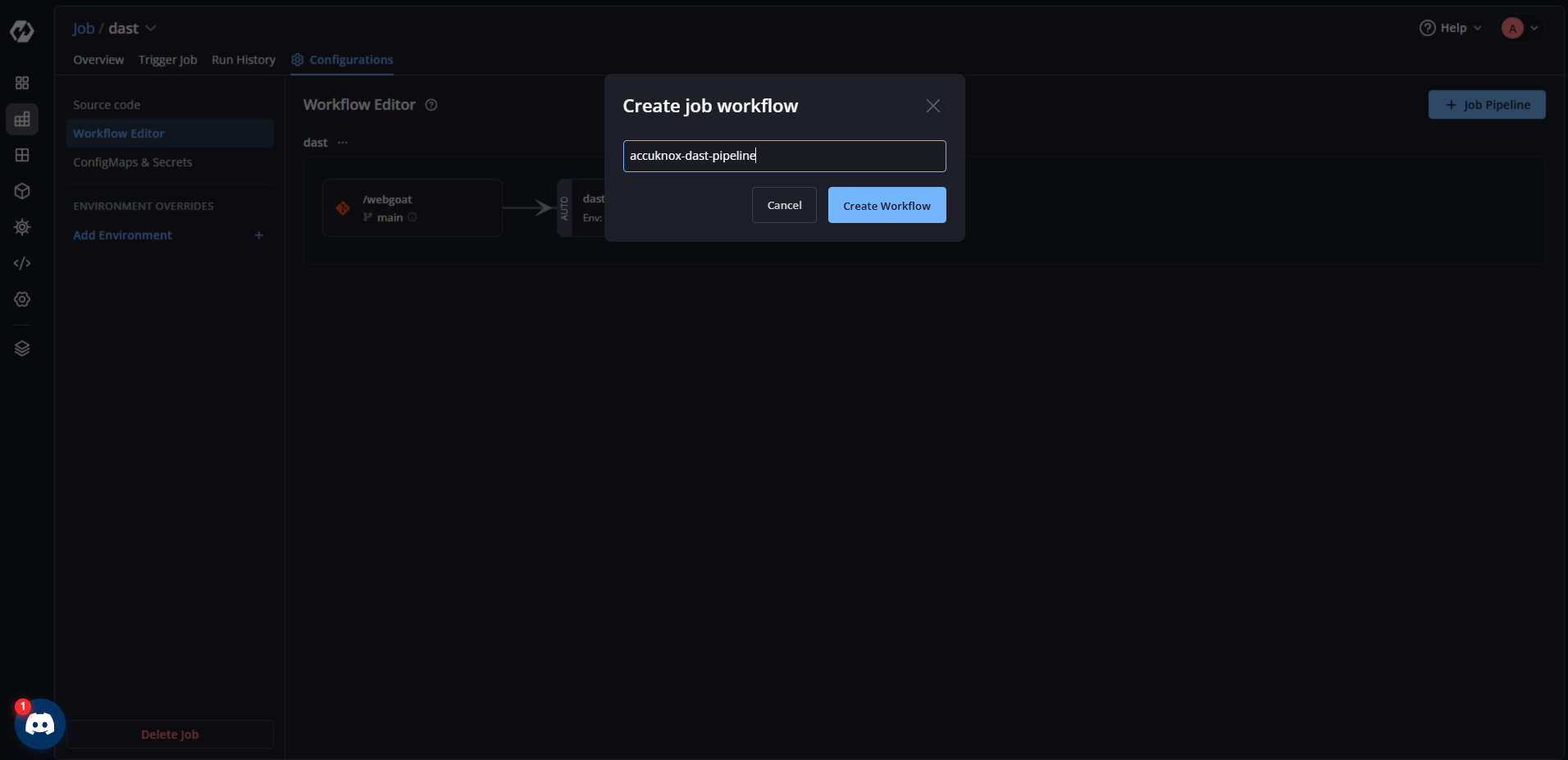

2. Create Job Workflow

  1. Open the created job → Create Workflow.
  2. Inside the workflow, create a new pipeline:
  3. Name → e.g., accuknox-dast-pipeline
  4. Source Type → Branch Fixed

  5. Branch Name → The branch you want to scan (e.g., main or develop)

  6. In Basic Configuration, select Automatically trigger. Devtron Devtron

3. Add DAST Task in Workflow

  1. Inside the pipeline, go to Task to be executed → Add Task.

  2. Configure task:

  3. Task Name → Perform DAST

  4. Task Type → Shell

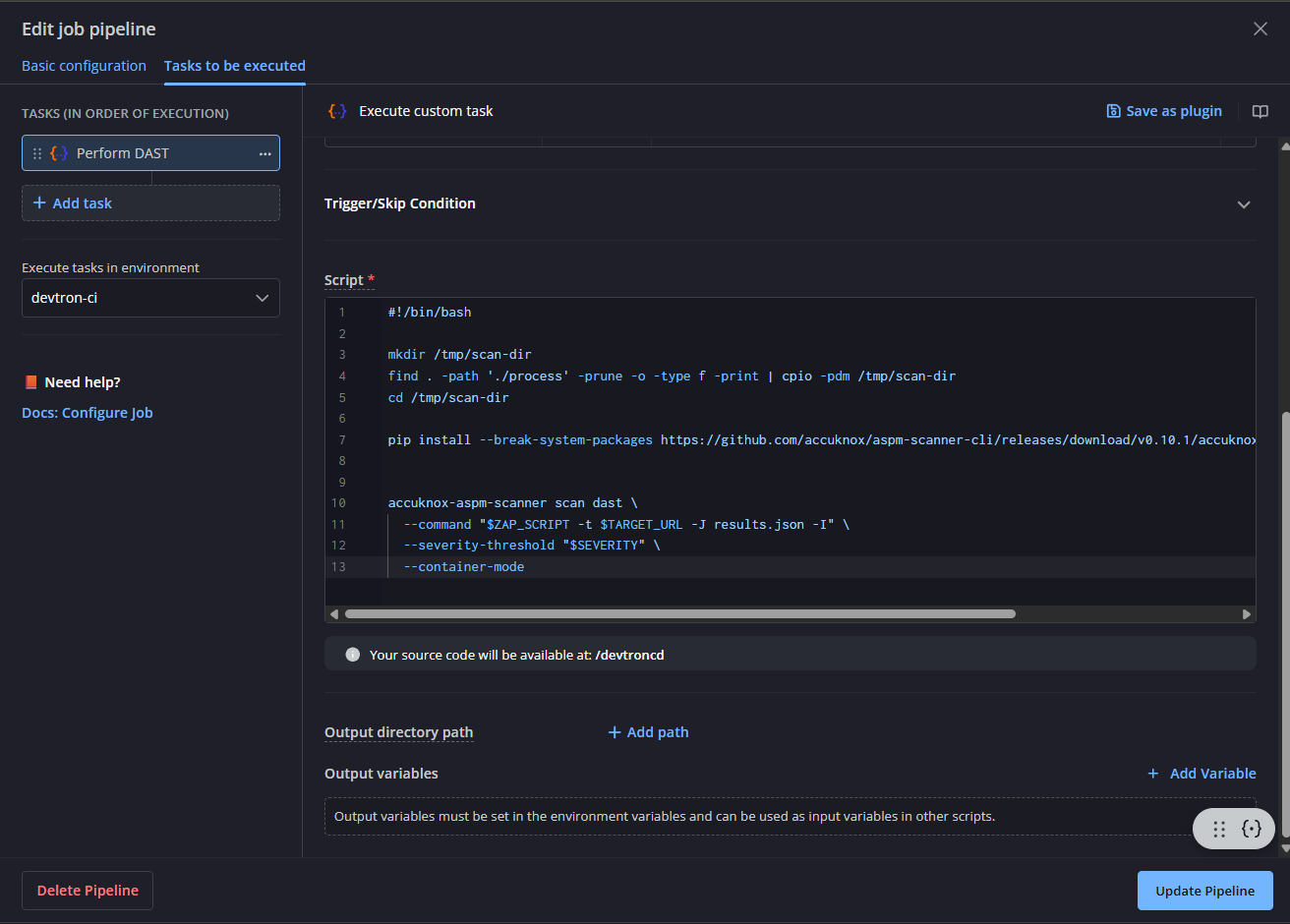

  5. Paste your DAST shell script

Example execution command:

#!/bin/bash

mkdir /tmp/scan-dir
find . -path './process' -prune -o -type f -print | cpio -pdm /tmp/scan-dir
cd /tmp/scan-dir

pip install --break-system-packages https://github.com/accuknox/aspm-scanner-cli/releases/download/v0.10.1/accuknox_aspm_scanner-0.10.1-py3-none-any.whl

accuknox-aspm-scanner scan dast\
  --command "$ZAP_SCRIPT -t $TARGET_URL -J results.json -I"\
  --severity-threshold "$SEVERITY"\
  --container-mode

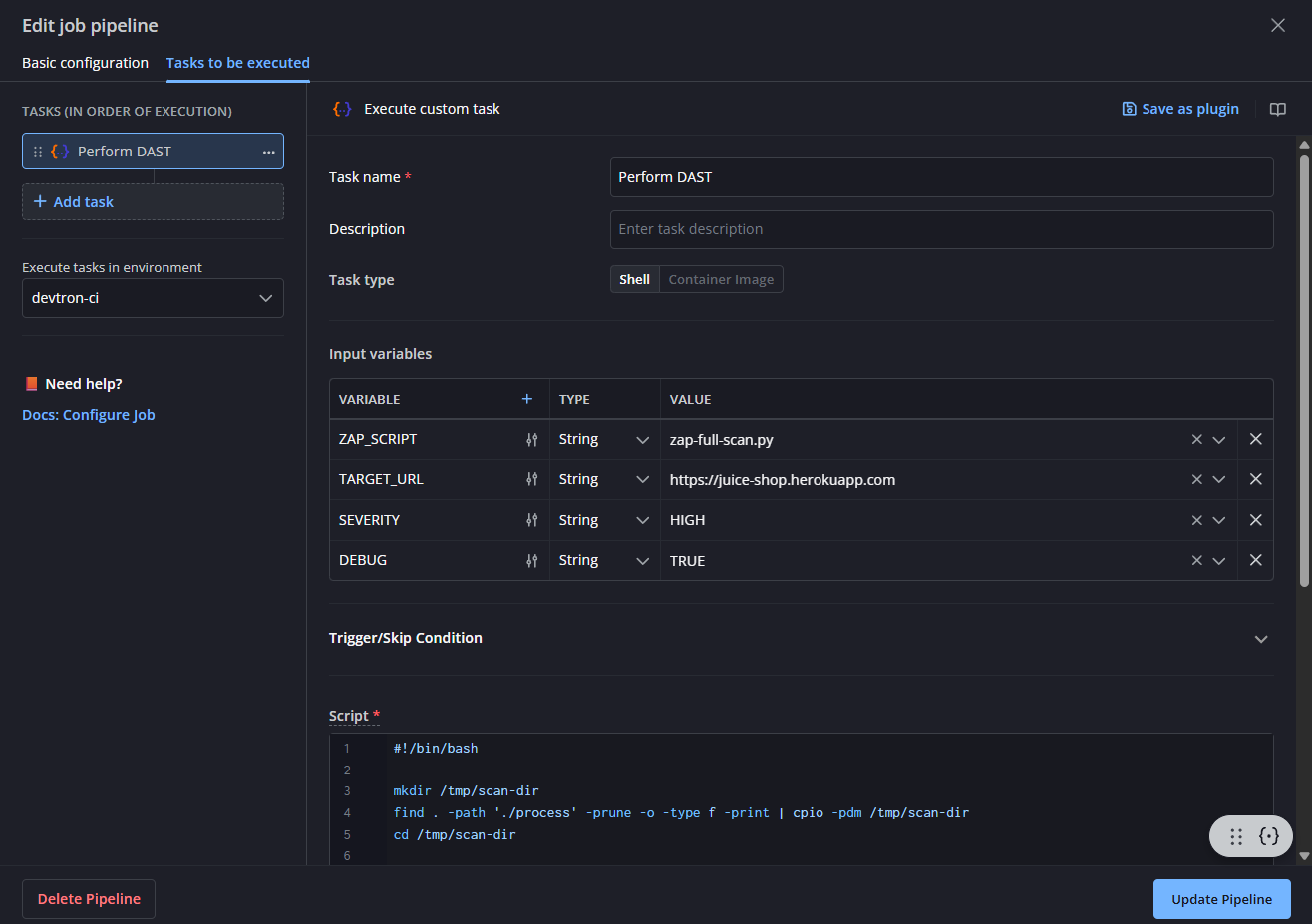

4. Input Variables

Add the necessary input variables for the script:

Variable Name Type Value / Options Description
SEVERITY String HIGH / MEDIUM / LOW Minimum severity level that will fail the job. Example: SEVERITY=HIGH fails only if HIGH vulnerabilities are found.
TARGET_URL String URL (e.g., https://juice-shop.herokuapp.com) The web application endpoint that ZAP will scan.
ZAP_SCRIPT String zap-full-scan.py / zap-baseline.py zap-full-scan.py performs a full active scan (modifies target). zap-baseline.py performs a passive scan (safer).

Devtron

Devtron

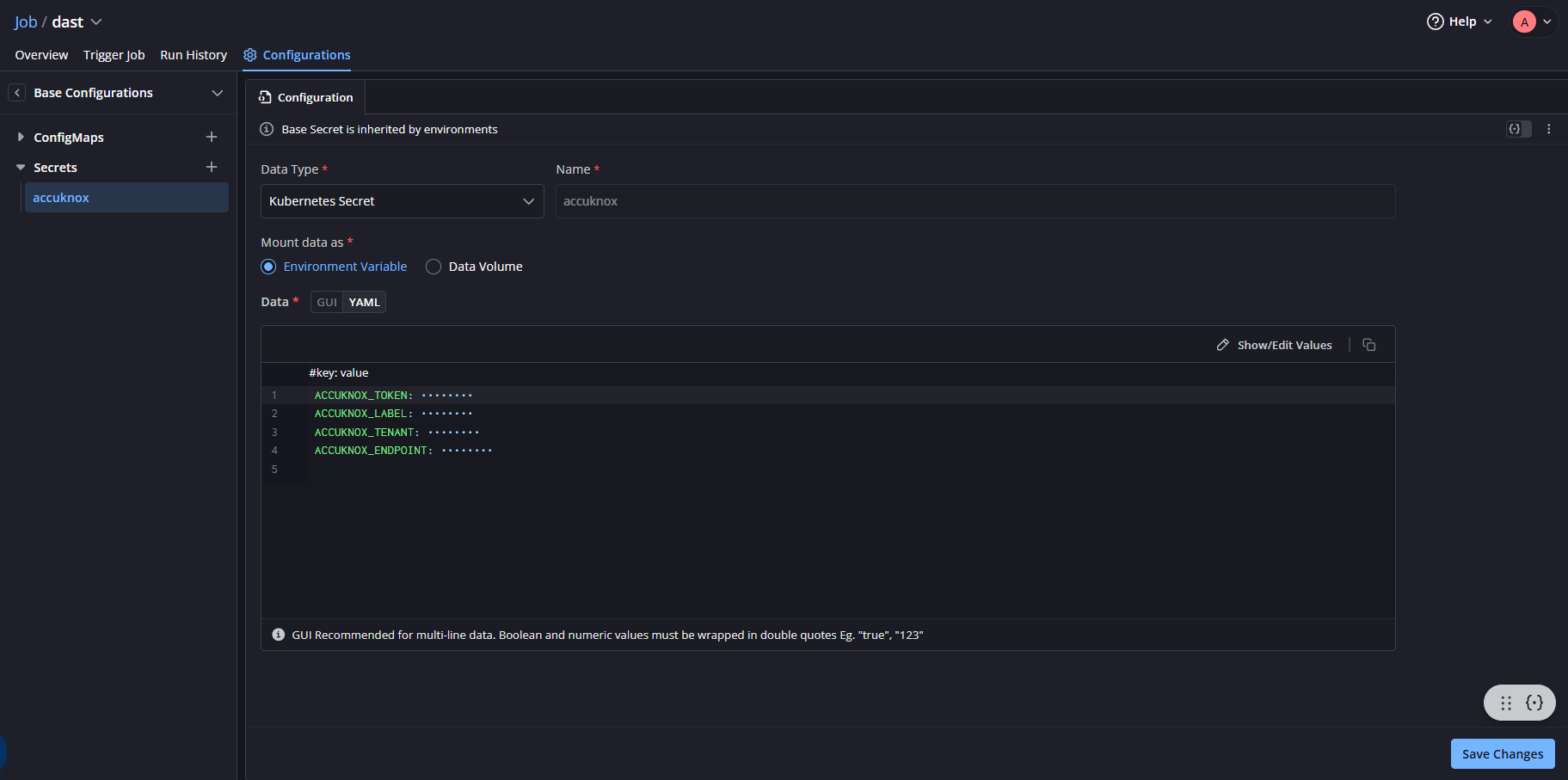

5. Add AccuKnox Credentials (ConfigMaps & Secrets)

  1. Go to ConfigMaps and Secrets section.
  2. Add required environment variables:

Environment Variables (Examples):

ACCUKNOX_ENDPOINT=cspm.demo.accuknox.com
ACCUKNOX_TENANT=XXX
ACCUKNOX_LABEL=test123
ACCUKNOX_TOKEN=your_api_token_here
  1. Choose Mount Data as an Environment Variable.

Devtron

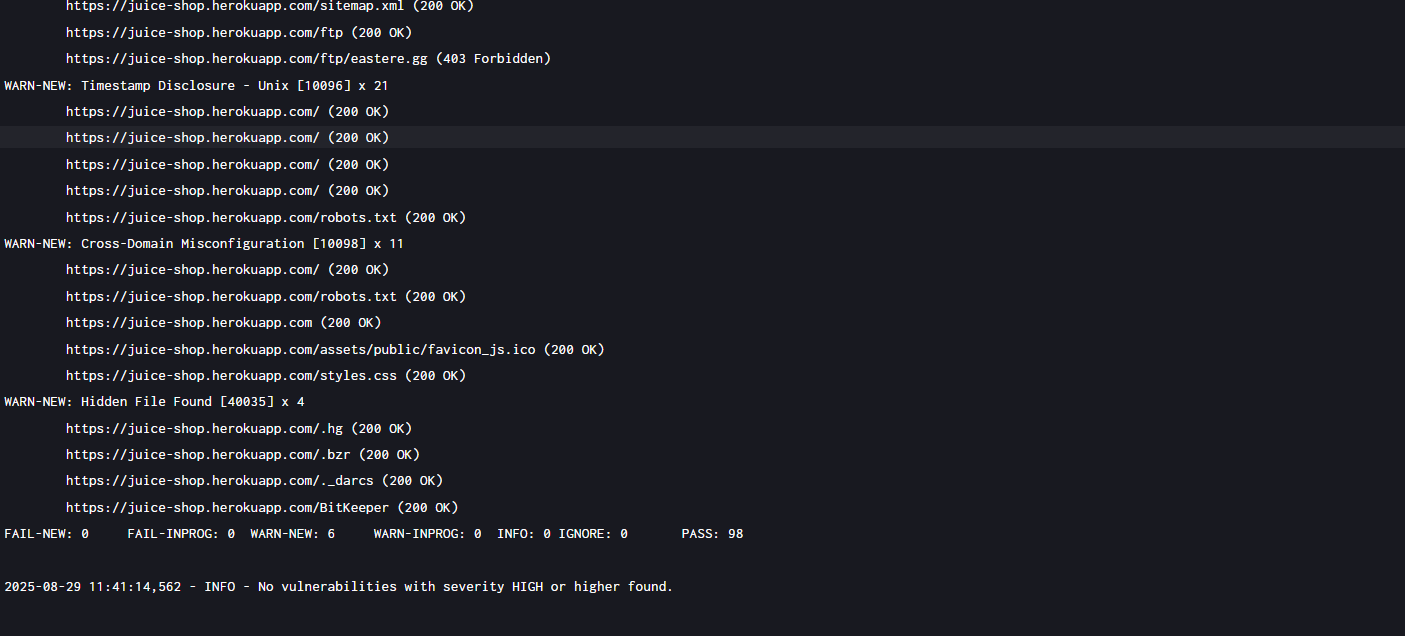

6. Triggering the Scan

  • Once the setup is done, every GitHub push to the specified branch will trigger the Devtron job.

  • The job will:

  • Pull the latest code

  • Run the AccuKnox ASPM DAST shell script inside the container against your provided URL

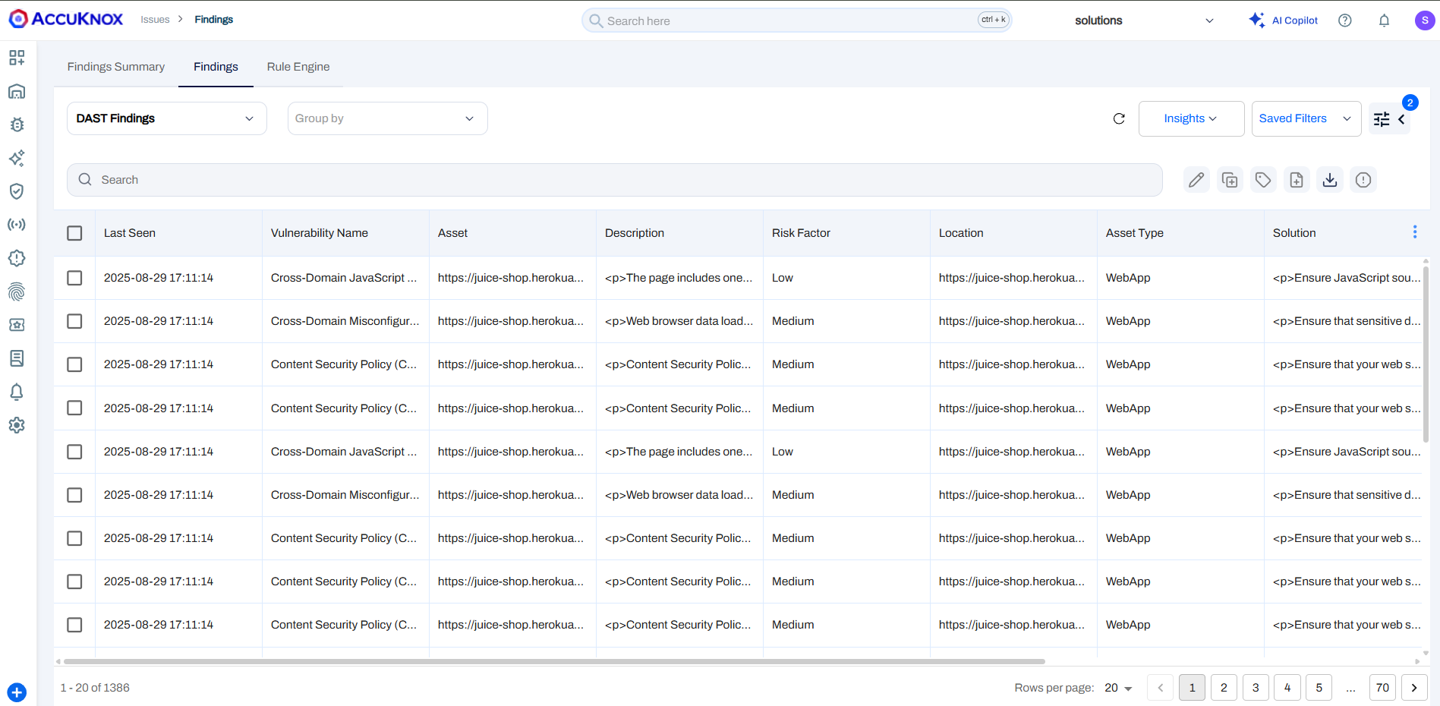

  • Upload scan results to the AccuKnox dashboard

Devtron

Devtron
