AWS CDK Scan with AccuKnox

Overview

This document provides a step-by-step guide on scanning AWS CDK projects using the AccuKnox platform. The process involves generating the template using AWS CDK, pushing the code to GitHub, configuring AccuKnox for scanning, and reviewing security findings.

Prerequisites

  • AWS CDK installed
  • A GitHub repository
  • An active AccuKnox account

Installing AWS CDK (Skip if already installed)

To install AWS CDK, run the following command:

npm install -g aws-cdk

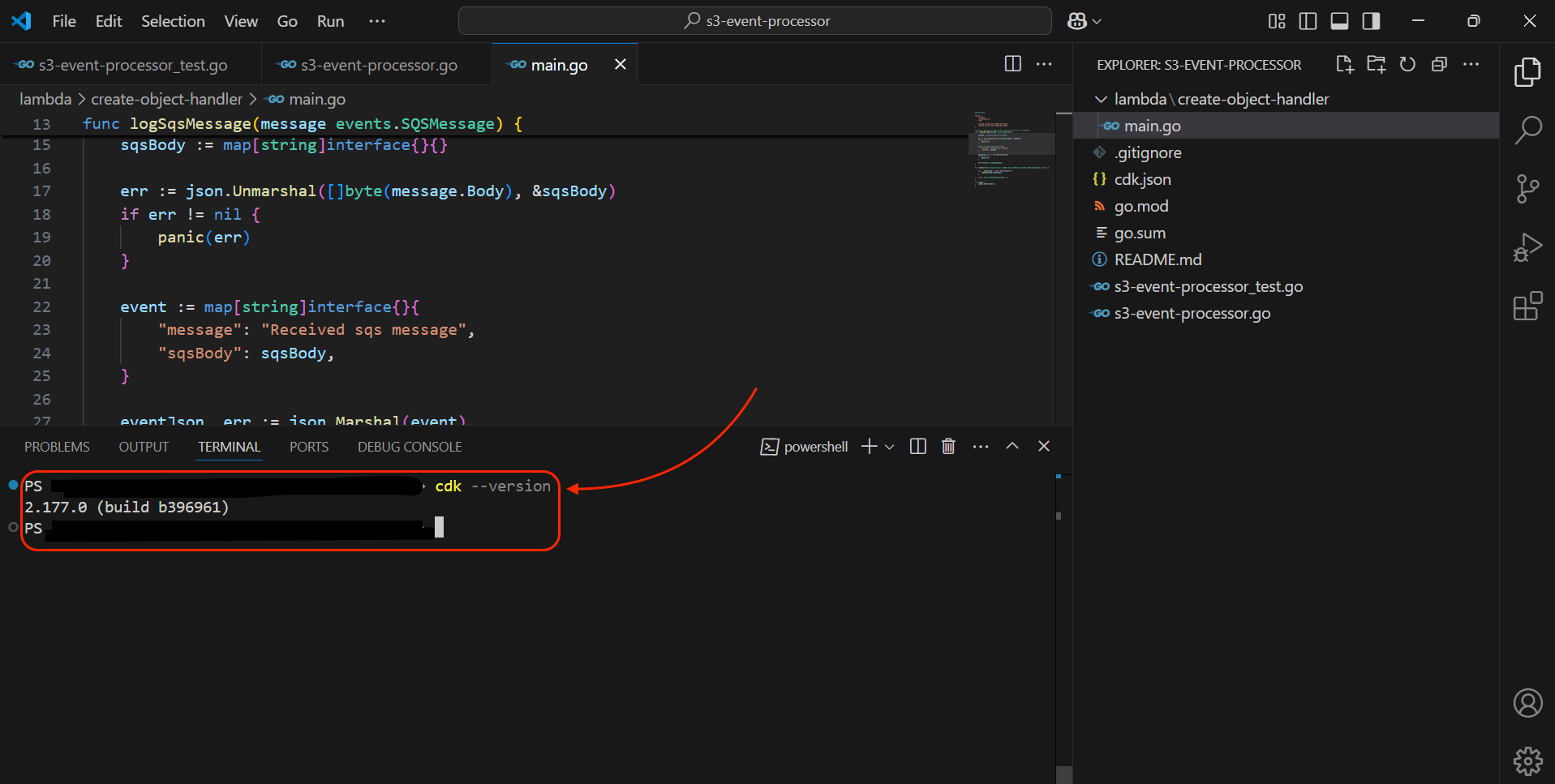

Verify the installation:

cdk --version
This command should return the installed version of AWS CDK.

Steps

1. Navigate to Your CDK Folder Path

Ensure you are in the directory where your AWS CDK project is located.

2. Generate the CloudFormation Template

What is cdk synth?

The cdk synth command synthesizes the AWS CloudFormation template from your AWS CDK application, generating a YAML file that represents the defined infrastructure.

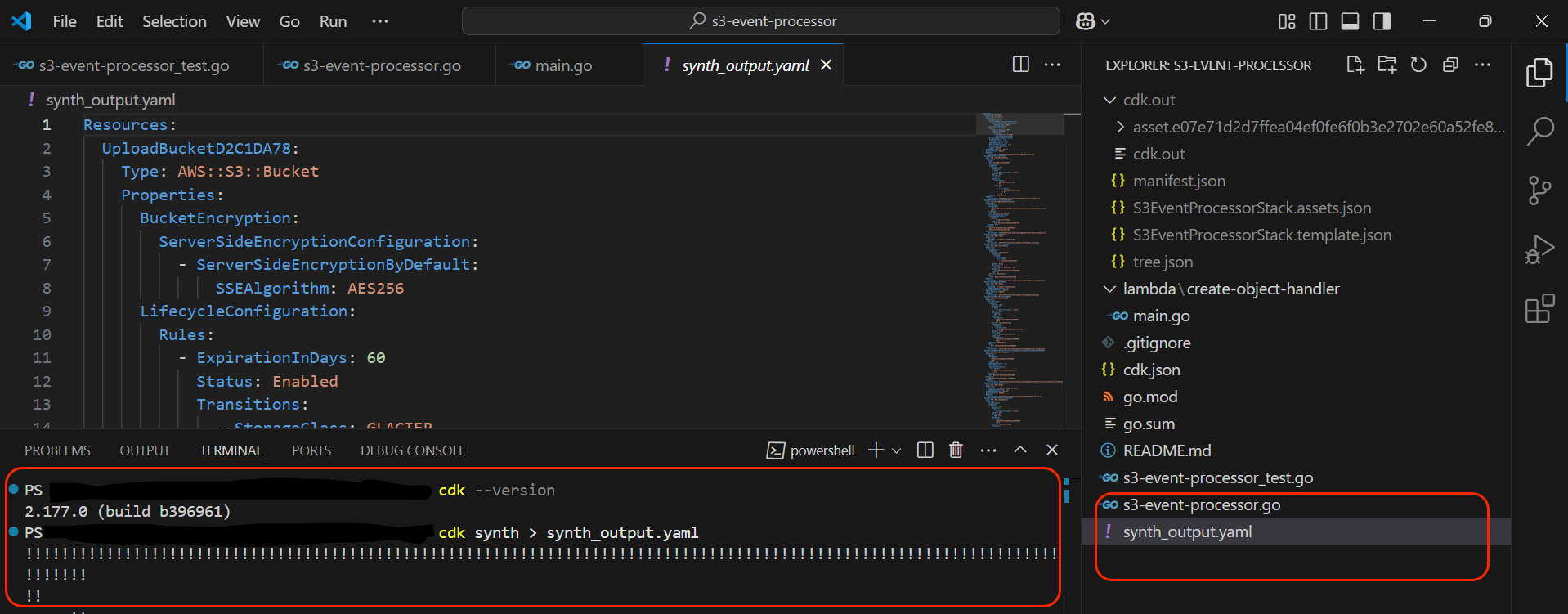

Run the following command:

cdk synth > synth_output.yaml

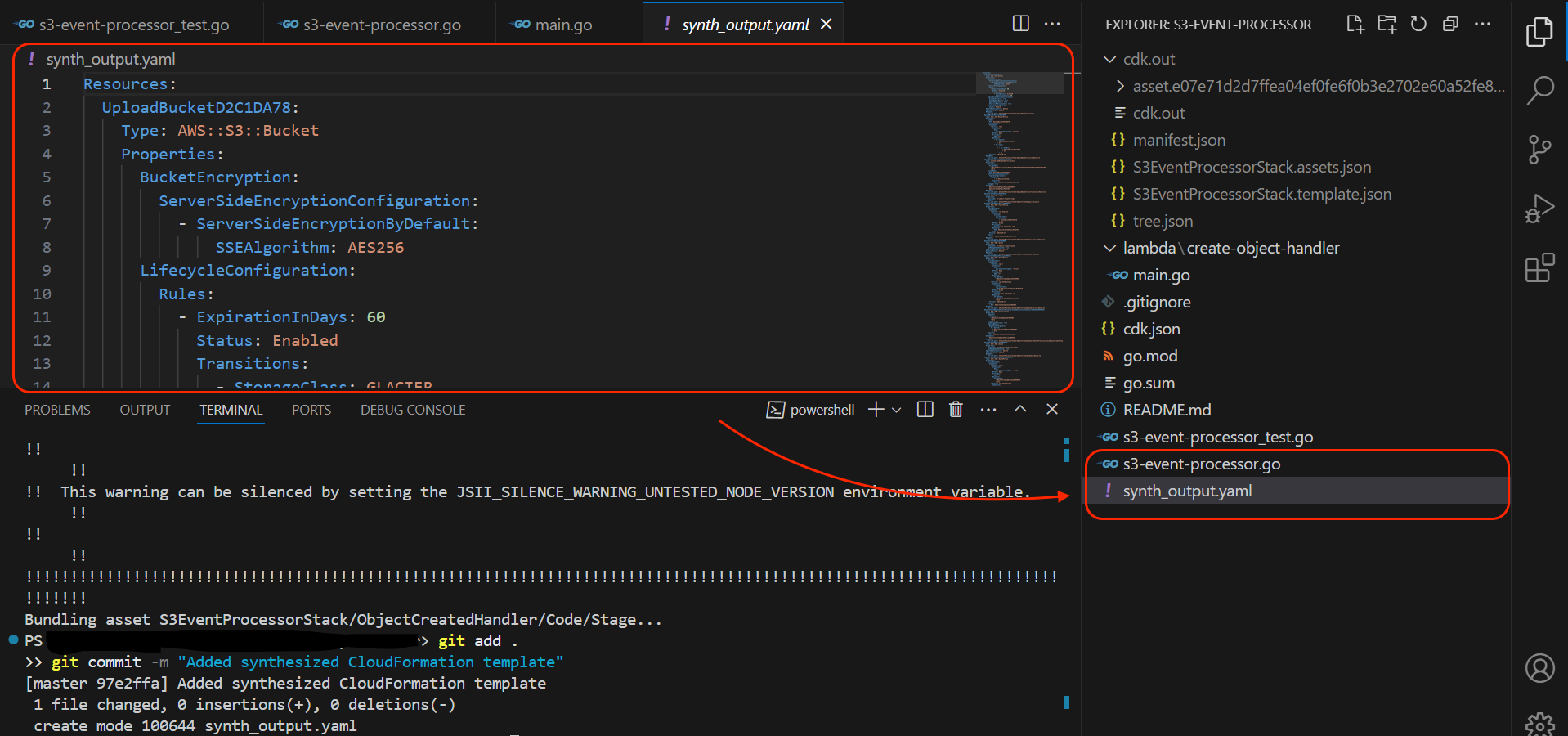

3. Confirm the YAML File is Generated

Verify that synth_output.yaml is created in the project directory.

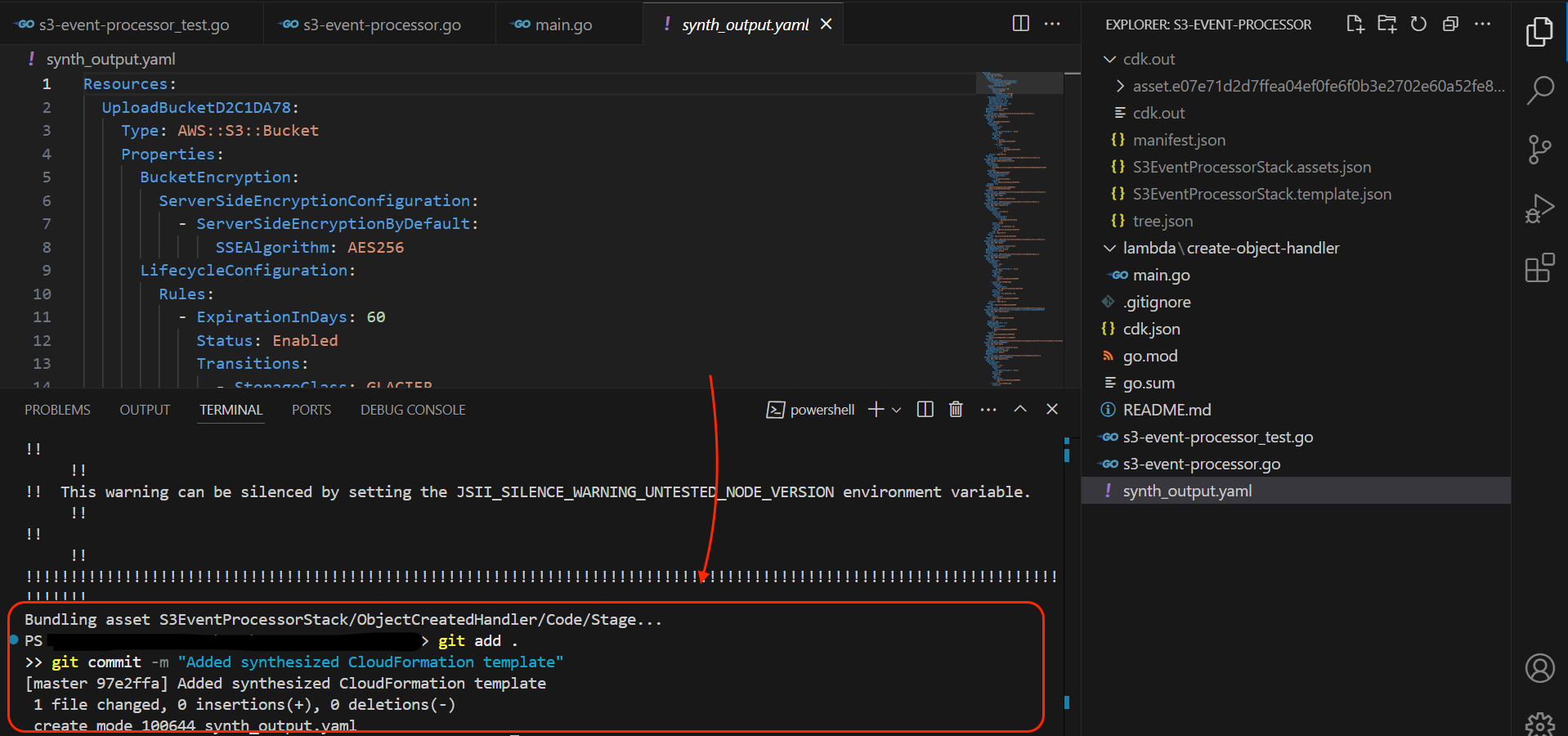

4. Push Code to GitHub

Follow these steps to push your code:

git add .
git commit -m "Added synthesized CloudFormation template"
git push origin main
Ensure your repository is linked to GitHub before executing these commands.

5. Log in to AccuKnox

Navigate to AccuKnox and log in with your credentials.

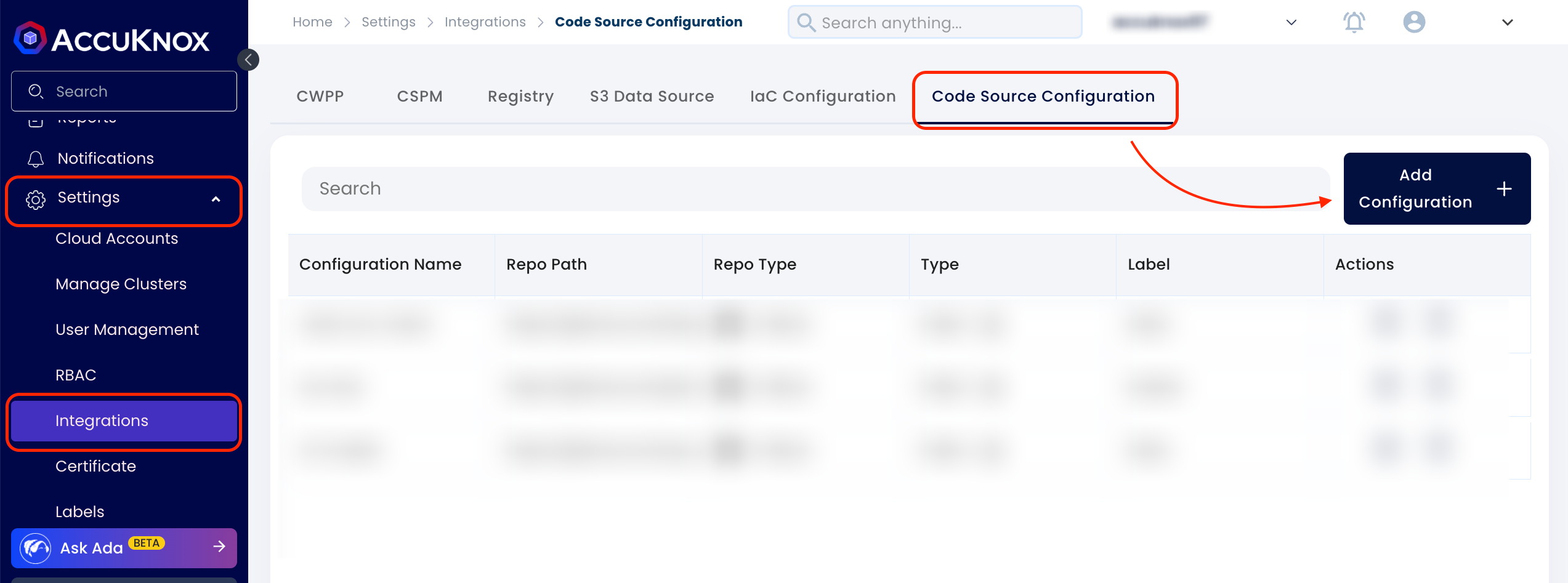

6. Configure Code Scan

  1. Go to Settings → Integrations
  2. Under Code Scan Configuration, click Add Configuration
  3. Fill in the required details

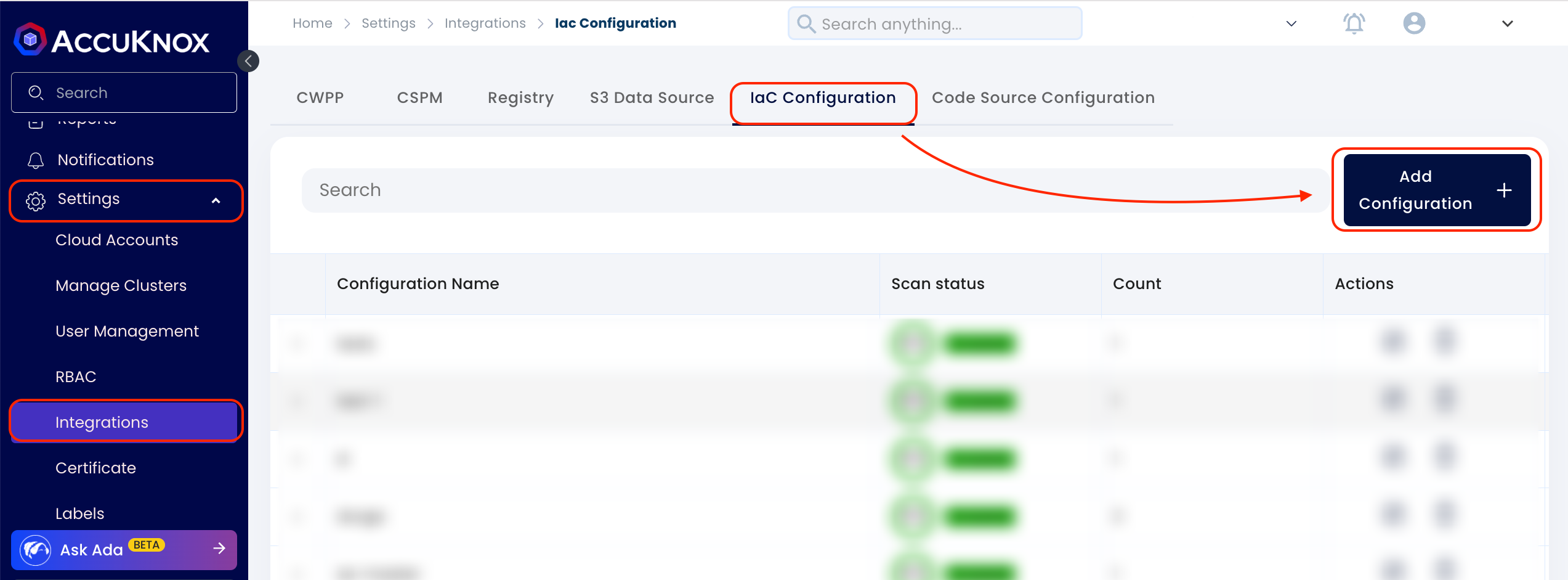

7. Configure IaC Scan

  1. Go to IaC Configuration
  2. Click Add Configuration
  3. Enter Integration Name
  4. Set Framework as CloudFormation
  5. Select the Repository from the dropdown

  6. In Conditions, set Include pattern:

    .*/synth_output\.yaml$
    This ensures that only synth_output.yaml is scanned. 7. Click Save.

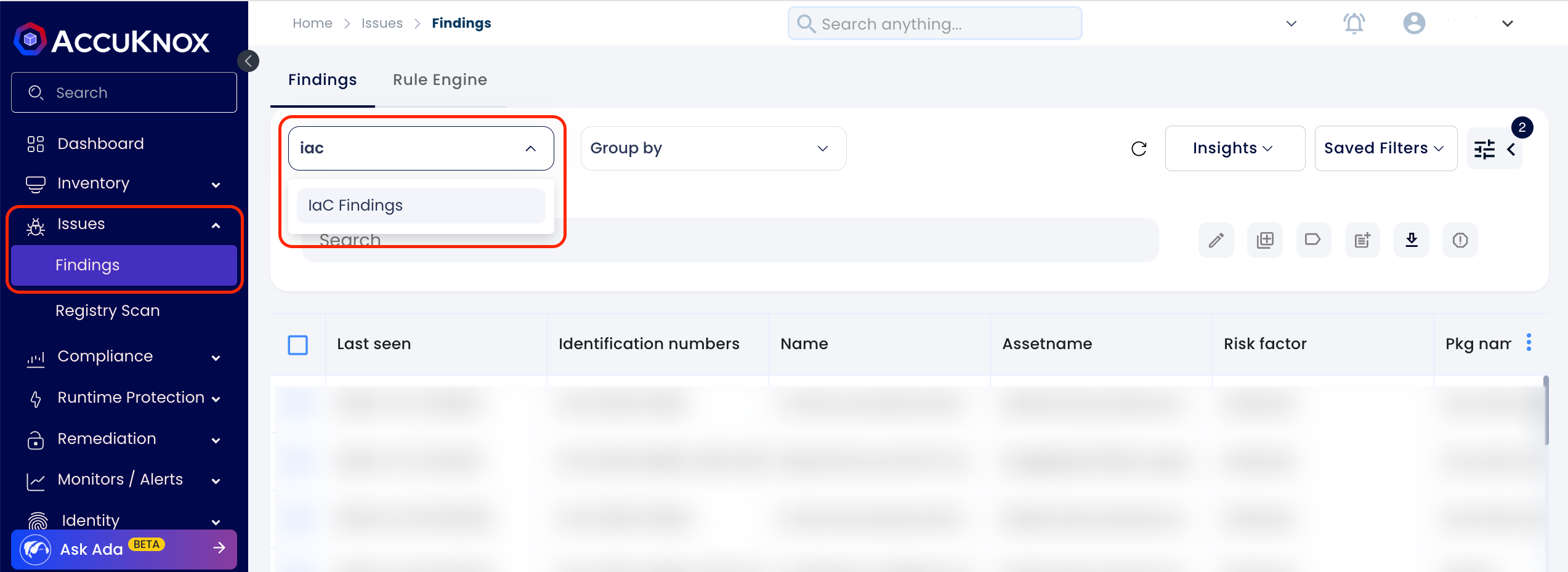

8. View Findings

  1. Navigate to Findings under the Issues tab
  2. Select Finding Type as IaC Findings
  3. View all security findings in your source code

Conclusion

Following these steps, you can successfully scan AWS CDK-generated CloudFormation templates using the AccuKnox platform. This process ensures that your infrastructure-as-code adheres to security best practices before deployment.

For further assistance, reach out to support@accuknox.com.
