Container Image Scan with Bamboo CI¶

Integrate AccuKnox Container Scanning with Bamboo CI to automate image vulnerability scans during builds and centralize findings for tracking and remediation.

Prerequisites¶

Before you begin

Ensure you have the following prerequisites ready before starting the integration:

Bamboo Access - Permission to create and configure build plans, and manage global variables.
- Reference: Getting started with Bamboo | Bamboo Data Center 12.0
AccuKnox UI Access - Access to the AccuKnox platform.
AccuKnox Scan API Credentials - You will need the following details:
- Authentication Token - How to Create Token
- Labels - How to Create Labels
- Endpoint URL
Repository Access - Ensure Bamboo can perform a full clone of your source code repository during the build process.
- Reference: GitHub | Bamboo Data Center 10.2
Global Variables - Defined global variables for endpoint, token, label, and softfail (including additional variables as required).
- Reference: Defining global variables | Bamboo Data Center 12.0

Configuration Steps¶

Step 1: Define Global Variables¶

Navigate to Bamboo Administration → Global Variables and add the following:

Variable Name	Description	Example
`ACCUKNOX_ENDPOINT`	URL of the AccuKnox CSPM panel	`cspm.demo.accuknox.com`
`ACCUKNOX_TOKEN`	Authentication token for AccuKnox API	`your_api_token_here`
`ACCUKNOX_LABEL`	Label to tag scan results	`bamboo-container`
`SOFT_FAIL`	Optional flag to allow pipeline continuation on failure	`true`

Step 2: Configure Container Scan Stage on Your Build Pipeline¶

Create or edit your existing pipeline to include steps that:

Builds your Docker image: docker build -t $IMAGE:$IMAGE_TAG -f Dockerfile .
Saves the image to a tarball: docker save -o $IMAGE_TAR $IMAGE:$IMAGE_TAG

Note

Edit image tags, variables or names as per your requirement.

Shell ScriptYAML Configuration

Script Task

#!/bin/sh -e
export SOFT_FAIL="true"
export ACCUKNOX_ENDPOINT="${bamboo.ACCUKNOX_ENDPOINT}"
export ACCUKNOX_TOKEN="${bamboo.ACCUKNOX_TOKEN}"
export ACCUKNOX_LABEL="${bamboo.ACCUKNOX_LABEL}"
export IMAGE="test"
export IMAGE_TAG="latest"
export SEVERITY="CRITICAL,HIGH,WARNING,MEDIUM,LOW,INFO"

# ASPM Scanner Installation
wget -q https://github.com/accuknox/aspm-scanner-cli/releases/download/v0.13.8/accuknox-aspm-scanner -O accuknox-aspm-scanner
chmod +x accuknox-aspm-scanner

# Determine soft-fail arg
if [ "${SOFT_FAIL}" = "true" ]; then
    softFailArg="--softfail"
else
    softFailArg=""
fi

echo "Building Docker image ${IMAGE}:${IMAGE_TAG}..."
docker build -t "${IMAGE}:${IMAGE_TAG}" -f Dockerfile .

cmd="image ${IMAGE}:${IMAGE_TAG}"
if [ -n "${SEVERITY}" ]; then
    cmd="${cmd} --severity ${SEVERITY}"
fi
fullCmd="accuknox-aspm-scanner scan ${softFailArg} container --command \"${cmd}\" --container-mode"

# Initiating Container Scan
echo "Running: ${fullCmd}"
eval ${fullCmd}

bamboo-specs.yaml

- script:
    interpreter: SHELL
    scripts:
      - |-
        #!/bin/sh -e
        export SOFT_FAIL="true"
        export ACCUKNOX_ENDPOINT="${bamboo.ACCUKNOX_ENDPOINT}"
        export ACCUKNOX_TOKEN="${bamboo.ACCUKNOX_TOKEN}"
        export ACCUKNOX_LABEL="${bamboo.ACCUKNOX_LABEL}"
        export IMAGE="test"
        export IMAGE_TAG="latest"
        export SEVERITY="CRITICAL,HIGH,WARNING,MEDIUM,LOW,INFO"

        # ASPM Scanner Installation
        wget -q https://github.com/accuknox/aspm-scanner-cli/releases/download/v0.13.8/accuknox-aspm-scanner -O accuknox-aspm-scanner
        chmod +x accuknox-aspm-scanner

        # Determine soft-fail arg
        if [ "${SOFT_FAIL}" = "true" ]; then
            softFailArg="--softfail"
        else
            softFailArg=""
        fi

        echo "Building Docker image ${IMAGE}:${IMAGE_TAG}..."
        docker build -t "${IMAGE}:${IMAGE_TAG}" -f Dockerfile .

        # Build the scanner command (shell style)
        cmd="image ${IMAGE}:${IMAGE_TAG}"
        if [ -n "${SEVERITY}" ]; then
            cmd="${cmd} --severity ${SEVERITY}"
        fi
        fullCmd="accuknox-aspm-scanner scan ${softFailArg} container --command \"${cmd}\" --container-mode"

        # Initiating Container Scan
        echo "Running: ${fullCmd}"
        eval ${fullCmd}
    description: container scan script
    artifact-subscriptions: []

Artifacts

Optionally collect the image tarball and any scanner output as build artifacts so they can be reviewed or downloaded from Bamboo. However, details of the same shall be available on the AccuKnox dashboard.

Workflow Comparison¶

Workflow Execution Without AccuKnox

Vulnerable images may be pushed to registries and production without centralized tracking.

Workflow Execution With AccuKnox

Integrating AccuKnox Container Scan with Bamboo CI ensures:

Every build can trigger a container scan and results are pushed to AccuKnox
Insecure builds can be blocked (if SOFT_FAIL=false)
Findings are centralized in the AccuKnox dashboard and can be used for ticketing and remediation

Viewing Results in AccuKnox¶

After the pipeline run, log in to AccuKnox.

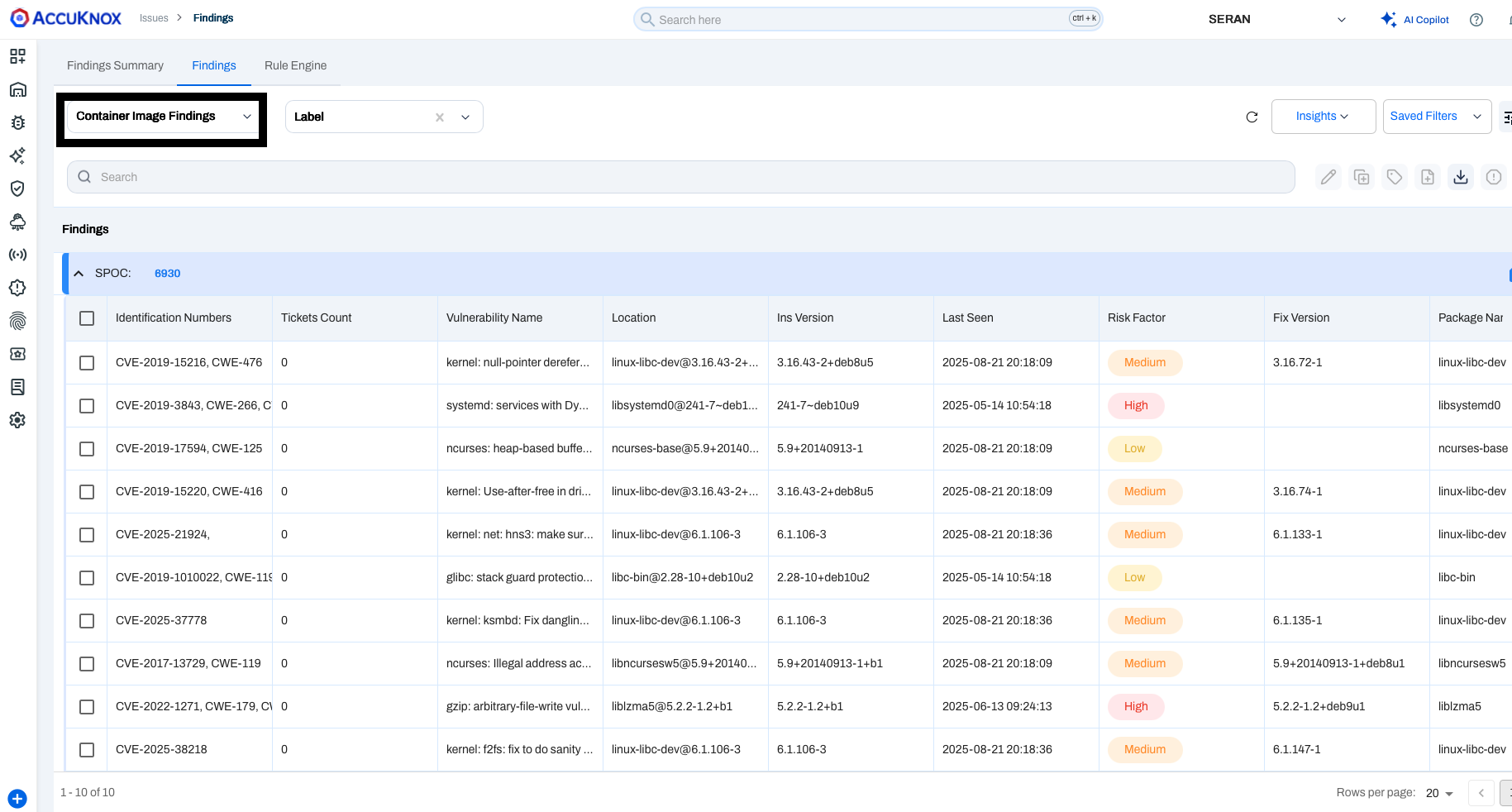

Navigate to AccuKnox → Issues → Findings, and select Container Image Findings. Container Image Findings Dashboard - Filtered by Label 'SPOC'

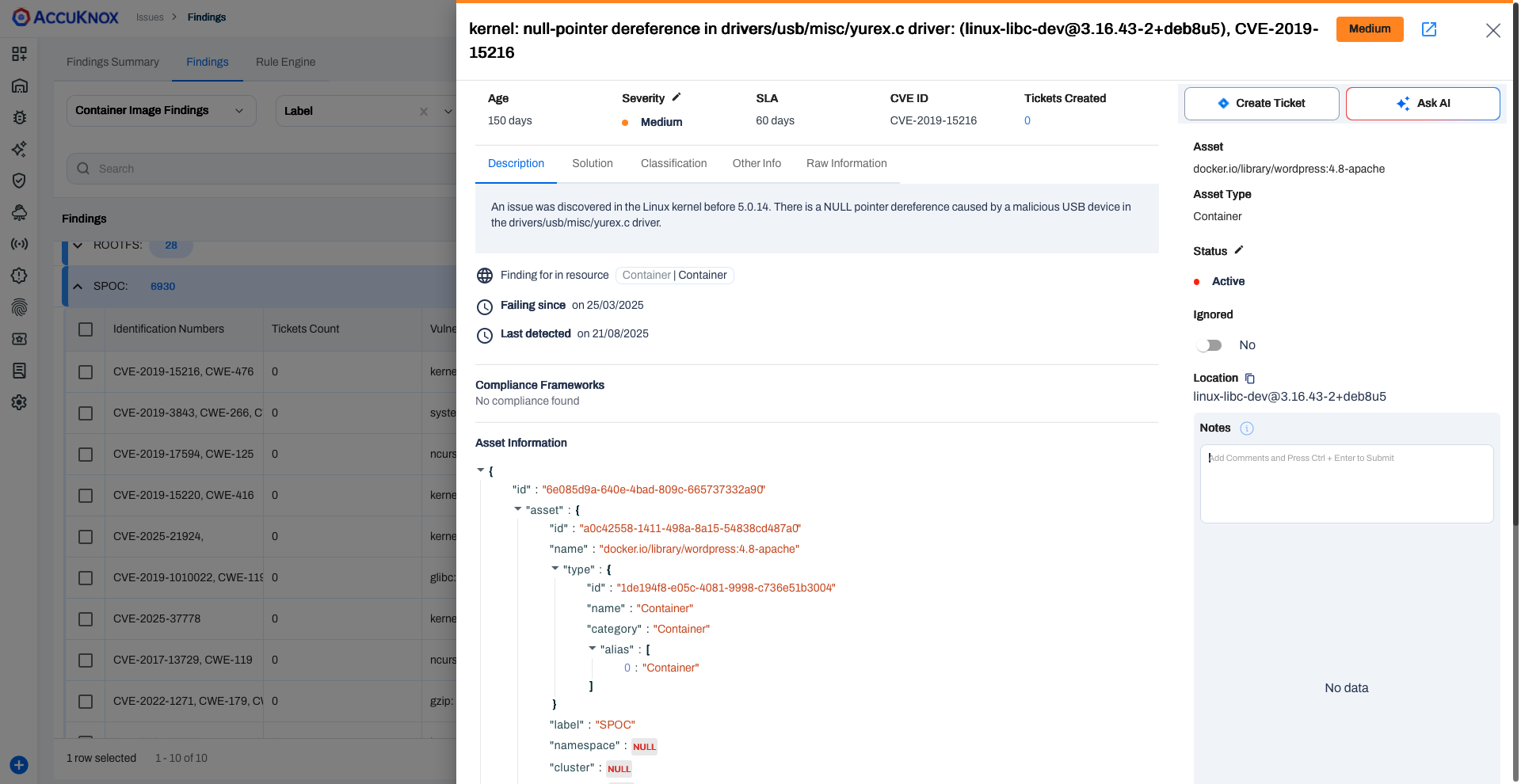

Click any finding to view more details.
Use the Create Ticket button to raise a ticket directly from the finding.

Registry Scan for Images¶

To onboard container registries refer to the below documentations:

Additional Registry guides are available on Registry Overview
