F5 Big IP Integration with AccuKnox API Security¶

This guide describes how to integrate F5 Big IP with AccuKnox API Security for API security monitoring.

Prerequisites¶

F5 Big IP instance

Steps¶

1. F5 Node Setup¶

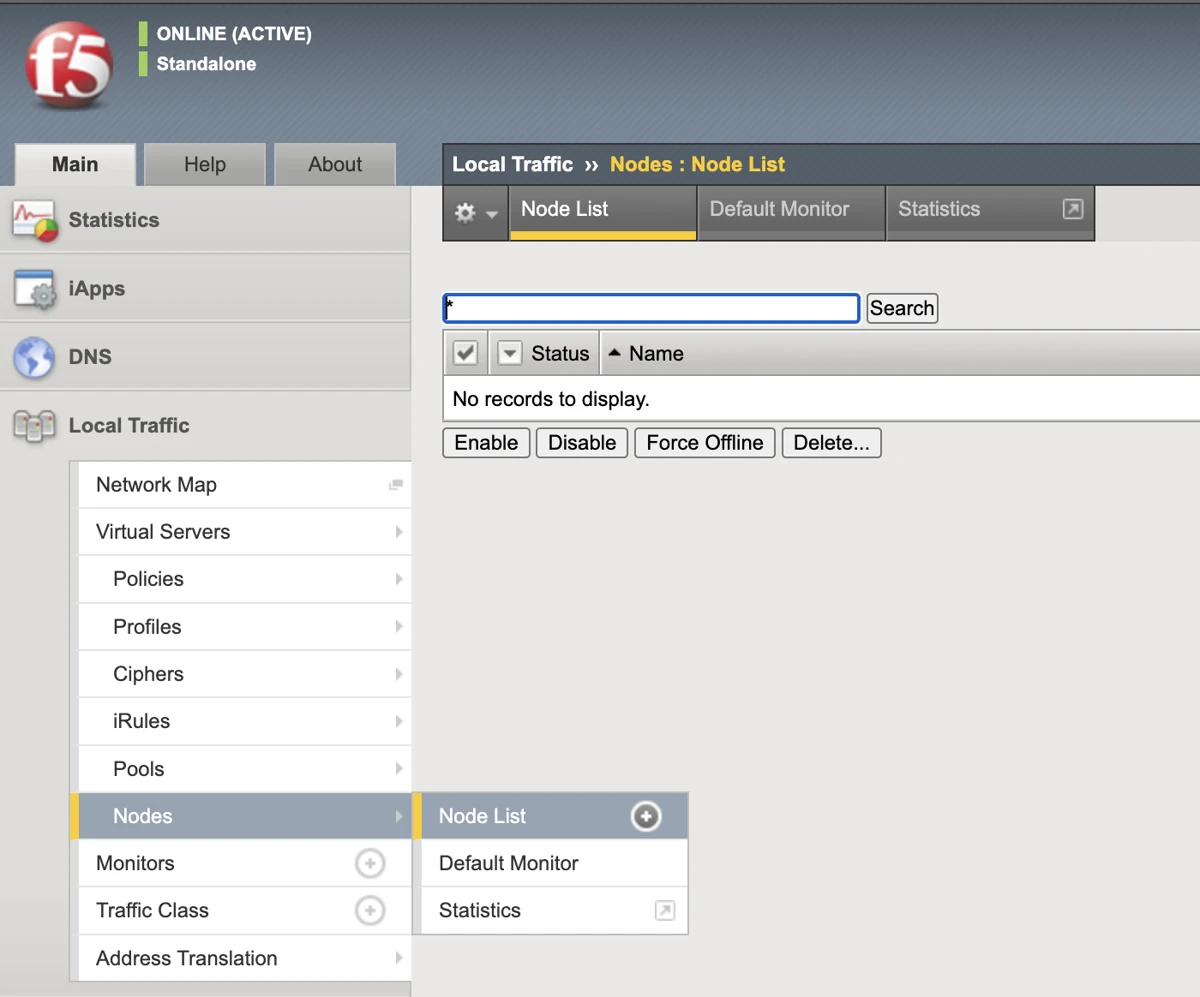

Inside left nav bar go to Local Traffic -> Nodes -> Node List.
Create a new node in your F5 dashboard. Use the IP and port of the AccuKnox API Security instance as the Address.

2. F5 Pool Setup¶

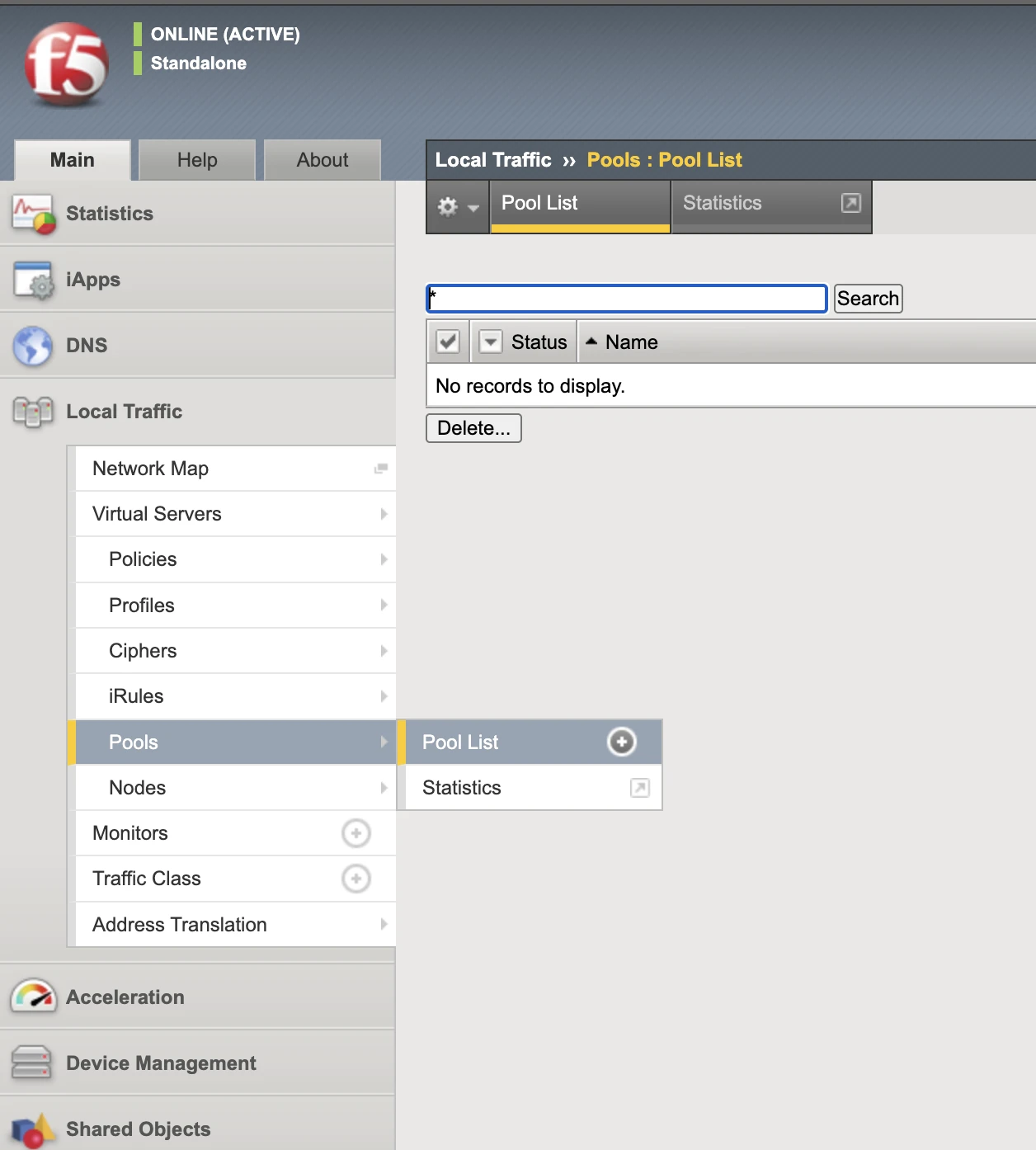

Inside left nav bar go to Local Traffic -> Pools -> Pool List.
Create a new pool named sentryflow in your F5 dashboard.
- Address: Use the IP of the AccuKnox API Security instance.
- Service Port: 30002

3. iRule Setup¶

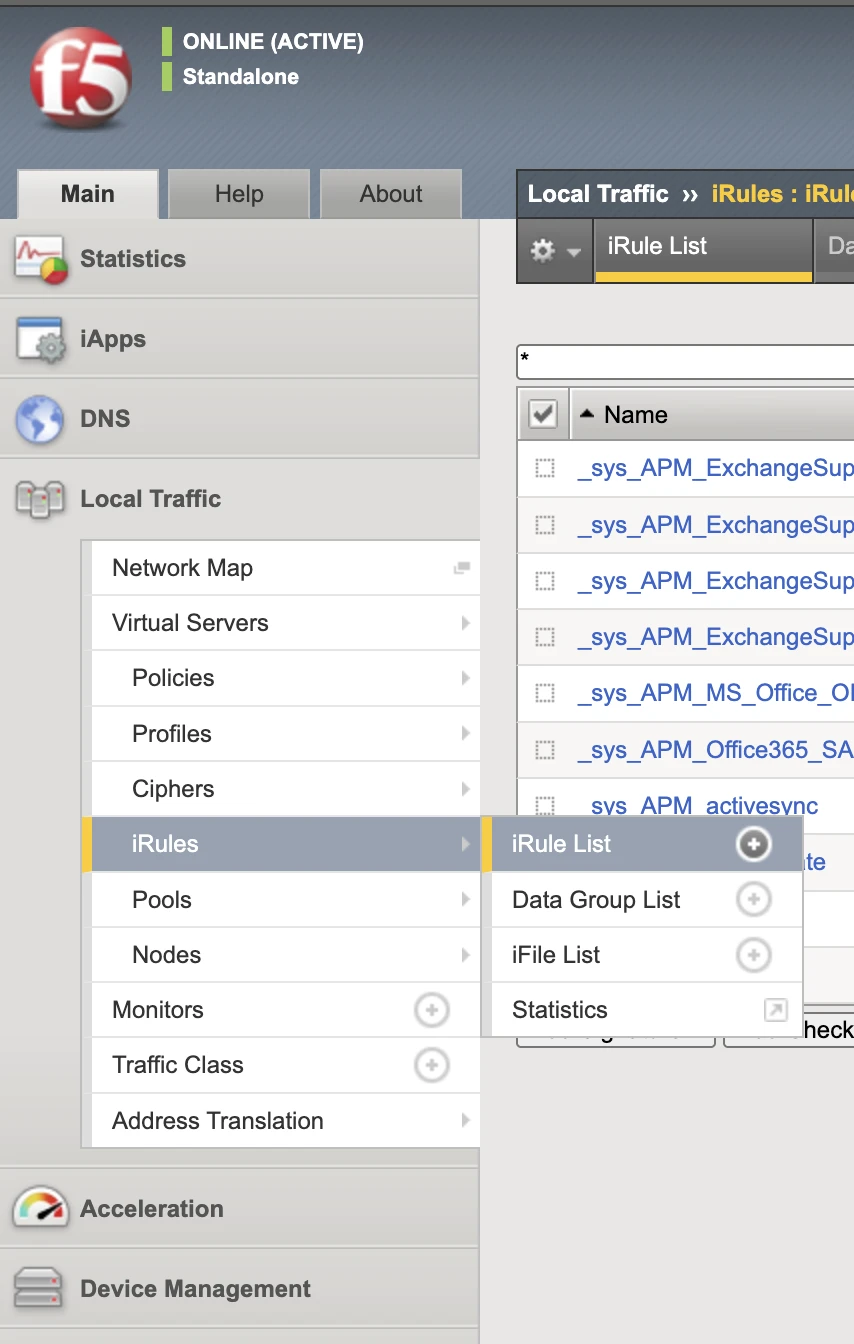

Inside left nav bar go to Local Traffic -> iRules -> iRule List.
Create a new iRule with the following TCL script:

when RULE_INIT {
    set static::delimiter "__"
    set static::hsl_start "${static::delimiter}HSL_START${static::delimiter}"
    set static::request_header_start "${static::delimiter}REQHS${static::delimiter}"
    set static::request_header_end "${static::delimiter}REQHE${static::delimiter}"
    set static::header_name "${static::delimiter}HEAN${static::delimiter}"
    set static::header_value "${static::delimiter}HEAV${static::delimiter}"
    set static::response_header_start "${static::delimiter}RESPHS${static::delimiter}"
    set static::response_header_end "${static::delimiter}RESPHE${static::delimiter}"
    set static::max_collect_len 10000
    set static::request_payload "${static::delimiter}REQPS${static::delimiter}"
    set static::response_payload "${static::delimiter}REQPE${static::delimiter}"
    set static::hsl_end "${static::delimiter}HSL_END${static::delimiter}"
}
when CLIENT_ACCEPTED {
   set hsl [HSL::open -proto TCP -pool sentryflow]
    # initialize per-connection variables
    set reqHeaderString ""
    set resHeaderString ""
    set request_payload ""
    set response_payload ""
    set forwarded_data 0
    set protocol ""
    set request_time 0
    set response_time 0
}
when HTTP_REQUEST {
    set request_time [clock clicks -milliseconds]
    # Build request header blob (simple, safer escaping)
    set reqHeaderString "${static::request_header_start}"
    foreach aHeader [HTTP::header names] {
        if { [string tolower $aHeader] == "content-type" } {
            set contentTypeHeaderValue [HTTP::header value $aHeader]
        }
        set lwcasekey [string tolower $aHeader]
        # escape only double quotes (safe)
        set safe_key  [string map {"\"" "\\\""} $lwcasekey]
        set raw_val   [HTTP::header value $aHeader]
        set safe_val  [string map {"\"" "\\\""} $raw_val]
        append reqHeaderString "${static::header_name}${safe_key}${static::header_value}${safe_val}"
    }
    append reqHeaderString ${static::request_header_end}
    # Save metadata
    set path                 [HTTP::path -normalized]
    set method               [HTTP::method]
    set client_addr          [IP::client_addr]
    set client_port          [TCP::client_port]
    set dest_addr            [IP::local_addr]
    set dest_port            [TCP::local_port]
    set query                [HTTP::query]
    set request_payload      ""; # will be set in HTTP_REQUEST_DATA
    set scheme ""
    if { [SSL::mode] == 1 } {
        set scheme "https"
    } else {
        set scheme "http"
    }
    if { [HTTP::header exists "scheme"] == 0 } {
        HTTP::header insert "scheme" ${scheme}
    }
    if { [HTTP::header exists "path"] == 0 } {
        HTTP::header insert "path" ${path}
    }
    if { [HTTP::header exists "method"] == 0 } {
        HTTP::header insert "method" ${method}
    }
    if { [HTTP::header exists "query"] == 0 } {
        HTTP::header insert "query" ${query}
    }
    if { [HTTP::version] eq "2" } {
        set protocol "HTTP/2"
    } else {
        set protocol "HTTP/[HTTP::version]"
    }
}
when HTTP_REQUEST_DATA {
    if { [HTTP::payload length] > 0 } {
        set capture_length [HTTP::payload length]
        if { $capture_length > $static::max_collect_len } {
            set capture_length $static::max_collect_len
        }
        set request_payload [b64encode [string range "[HTTP::payload]" 0 $capture_length]]
    }
}
when HTTP_RESPONSE {
    set response_time [clock clicks -milliseconds]
    set response_status_code [HTTP::status]
    # Build response header blob
    set resHeaderString "${static::response_header_start}"
    foreach aHeader [HTTP::header names] {
        set lwcasekey [string tolower $aHeader]
        set safe_key  [string map {"\"" "\\\""} $lwcasekey]
        set raw_val   [HTTP::header value $aHeader]
        set safe_val  [string map {"\"" "\\\""} $raw_val]
        append resHeaderString "${static::header_name}${safe_key}${static::header_value}${safe_val}"
    }
    append resHeaderString ${static::response_header_end}
    # request BIG-IP to collect body (if present)
    HTTP::collect $static::max_collect_len
    # default: not forwarded yet
    set forwarded_data 0
    # If no body, send immediately
    if { [HTTP::header exists "Content-Length"] && [HTTP::header value "Content-Length"] == 0 } {
        set response_payload ""
        set forwarded_data 1
        set out "${static::hsl_start} ${static::hsl_start} ${static::hsl_start} ${static::hsl_start} ${static::hsl_start} ${static::hsl_start}$scheme $path $method $query $client_addr $client_port $dest_addr $dest_port $protocol $response_status_code $request_time $response_time $reqHeaderString $resHeaderString ${static::request_payload}$request_payload ${static::response_payload}$response_payload ${static::hsl_end}\n"
        HSL::send $hsl $out
    }
}
when HTTP_RESPONSE_DATA {
    # capture response body base64
    if { [HTTP::payload length] > 0 } {
        set capture_length [HTTP::payload length]
        if { $capture_length > $static::max_collect_len } {
            set capture_length $static::max_collect_len
        }
        set response_payload [b64encode [string range "[HTTP::payload]" 0 $capture_length]]
    }
    if { $forwarded_data != 1 } {
        set out "${static::hsl_start} ${static::hsl_start} ${static::hsl_start} ${static::hsl_start} ${static::hsl_start} ${static::hsl_start}$scheme $path $method $query $client_addr $client_port $dest_addr $dest_port $protocol $response_status_code $request_time $response_time $reqHeaderString $resHeaderString ${static::request_payload}$request_payload ${static::response_payload}$response_payload ${static::hsl_end}\n"
        HSL::send $hsl $out
    }
}

4. Create Virtual Server¶

Create a virtual server and attach the iRule to it.

5. Deploy AccuKnox API Security¶

Install AccuKnox API Security with the following helm command:

helm upgrade --install sentryflow \
  oci://public.ecr.aws/k9v9d5v2/sentryflow-helm-charts \
  --version v0.1.8 \
  --namespace sentryflow \
  --create-namespace \
  --set config.receivers.f5BigIp.enabled=true
