Kong Gateway Integration with AccuKnox API Security¶

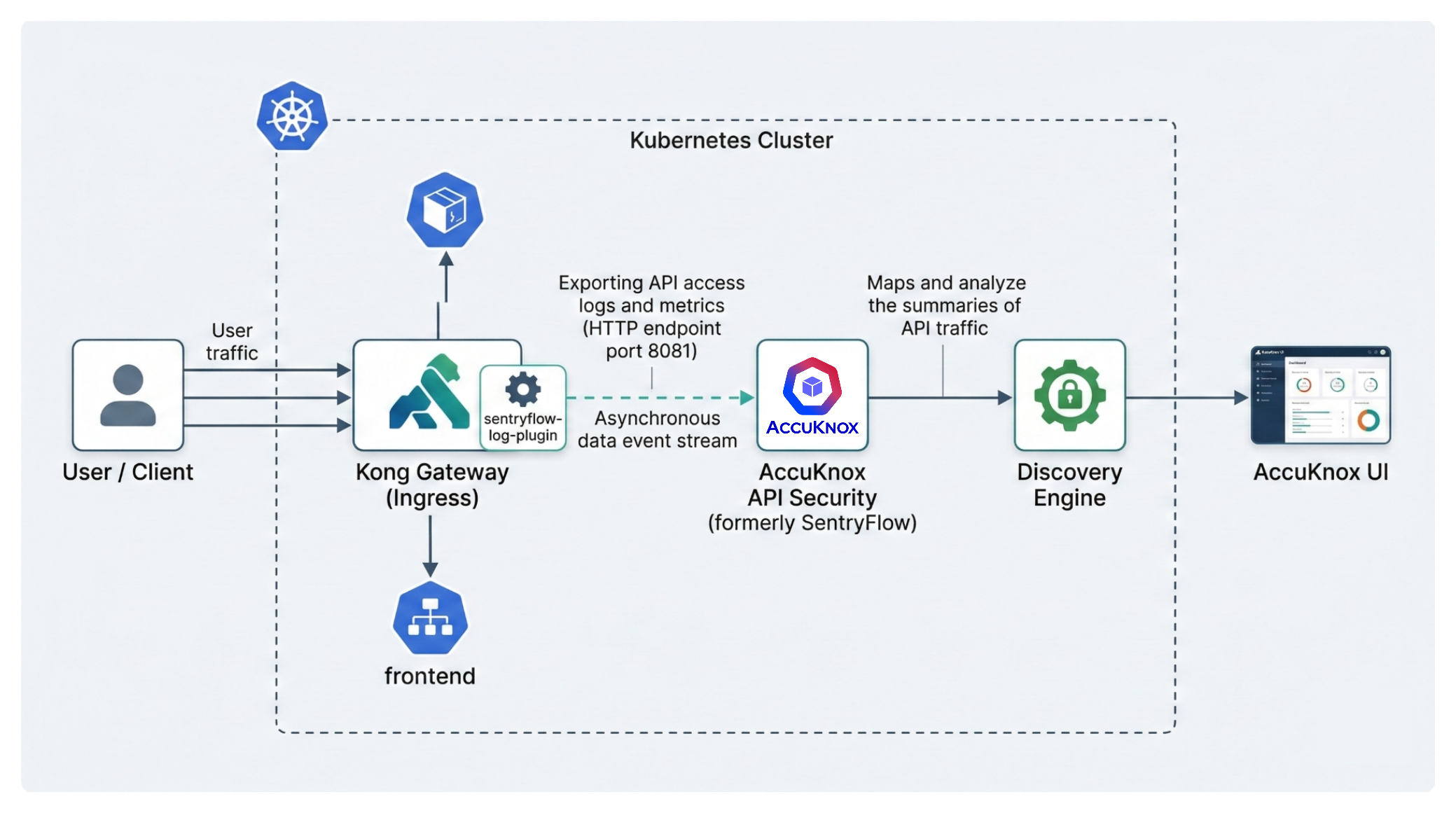

This guide describes how to integrate Kong Gateway with AccuKnox API Security for API security monitoring.

Prerequisites¶

Kubernetes cluster (e.g., kind, EKS, GKE)
kubectl configured
Helm 3.x installed
AccuKnox agents installed

Steps¶

1. Install Kong Gateway¶

helm repo add kong https://charts.konghq.com
helm repo update

# Install Kong with default settings
helm install kong kong/kong \
  --namespace kong \
  --create-namespace \
  --set ingressController.installCRDs=false \
  --set admin.enabled=true \
  --set admin.type=NodePort

2. Deploy AccuKnox API Security (Initial - Creates ConfigMap)¶

Deploy AccuKnox API Security with Kong receiver enabled. This creates the sentryflow-log-plugin ConfigMap in the 'kong' namespace containing the plugin Lua code.

Note: This step may show a warning about the KongClusterPlugin failing validation - this is expected because Kong hasn't loaded the plugin yet. The API Security components and the ConfigMap will still be created.

helm upgrade --install sentryflow \
  oci://public.ecr.aws/k9v9d5v2/sentryflow-helm-charts \
  --namespace sentryflow \
  --create-namespace \
  --set config.receivers.kongGateway.enabled=true \
  --set config.receivers.kongGateway.namespace=kong \
  --set config.receivers.kongGateway.deploymentName=kong-kong \
  --set config.receivers.kongGateway.plugin.httpEndpoint=http://sentryflow.sentryflow.svc.cluster.local:8081/api/v1/events \
  --set config.receivers.kongGateway.plugin.timeout=10000 \
  --set config.receivers.kongGateway.plugin.keepalive=60000

Verify the ConfigMap was created:

kubectl get configmap sentryflow-log-plugin -n kong

3. Patch Kong Deployment¶

Now we need to configure Kong to load the sentryflow-log plugin. This requires:

Mounting the ConfigMap containing the plugin code
Setting the KONG_PLUGINS environment variable

Mount the plugin and enable it:

# Mount the plugin ConfigMap
kubectl patch deployment kong-kong -n kong --type=json -p='[
  {
    "op": "add",
    "path": "/spec/template/spec/volumes/-",
    "value": {
      "name": "sentryflow-log-plugin",
      "configMap": {
        "name": "sentryflow-log-plugin"
      }
    }
  },
  {
    "op": "add",
    "path": "/spec/template/spec/containers/1/volumeMounts/-",
    "value": {
      "name": "sentryflow-log-plugin",
      "mountPath": "/usr/local/share/lua/5.1/kong/plugins/sentryflow-log",
      "readOnly": true
    }
  }
]'

# Enable the plugin in Kong
kubectl set env deployment/kong-kong -n kong KONG_PLUGINS=bundled,sentryflow-log

Note: The volumeMount is applied to the proxy container (index 1). Adjust if your Kong deployment has a different container order.

Wait for Kong to restart and become ready:

kubectl -n kong rollout status deployment/kong-kong

4. Create KongClusterPlugin¶

Now that Kong has loaded the plugin, re-run the Helm chart to create the KongClusterPlugin resource:

helm upgrade --install sentryflow \
  oci://public.ecr.aws/k9v9d5v2/sentryflow-helm-charts \
  --namespace sentryflow \
  --create-namespace \
  --set config.receivers.kongGateway.enabled=true \
  --set config.receivers.kongGateway.namespace=kong \
  --set config.receivers.kongGateway.deploymentName=kong-kong \
  --set config.receivers.kongGateway.plugin.httpEndpoint=http://sentryflow.sentryflow:8081/api/v1/events \
  --set config.receivers.kongGateway.plugin.timeout=10000 \
  --set config.receivers.kongGateway.plugin.keepalive=60000

Verify the KongClusterPlugin was created:

kubectl get kongclusterplugins

You should see:

NAME             PLUGIN-TYPE      AGE   PROGRAMMED
sentryflow-log   sentryflow-log   Xs

5. Patch Discovery Engine¶

Update the discovery-engine ConfigMap (discovery-engine-sumengine) to use AccuKnox API Security and restart the deployment.

kubectl -n agents edit configmap discovery-engine-sumengine

Update the configuration:

data:
  app.yaml: |
    ...
    summary-engine:
      sentryflow:
        cron-interval: 0h0m30s
        decode-jwt: true
        enabled: true
        include-bodies: true
        redact-sensitive-data: false
        sensitive-rules-files-path:
        - /var/lib/sumengine/sensitive-data-rules.yaml
        threshold: 10000
    watcher:
    ...
      sentryflow:
        enabled: true
        event-type:
          access-log: true
          metric: false
        service:
          enabled: true
          name: sentryflow
          port: "8080"
          url: "sentryflow.sentryflow"

Restart discovery-engine:

kubectl -n agents rollout restart deployment/discovery-engine

Verification Guide¶

1. Deploy Sample Application¶

Deploy the Google Microservices Demo frontend service (or any HTTP service).

# Verify frontend service exists
kubectl get svc

2. Create Ingress Resource¶

Create an Ingress to route traffic through Kong to your service.

kubectl apply -f - <<EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: frontend-ingress
  annotations:
    konghq.com/strip-path: "true"
spec:
  ingressClassName: kong
  rules:
    - http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: frontend
                port:
                  number: 80
EOF

3. Generate Traffic¶

Port-forward the Kong proxy and send requests.

# Port forward Kong Proxy
kubectl port-forward -n kong svc/kong-kong-proxy 8000:80 &

# Send traffic
sleep 2
curl -s http://localhost:8000/ > /dev/null
curl -s http://localhost:8000/cart > /dev/null

4. Verify API Security Logs¶

Check AccuKnox API Security logs to confirm it received the events.

kubectl -n sentryflow logs deployment/sentryflow --tail=50

You should see logs indicating receipt of events:

{"level":"INFO",...,"msg":"Received API Event from kong"}

Troubleshooting¶

KongClusterPlugin Validation Error¶

If you see:

Error: admission webhook "validations.kong.konghq.com" denied the request: plugin failed schema validation

This means Kong hasn't loaded the plugin yet. Ensure:

The sentryflow-log-plugin ConfigMap exists in the kong namespace
Kong deployment has the ConfigMap mounted at /usr/local/share/lua/5.1/kong/plugins/sentryflow-log
KONG_PLUGINS environment variable includes sentryflow-log
Kong pods have restarted and are Running

Kong Pods in CrashLoopBackOff¶

If Kong pods crash after setting KONG_PLUGINS:

The ConfigMap may not be mounted yet
Apply the patch to mount the ConfigMap and wait for pods to restart
