Onboarding Azure Organization

Managing security across multiple Azure subscriptions is complex. Onboarding your Azure Organization allows for centralized visibility and consistent policy enforcement across all subscriptions.

1. Configurations

AccuKnox provides a flexible way to selectively onboard your Azure environment. You can choose to onboard specific Management Groups and Subscriptions or onboard everything while excluding specific parts.

1. Onboarding Steps from AccuKnox Control Plane

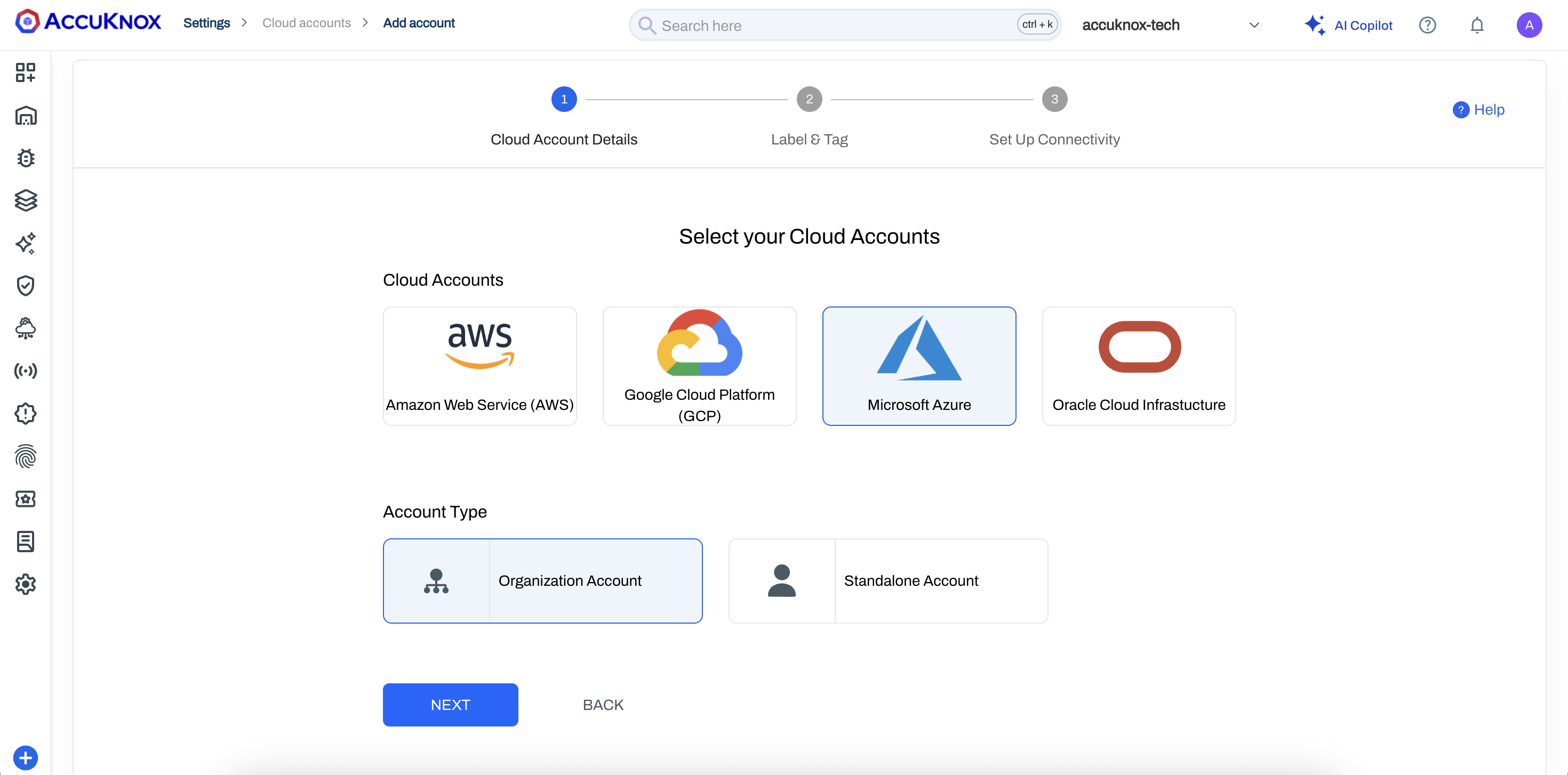

Step 1: Select Microsoft Azure and choose Organization Account, then click Next to begin onboarding the Azure org. alt text

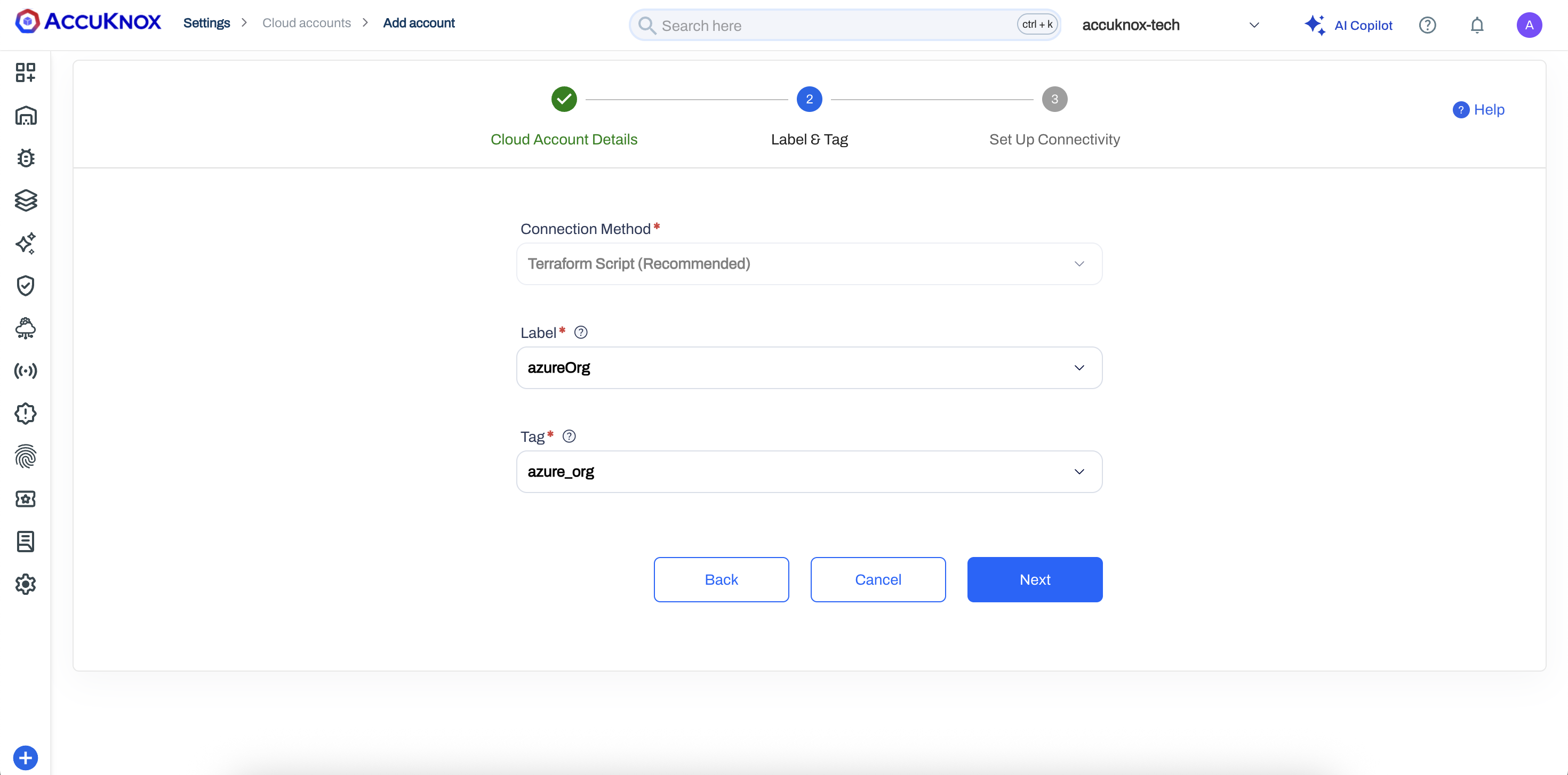

Step 2: Set the connection method (Terraform recommended), add a label and tag for the Azure organization, then proceed. alt text

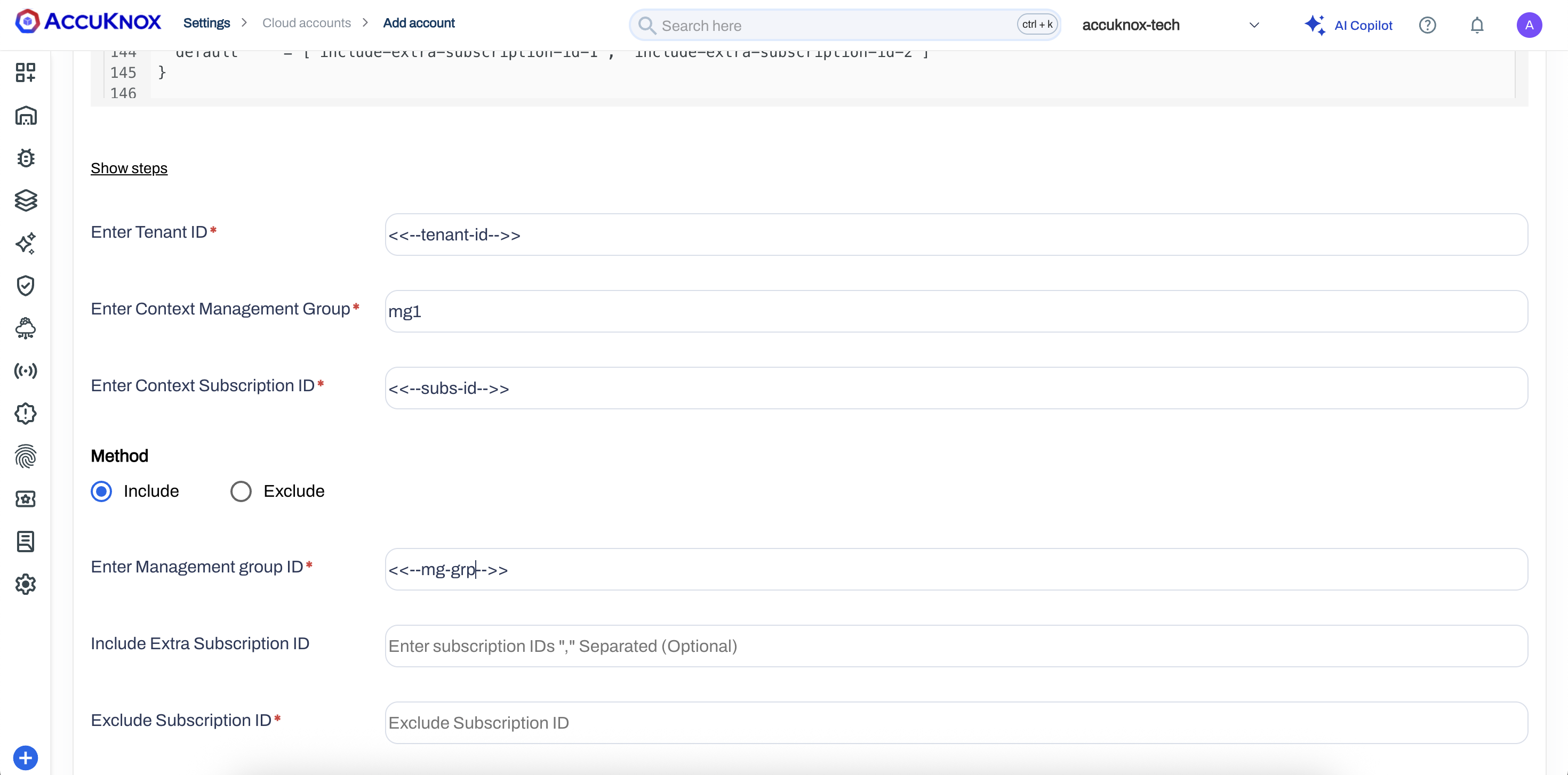

Step 3: Enter Tenant ID, Management Group, and Subscription scope details to define what the Azure org connection will monitor. alt text

Choose the mode that best fits your organizational structure:

Best for: Onboarding specific departments, staging environments, or a subset of your organization.

  • Included Management Groups (included_management_group_ids): [Mandatory] Specify the list of Management Group IDs you want to onboard. All subscriptions within these groups will be included.
  • Include Extra Subscriptions (include_extra_subscription_ids): [Optional] Specify individual Subscription IDs that are outside the selected Management Groups but should still be onboarded.
  • Exclude Subscriptions (excluded_subscription_ids): [Optional] Specify individual Subscription IDs that are inside the selected Management Groups but should NOT be onboarded.

Best for: Onboarding the entire organization while omitting specific sensitive or sandbox environments.

  • Excluded Management Groups (excluded_management_groups): [Mandatory] Specify the list of Management Group IDs you want to skip. All other Management Groups under the root will be onboarded.
  • Excluded Subscriptions (excluded_subscription_ids): [Optional] Specify individual Subscription IDs that you want to skip, even if their Management Group is being onboarded.

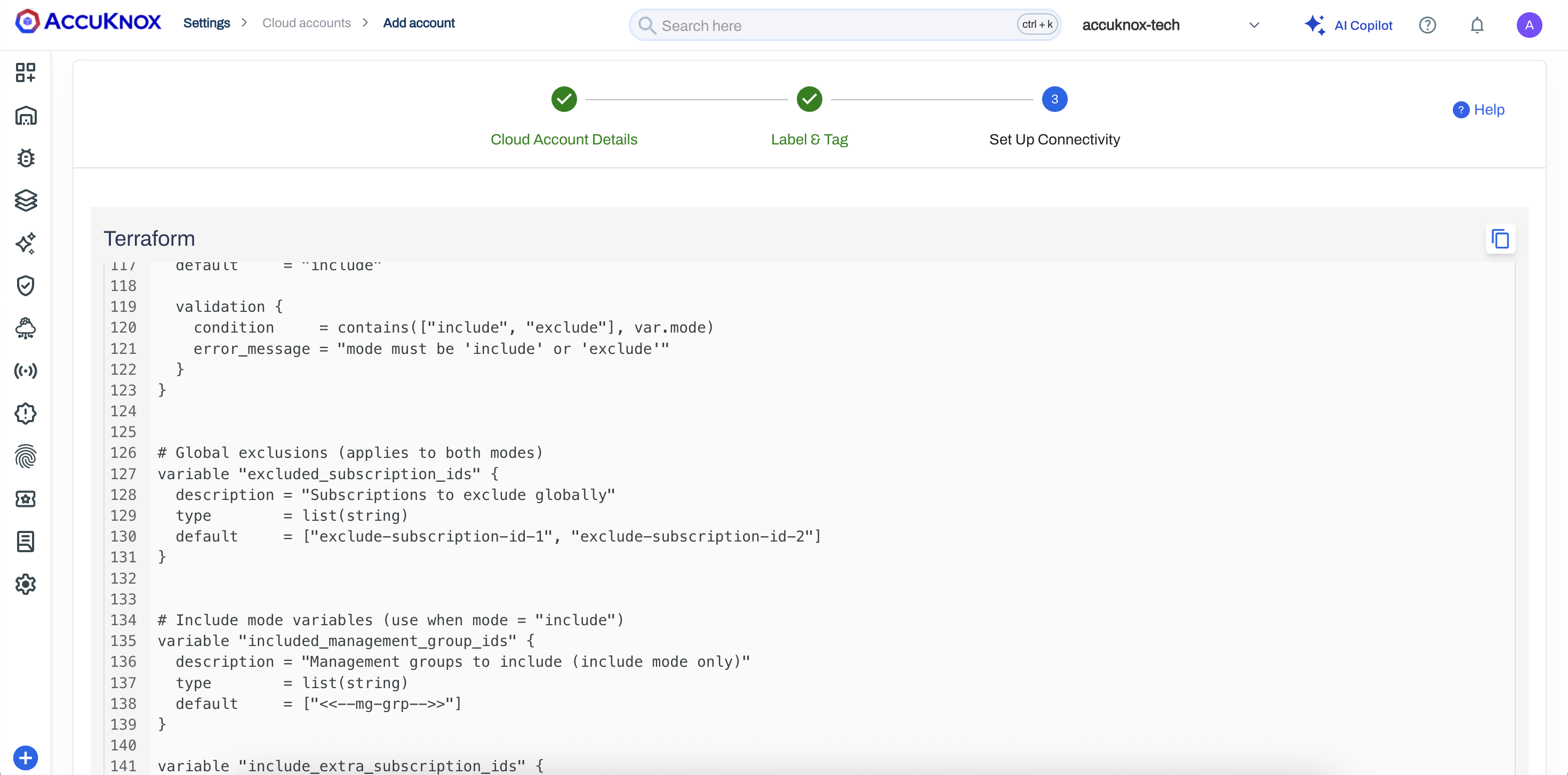

Step 4: Run the provided Terraform script to establish secure connectivity and complete Azure organization onboarding in the Control Plane. alt text

2. Generate & Run Terraform Script

Once you have configured the parameters above, click Generate Terraform.

  1. Download the generated Terraform script.

  2. Open your terminal and execute the following commands:

    Log in to Azure CLI:

    az login

    Initialize Terraform:

    terraform init

    Apply Configuration:

    terraform apply

After a successful run, the user will be able to authorize and view their accounts on the AccuKnox Portal.

2. Auto-fetch New Subscriptions

Whenever a user creates a new subscription in their account, and comes under the onboarded management group, then Accuknox automatically fetches and scans that subscription. To ensure this works correctly, please follow the steps below:

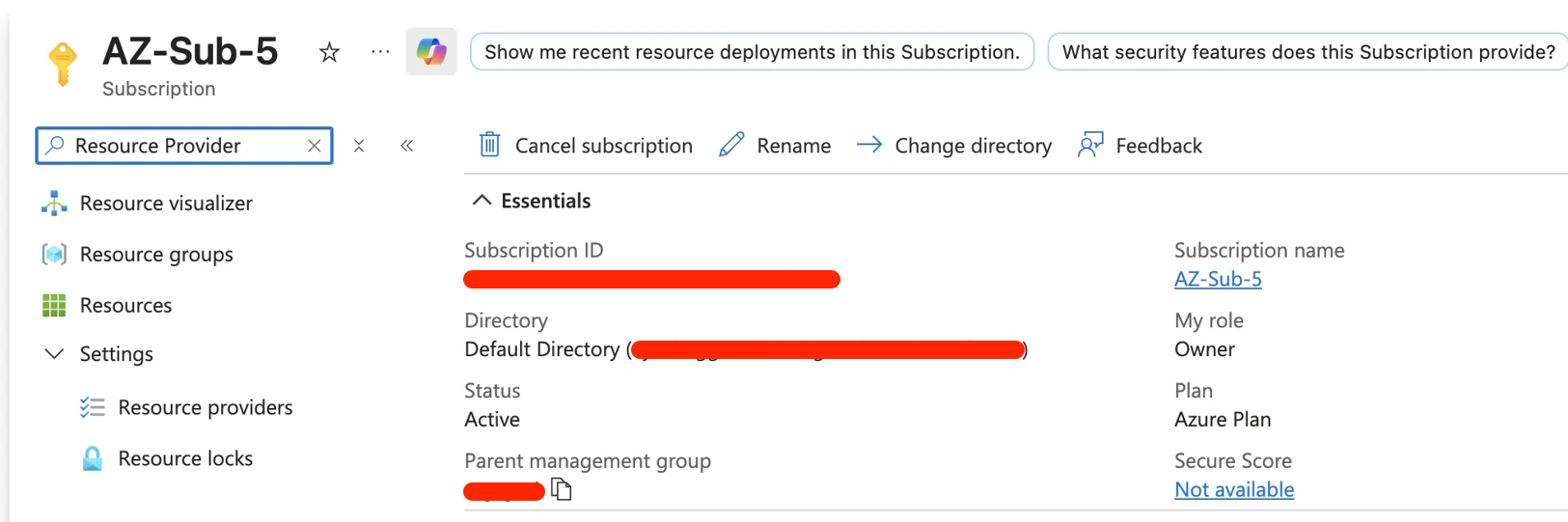

  1. Go to the Subscription in the Azure Portal and search for Resource providers. Resource Providers
  2. Ensure the following providers are enabled:
    • Microsoft.ManagedServices
    • Microsoft.PolicyInsights

After approximately 30 minutes, the subscription will be automatically delegated to AccuKnox, and resources will be queried.

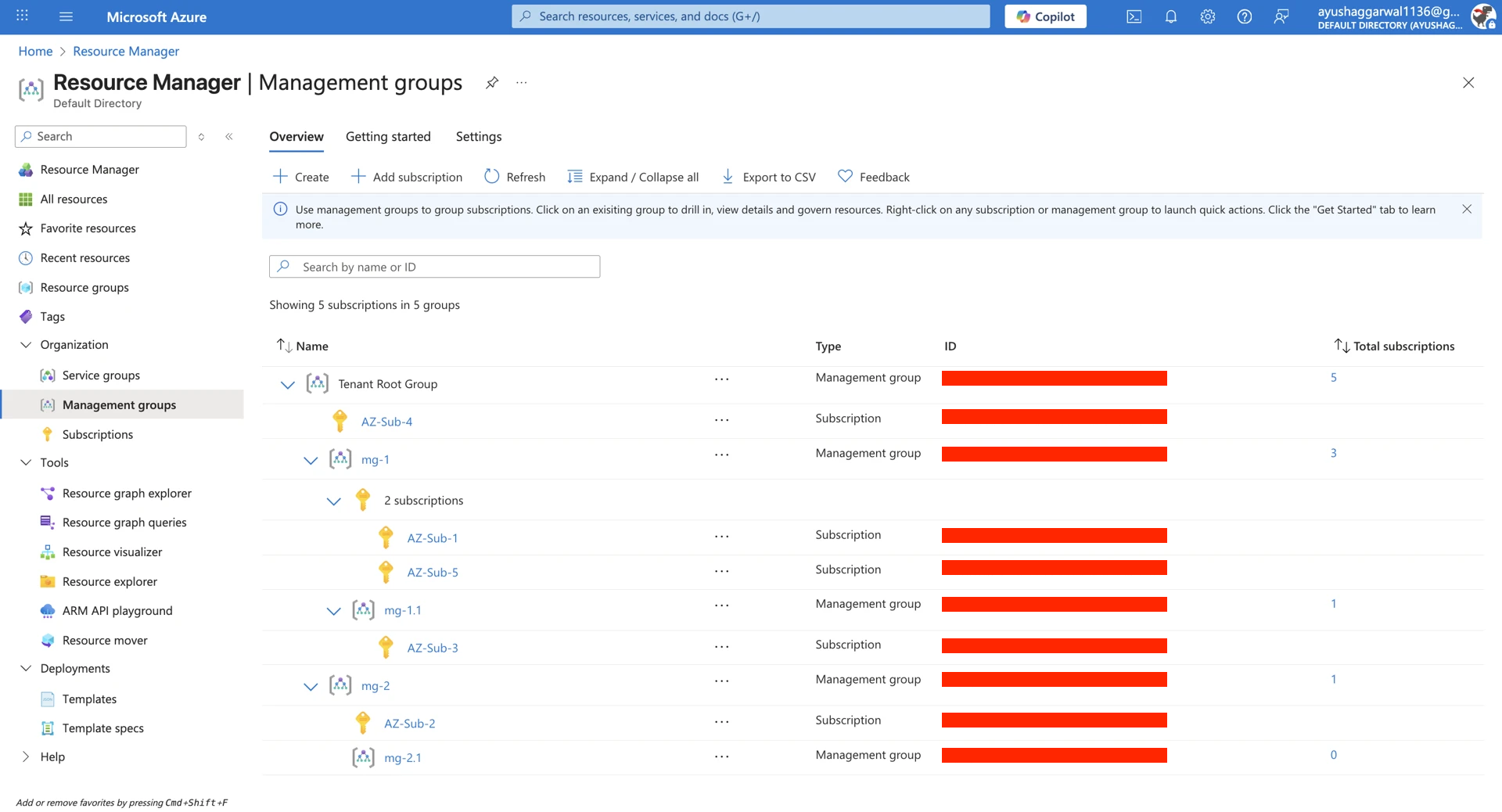

  • User's Azure Account User's Azure Account

  • AccuKnox Azure Account AccuKnox Azure Account
