Automated Container Image Scan in ECR¶

This guide walks you through building an event-driven scanning pipeline that triggers an AccuKnox container image scan automatically whenever a new image is pushed to Amazon ECR.

When a push event occurs, an EventBridge rule invokes a Lambda function that fires a repository_dispatch event on your GitHub repository. This kicks off a GitHub Actions workflow that pulls the image and runs the AccuKnox ASPM scanner — with results delivered directly to your AccuKnox dashboard.

Prerequisites¶

AWS account with permissions to manage IAM roles, Lambda functions, and EventBridge rules
GitHub repository and a Personal Access Token (PAT) with repo scope
AccuKnox account with a valid API token, label ID, and endpoint URL

Configuration¶

Terraform¶

Copy the following files into a new local directory:

main.tf
outputs.tf
variables.tf

Create a terraform.tfvars file in the same directory and populate it with your environment-specific values:

aws_region   = "us-east-1"
github_token = "ghp_"
github_owner = "J**"
github_repo  = "***"

Then initialize and deploy the resources:

terraform init
terraform plan
terraform apply

This provisions the EventBridge rule and Lambda function that detect ECR push events and trigger your GitHub Actions workflow.

GitHub Actions¶

In your GitHub repository, create a workflow file at .github/workflows/ecr-scan.yml with the following content:

name: Scan on ECR Push
on:
  repository_dispatch:
    types: [ecr-image-push]
jobs:
  container-scan:
    runs-on: ubuntu-latest
    timeout-minutes: 40
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Configure AWS
        uses: aws-actions/configure-aws-credentials@v2
        with:
          aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }}
          aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
          aws-region: ${{ github.event.client_payload.region }}

      - name: Login to ECR
        id: login-ecr
        uses: aws-actions/amazon-ecr-login@v1

      - name: Validate payload
        run: |
          if [ -z "${{ github.event.client_payload.image_url }}" ]; then
            echo "Missing image_url"
            exit 1
          fi

      - name: Print ECR details
        run: |
          echo "Repository : ${{ github.event.client_payload.repository_name }}"
          echo "Tag        : ${{ github.event.client_payload.image_tag }}"
          echo "Digest     : ${{ github.event.client_payload.image_digest }}"
          echo "Image URL  : ${{ github.event.client_payload.image_url }}"

      - name: Pull image from ECR
        run: |
          docker pull ${{ github.event.client_payload.image_url }}

      - name: Download ASPM Scanner
        run: |
          curl -L https://github.com/accuknox/aspm-scanner-cli/releases/download/v0.14.0/accuknox-aspm-scanner -o accuknox-aspm-scanner
          chmod +x accuknox-aspm-scanner

      - name: Install scanner
        run: |
          ./accuknox-aspm-scanner tool install --type container

      - name: Scan image
        env:
          ACCUKNOX_TOKEN: ${{ secrets.ACCUKNOX_TOKEN }}
          ACCUKNOX_LABEL: ${{ secrets.ACCUKNOX_LABEL_ID }}
          ACCUKNOX_ENDPOINT: ${{ secrets.ACCUKNOX_ENDPOINT }}
        run: |
          set -e
          IMAGE="${{ github.event.client_payload.image_url }}"
          echo "Scanning $IMAGE"
          ./accuknox-aspm-scanner scan \
            --softfail \
            container \
            --command "image $IMAGE"

      - name: Scan passed
        if: success()
        run: echo "✅ Scan completed successfully!"

      - name: Scan failed
        if: failure()
        run: echo "❌ Scan failed!"

Required Secrets and Variables¶

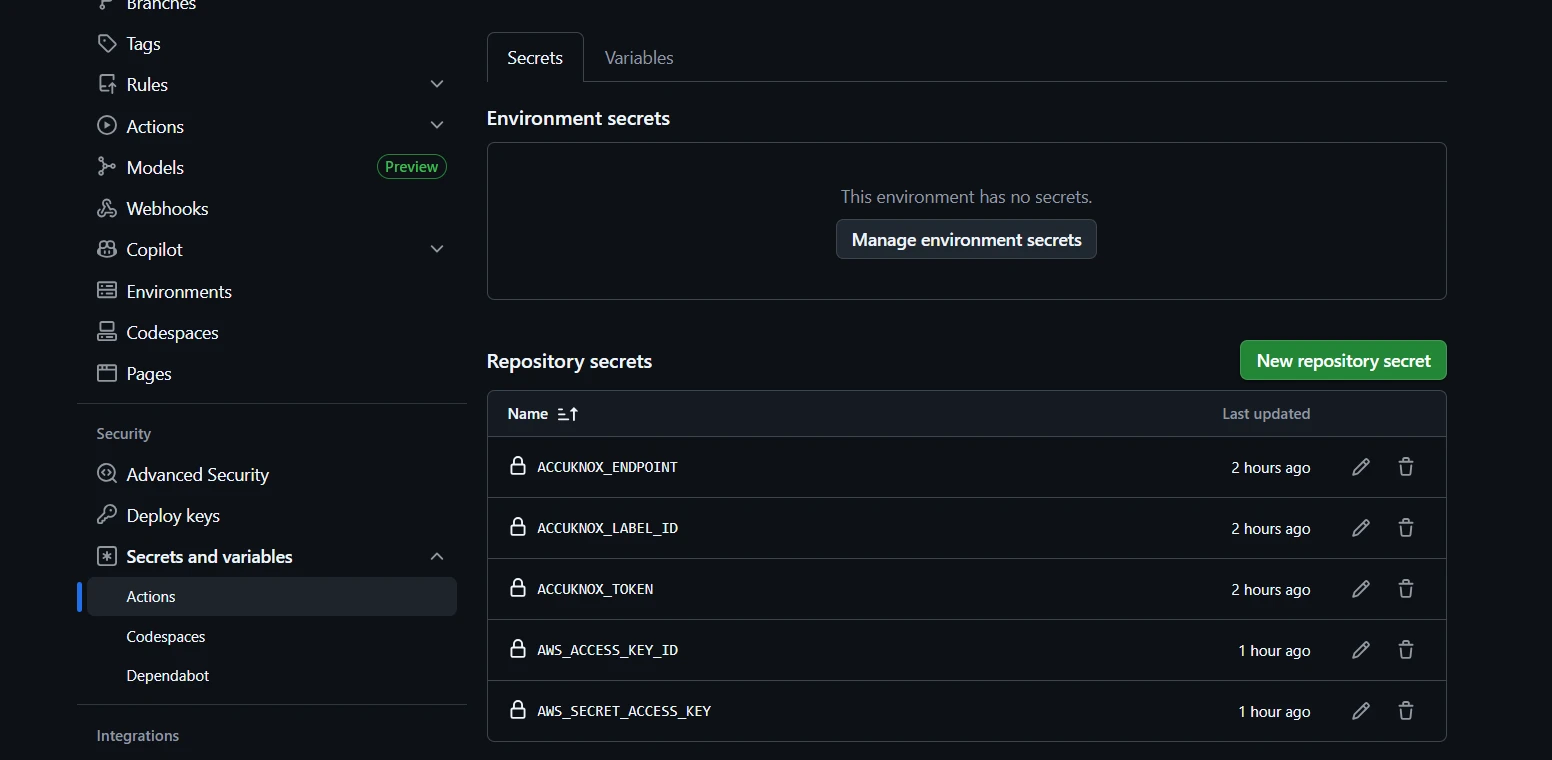

Navigate to Repository Settings → Secrets and Variables → Actions and add the following:

Name	Description	Example Value
`ACCUKNOX_ENDPOINT`	URL to reach the AccuKnox artifact API	`cspm.demo.accuknox.com`
`ACCUKNOX_LABEL_ID`	Label created in AccuKnox	`LABEL`
`ACCUKNOX_TOKEN`	API token generated from AccuKnox	—
`AWS_ACCESS_KEY_ID`	AWS access key with ECR read/pull permissions	—
`AWS_SECRET_ACCESS_KEY`	AWS secret key with ECR read/pull permissions	—

Getting your AccuKnox credentials

Generate ACCUKNOX_TOKEN from your AccuKnox dashboard under Settings → Access Tokens. The ACCUKNOX_LABEL_ID is the ID of a label you have already created in AccuKnox.

alt text

Test the Setup¶

Push a new image to ECR to verify the pipeline end-to-end. Replace <aws_account_id> and <region> with your actual values in all commands below.

Step 1 — Authenticate with ECR

aws ecr get-login-password --region <region> | docker login --username AWS --password-stdin <aws_account_id>.dkr.ecr.<region>.amazonaws.com

Step 2 — Tag an image for ECR

docker tag e9ae3c220b23 aws_account_id.dkr.ecr.region.amazonaws.com/my-repository:tag

Step 3 — Push the image

docker push aws_account_id.dkr.ecr.region.amazonaws.com/my-repository:tag

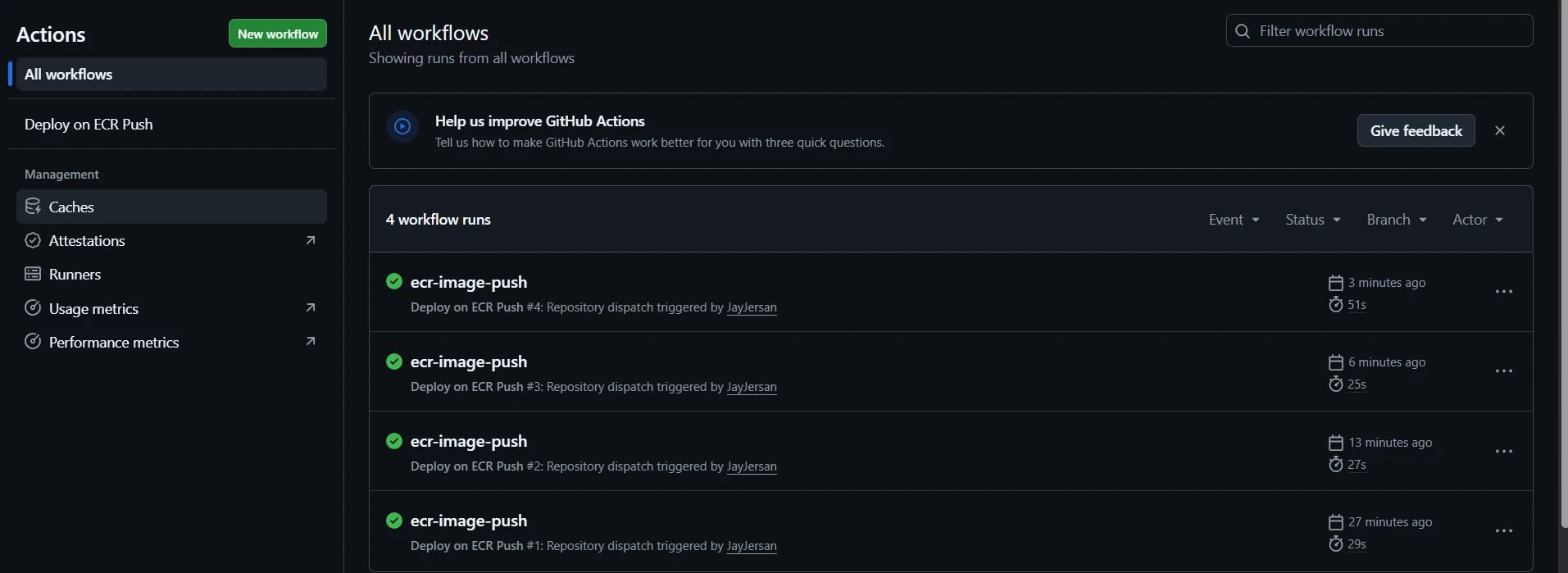

The GitHub Actions workflow triggers automatically on push. Once the run completes, scan results are visible in your AccuKnox dashboard.

Note

The --softfail flag allows the workflow to finish with a success status even when vulnerabilities are found. Remove it if you want the pipeline to fail hard on any scan findings.

alt text
