Agentless Azure VM Scanning¶

Azure Virtual Machines (VMs) are on-demand, scalable, secure computing resources in the Microsoft Azure cloud that provide full control over the operating system (Windows or Linux) without managing physical hardware.

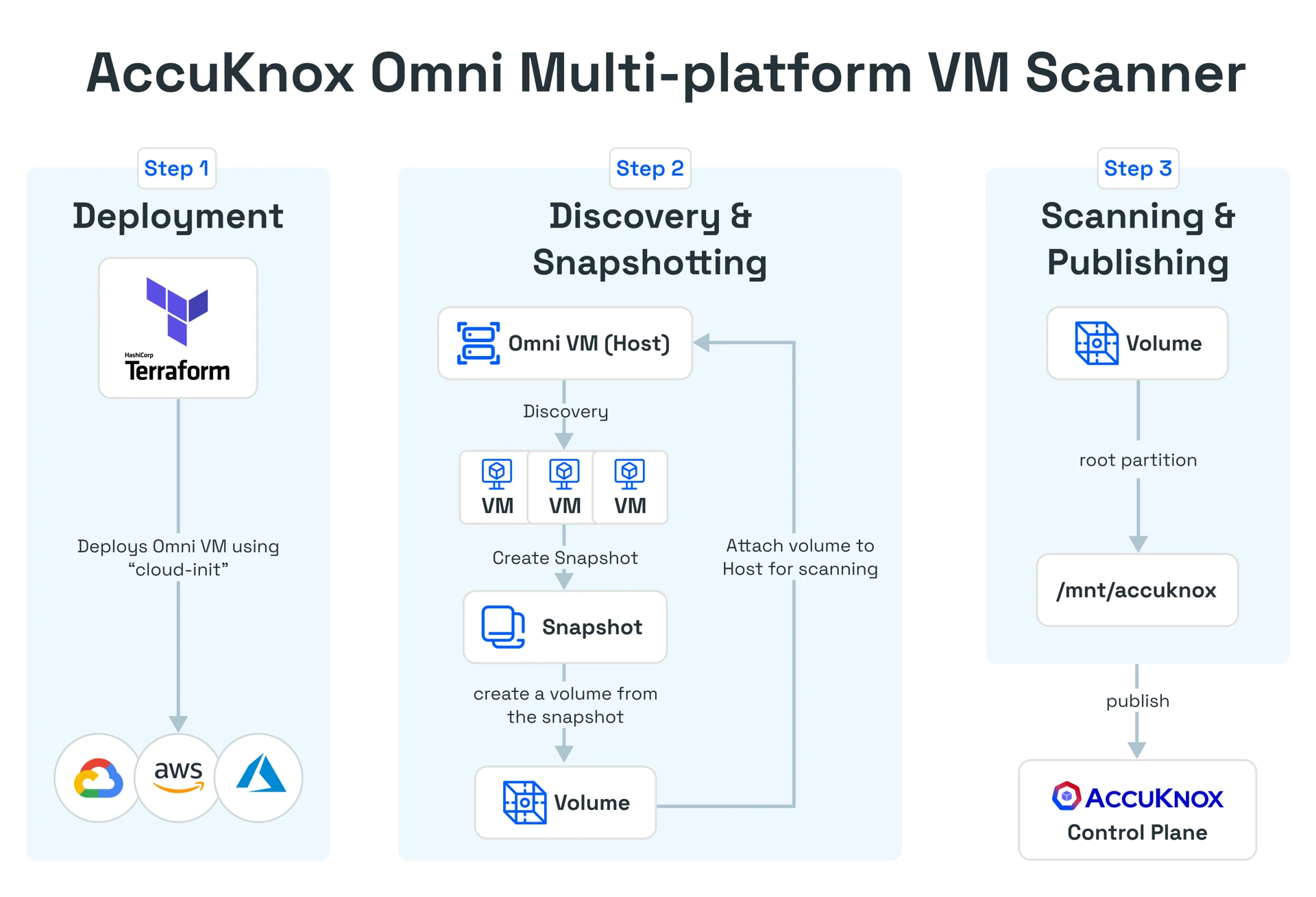

Protecting these VMs from threats such as misconfigurations, vulnerabilities, and malware is essential. AccuKnox Omni offers multi-platform VM scanning with agentless detection of vulnerabilities and malware to help secure cloud VMs.

alt text

Requirements¶

Terraform Script (AccuKnox team will provide)
Accuknox Platform access
Artifact Label, API Token, Tenant ID, and AccuKnox Endpoint from the portal (see steps below)
Azure Account Access with Owner Permission
Terraform installed (version ~> 1.12)

Steps to Scan the VM¶

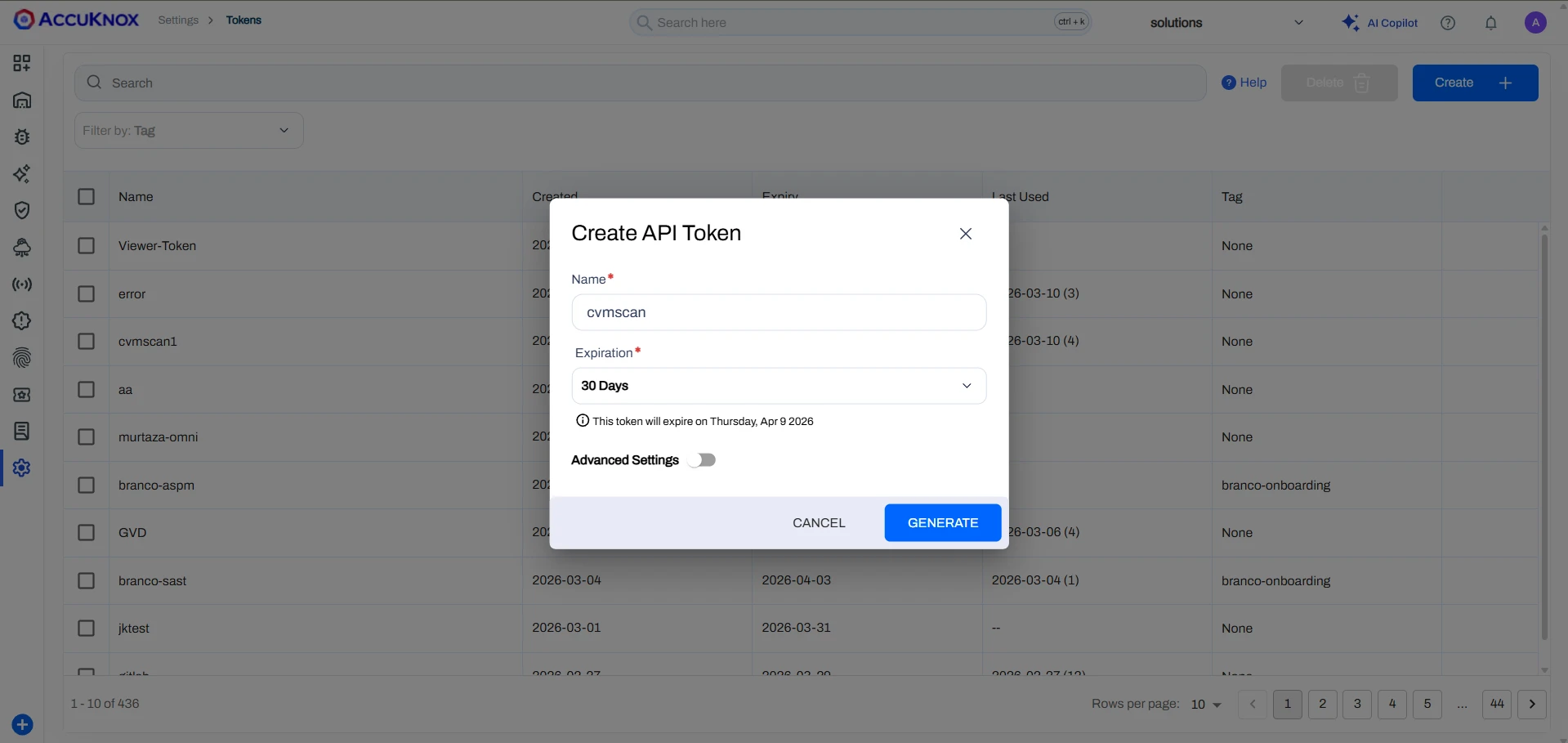

Step 1: Create Artifact Token¶

Navigate to Settings > Tokens > Create to generate your token.

alt text

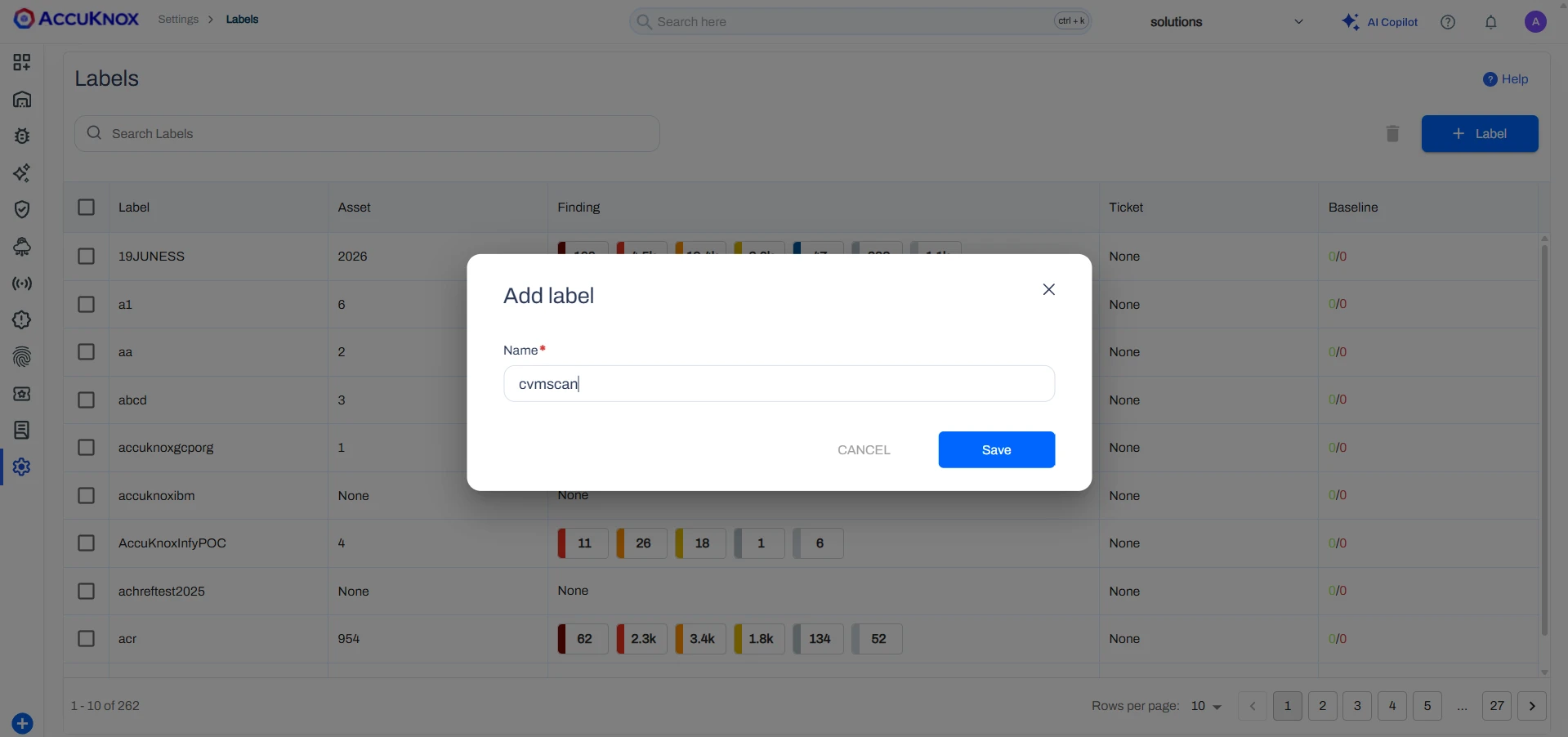

Step 2: Create Artifact Label¶

Navigate to Settings > Labels > + Label to create a new label.

alt text

Step 3: Configure the Terraform Variables¶

Locate the script variables file at terraform/azure/terraform.tfvars.example. Change the variables in the file according to your environment:

subscription_id    = "*****************************"
location           = "UAE North"
enable_public_ip   = true
public_key_path    = "C:/Users/raJAB/.ssh/id_ed25519.pub"
artifact_token     = "<paste here the token that you have created>"
artifact_endpoint  = "https://cspm.demo.accuknox.com/api/v1/artifact/"
artifact_label     = "cvmscan1"
artifact_tenant_id = 111
omni_additional_flags = {
  "local-publisher"     = "false"
  "skip-malware-scan"   = "false"
  "log-level"           = "info"
  "log-format"          = "text"
  "trigger-immediately" = "true"
  "crontab"             = "@daily"
  # "vm-name-regex"       = "^target-vm$"
  # "vm-label-regex"      = "foo=bar"
  # "vm-label-regex"      = "bar=bazz"
}

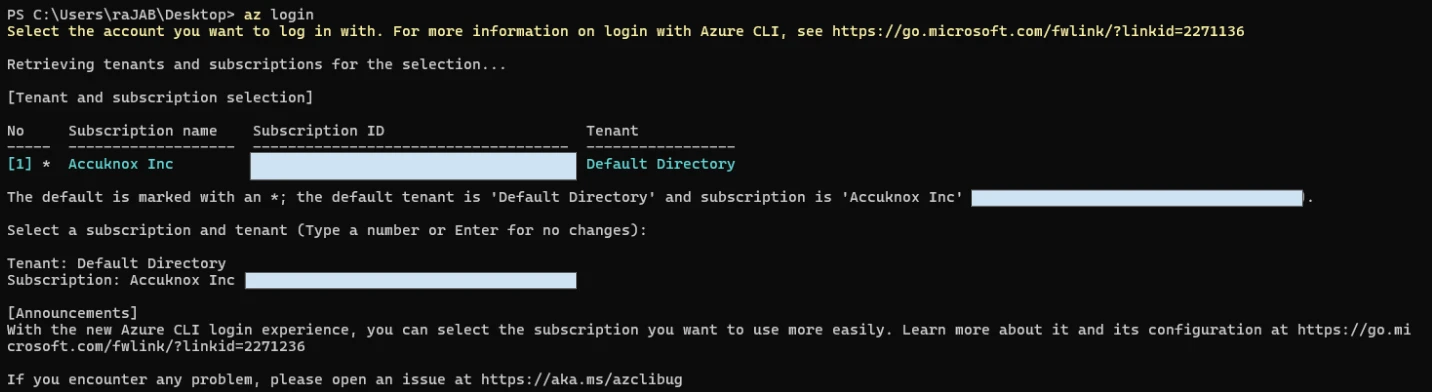

Step 4: Configure the Azure CLI¶

Configure the Azure CLI using your credentials, or use the Azure Cloud Shell.

alt text

Step 5: Prepare Terraform Files¶

Go to the directory where the Terraform files (shared by AccuKnox) are located:

cd azure
cp terraform.tfvars.example terraform.tfvars

Step 6: Run Terraform Commands¶

Initialize the Terraform working directory by downloading required providers and modules:

terraform init

Generate an execution plan showing what changes Terraform will make to the infrastructure:

terraform plan

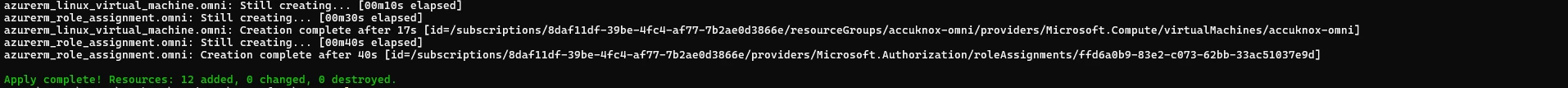

Apply the planned changes to create, update, or delete infrastructure resources:

terraform apply

alt text

Once terraform apply is completed, it will take 15-20 minutes to scan your VMs hosted on Azure Cloud.

View Findings¶

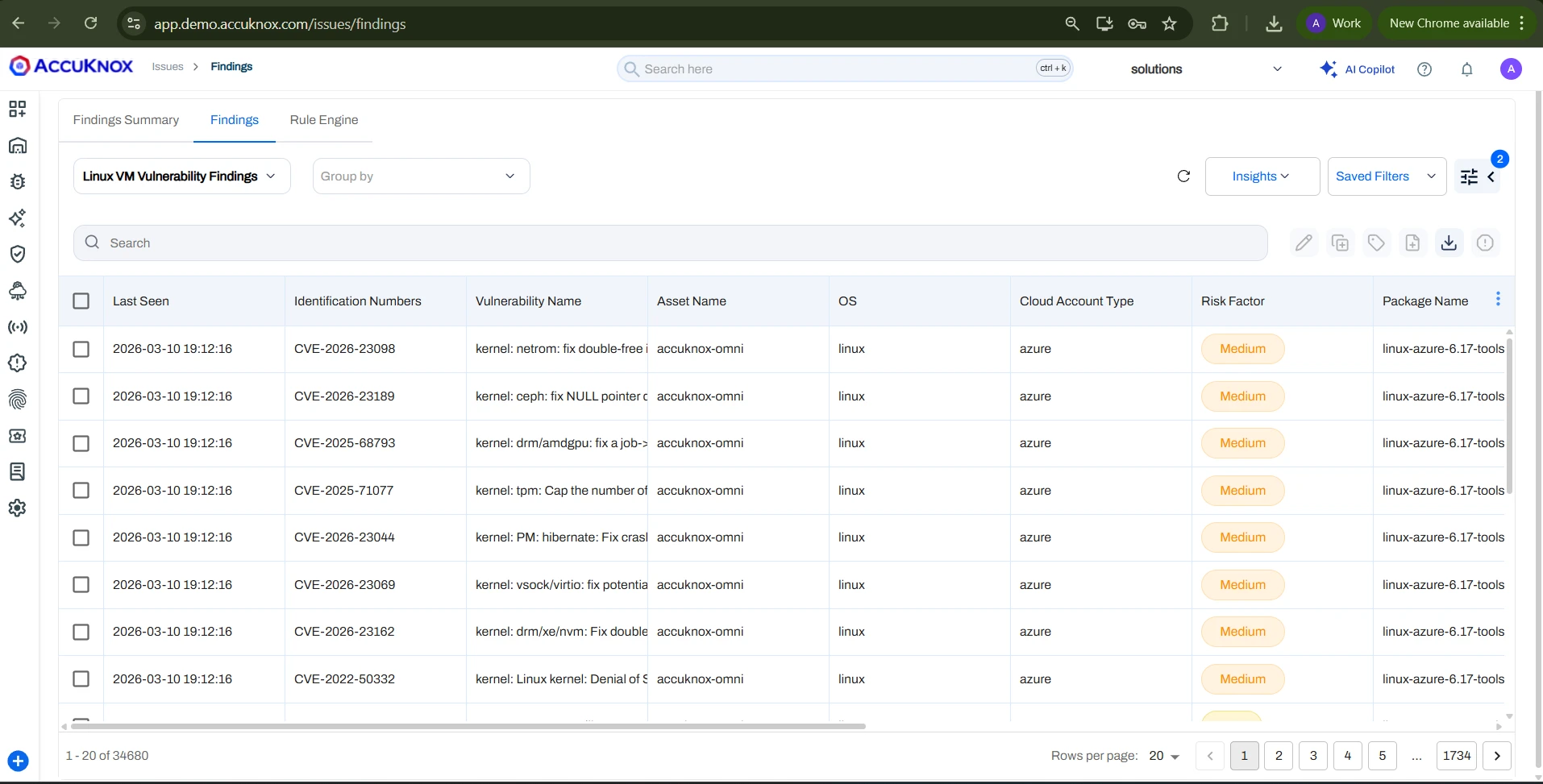

Navigate to AccuKnox Portal > Issues > Findings > Findings Tab > Select "Windows/Linux VM Vulnerability Findings" to view the results.

alt text

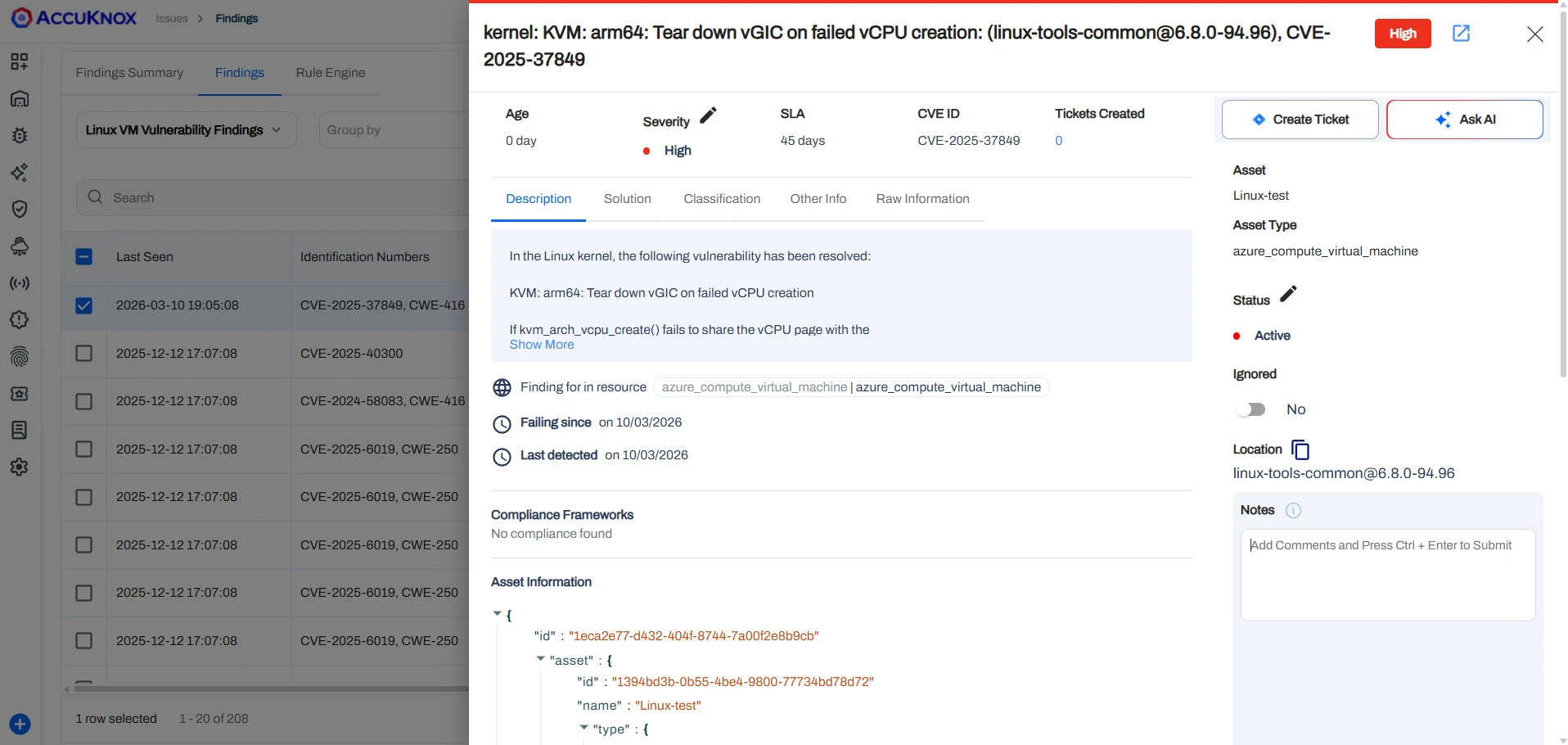

Click on any finding to view detailed information.

alt text

Troubleshooting¶

SSH into the VM provisioned by the Terraform script named AccuKnox-Omni.

Check if the dependencies deployed successfully using the following command:

tail -f /var/log/cloud-init-output.log

Check the scanner logs using:

journalctl -u omni -f

In case you see any errors, please contact your AccuKnox point of contact or email support@accuknox.com with the logs from the commands above.
