Securing Docker Images in GitLab CI/CD with AccuKnox Integration¶

This guide demonstrates integrating AccuKnox into GitLab CI/CD pipelines to improve Docker image security by identifying and remediating vulnerabilities during the build process. We will compare the pipeline's state before and after the integration to highlight the security improvements.

Prerequisites¶

Before beginning, ensure the following:

A GitLab repository with CI/CD enabled
Access to AccuKnox

Integration Steps¶

Step 1: Generate AccuKnox API Token¶

Log in to AccuKnox. Navigate to Settings and select Tokens to create an AccuKnox token to forward scan results to AccuKnox. For details on generating tokens, refer to How to Create Tokens.

Step 2: Configure GitLab CI/CD Variables. For details on configuring variables, refer to How to Create CI/CD Variables in GitLab.

Name	Description
`ACCUKNOX_ENDPOINT`	The URL of the CSPM panel to push the scan results to (e.g., `cspm.demo.accuknox.com`)
`ACCUKNOX_TENANT_ID`	The ID of the tenant associated with the CSPM panel
`ACCUKNOX_TOKEN`	Token for authenticating with the AccuKnox CSPM panel
`ACCUKNOX_LABEL`	Label to categorize or tag the scan results

The label used to categorize and identify scan results in AccuKnox. Create a new label if it is not available

Step 3: Define the GitLab CI/CD Pipeline Configuration¶

Create or modify your .gitlab-ci.yml file to integrate AccuKnox scanning into your build pipeline:

variables:
  IMAGE: "gitlabci"
  IMAGE_TAG: "test7"
  IMAGE_TAR: "image.tar"

build_image:
  stage: build
  image: docker:20.10.16
  services:
    - docker:20.10.16-dind
  script:
    - docker build -t $IMAGE:$IMAGE_TAG -f Dockerfile .
    - docker save -o $IMAGE_TAR $IMAGE:$IMAGE_TAG
  artifacts:
    paths:
      - $IMAGE_TAR
    expire_in: 30 minutes

accuknox-container-scan:
  before_script:
    - echo $IMAGE:$IMAGE_TAG
    - docker load -i $IMAGE_TAR

include:
  - component: $CI_SERVER_FQDN/accu-knox/scan/container-scan@2.0.0
    inputs:
      STAGE: test
      IMAGE_NAME: $IMAGE
      TAG: $IMAGE_TAG
      SOFT_FAIL: true
      ACCUKNOX_TOKEN: ${ACCUKNOX_TOKEN}
      ACCUKNOX_TENANT: ${ACCUKNOX_TENANT}
      ACCUKNOX_ENDPOINT: ${ACCUKNOX_ENDPOINT}
      ACCUKNOX_LABEL: ${ACCUKNOX_LABEL}

Inputs for AccuKnox Container Scanning¶

Name	Description	Required	Default
`ACCUKNOX_ENDPOINT`	AccuKnox CSPM panel URL	Yes	`cspm.demo.accuknox.com`
`ACCUKNOX_TENANT_ID`	AccuKnox Tenant ID	Yes
`ACCUKNOX_TOKEN`	AccuKnox API Token	Yes
`ACCUKNOX_LABEL`	Label for scan results	Yes
`INPUT_SOFT_FAIL`	Continue even if the scan fails	No	`true`
`IMAGE_NAME`	The name of the Docker image	Yes
`TAG`	The tag for the Docker image	No	`$BITBUCKET_BUILD_NUMBER`
`SEVERITY`	Comma-separated list of vulnerability severities that will trigger failure when `INPUT_SOFT_FAIL` is disabled	No	`UNKNOWN,LOW,MEDIUM,HIGH,CRITICAL`

Workflow Enhancements After AccuKnox Integration:¶

Build and Scan: Docker images are built and automatically scanned for vulnerabilities during the pipeline execution.
Critical Vulnerabilities Halt Deployment: If critical vulnerabilities are detected, the pipeline fails, preventing the deployment of insecure images.
Improved Security Posture: Only images free from known vulnerabilities are deployed, reducing the risk in production environments.

Outcome¶

Vulnerabilities are detected and addressed early in the CI/CD pipeline, ensuring that only secure Docker images are pushed to production.
Developers receive immediate feedback on image security, allowing for quicker remediation of issues.

View Scan Results in AccuKnox SaaS¶

After the scan completes, the results can be accessed in AccuKnox SaaS:

Go to Issues → RegistryScan in AccuKnox to view your scanned Docker images.
Click on the image name to access detailed metadata and scan results.
Under the Vulnerabilities section, you'll see a list of vulnerabilities discovered in the Docker image.

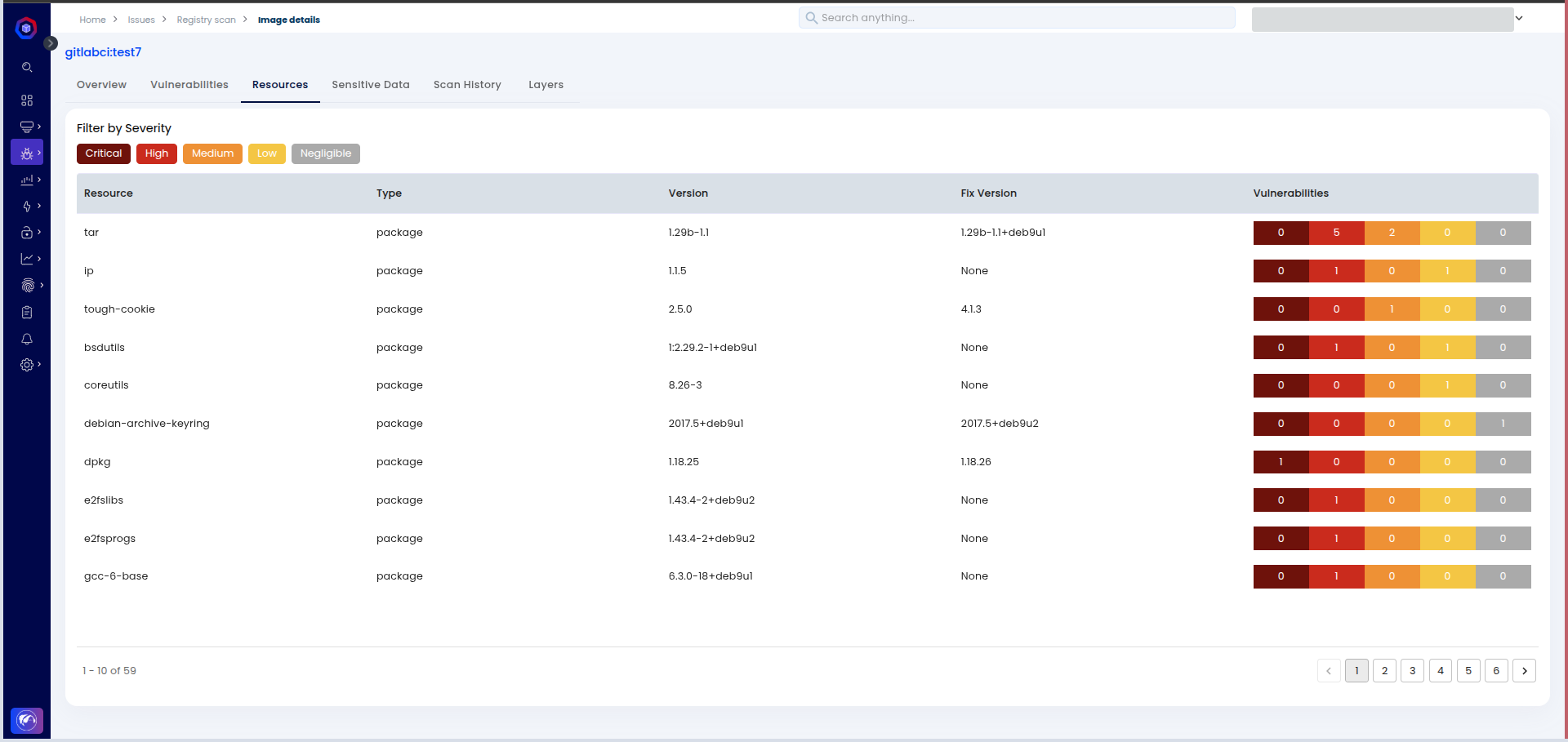

In the Resources section, you'll find details about the packages and modules used to build the container.

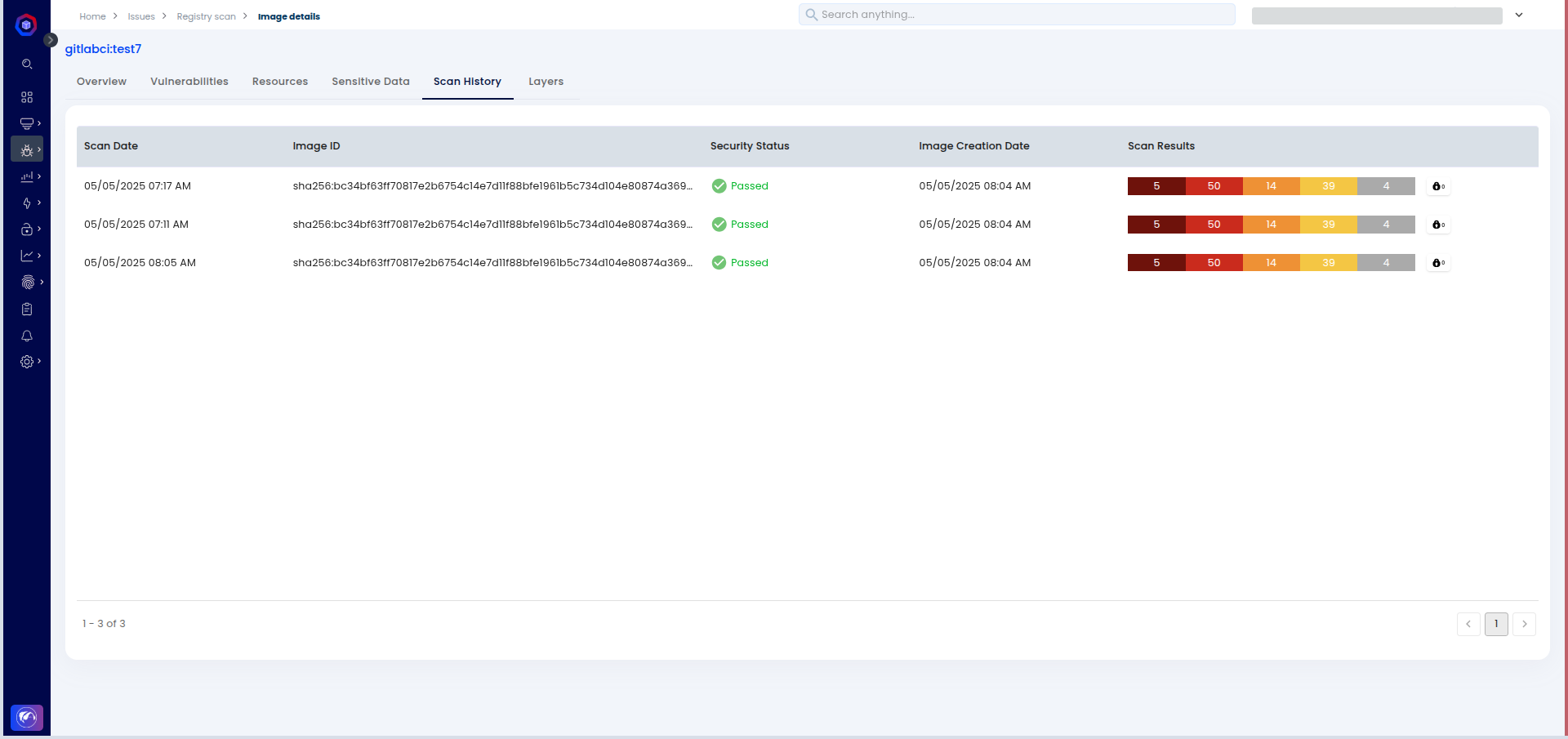

You can also view the scan history to track improvements over time.

Conclusion¶

Integrating AccuKnox into GitLab CI/CD pipelines enhances the security of Docker images by scanning for vulnerabilities early in the development process. This proactive approach ensures that only secure images are deployed, reducing the risk of security breaches in production environments.
