AI Detection & Response (AI-DR) for Azure¶

Remediation Setup

For remediation setup for AWS, Azure and GCP AI-DR please refer to the following links:

Remediate Alerts

Introduction¶

AccuKnox AI-DR (AI Detection & Response) for Azure can be deployed using a Terraform configuration. The configuration deploys the following resources:

Resource	Purpose
EventHub Namespace	Contains the EventHub
EventHub	Receives messages from the ActivityLog
EventHub Authorization Rule "activity_logs"	Allows ActivityLog to publish messages to the EventHub
EventHub Authorization Rule "logstash"	Allows Logstash to subscribe to the EventHub messages

The Terraform configuration will be provided to you by the AccuKnox team in the onboarding phase.

To setup the integration please follow the steps below

Step 1: Deploy the resources¶

In this step we assume you that you are authenticated to Azure via the azure CLI. You can authenticate using this command.

az login

Before applying the Terraform configuration, please update the terraform.tfvars with the appropriate values.

Variable	Description	Default Value	Requirement
`subscription_id`	Azure account subscription ID		Mandatory
`location`	Azure location where the resources will be created	`East US`	Optional
`resource_group_name`	Name of the resource group to be created	`accuknox-cdr`	Optional
`event_hub_namespace_name`	Name of the event hub namespace to be created	`accuknox-cdr`	Optional
`event_hub_namespace_sku`	Defines the event hub tier to be used. Possible values: "Basic", "Standard", "Premium"	`Basic`	Optional
`event_hub_namespace_capacity`	Capacity / throughput units	1	Optional
`event_hub_name`	Name of the event hub	`default`	Optional
`event_hub_partition_count`	Specifies the current number of shards on the Event Hub	1	Optional
`event_hub_message_retention`	Specifies the number of days to retain the events for this Event Hub	1	Optional

Please run the following commands to deploy the required resources:

terraform init
terraform plan
terraform apply

Save the terraform output and share it with the AccuKnox Team

Important

At this point, only the subscription mentioned in the terraform variables will be monitored, to monitor other subscriptions in the account, follow the commands in step 3

Step 2: Get the EventHub Primary Connection String¶

terraform output -json

E.g.,

{
  "event_hub_primary_connection_string": {
    "sensitive": true,
    "type": "string",
    "value": "Endpoint=sb://accuknox-cdr.servicebus.windows.net/;SharedAccessKeyName=logstash;SharedAccessKey=REDACTED;EntityPath=default"
  },
  "event_hub_secondary_connection_string": {
    "sensitive": true,
    "type": "string",
    "value": "Endpoint=sb://accuknox-cdr.servicebus.windows.net/;SharedAccessKeyName=logstash;SharedAccessKey=REDACTED;EntityPath=default"
  }
}

Step 3: Monitor additional subscriptions¶

You can monitor additional subscriptions in the organization by running the following commands. Before running the script you need to update the values of the the variables.

Variable	Description
`SUBSCRIPTION_IDS`	Azure account subscription IDs to monitor
`EVENTHUB_AUTH_RULE_ID`	Can be found in the terraform output of step 1
`EVENTHUB_NAME`	Can be found in the terraform output of step 1

# Array of subscription IDs
SUBSCRIPTION_IDS=("sub-11111111-aaaa-bbbb-cccc-111111111111" \
                  "sub-22222222-aaaa-bbbb-cccc-222222222222" \
                  "sub-33333333-aaaa-bbbb-cccc-333333333333")
EVENTHUB_AUTH_RULE_ID="<eventhub-authorization-rule-id>"
EVENTHUB_NAME="<eventhub-name>"

DIAGNOSTIC_NAME="accuknox-cdr-activity-to-eventhub"
for SUBSCRIPTION_ID in "${SUBSCRIPTION_IDS[@]}"; do
  echo "Configuring Activity Log → Event Hub for $SUBSCRIPTION_ID ..."

  az monitor diagnostic-settings create \
    --name $DIAGNOSTIC_NAME \
    --resource "/subscriptions/$SUBSCRIPTION_ID" \
    --event-hub-rule $EVENTHUB_AUTH_RULE_ID \
    --event-hub $EVENTHUB_NAME \
    --logs '[
        {"category": "Administrative", "enabled": true},
        {"category": "Security", "enabled": true},
        {"category": "ServiceHealth", "enabled": true},
        {"category": "Alert", "enabled": true},
        {"category": "Recommendation", "enabled": true},
        {"category": "Policy", "enabled": true},
        {"category": "Autoscale", "enabled": true},
        {"category": "ResourceHealth", "enabled": true}
    ]'
done

Provide the connection string to your AccuKnox Point of Contact to start the onboarding process.

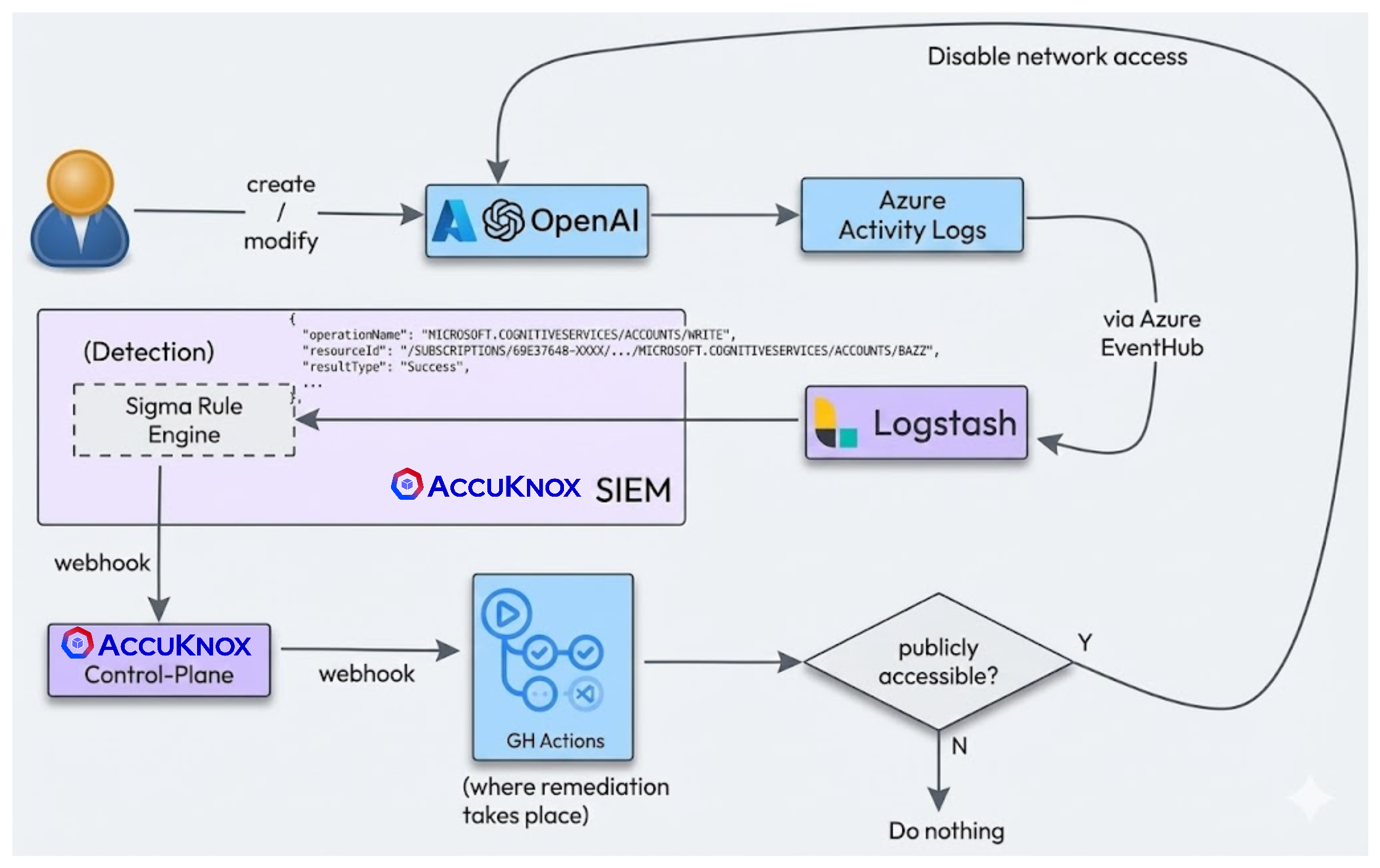

Auto-Remediation for Azure OpenAI Use Case¶

alt text

Step 1: Detection of Public Exposure¶

AccuKnox AI-DR detects if a network or other AI asset is inadvertently made public. alt text

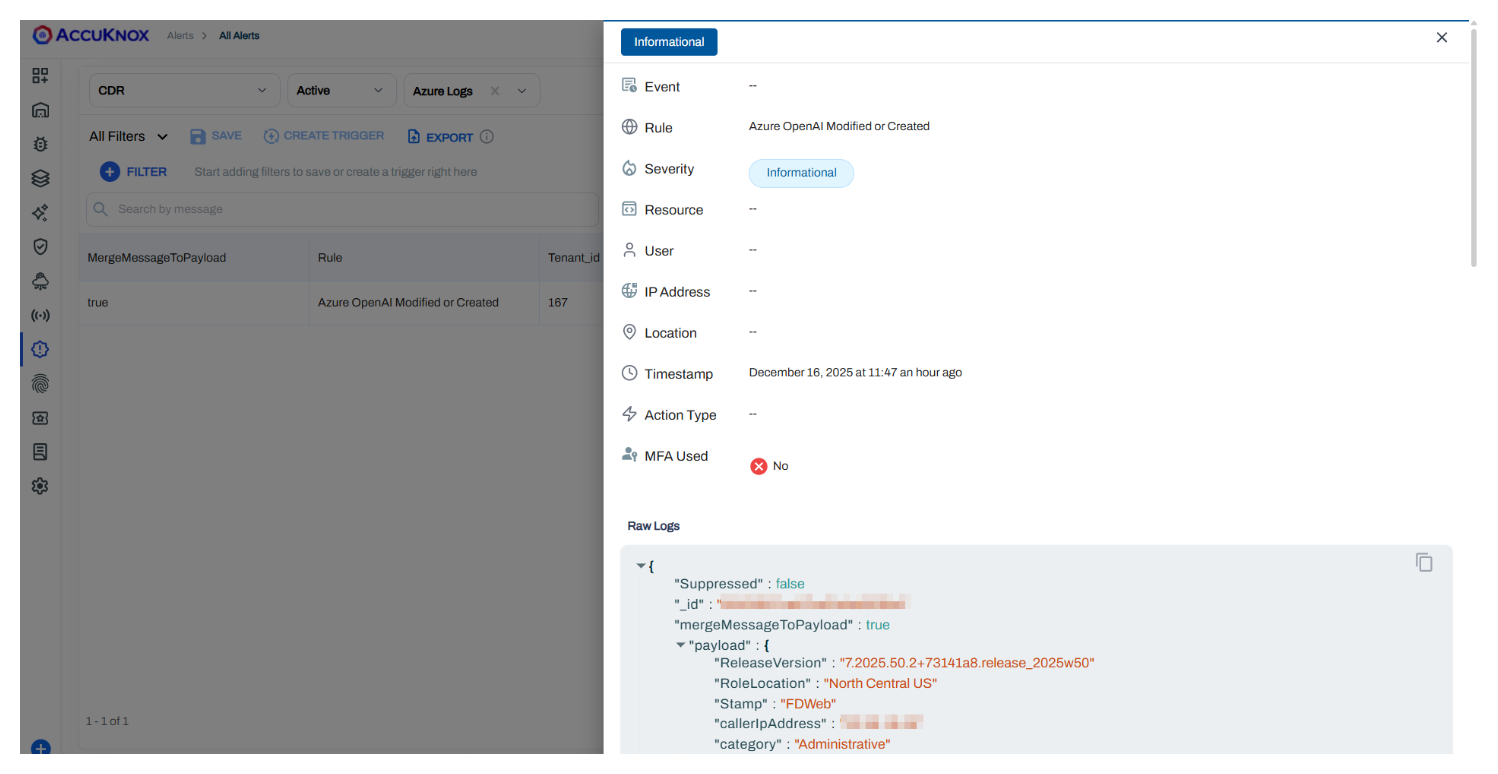

Step 2: Alert Generation¶

An alert is generated in the AccuKnox console indicating the public exposure of the AI asset. alt text

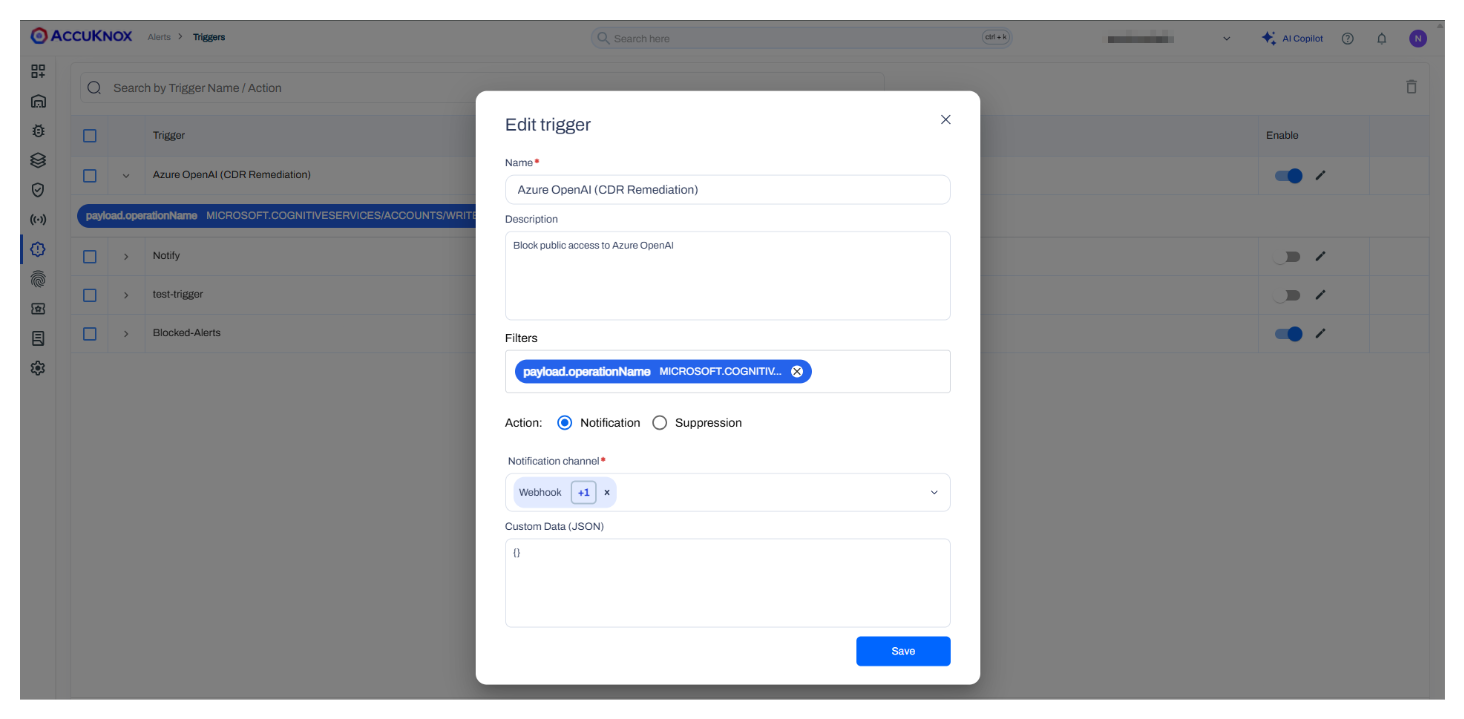

Step 3: Trigger and Webhook Integration¶

A trigger is set up to initiate an automated response. The alert is forwarded using a webhook integration to the remediation workflow.

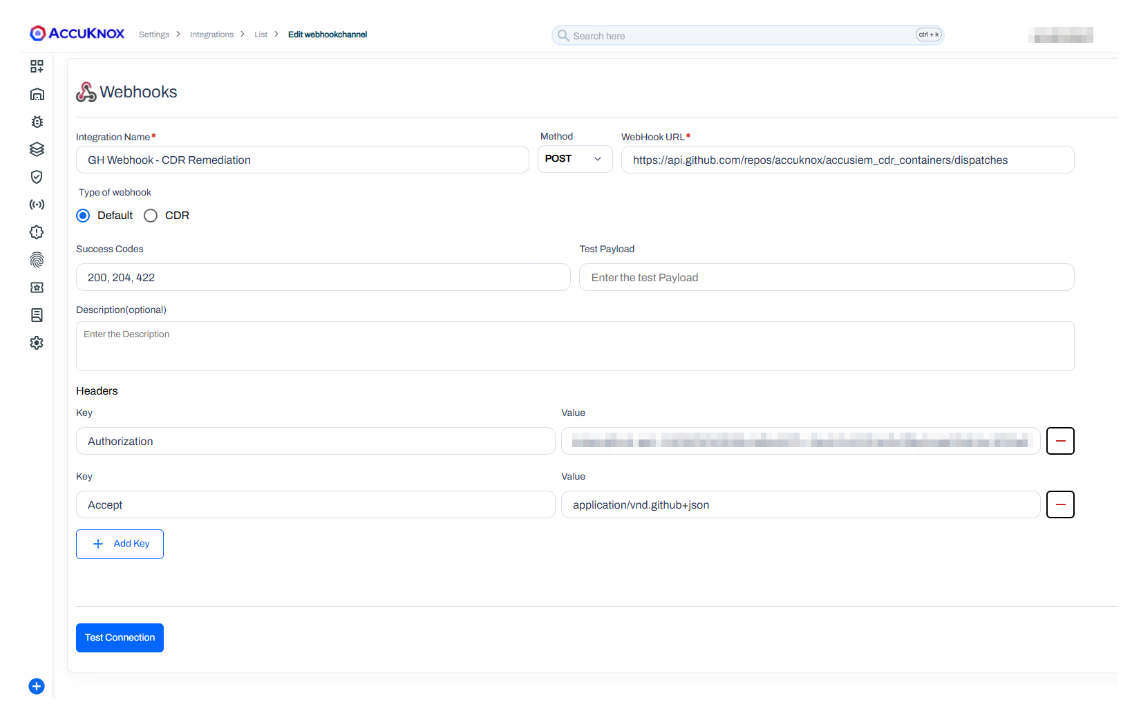

See how to Configure and Trigger Alerts with Webhook alt text

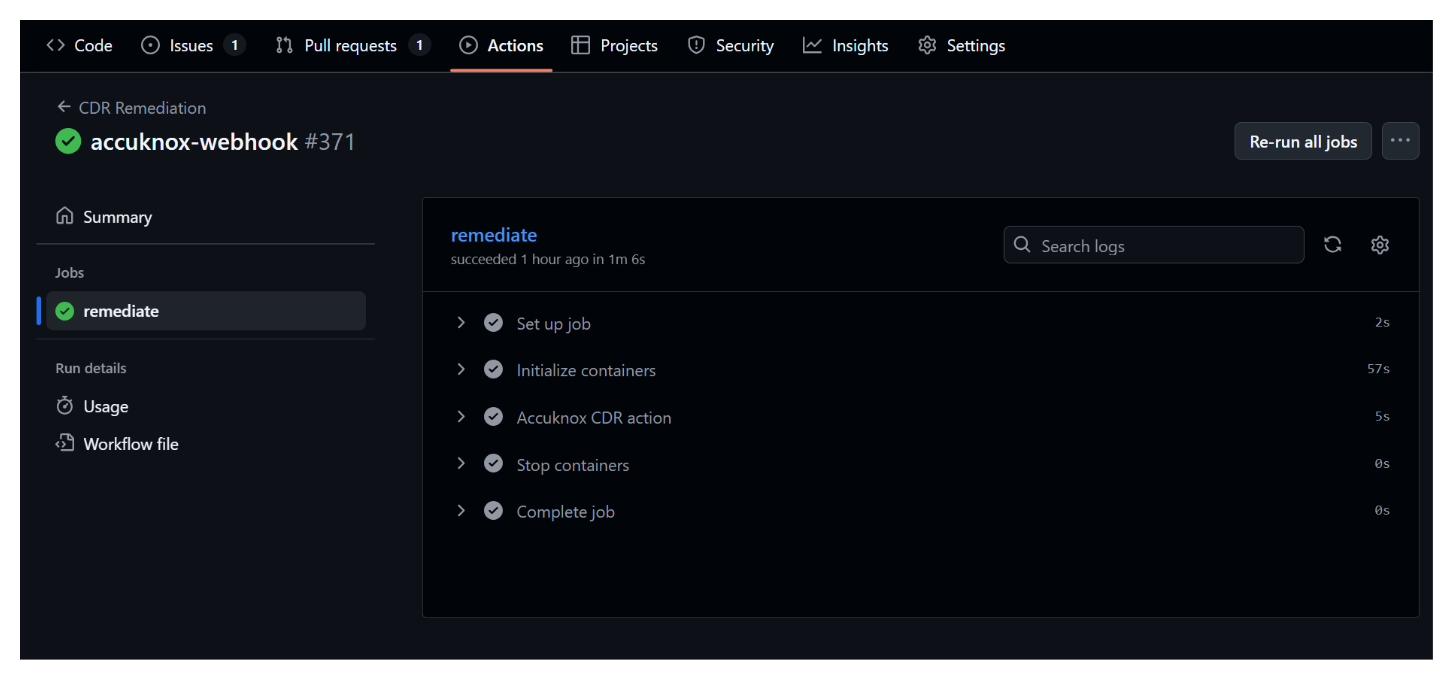

Step 4: Automated Remediation¶

An auto-remediation action is triggered via GitHub Actions (or another automation tool) to address the issue. alt text

Step 5: Asset Securing¶

The asset configuration is automatically updated to make it private again, resolving the security risk. alt text
