Cloud Detection & Response (CDR)

Quick Links

• Onboarding: CDR Onboarding for AWS, GCP & Azure
• Remediation Setup: CDR Remediation Steps

The Problem

Cloud infrastructure is dynamic. Despite rigorous provisioning checks, assets often drift from their secure state due to manual changes or misconfigurations during runtime. Common critical risks include:

• Storage buckets (e.g., S3, GCS) accidentally exposed to the public
• Virtual Machines (VMs) launched with public IPs or unsecured ports
• Access requests originating from unauthorized or unknown geographic regions

Manual Monitoring is Insufficient

Manual monitoring is insufficient for these real-time threats. You need automated detection and response.

The Solution

AccuKnox CDR provides an automated, closed-loop security system. It ingests cloud logs (CloudTrail, Audit Logs), detects policy violations in real-time, and triggers immediate automated remediation workflows (via CI/CD or Webhooks) to revert the infrastructure to a secure state.

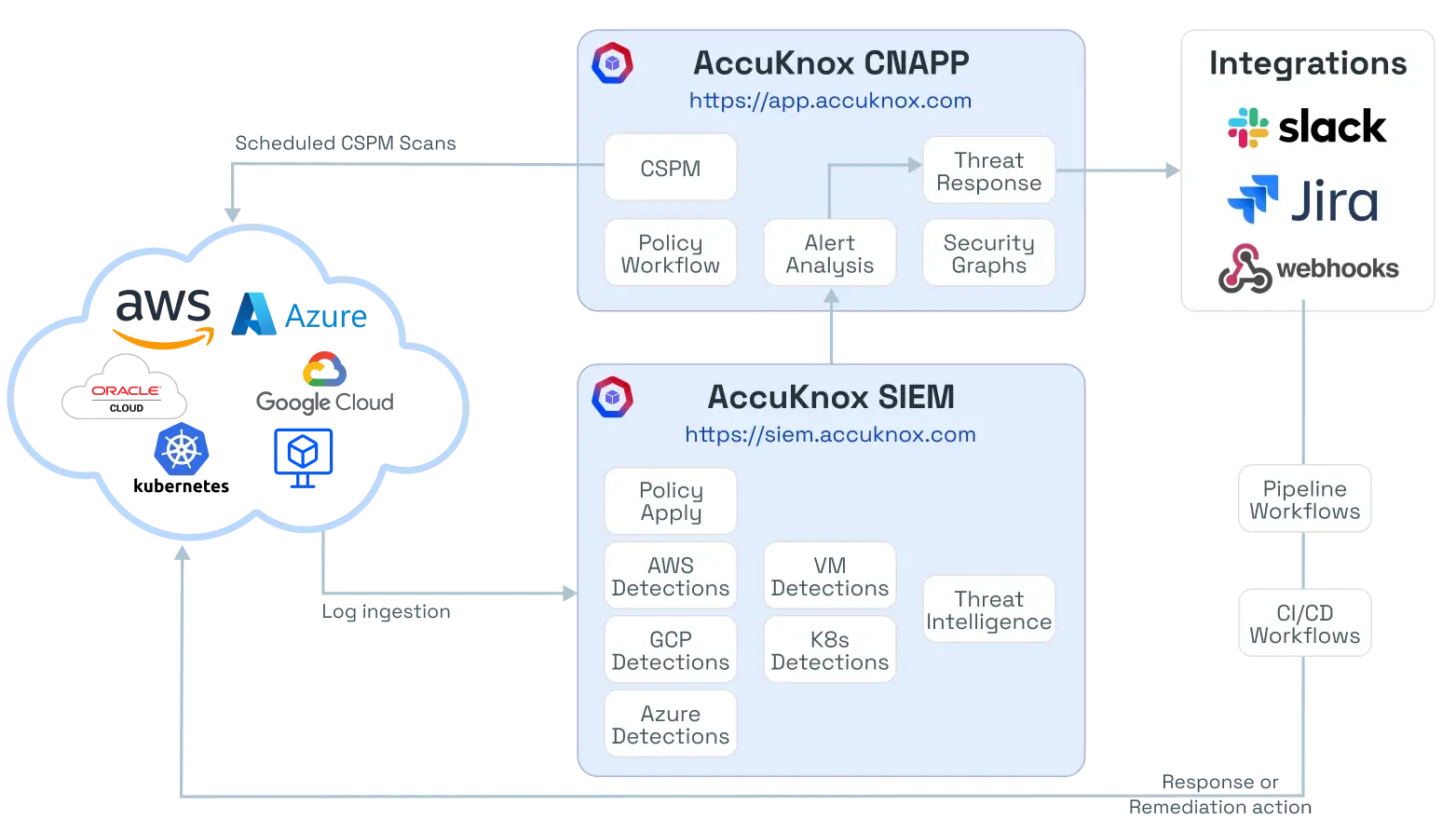

High-Level Architecture

The solution operates on an event-driven architecture connecting your Cloud Environment, the AccuKnox SIEM/CNAPP Control Plane, and your Remediation Pipelines.

Architecture Overview

The architecture captures cloud events, analyzes them against security policies, and triggers remediation actions.

Integration Workflow

Stage	Description	Example/Method
Ingest & Detect	Capture cloud events (CloudTrail, Audit Logs) and analyze for policy violations	PutBucketPublicAccessBlock
Alert Trigger	Generate alert, check for response policy, notify via Slack/Jira/Email	Dashboard alert, notification
Automated Response	Invoke remediation workflow via webhook or CI/CD pipeline	GitHub Actions, Jenkins
Remediation & Verification	Execute fix (e.g., remove public IP), update dashboard status	Remediation script, status

Primary Use Cases

Below are the three standard implementation scenarios for CDR.

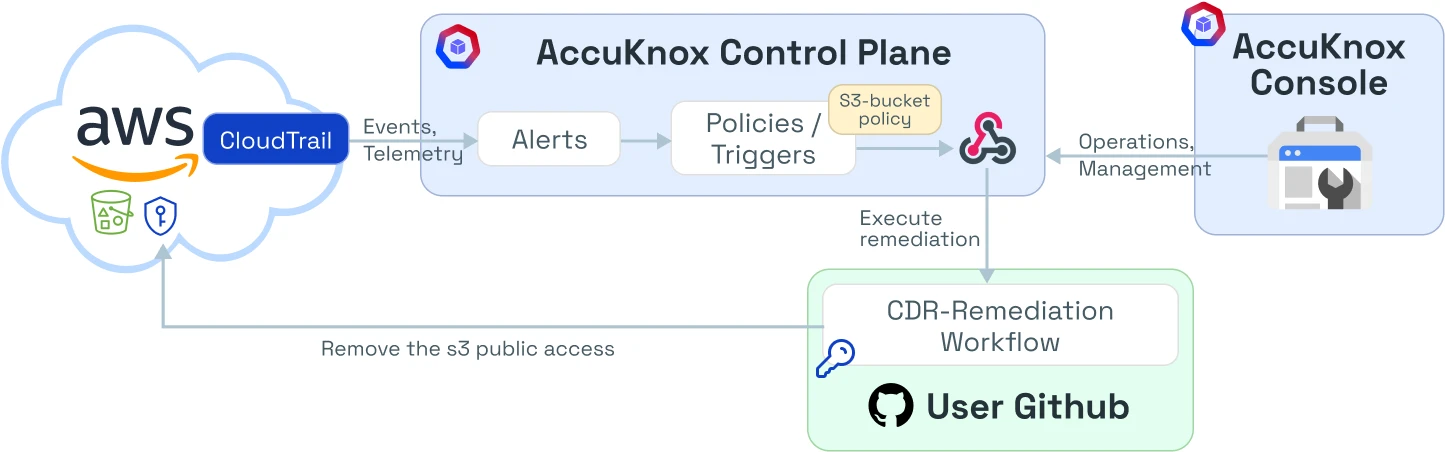

Enforcing Private S3 Buckets

Goal

Automatically revoke public access if a user inadvertently exposes an S3 bucket.

1. Trigger Event: A user performs an action that enables public access on a bucket
2. Detection: CloudTrail logs the API event. AccuKnox detects a violation of the Public S3 Bucket Detected policy
3. Action: The system triggers the CDR-Remediation Workflow
4. Remediation: The workflow executes remove-bucket-public-access, reverting the bucket permissions to private

Restricting Public IPs on VMs

Goal

Ensure no Compute Engine/EC2 instance is reachable via a public IP address.

1. Trigger Event: A VM is launched or modified to have a Public IP
2. Detection: The system flags the VM-pubip policy violation
3. Action: The CDR-Remediation Workflow is invoked
4. Remediation: The workflow executes the remove-public-ip action, detaching the public network interface while keeping the instance running

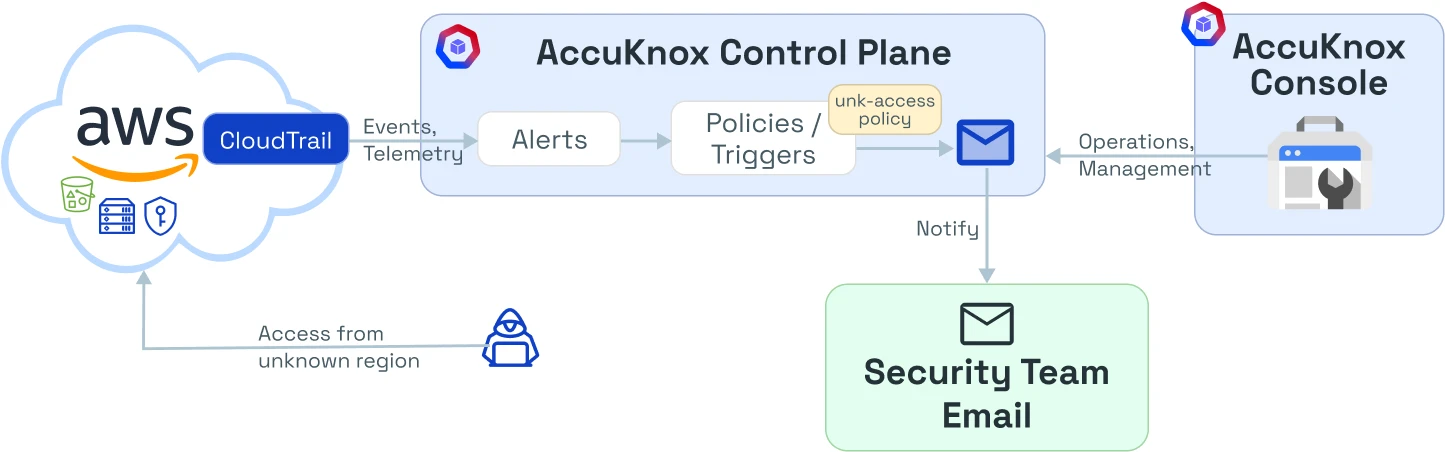

Geo-Fencing Access

Goal

Detect and notify if cloud resources are accessed from an unapproved region.

1. Trigger Event: API access detected from a region not on the allow-list
2. Detection: The unk-access policy is triggered
3. Action: Unlike remediation, this triggers a Notification Workflow
4. Outcome: The Security Team receives an immediate high-priority email/Slack alert to investigate potential credential compromise

Prerequisites for Remediation

To enable the "Response" component of CDR, ensure your remediation pipeline (CI/CD) has the necessary permissions.

Required Cloud Permissions (Expand for Details)

AWS Permissions

Action	Required Permissions	Policy Name
Make S3 Private	s3:PutBucketPublicAccessBlock, s3:ListBucket	s3_make_bucket_private.yaml
Shutdown EC2	ec2:TerminateInstances, ec2:DescribeInstances	ec2_shutdown_public_instance.yaml
Enable CloudTrail	cloudtrail:StartLogging	cloudtrail_ensure_enabled.yaml

GCP Permissions

Action	Required Permissions	Policy Name
Revert Firewall	compute.firewalls.update, compute.firewalls.get	revert_firewall_ports.yaml
Shutdown Instance	compute.instances.delete	instance_delete_public_ip.yaml

Azure Permissions

Action	Required Permissions	Policy Name
Block Blob Public Access	Microsoft.Storage/.../write	storage_container_block_public_access.yaml
Terminate Public VM	Microsoft.Compute/virtualMachines/delete	vm_terminate_public_ip.yaml

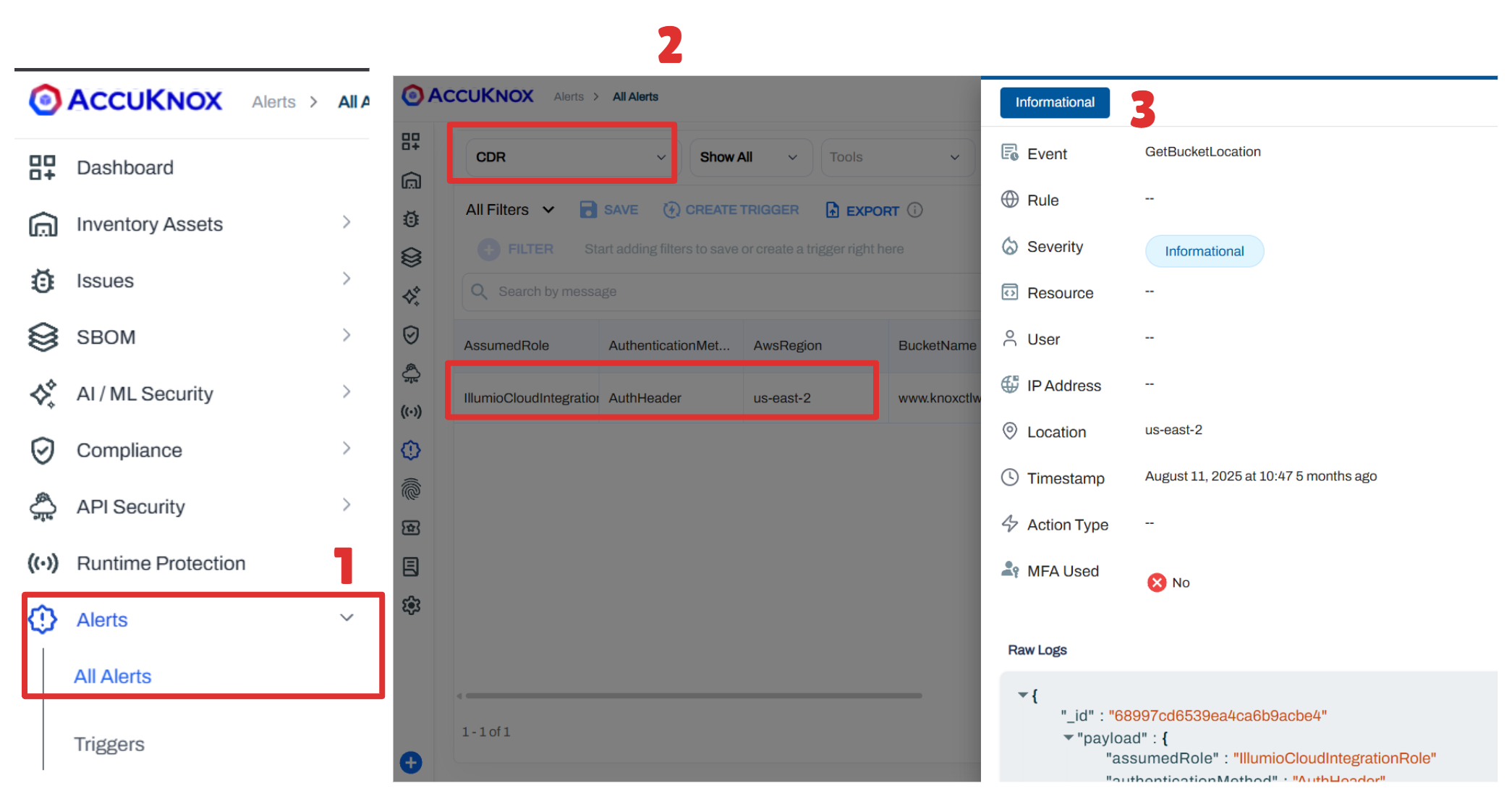

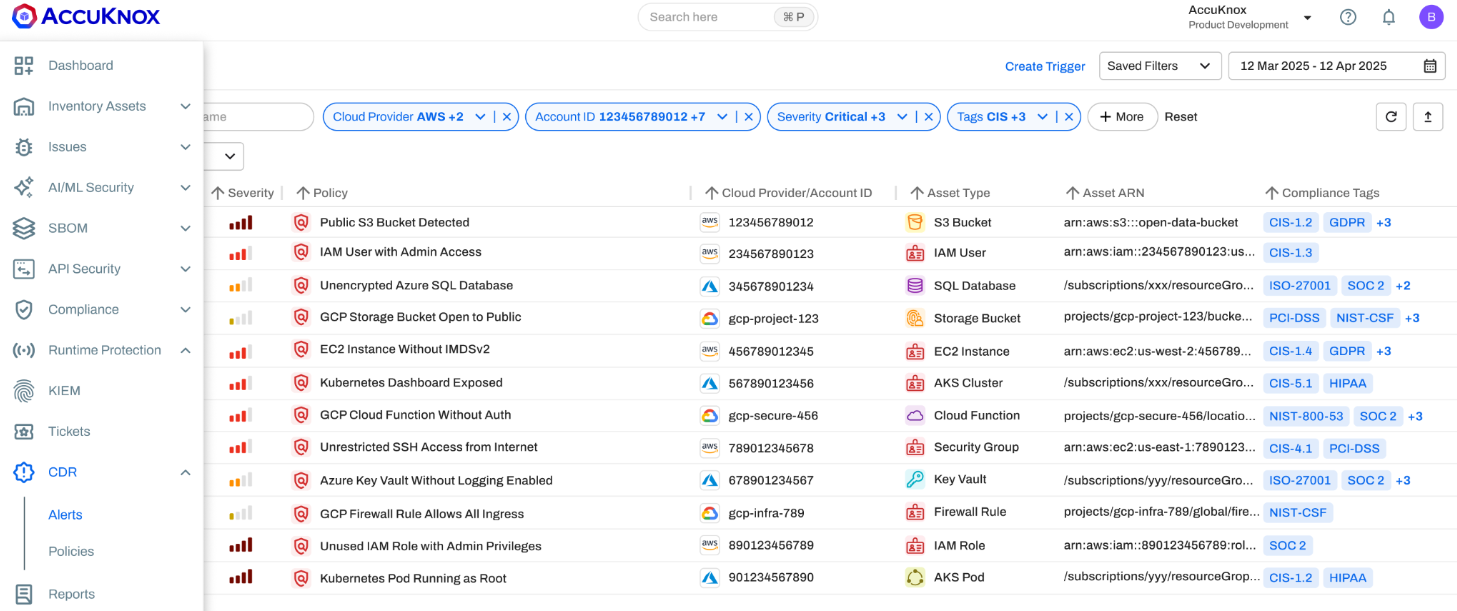

Visualizing Alerts

Track the effectiveness of your policies in the Alerts Dashboard.

1. Navigate to CDR → Alerts
2. Filter by Severity: Critical
3. Locate the specific alert (e.g., "GCP Storage Bucket Open to Public")
4. Check the status to confirm if the Auto-Remediation action was successfully triggered and the issue is resolved.
