End-to-End Runtime Prompt Firewall Setup for Azure AI Foundry

Objective

Route all user prompts sent to Azure AI Foundry through AccuKnox LLM Defence first, using Azure API Management (APIM), with the following guarantees:

• Client never talks to Foundry directly

• Only the user question is sent to AccuKnox

• Full payload is preserved for Foundry

• Requests are blocked if AccuKnox returns BLOCK

• Foundry is called only if allowed

• Secrets are stored securely in APIM

• Client code remains unchanged except endpoint + key

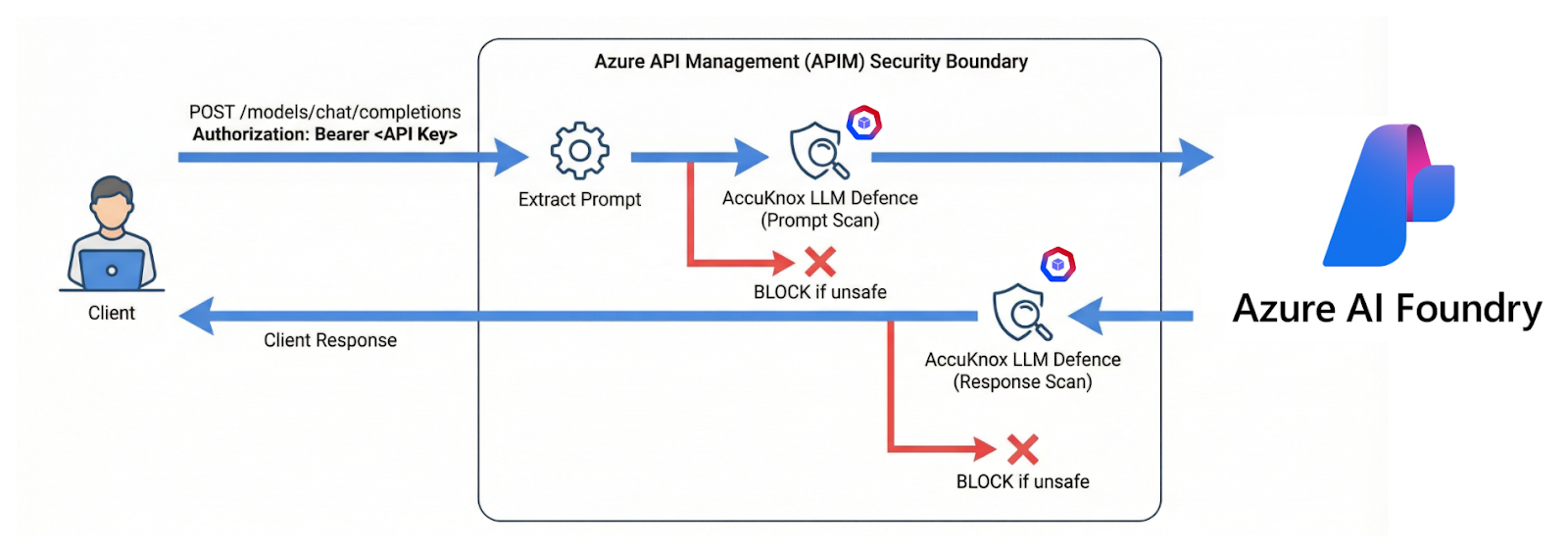

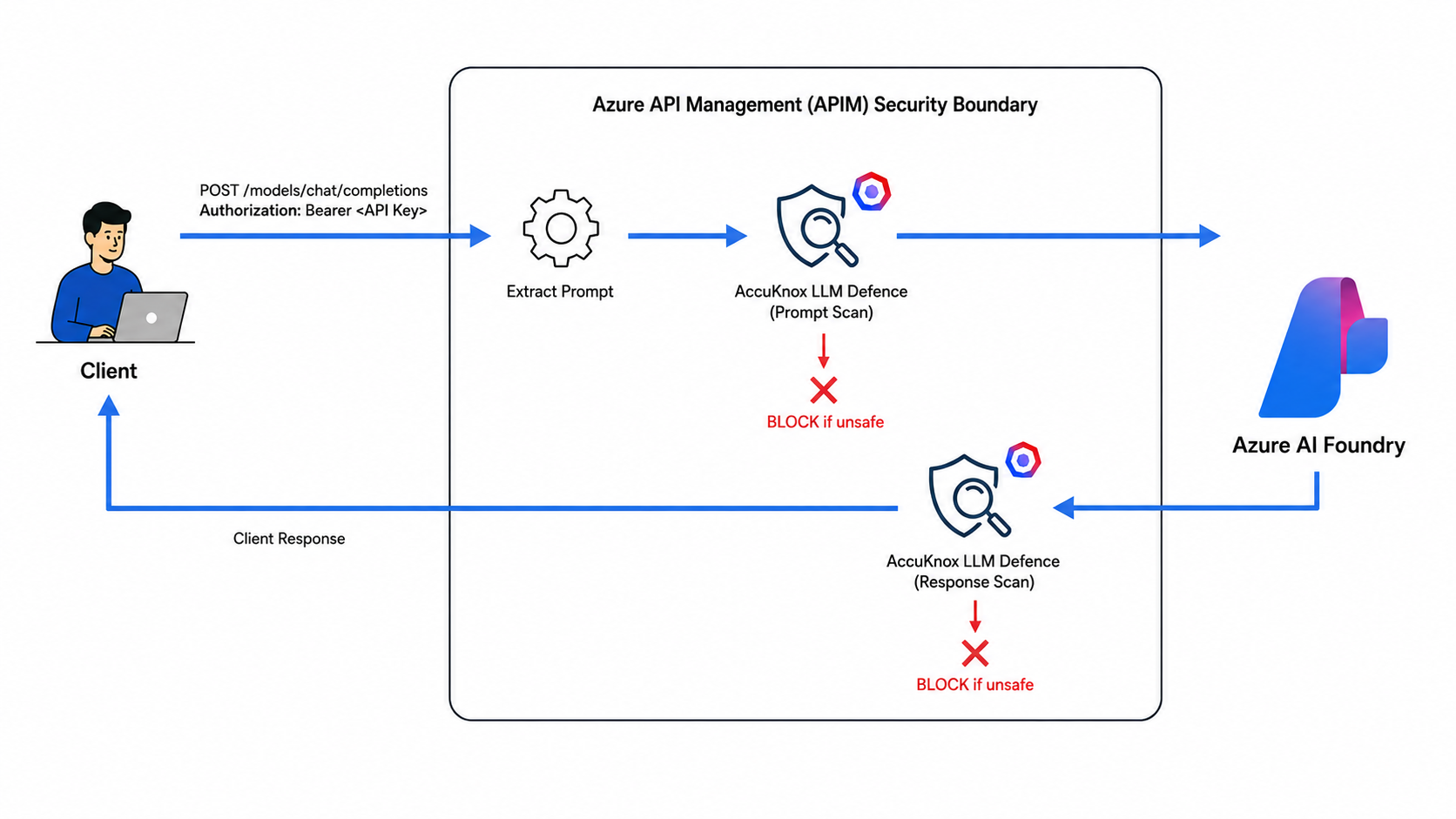

Final Runtime Flow

Client
  |
  | POST /foundry/models/chat/completions
  | Authorization: Bearer <CLIENT_TOKEN>
  | (full LLM payload)
  |
Azure API Management (APIM)
  |
  |──► AUTHENTICATION (Inbound – fail fast)
  |     - Read Authorization header
  |     - Strip "Bearer "
  |     - Compare token with
  |     - If mismatch / missing → 401 Unauthorized
  |
  |──► PRESERVE REQUEST
  |     - Preserve full original request body
  |
  |──► PROMPT EXTRACTION
  |     - Extract messages[0].content only
  |
  |──► PROMPT SECURITY CHECK
  |     - POST to AccuKnox LLM Defence
  |       {
  |         "query_type": "prompt",
  |         "content": "<user prompt>"
  |       }
  |
  |──► PROMPT DECISION
  |     - If BLOCK → 403 (Foundry NOT called)
  |     - If ALLOW / MONITOR → continue
  |
  |──► BACKEND INVOCATION
  |     - Forward ORIGINAL payload (unchanged)
  |     - Replace Authorization header with
  |       Bearer
  |
  v
Azure AI Foundry
  |
  |──► MODEL INFERENCE
  |     - Full LLM payload processed
  |
  |──► RESPONSE RETURNED
  |
  v
Azure API Management (APIM)
  |
  |──► RESPONSE PRESERVATION
  |     - Preserve full Foundry response
  |
  |──► RESPONSE EXTRACTION
  |     - Extract choices[0].message.content
  |
  |──► RESPONSE SECURITY CHECK
  |     - POST to AccuKnox LLM Defence
  |       {
  |         "query_type": "response",
  |         "content": "<model output>",
  |         "session_id": "<prompt session id>"
  |       }
  |
  |──► RESPONSE DECISION
  |     - If BLOCK → 403 (response suppressed)
  |     - If ALLOW / MONITOR → return response
  |
  v
Client

Prerequisites

• Azure API Management instance (Developer / Premium recommended)

• Azure AI Foundry model deployed

• Working Foundry inference curl:

POST https://ai-prompt-firewall-openai.services.ai.azure.com/models/chat/completions

• AccuKnox LLM Defence API access + bearer token

• APIM Product with subscription enabled

STEP 1 — Create Backends in APIM

1.1 Foundry Backend

APIM → Backends → Add

Field	Value
Name	foundry-backend
Backend type	HTTP
URL	https://ai-prompt-firewall-openai.services.ai.azure.com
TLS	Enabled

Note

Do not include /models or /chat

1.2 AccuKnox LLM Defence Backend

APIM → Backends → Add

Field	Value
Name	llm-defence-backend
Backend type	HTTP
URL	https://cwpp.<domain>.accuknox.com
TLS	Enabled

STEP 2 — Store Secrets Securely (Named Values)

APIM → Named values → Add

2.1 Foundry API Key

Field	Value
Name	AI_FOUNDRY_API_KEY
Value	<foundry-api-key>
Secret	Enabled

2.2 AccuKnox Defence Token

Field	Value
Name	LLM_DEFENCE_TOKEN
Value	<Enter Application Token>
Secret	Enabled

In order to get “LLM_DEFENCE_TOKEN“

1.Login to platform.

2.Go to AI/ML Security → Applications-> Prompt Firewall

3.Click on Add Application. Enter Application name and tags. Click on add.

4.Copy the generated LLM_DEFENCE_TOKEN.

STEP 3 — Create a New API (Separate)

APIM → APIs → Add API → HTTP

Field	Value
Display name	Foundry Models Proxy
Name	foundry-models-proxy
URL scheme	HTTPS
API URL suffix	foundry
Web service URL	(leave empty)

This exposes:

https://<apim-name>.azure-api.net/foundry

STEP 4 — Create Operation (Matches Foundry API)

APIM → APIs → Foundry Models Proxy → Add operation

Field	Value
Display name	Chat Completions
Name	chat-completions
Method	POST
URL	/models/chat/completions

Note

Do not include query params here

STEP 5 — Attach API to Product (Mandatory)

APIM → Products → Starter / Unlimited

• Add Foundry Models Proxy

• Ensure product has an active subscription

Note

Clients will use the APIM subscription key

STEP 6 — API Policy (CORE LOGIC)

Apply at:

APIM → APIs → Foundry Models Proxy → All operations → Policies

FINAL PRODUCTION POLICY (READY TO PASTE)

<policies>
    <inbound>
        <base />
        <!-- 🔐 AUTHENTICATION -->
        <set-variable name="clientBearer" value="@{
                        var auth = context.Request.Headers.GetValueOrDefault("Authorization", "");
                        return auth.StartsWith("Bearer ")
                            ? auth.Substring(7)
                            : "";
                        }" />
        <choose>
            <when condition="@(
            string.IsNullOrEmpty((string)context.Variables["clientBearer"]) ||
            (string)context.Variables["clientBearer"] != ""
            )">
                <return-response>
                    <set-status code="401" reason="Unauthorized" />
                    <set-header name="Content-Type" exists-action="override">
                        <value>application/json</value>
                    </set-header>
                    <set-body>{
                    "error": "Invalid or missing bearer token"
                }</set-body>
                </return-response>
            </when>
        </choose>
        <!-- Preserve original request body -->
        <set-variable name="originalBody" value="@(context.Request.Body.As<string>(preserveContent: true))" />
        <!-- Extract user prompt -->
        <set-variable name="userPrompt" value="@{
                    var body = context.Request.Body.As<JObject>(preserveContent: true);
                    return (string)body["messages"]?[0]?["content"];
                  }" />
        <!-- Call AccuKnox LLM Defence (PROMPT scan) -->
        <send-request mode="new" response-variable-name="llmDefenceResponse" timeout="10" ignore-error="false">
            <set-url>https://cwpp.airindia.accuknox.com/llm-defence/application-query</set-url>
            <set-method>POST</set-method>
            <set-header name="Content-Type" exists-action="override">
                <value>application/json</value>
            </set-header>
            <set-header name="Authorization" exists-action="override">
                <value>Bearer </value>
            </set-header>
            <set-body>@{
          return new JObject(
            new JProperty("query_type", "prompt"),
            new JProperty("content", (string)context.Variables["userPrompt"])
          ).ToString();
        }</set-body>
        </send-request>
        <!-- Parse defence response -->
        <set-variable name="defenceResult" value="@(((IResponse)context.Variables["llmDefenceResponse"])
                          .Body.As<JObject>())" />
        <!-- Store session_id for response correlation -->
        <set-variable name="defenceSessionId" value="@(((JObject)context.Variables["defenceResult"])
                          ["session_id"]?.ToString())" />
        <!-- Block if prompt is unsafe -->
        <choose>
            <when condition="@(
        ((JObject)context.Variables["defenceResult"])
          ["query_status"]?.ToString() == "BLOCK"
      )">
                <return-response>
                    <set-status code="403" reason="Blocked by LLM Defence" />
                    <set-header name="Content-Type" exists-action="override">
                        <value>application/json</value>
                    </set-header>
                    <set-body>{
              "error": "Prompt blocked by LLM Defence",
              "severity": "@(((JObject)context.Variables["defenceResult"])["overall_severity"])",
              "reason": "@(((JObject)context.Variables["defenceResult"])["description"])"
            }</set-body>
                </return-response>
            </when>
        </choose>
        <!-- Forward request to Foundry -->
        <set-backend-service backend-id="foundry-backend" />
        <set-header name="Authorization" exists-action="override">
            <value>Bearer </value>
        </set-header>
        <set-header name="Content-Type" exists-action="override">
            <value>application/json</value>
        </set-header>
    </inbound>
    <backend>
        <base />
    </backend>
    <outbound>
        <base />
        <!-- Preserve model response -->
        <set-variable name="modelResponse" value="@(context.Response.Body.As<JObject>(preserveContent: true))" />
        <!-- Extract assistant content -->
        <set-variable name="assistantContent" value="@(
                    (string)((JObject)context.Variables["modelResponse"])
                      ["choices"]?[0]?["message"]?["content"]
                  )" />
        <!-- Call AccuKnox LLM Defence (RESPONSE scan) -->
        <send-request mode="new" response-variable-name="llmDefenceResponseScan" timeout="10" ignore-error="false">
            <set-url>https://cwpp.airindia.accuknox.com/llm-defence/application-query</set-url>
            <set-method>POST</set-method>
            <set-header name="Content-Type" exists-action="override">
                <value>application/json</value>
            </set-header>
            <set-header name="Authorization" exists-action="override">
                <value>Bearer </value>
            </set-header>
            <set-body>@{
          return new JObject(
            new JProperty("query_type", "response"),
            new JProperty("content", (string)context.Variables["assistantContent"]),
            new JProperty("session_id", (string)context.Variables["defenceSessionId"])
          ).ToString();
        }</set-body>
        </send-request>
        <!-- Parse response scan -->
        <set-variable name="responseDefenceResult" value="@(((IResponse)context.Variables["llmDefenceResponseScan"])
                          .Body.As<JObject>())" />
        <!-- Block if response is unsafe -->
        <choose>
            <when condition="@(
        ((JObject)context.Variables["responseDefenceResult"])
          ["query_status"]?.ToString() == "BLOCK"
      )">
                <return-response>
                    <set-status code="403" reason="Response blocked by LLM Defence" />
                    <set-header name="Content-Type" exists-action="override">
                        <value>application/json</value>
                    </set-header>
                    <set-body>{
              "error": "Model response blocked by LLM Defence",
              "session_id": "@(context.Variables["defenceSessionId"])"
            }</set-body>
                </return-response>
            </when>
        </choose>
    </outbound>
    <on-error>
        <base />
    </on-error>
</policies>

STEP 7 — Client Usage

Client → APIM (NOT Foundry)

curl -X POST \
  "https://<apim-name>.azure-api.net/foundry/models/chat/completions?api-version=2024-05-01-preview" \
  -H "Content-Type: application/json" \
  -H "Bearer: AI_FOUNDRY_API_KEY" \
  -d '{
    "messages": [
      { "role": "user", "content": "I am going to Paris, what should I see?" }
    ],
    "model": "mistral-medium-2505",
    "max_tokens": 2048,
    "temperature": 0.8,
    "top_p": 0.1
  }'

Behavior Summary

Scenario	Result
AccuKnox returns BLOCK	❌ 403, Foundry not called
AccuKnox returns ALLOW	✅ Request forwarded
AccuKnox returns MONITOR	✅ Request forwarded
Defence API down	❌ Fail-closed (configurable)
Client sees Foundry key	❌ Never

Extensible By Design

This architecture supports:

• Monitor-only mode

• Severity thresholds

• Multi-message extraction

• Async / shadow scanning

• Policy fragments

• Tenant-aware routing

• Prompt + response logging
