Alert Audit Trail

This page explains what EventTrail is, the problem it solves, example log formats, and how to use the UI step by step.

EventTrail is a single, centralized view of all internal actions by users and system automation. It records what happened, who triggered it, when it happened, whether it succeeded or failed, and structured details for each event.

By consolidating entries, EventTrail eliminates blind spots — for example, ticket-creation failures in the Rule Engine, unclear user-invite activity, and missing timelines for finding-status changes — making those events discoverable and auditable.

Benefits include faster debugging of integrations and rules; clear traceability of user and automated actions; support for audits and incident reports; powerful filtering by component, action, user, result, or time; and a Raw JSON view for field-level investigation.

Note

This feature is available at: https://app.accuknox.com/monitors-alerts/alerts

Filters & search

EventTrail lets you narrow results using the main filters: Component, Action, Result (Ok/Fail/Warn), User, and Date range. Combine filters and use a payload text search to find specific fields (for example an email or ticket ID).

Quick investigations

• Failed Jira ticket creation: Component = Rule Engine, Action = create_ticket, Result = Fail.
• Who invited a user: Component = User Management, Action = user_invited, then search the payload for the invited email.
• Audit timeline: pick a date range and export the filtered logs.

Personas & use cases

• Platform Administrator: check who invited users, verify role changes, and troubleshoot failed invites.
• Security Engineer: trace rule executions, confirm which automation changed a finding, and review integration failures over time.
• Viewer / Auditor: review logs for incidents and verify timing of system actions.

Log Structure

Every entry uses a common schema:

{
  "id": "uuid",
  "timestamp": "date-time",
  "tenant_id": "19",
  "component": "Rule Engine",
  "type": "action",
  "action": "create_ticket",
  "user": "system",
  "result": "Ok",
  "message": "Rule executed successfully",
  "payload": { ... }
}

Field summary

Field	Description
component	Source module. Examples: Rule Engine, User Management, Vulnerability Management.
action	The specific operation. Examples: create_ticket, user_invited, findings-status-updated.
result	Ok, Fail, or Warn.
payload	Structured details specific to the action.

Examples

Ticket creation summary

{
  "rule_id": "rule-123",
  "triggered_on": "2025-11-07T09:56:28Z",
  "configuration_name": "Jira Config 1",
  "integration_name": "Jira Cloud",
  "status": "created 3 ticket(s)",
  "summary": {
    "total_tickets": 3,
    "successful": 2,
    "successful_tickets_id": ["JIRA-1001", "JIRA-1002"],
    "failed": 1
  }
}

Ticket creation failure (individual)

{
  "ticket_id": null,
  "finding_id": "finding-def",
  "error": "Jira API rate-limited the request"
}

Notification dispatch (Slack)

{
  "rule_id": "rule-27",
  "triggered_on": "2025-11-07T09:50:00Z",
  "integration_name": "Slack",
  "channel_id": "slack-001",
  "status": "sent 18 notifications",
  "summary": {
    "total": 18,
    "successful": 15,
    "failed": 3
  }
}

User invited

{
  "invited_user": "ravi@accuknox.com",
  "role_assigned": "Viewer",
  "invite_status": "sent"
}

Finding status changed

{
  "finding_id": "00033f1f-8f30-45aa",
  "name": "linux-libc-dev: CVE-2024-57950",
  "data_type": "cx_containers",
  "previous_status": "Fixed",
  "new_status": "Active"
}

EventTrail Filtering in AccuKnox

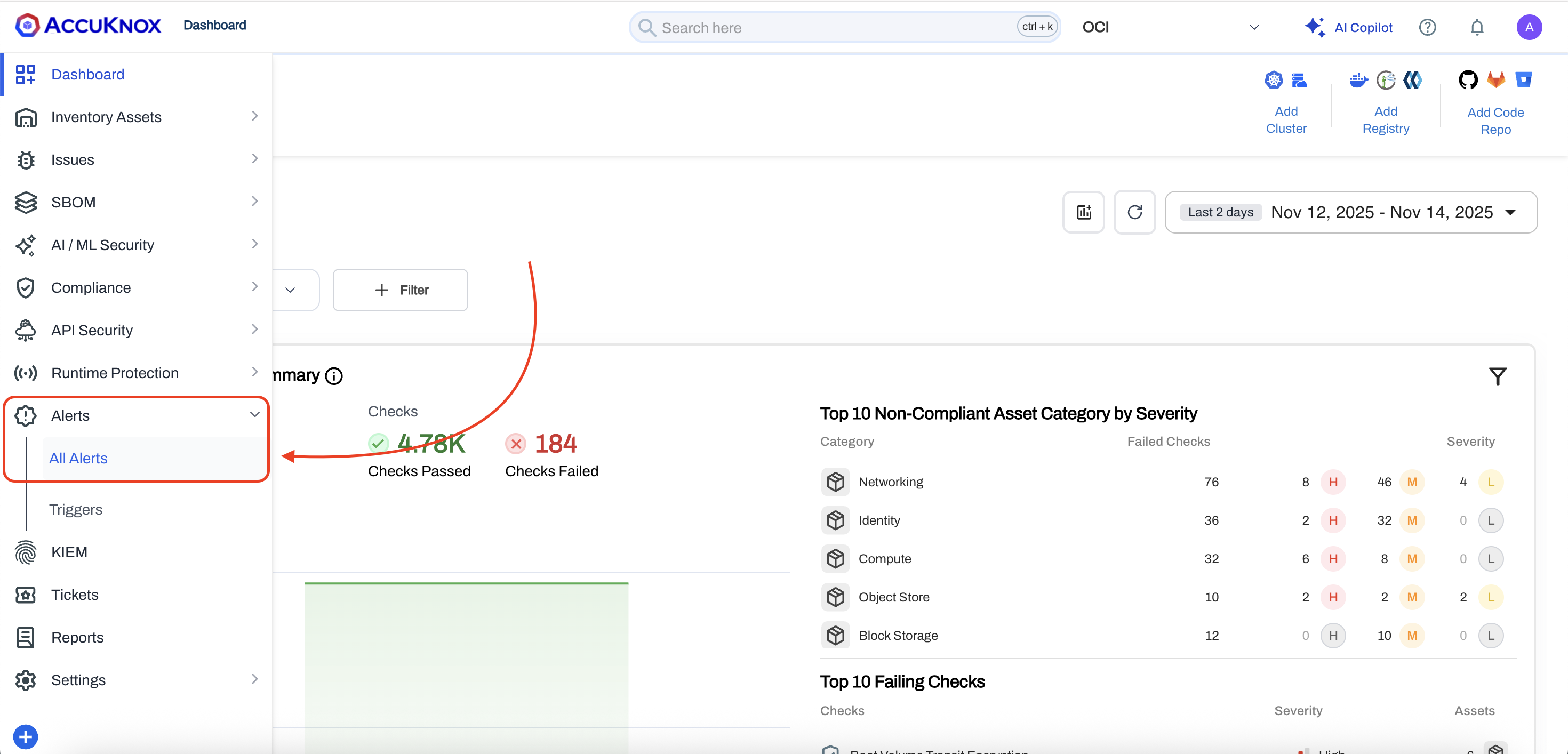

1. Navigate to EventTrail

1. Go to Monitors → Alerts.
2. In the event dropdown, select EventTrail.

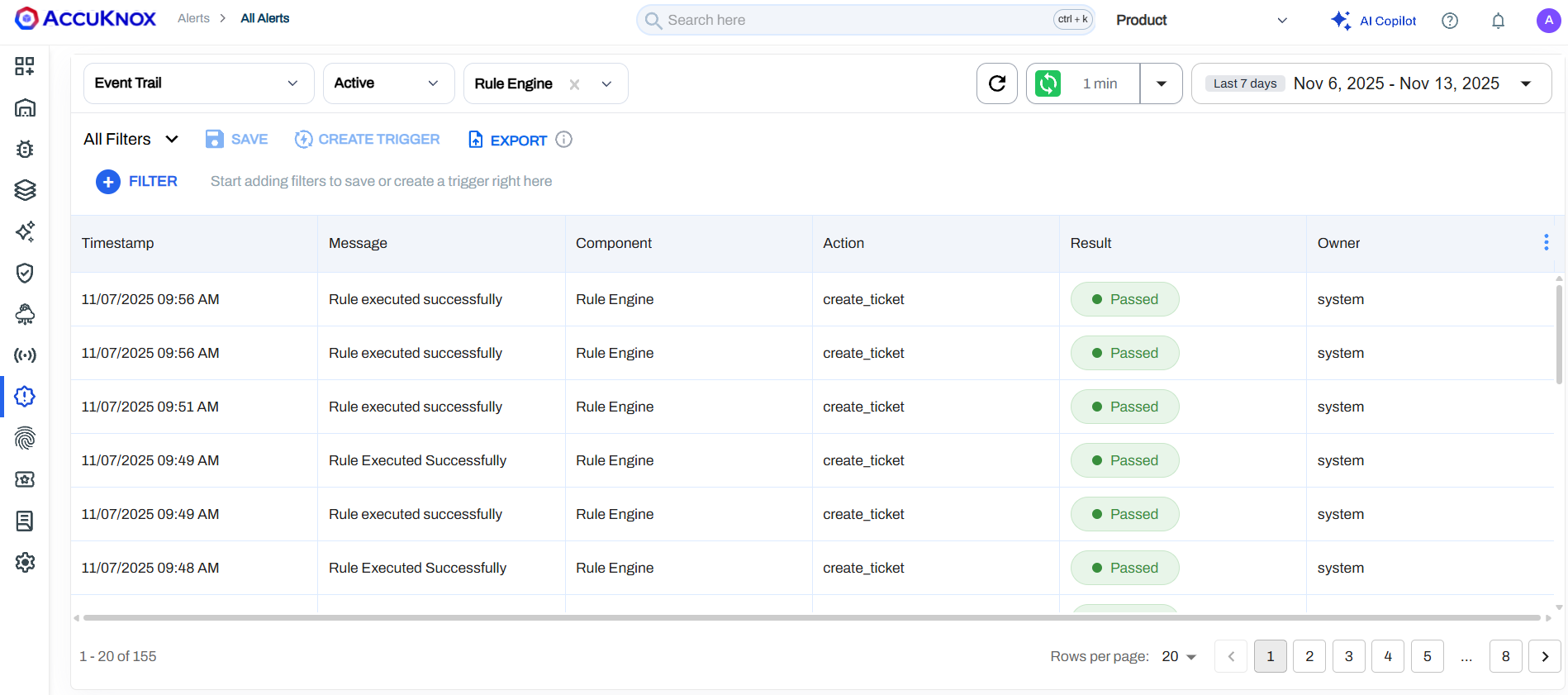

3. The main table loads.

2. Main Table Fields

Column	Meaning
Timestamp	When the action happened
Component	Source module
Action	Operation name
Result	Ok, Fail, Warn
User	Actor (system = automation)
Message	Human-readable summary

Click any row to open the detail modal.

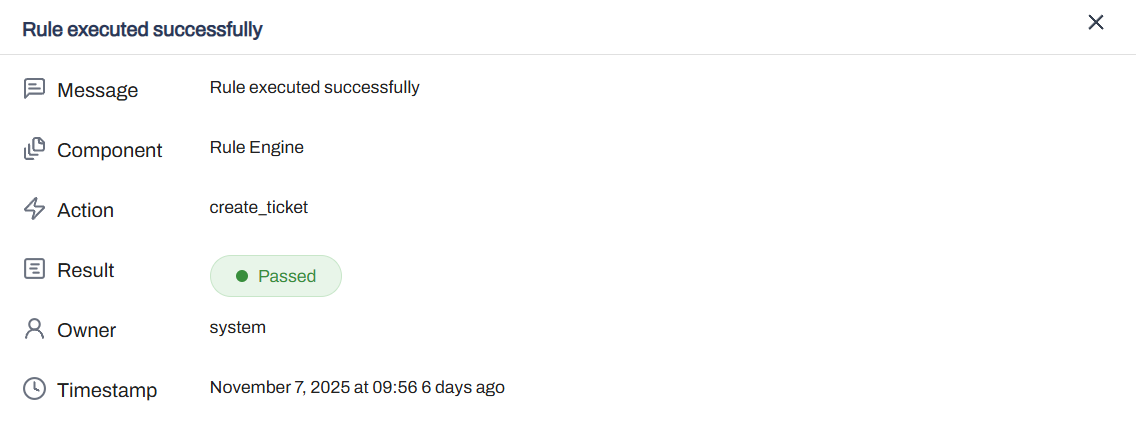

3. Detail View

Shows message, component, action, result, owner, and timestamp.

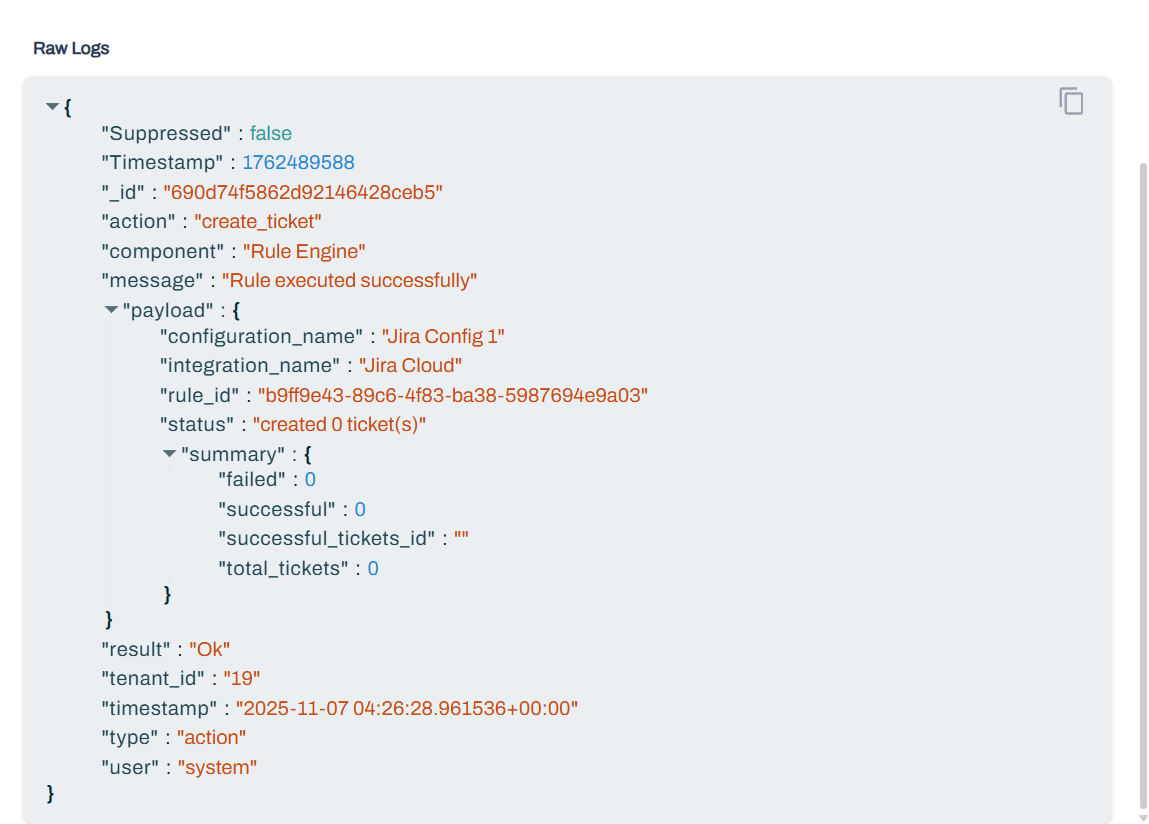

4. Raw Logs

Open Raw Logs to view or copy the full JSON entry.

The raw payload is the most useful place to diagnose integration failures or track exact field-level updates.
