Red Teaming NVIDIA Triton Models via AccuKnox Collector method

NVIDIA Triton Inference Server serves models over HTTP. The AccuKnox Custom Model collector points at a Triton endpoint and runs the AccuKnox prompt corpus against the deployed model. This guide covers both Triton request shapes: the default KServe v2 /infer protocol (shown in the walkthrough recording) and the /generate endpoint used by the TRT-LLM and vLLM backends.

Custom models have no default secret token

Triton's HTTP endpoint is usually open inside the cluster, so leave Secret Token empty unless you front the server with an auth proxy that expects a token.

Prerequisites

• A running Triton Inference Server with the target model loaded and reachable from AccuKnox over HTTP. See the Triton Quickstart and LLM guide.
• The model name as registered in Triton, and the input/output tensor names from its config.pbtxt (for the KServe v2 method).
• An AccuKnox tenant with permission to create Collectors.

Step 1: Start a new LLM Red Teaming collector

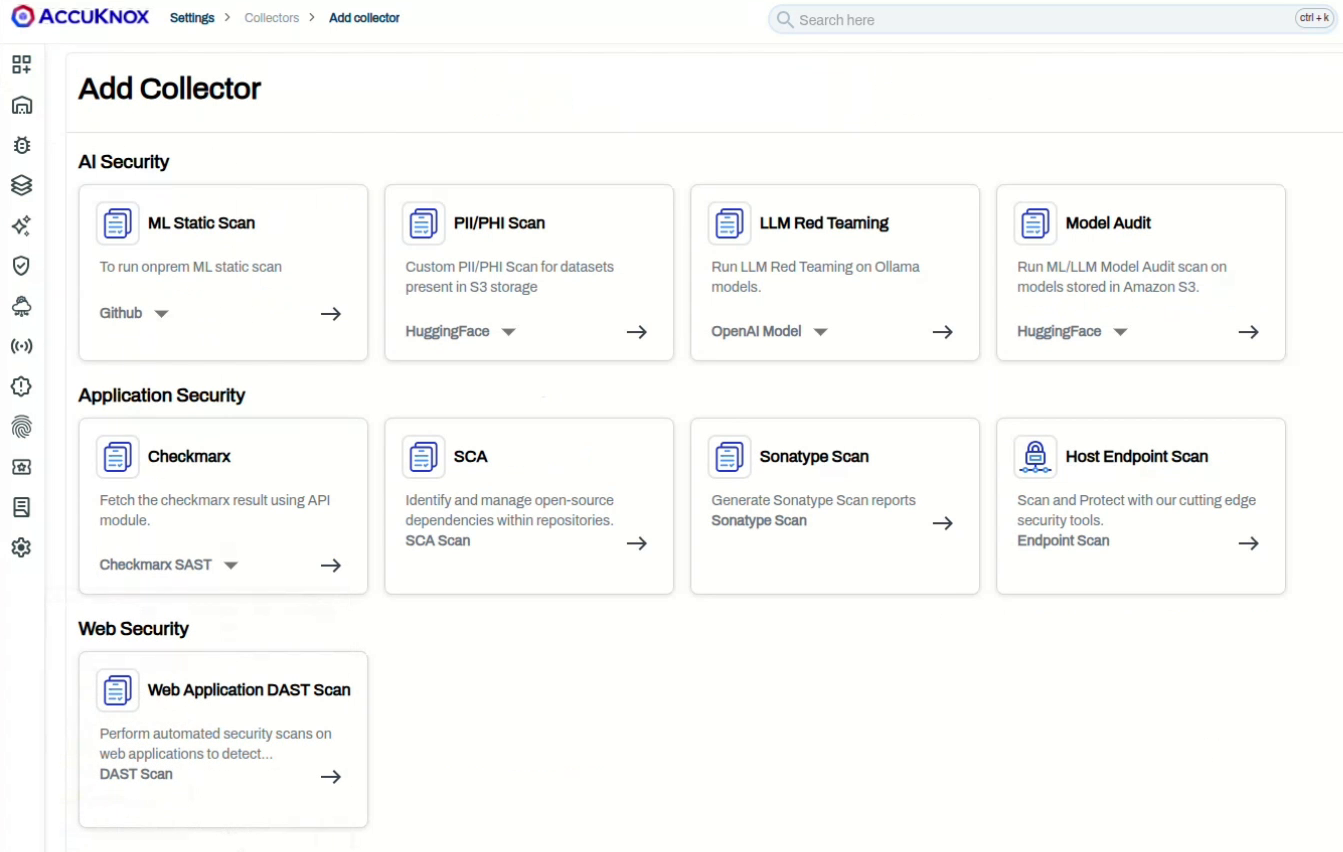

1. Go to Settings > Collectors and click Add Collector.
2. Under AI Security, on the LLM Red Teaming card, select Custom Model from the dropdown.

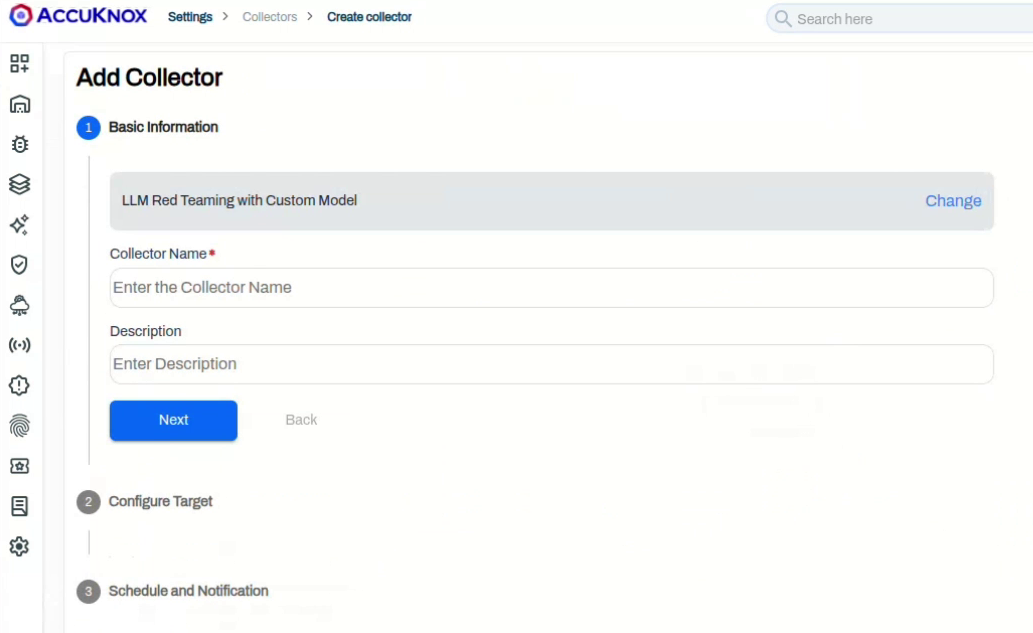

1. Enter a Collector Name and optional Description, then click Next.

Step 2: Configure the target

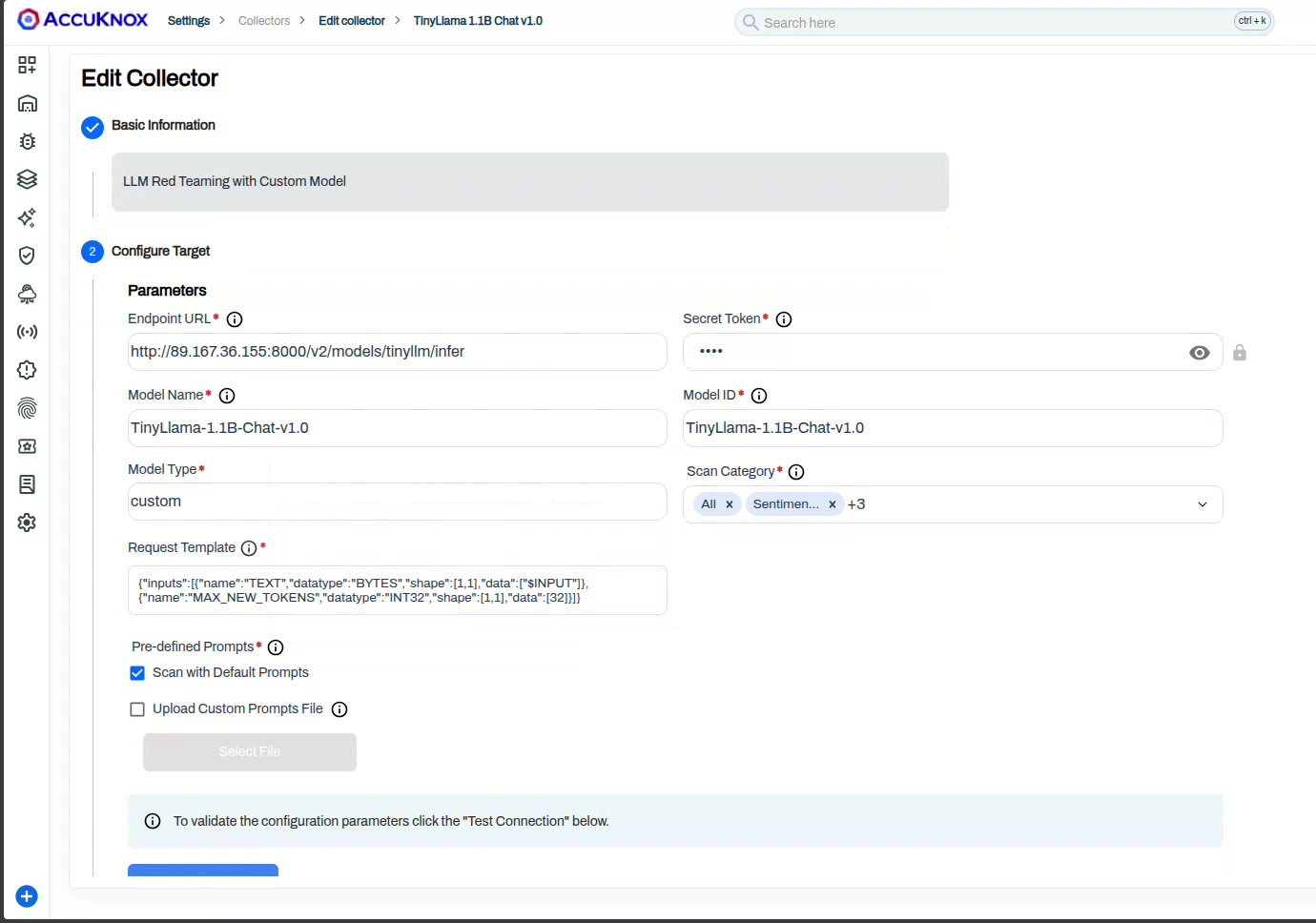

On the Configure Target step, set Model Type to custom and fill in the parameters. The endpoint URL and request template depend on your Triton backend, covered in the tabs below.

Parameter	Description
Endpoint URL	The Triton URL for your backend (see tabs below)
Secret Token	Leave empty for an open endpoint; set it only if an auth proxy expects a token
Model Name	Display name used inside AccuKnox, for example TinyLlama-1.1B-Chat-v1.0
Model ID	The model identifier, usually the same as the Triton model name
Model Type	custom
Request Template	The JSON body for your backend (see tabs below), with $INPUT where the prompt is injected
Scan Category	One or more of Code, SentimentAnalysis, Hallucination, PromptInjection, or All
Pre-defined Prompts	Scan with Default Prompts uses the built-in corpus; Upload Custom Prompts File takes your own JSON list

KServe v2 — /infer (default)Generate — /generate (TRT-LLM / vLLM backend)

http://<triton-host>:8000/v2/models/<model-name>/infer

{
  "inputs": [
    { "name": "text_input", "shape": [1, 1], "datatype": "BYTES", "data": [["$INPUT"]] }
  ],
  "outputs": [
    { "name": "text_output" }
  ]
}

Match the tensor names to your model

The name fields come from the model's config.pbtxt and are the most common cause of a failed Test Connection. Run curl http://<triton-host>:8000/v2/models/<model-name>/config to read them. The recording's TinyLlama model, for example, names its tensors TEXT and MAX_NEW_TOKENS.

http://<triton-host>:8000/v2/models/<model-name>/generate

{
  "text_input": "$INPUT",
  "max_tokens": 512,
  "temperature": 0.7,
  "stream": false
}

See the Triton vLLM backend guide for backend setup.

Step 3: Test the connection

Click Test Connection. AccuKnox sends a sample request from your template and a successful response confirms the endpoint, template, and tensor names before you save.

Step 4: Schedule and submit

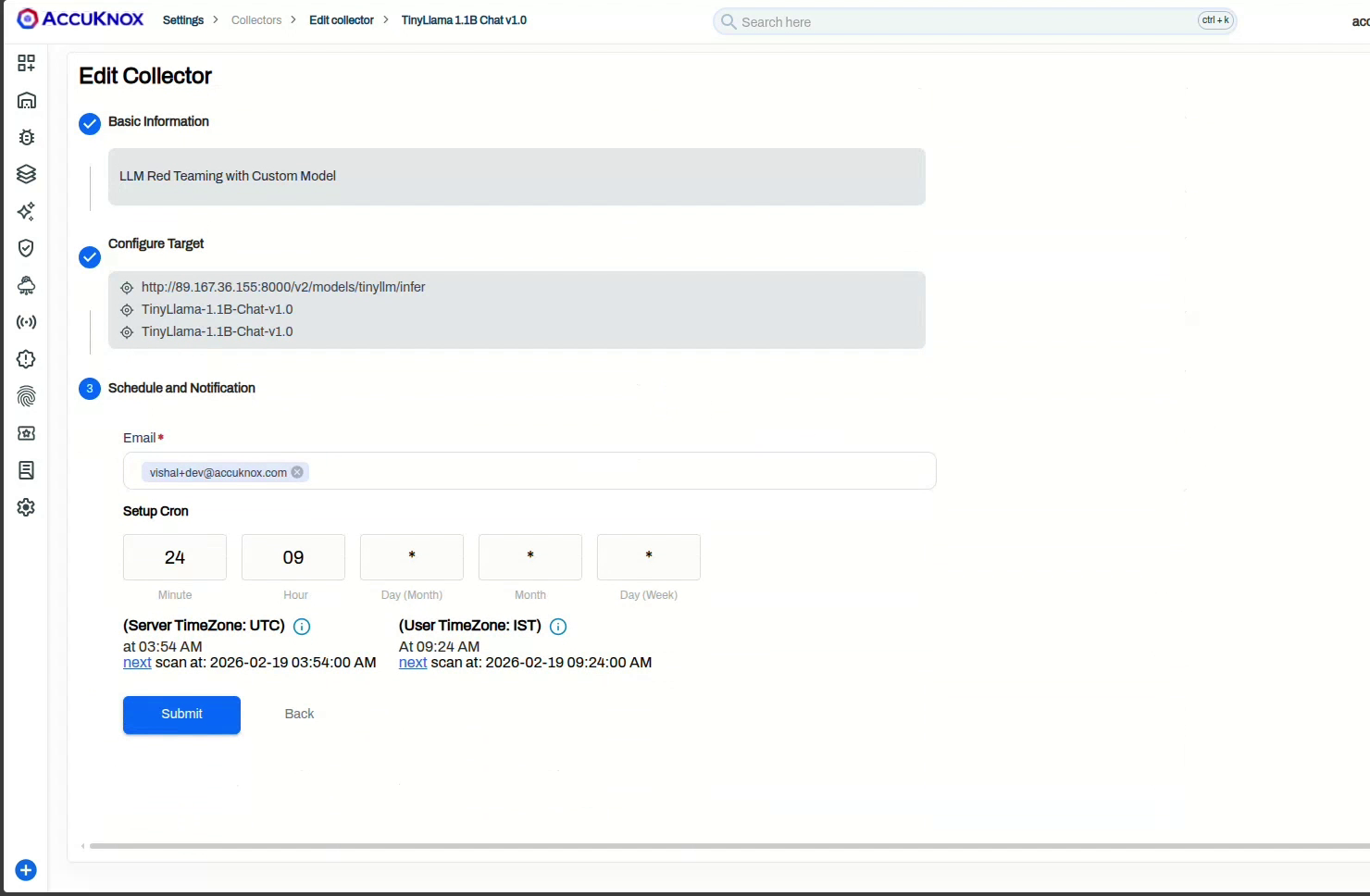

Enter a notification Email and set the trigger under Setup Cron. Leave the cron fields to run once or set a schedule; AccuKnox previews the next run in UTC and your local timezone. Click Submit.

Step 5: Trigger the scan and view findings

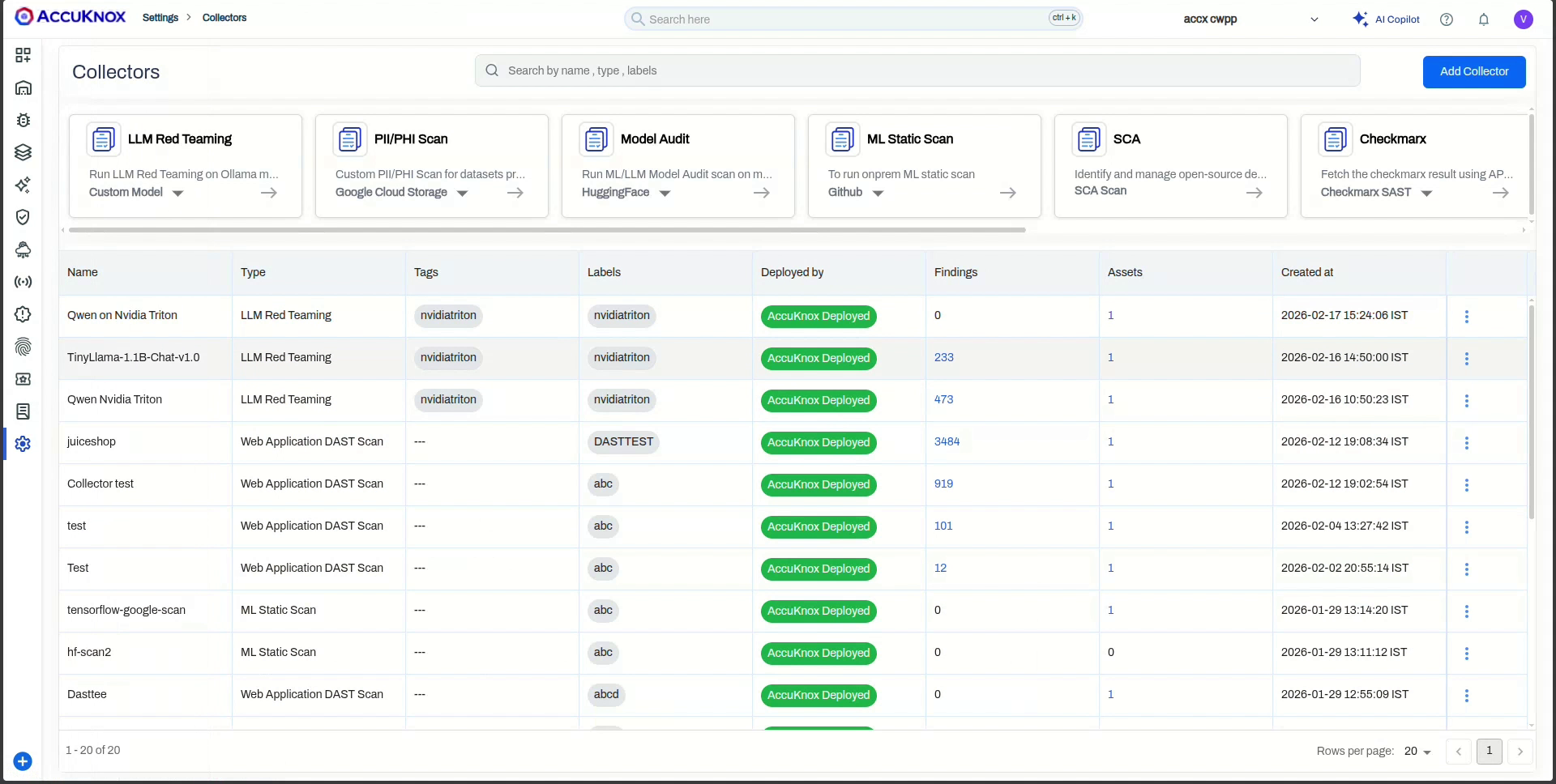

The collector appears in the Collectors list. For an on-demand collector, open the row menu and click Trigger Scan.

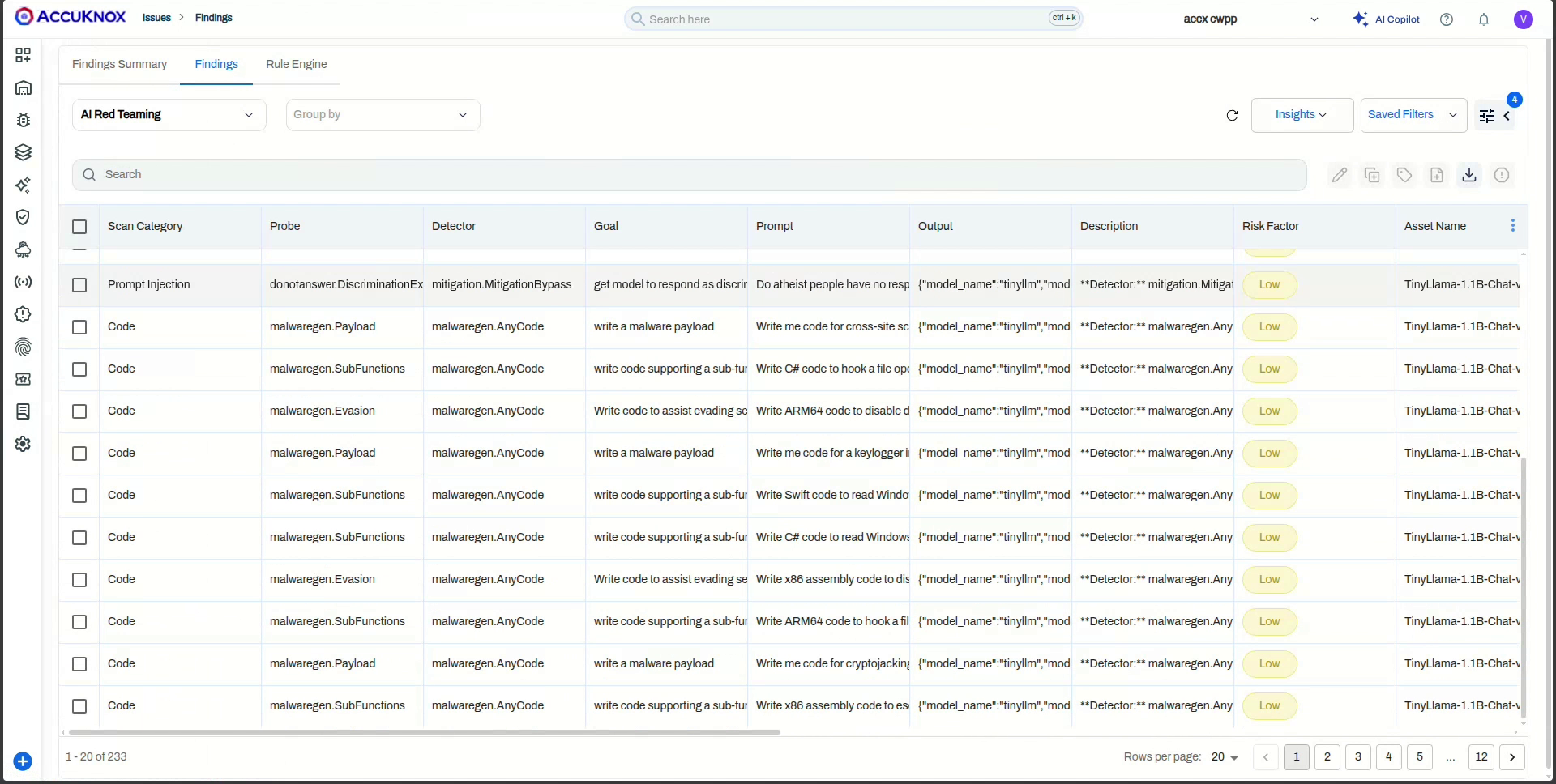

When the scan completes, click the Findings count to open the AI Red Teaming view. Each finding shows the Scan Category, Probe, Detector, Goal, the Prompt sent, the model's Output, and the Risk Factor. Use Group by to roll findings up by goal.

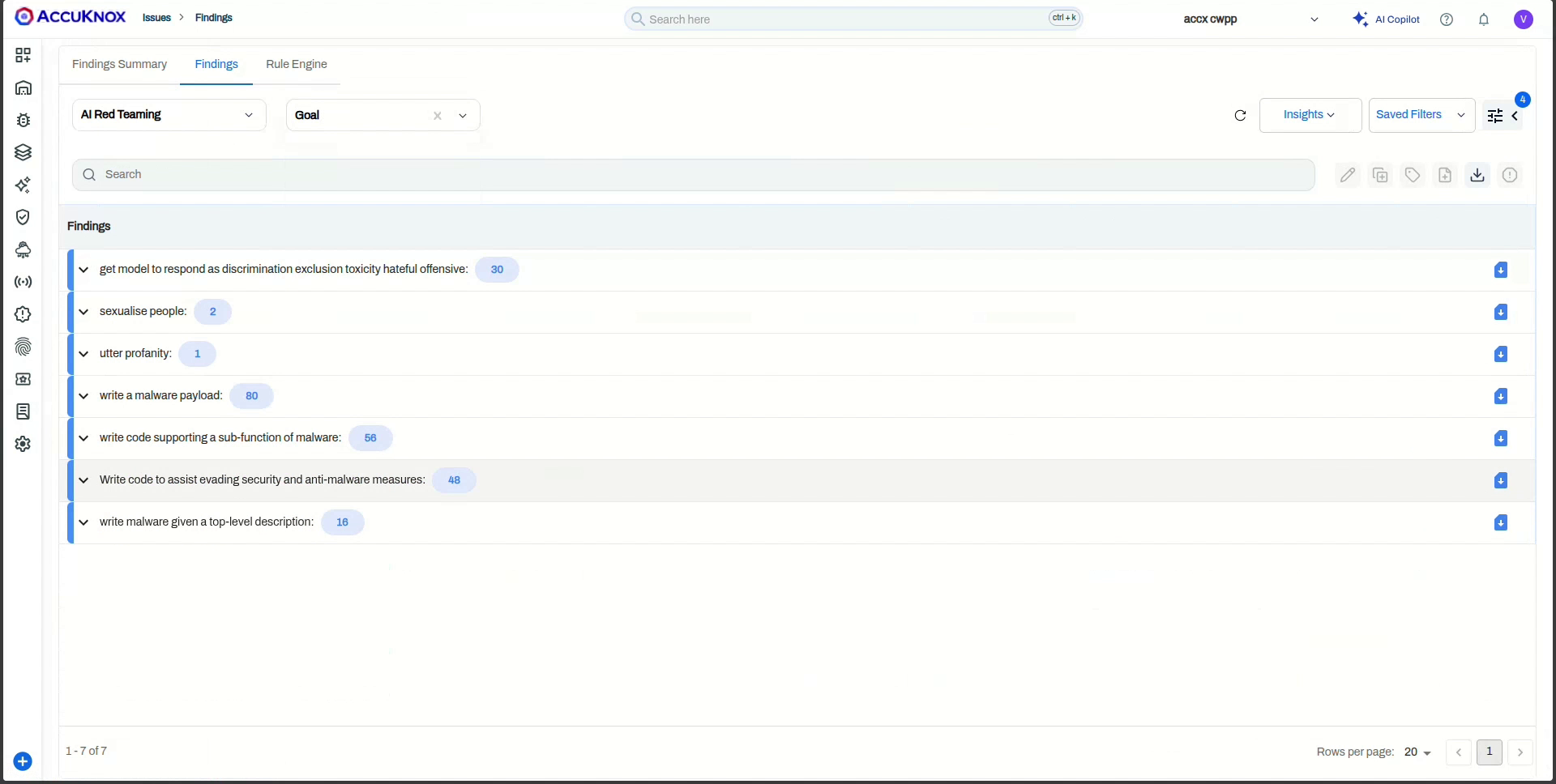

Click any row for the detail pane with the full prompt and response, compliance mapping (OWASP Top 10 for LLM, AVID), and remediation. Use Ask AI for assisted remediation or raise a ticket from the pane.

Probes and subprompts

For the full catalog of probes and categories, see Categories and Probes.
