DAST Authenticated Scan¶

AccuKnox Dynamic Application Security Testing (DAST) supports authenticated scans, enabling the crawler to access and test content behind login pages. The system visualises the session state with Logged In, Logged Out, and Fallback indicators, which prevents false negatives where crawlers fail to reach protected content.

Unauthenticated scans

If you only need to scan publicly accessible pages without supplying credentials, see DAST Unauthenticated Scan.

Configuration Steps¶

Step 1: Log in to the AccuKnox Platform.

Step 2: Navigate to Settings > Collectors.

Step 3: Click Add Collector.

Step 4: Click Web Application DAST Scan.

Step 5: Add the collector name and proceed to configure the following fields:

Target URL¶

Enter Target URL: Primary target URL to scan.

Scan Type¶

Scan Type: Select Baseline (quick scan) or Full (detailed scan).

Authentication¶

Authentication: Select Auth-based.

Applications with MFA

To scan an application that uses multi-factor authentication, choose Browser Plugin based Recorder as the login method. Record the login flow once and add your TOTP secret key. See Authenticated DAST scan with MFA.

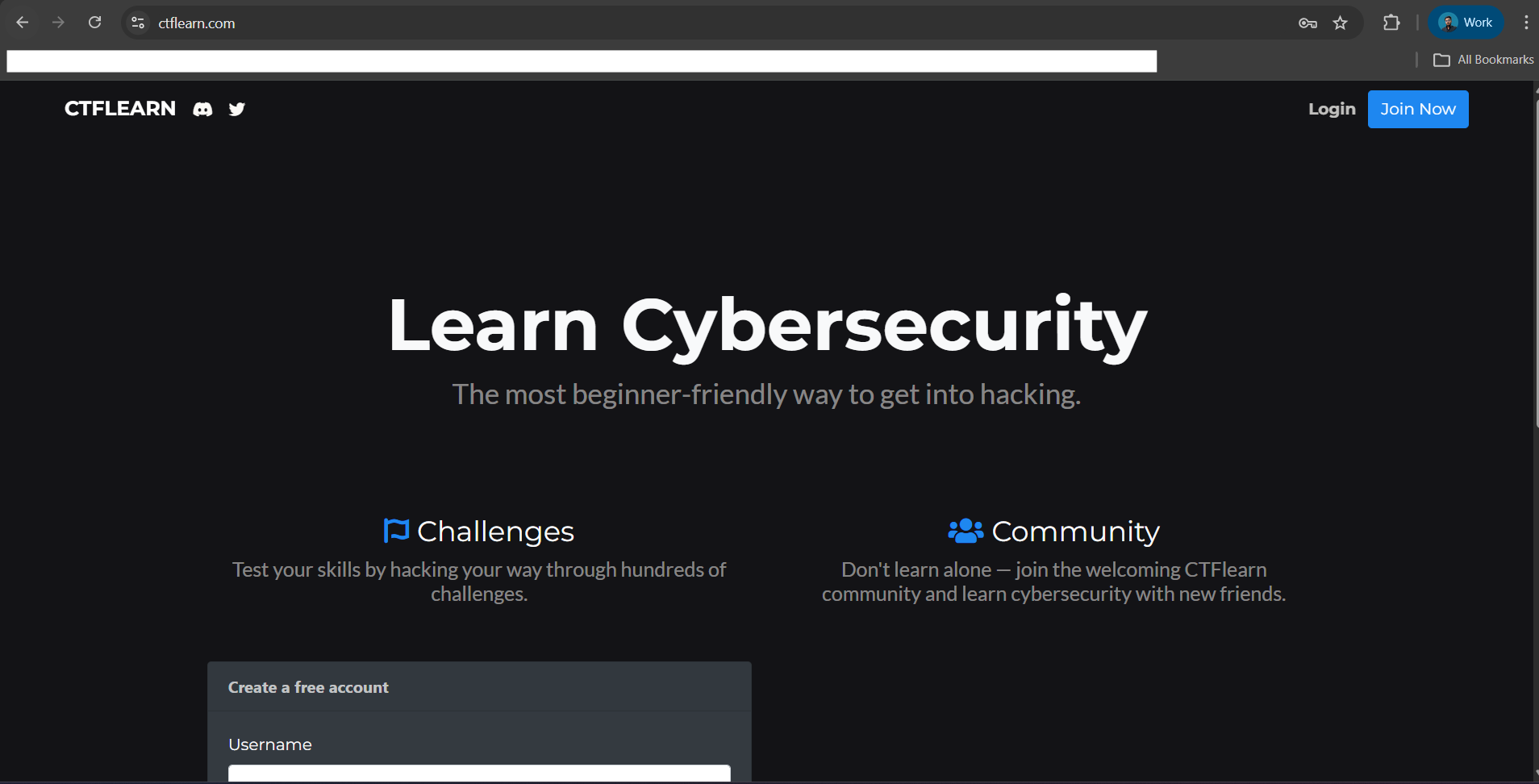

Login Page URL: The URL of the application's login page where the user enters credentials.

Example: https://ctflearn.com/

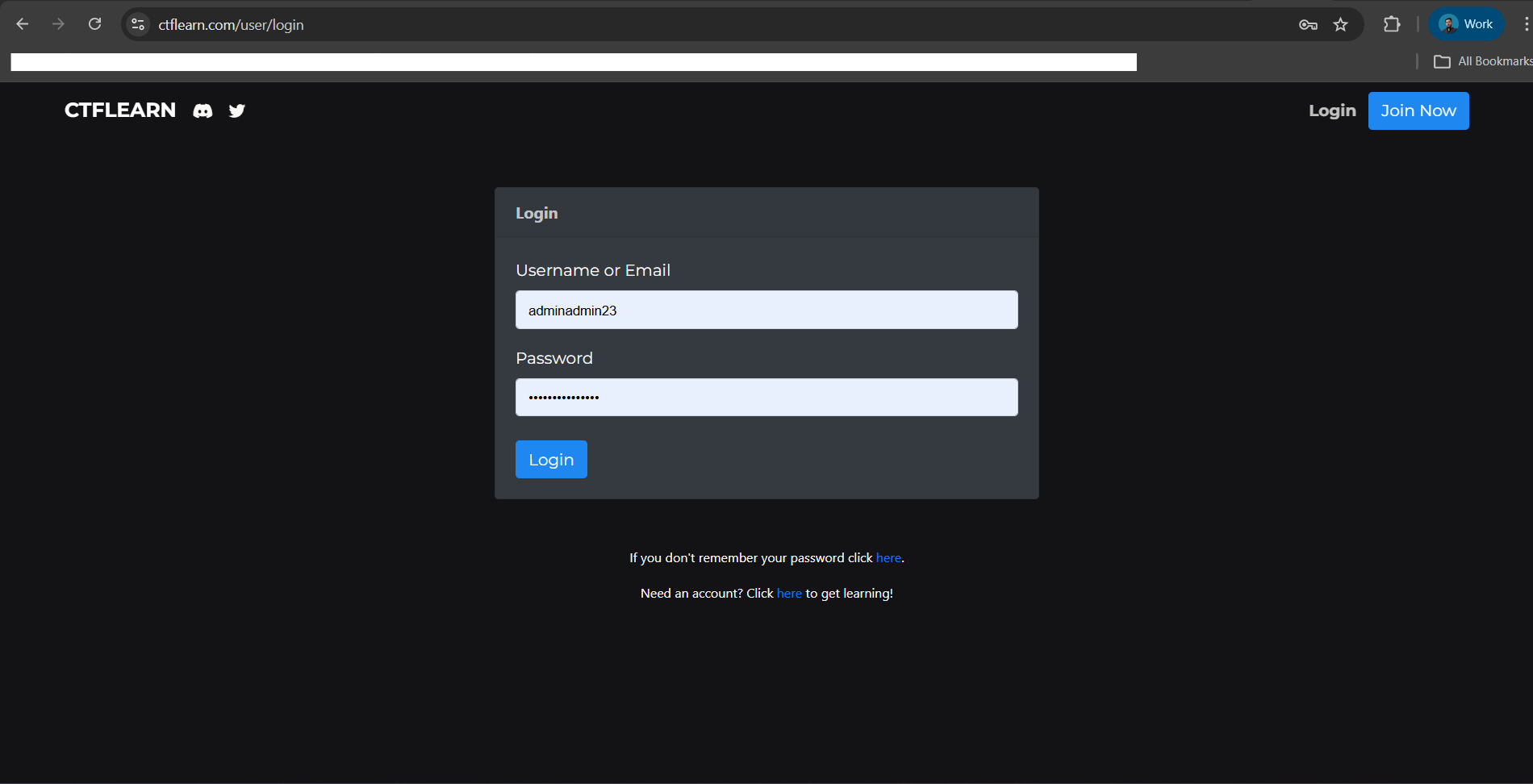

Login Credentials: Valid username and password used to authenticate the scan against the application.

Example: Username: admin, Password: admin

Include Path¶

Include Path (Optional): Defines the specific URLs or URL patterns to include in the scan scope.

Example: https://ctflearn.com/lab/

Exclude Path¶

Exclude Path (Optional): URLs or URL patterns that should be excluded from the scan to avoid scanning specific pages or actions.

Example: https://ctflearn.com/1/scoreboard/0

Logged In Indicator¶

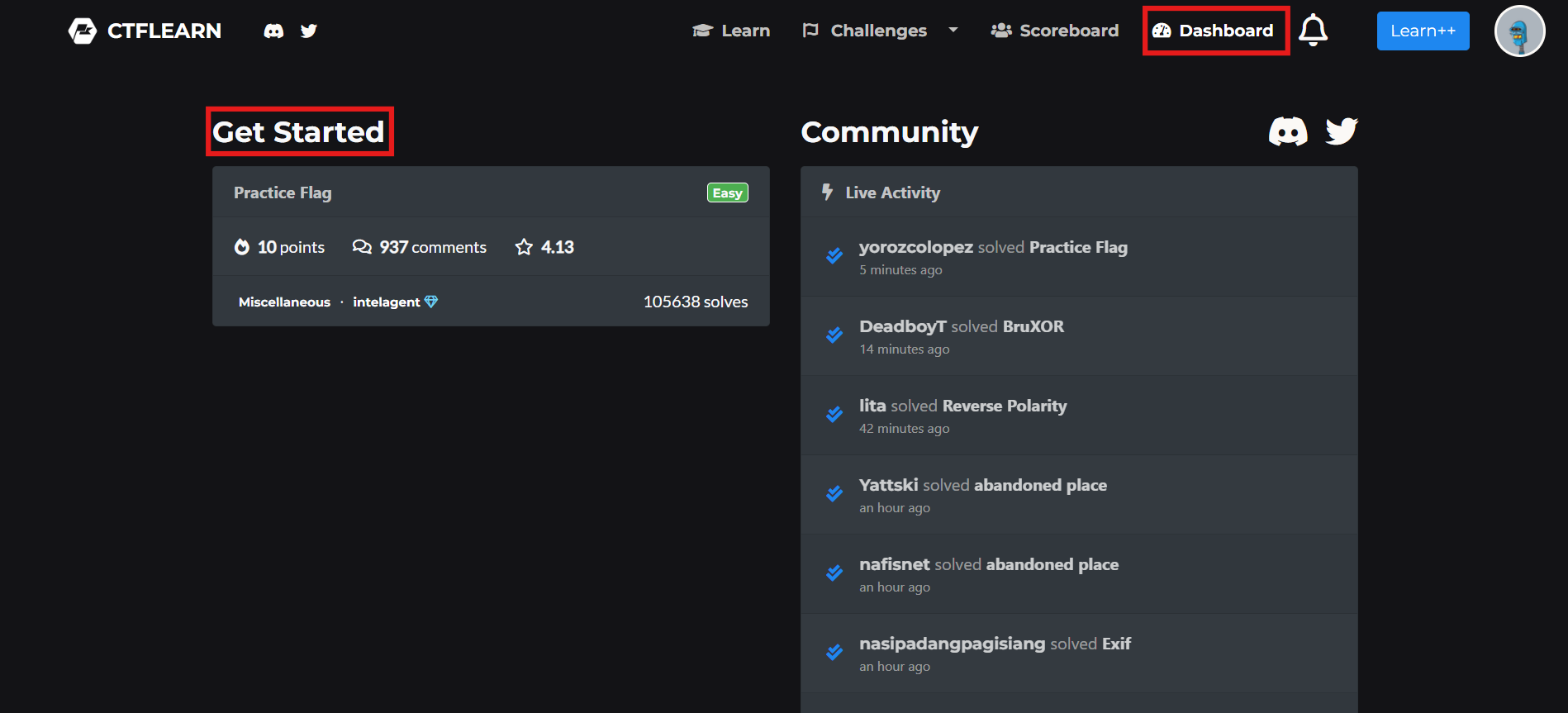

Logged In Indicator: Keyword or phrase used to confirm a successful login during the scan.

Example: Dashboard, Get Started

Logged Out Indicator¶

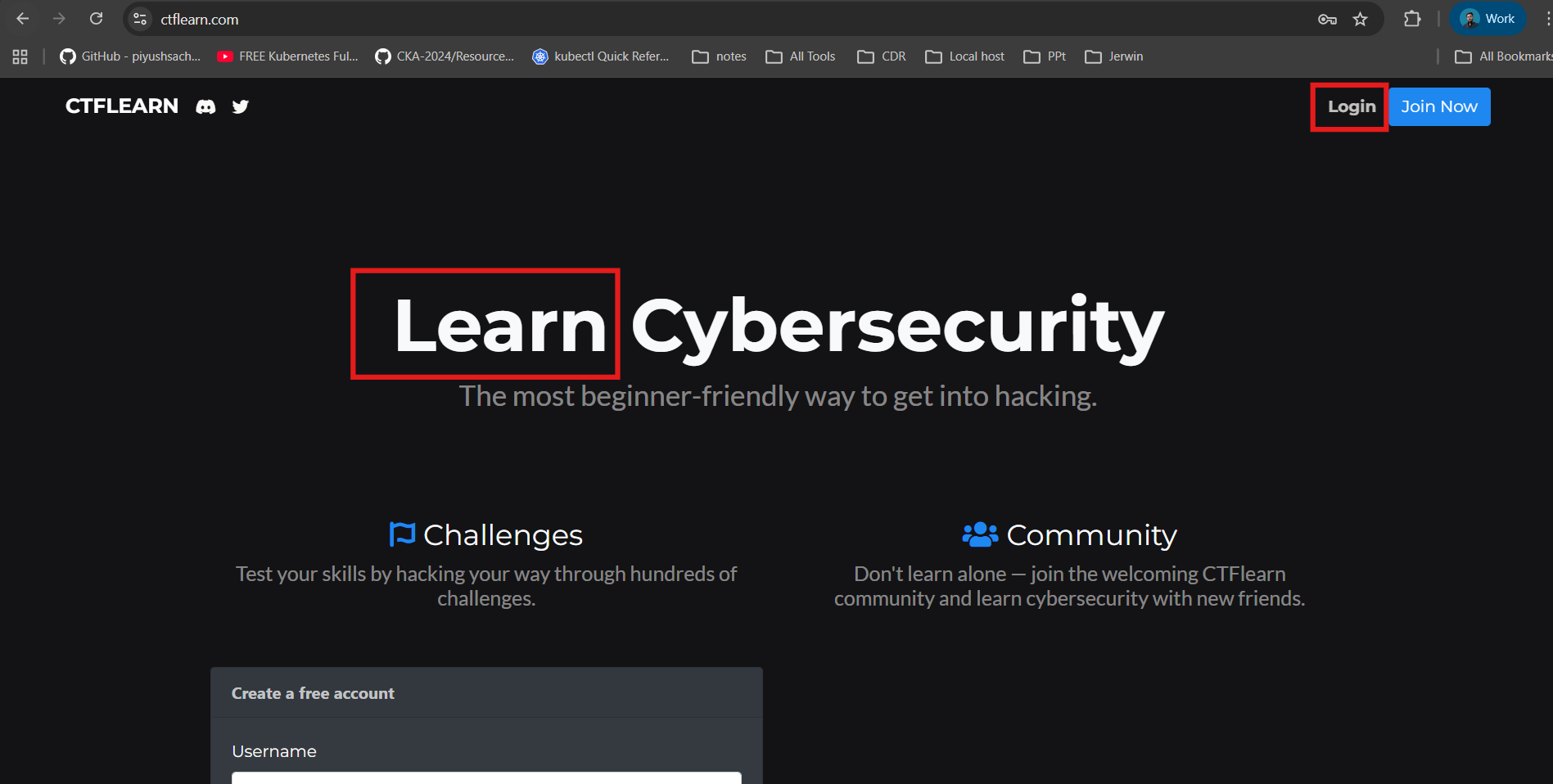

Logged Out Indicator: Keyword or phrase indicating the user is logged out or the session has expired.

Example: Login, Learn

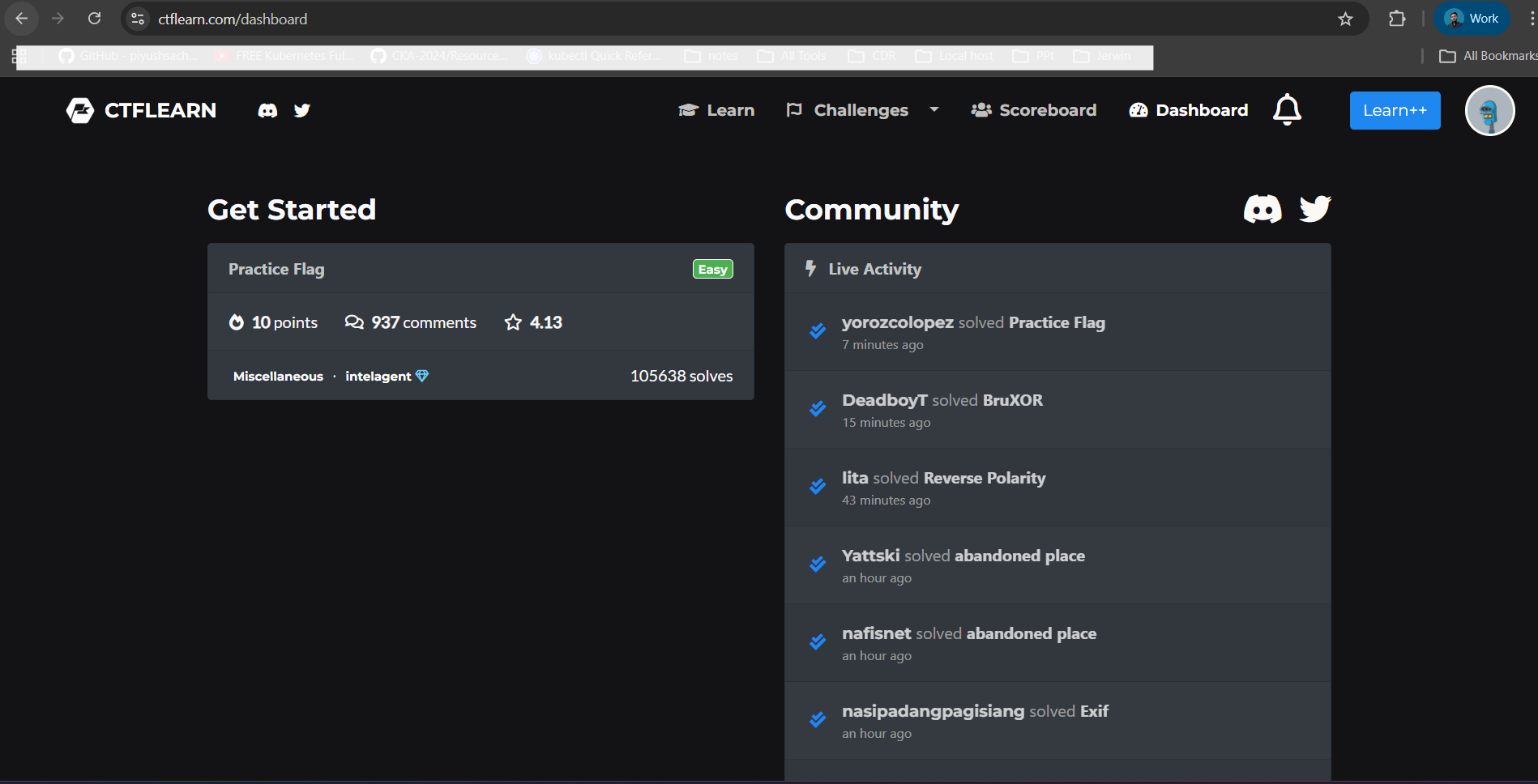

Login Fallback URL: Post-login page used to verify a successful login.

Example: https://ctflearn.com/dashboard

Label & Tags¶

Label: Create one using these steps: Create Labels

Tags (Optional): Add any relevant tags.

See the difference between Baseline and Full scan modes here: Baseline vs Full Scan

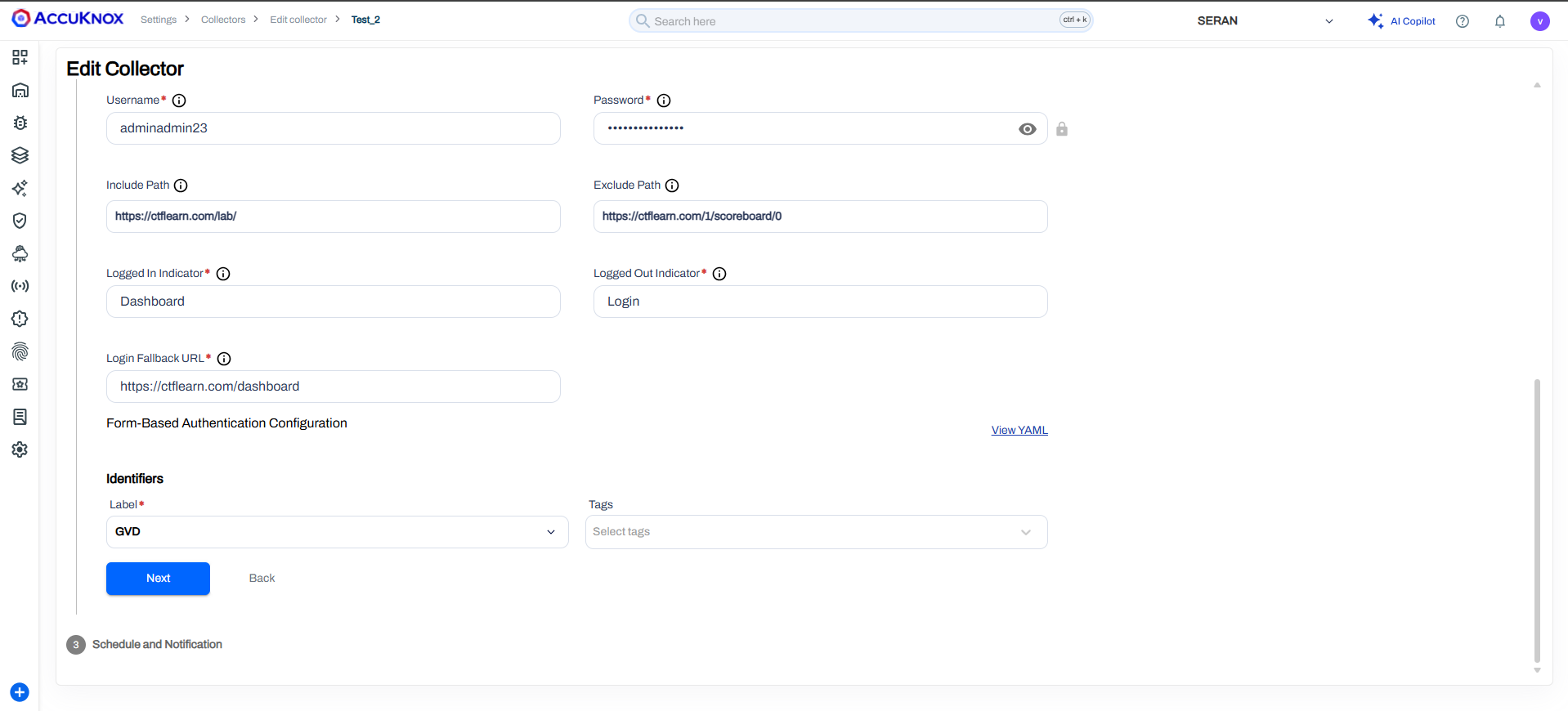

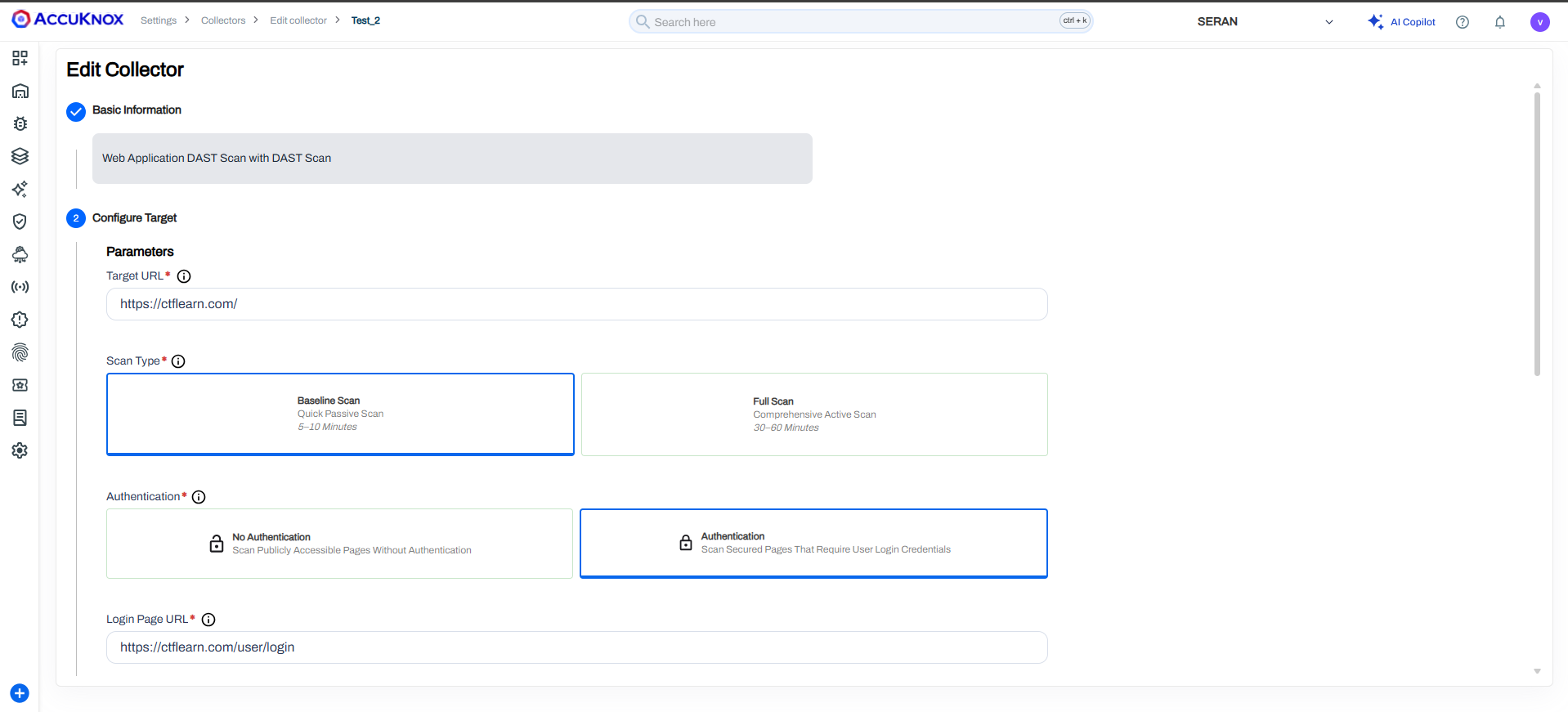

Here is an example of how it looks after you have added everything:

Step 6: Enter your email address where you would like to receive scan notifications and press Enter.

Step 7: After submitting, the scan will be triggered. You can check the scan results on the same page.

Step 8: Once the Findings column is populated, click on it to be redirected to the findings page with all necessary details.

A scan that fails to log in returns no findings. The Evidence column shows why.

Open the collector's Scan History. Each run lists its timestamp, status, findings, evidence and assets.
Select View in the Evidence column of the run.
Read the steps in order. Each step shows what the scanner did, such as opening the URL, filling the username, filling the password and submitting.
Check the last step. For a failed login, it shows a screenshot of the page the scanner saw, such as a Login Failure message.

Use the screenshot to fix the cause, such as a wrong credential, a changed login form or a blocked scanner IP. Then run the scan again.
