Sync a Database Password Into a Kubernetes App¶

WordPress needs a MySQL password, and most clusters keep that password in a Kubernetes secret that somebody created by hand. This walkthrough moves the password into AccuKnox Secrets Manager. The External Secrets Operator keeps the Kubernetes secret in step with it, and WordPress keeps reading the same Kubernetes secret with no code change.

The walkthrough runs on any Kubernetes cluster with one namespace and two deployments, WordPress and MySQL.

Watch the Two-Minute Demo¶

What You Need¶

Requirement Details
Secrets Manager Running, with a KV version 2 engine at secret. See the Deployment Guide
External Secrets Operator Installed in the cluster, with a ready ClusterSecretStore. See External Secrets Operator
A role and a policy Role demo-access, which reads demo/mysql only
kubectl Pointed at the cluster

1. Store the Password and Write the Sync Rule¶

The password lives in Secrets Manager under the path demo/mysql, with the key password.

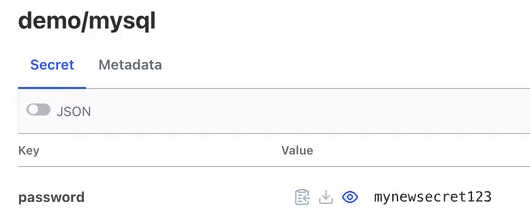

The secret demo/mysql in Secrets Manager, holding one key named password

The ExternalSecret tells the operator to copy that value into a Kubernetes secret named mysql-pass, and to check for changes every 10 seconds.

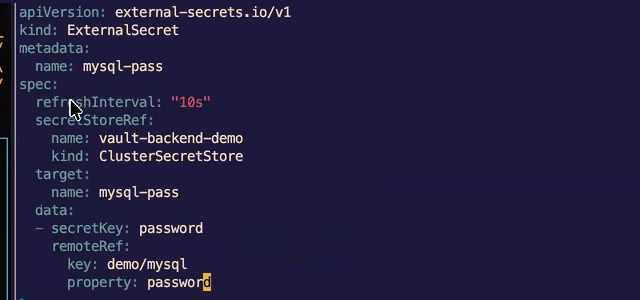

The ExternalSecret YAML: refresh interval 10s, ClusterSecretStore vault-backend-demo, target mysql-pass, remote key demo/mysql

2. Apply It and Watch Kubernetes Follow Secrets Manager¶

Apply the ExternalSecret.

kubectl apply -f demo-access-mysql.yaml

The operator creates mysql-pass straight away, holding the value from Secrets Manager.

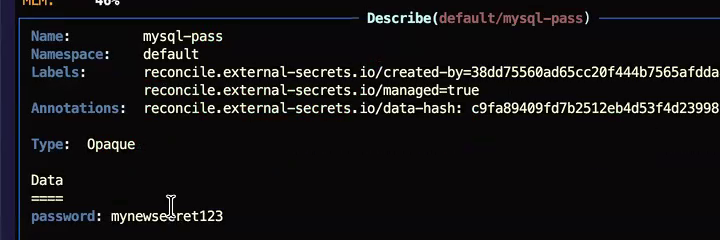

The Kubernetes secret mysql-pass, created by the operator, holding the current password

Now change the value in Secrets Manager. Open demo/mysql, click Create new version, enter a new password and click Save.

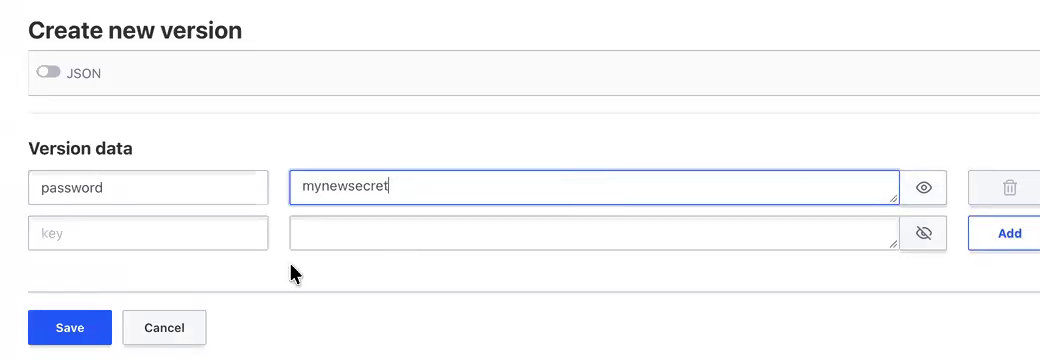

Creating a new version of demo/mysql with a new password

Within about 10 seconds, mysql-pass holds the new value. Nobody touched Kubernetes.

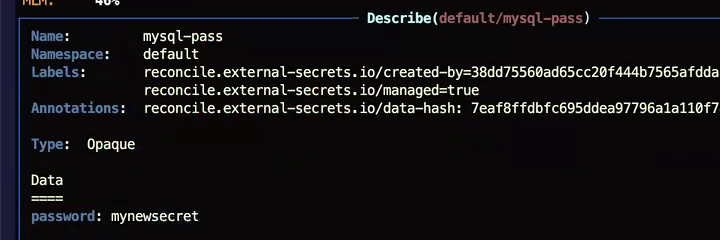

The Kubernetes secret mysql-pass after the sync, holding the new password

3. Deploy WordPress and MySQL Unchanged¶

The demo uses the standard WordPress and MySQL example from the Kubernetes documentation.

kubectl apply -f https://k8s.io/examples/application/wordpress/mysql-deployment.yaml
kubectl apply -f https://k8s.io/examples/application/wordpress/wordpress-deployment.yaml

WordPress reads its database password from mysql-pass through secretKeyRef. The deployment file is the stock one, and the application code does not change.

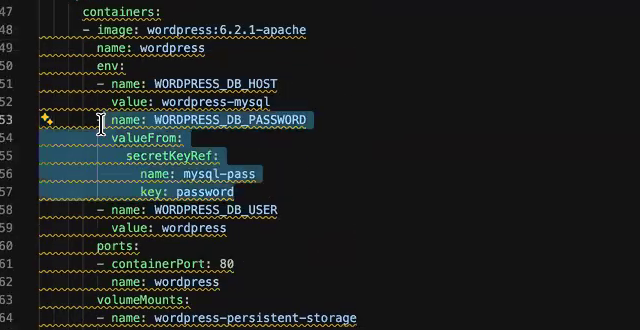

The WordPress deployment: WORDPRESS_DB_PASSWORD comes from secretKeyRef mysql-pass, key password

WordPress connects to MySQL and loads.

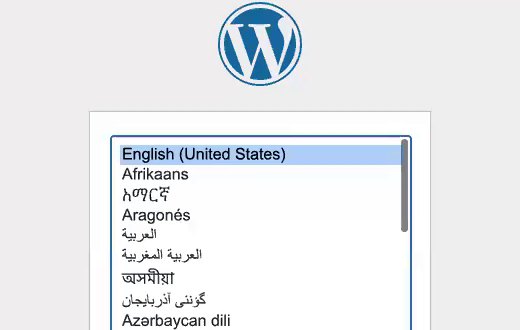

The WordPress setup screen, which loads only after WordPress reaches MySQL

4. Break the Connection on Purpose¶

Change the MySQL password by hand, so the database no longer matches the Kubernetes secret. Open a shell in the MySQL pod, run mysql -u root -p, then run:

ALTER USER 'wordpress'@'%' IDENTIFIED WITH caching_sha2_password BY '<new-password>';
FLUSH PRIVILEGES;

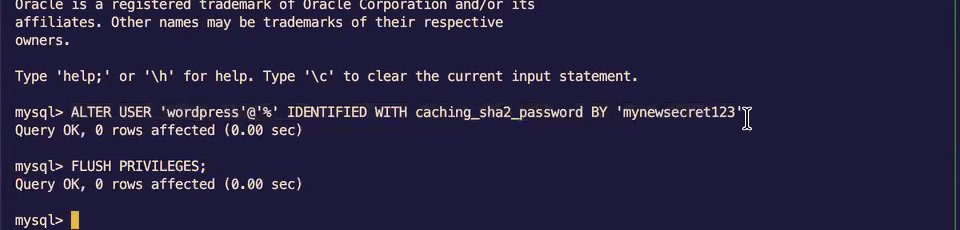

The ALTER USER and FLUSH PRIVILEGES statements in the MySQL shell

WordPress can no longer log in to MySQL.

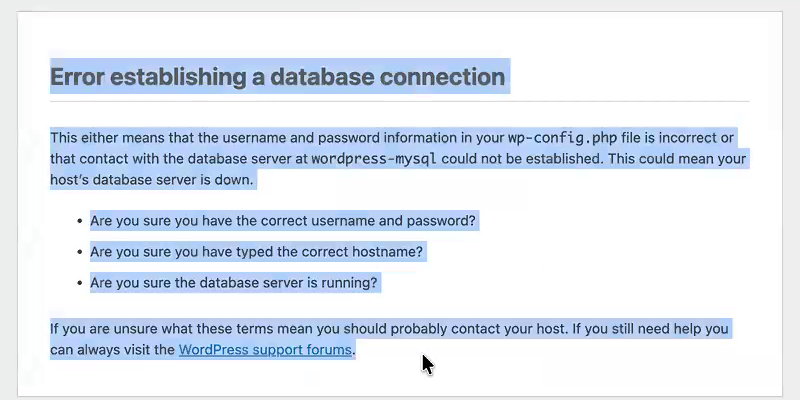

WordPress showing Error establishing a database connection

5. Update Secrets Manager, Then Restart WordPress¶

Save the new password in Secrets Manager as a new version of demo/mysql. The operator syncs it into mysql-pass within the refresh interval.

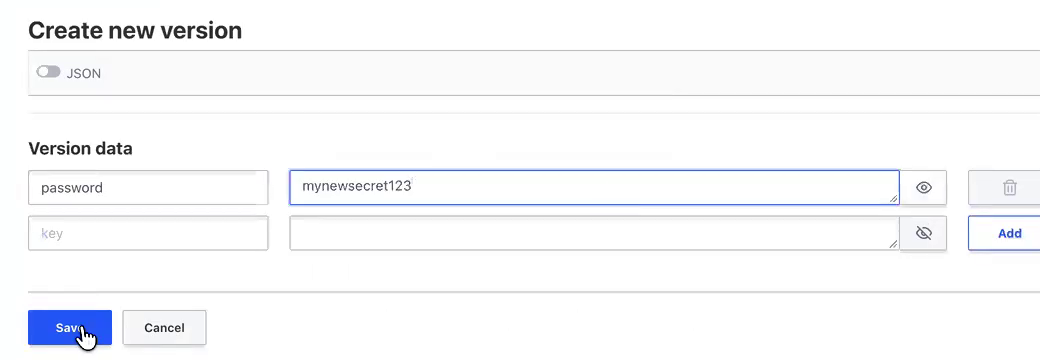

Saving the new password as a new version of demo/mysql

The running WordPress pod still holds the old password, because it read the secret when it started. Restart it.

kubectl rollout restart deployment/wordpress

The demo deletes the pod from k9s, which has the same effect: Kubernetes starts a new pod.

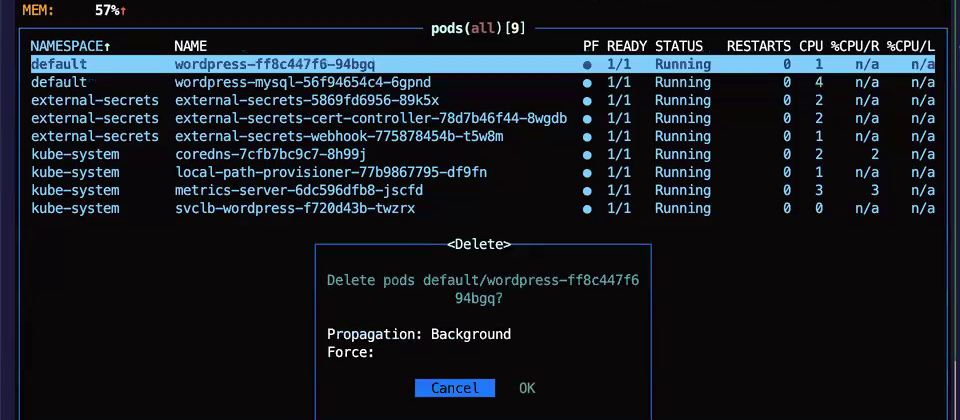

Deleting the WordPress pod in k9s, so Kubernetes starts a new one

The new pod reads the updated mysql-pass.

The Kubernetes secret mysql-pass holding the updated password

WordPress connects to MySQL again.

The WordPress setup screen loading again after the restart

The sync alone does not fix a running application

The operator updated the Kubernetes secret, and the restart made WordPress use it. Plan a restart, or a rolling restart, after every password change.

The Password Lives in One Place¶

  • The password lives in one place, Secrets Manager, with versions and an audit log.
  • WordPress code and its deployment file stay unchanged.
  • A change in Secrets Manager reaches Kubernetes within the refresh interval you set.

The Namespace Still Holds a Copy¶

  • mysql-pass holds a copy of the password. Anyone with read access to the namespace can read it there. To keep the secret out of the namespace, call Secrets Manager from the application with the SDK.
  • The demo changes the password by hand. In production, the application logic or a rotation job can write the new version.
