xBOM with Azure DevOps¶

One pipeline task generates three kinds of Bill of Materials in CycloneDX 1.6 format, uploads them to the AccuKnox Console, and attaches the file to the pipeline run as a downloadable artifact. Pick the type you need with the bomType input.

bomType What it inventories Why you want it
sbom Packages and dependencies in a source tree or container image Know which open-source components ship and which carry known CVEs
cbom Cryptographic algorithms, key sizes, protocols, and libraries Find weak or deprecated cryptography and plan post-quantum migration
aibom AI/ML models from HuggingFace or AWS Bedrock Track every foundation model your application consumes, with provenance, size, and license
Capability Detail
BOM standard CycloneDX 1.6
Scan sources Source tree (scanPath), container image (imageRef), or AI model (HuggingFace or AWS Bedrock)
Agent support Linux, macOS, and Windows on amd64 and arm64. The task downloads the matching CLI build at runtime
Output Uploaded to the AccuKnox Console and attached to the pipeline run as an artifact named <bomType>-<buildId>
Results location AccuKnox Console, SBOM > Projects, filtered by your project and label
Task version AccuKnox-xBOM@2

Prerequisites¶

  • Access to the Azure DevOps project that will run the pipeline
  • An active AccuKnox account
  • An Azure DevOps agent on Linux, macOS, or Windows (amd64 or arm64)
  • Organization-level permission to install Marketplace extensions, or administrator approval

Step 1. Install the AccuKnox xBOM extension¶

  1. Open AccuKnox xBOM Scan on the Visual Studio Marketplace.
  2. Click Get it free, choose your Azure DevOps organization, and click Install. Submit the request and wait for approval if your organization requires it.
  3. Confirm the extension shows as Active under Organization Settings > Extensions.

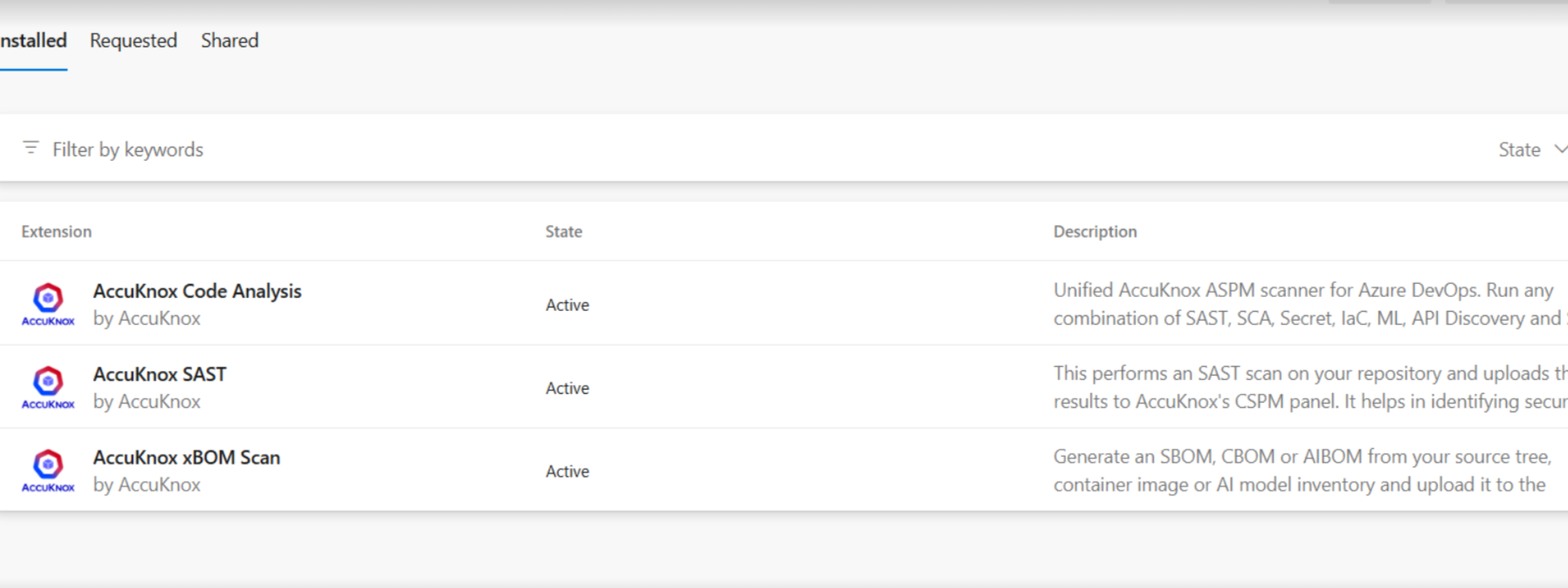

Azure DevOps Organization Settings showing the AccuKnox xBOM Scan extension listed as Active

The AccuKnox-xBOM@2 task is now available to every pipeline in that organization.

Step 2. Generate an AccuKnox token¶

In AccuKnox, go to Settings > Tokens and click Create.

Enter a name, set an expiration period, and click Generate.

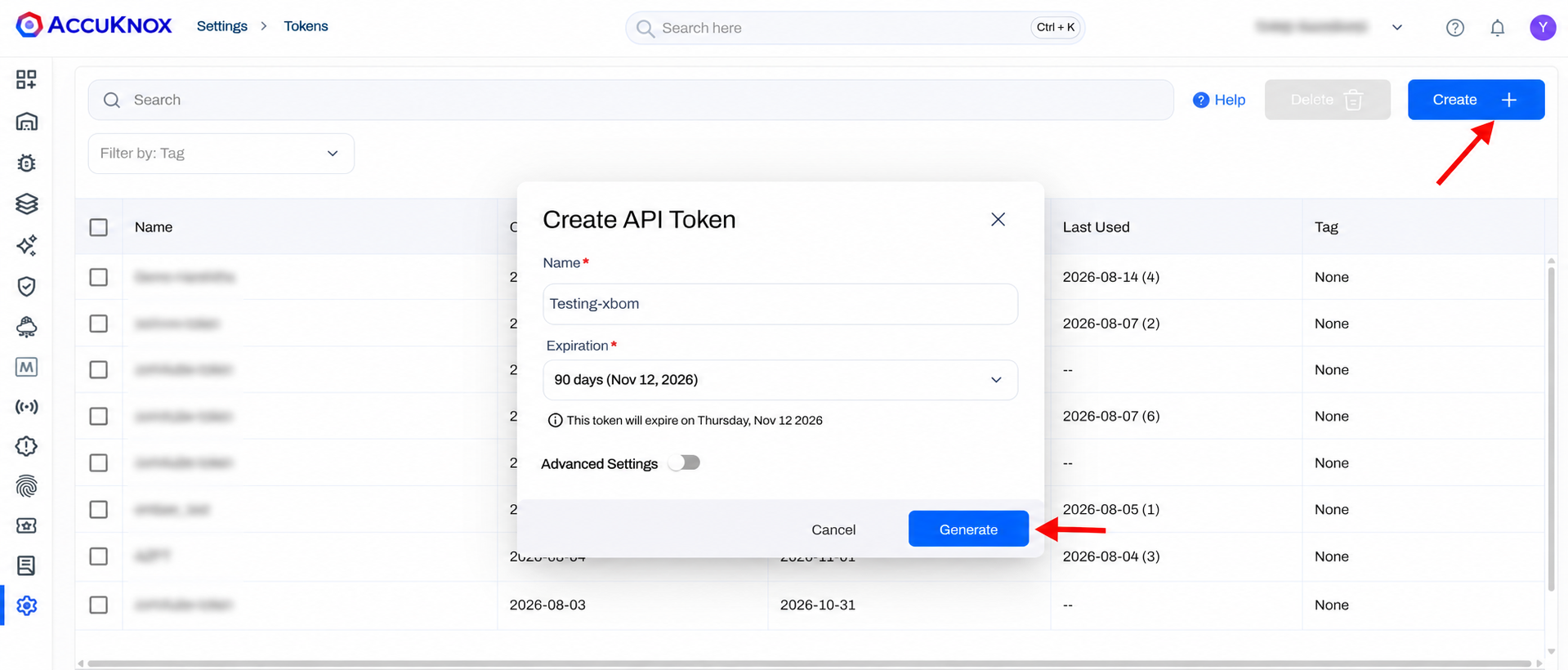

Token creation form showing the name field, expiration period, and Generate button

The token is shown once

Copy it before you leave the page. You store it as a secret pipeline variable in Step 4.

For the full walkthrough, see How to Create Tokens.

Step 3. Create a label and a project¶

Create the label¶

Labels group and filter BOM results across projects and pipeline runs. Go to Settings > Labels.

Click + Label, enter a name such as azure-xbom, and click Save.

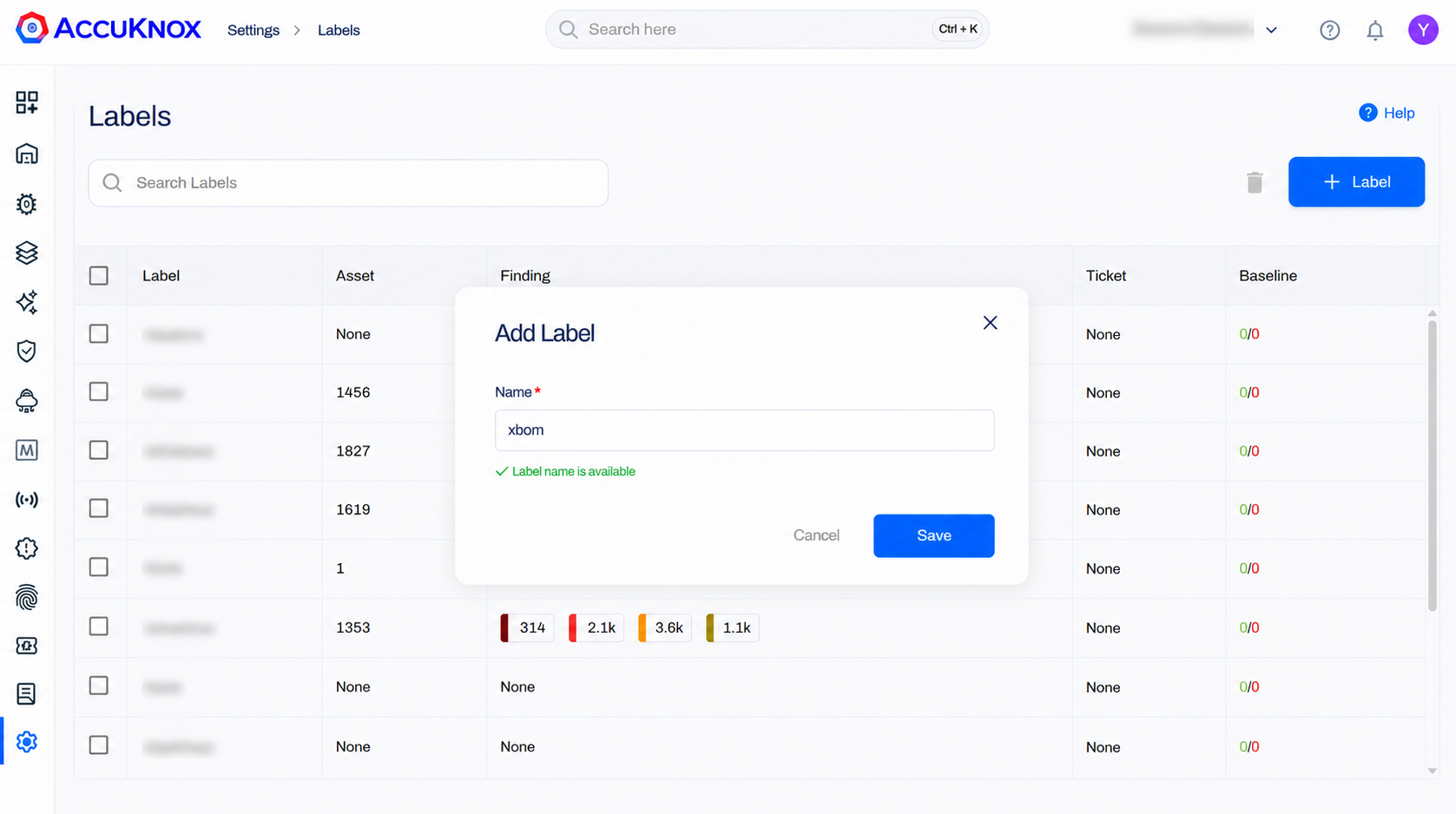

Create label dialog with the name azure-xbom entered

For the full walkthrough, see How to Create Labels.

Create the project¶

Every BOM upload targets one AccuKnox project. Go to SBOM > Projects.

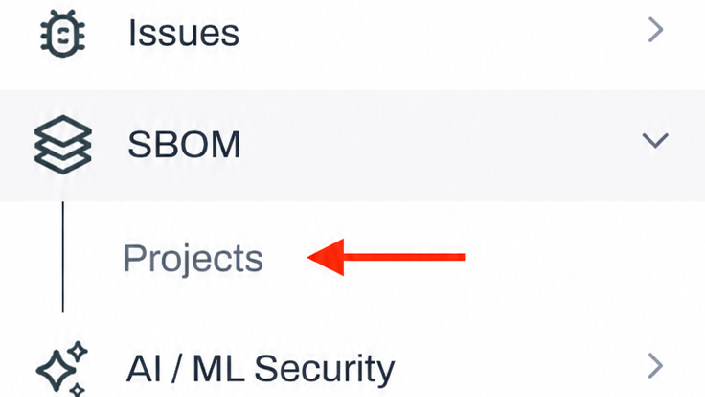

AccuKnox sidebar with the SBOM menu expanded and Projects highlighted

Click + Create and fill in the form.

Field Value Notes
Name Your project name Must match the projectName task input exactly
Description Free text, for example Azure DevOps xBOM Optional
Classifier application Must match projectClassifier. Valid values: application, container, firmware, library, machine-learning-model
Tags For example xbom Optional, useful for filtering across projects

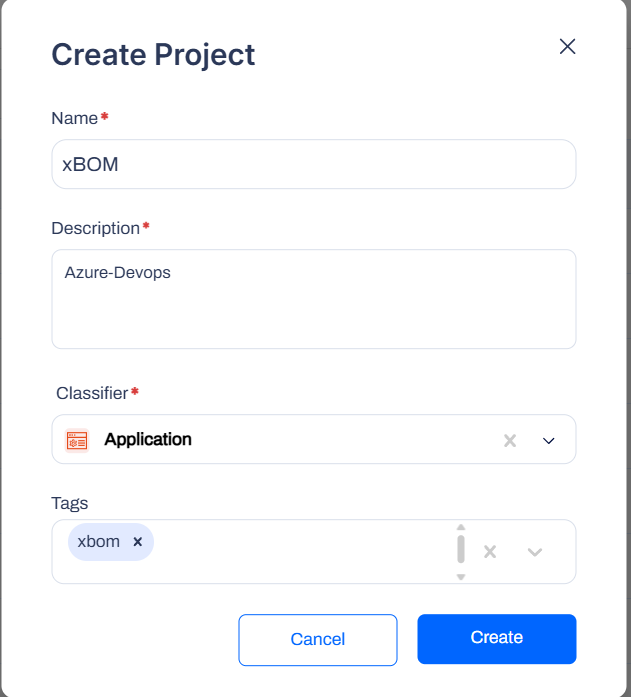

AccuKnox project creation form showing the name, description, classifier, and tags fields

A name mismatch fails the upload

projectName and projectClassifier in the pipeline must match this project exactly. The scan still runs, then the upload fails.

Step 4. Add the pipeline variables¶

Go to Project Settings > Pipelines > Library > + Variable Group and add three variables.

Variable Secret Value
ACCUKNOX_ENDPOINT Recommended AccuKnox hostname only, with no https://. For example cspm.accuknox.com
ACCUKNOX_TOKEN Yes The token from Step 2
ACCUKNOX_LABEL No The label from Step 3

Mark the token as secret

Secret variables are masked in logs and must never be committed to source control. Anyone with edit access to the pipeline can still reach the secrets that pipeline consumes, so restrict who can edit it. See Azure Pipelines secret variables.

Step 5. Add the task to your pipeline¶

Add the AccuKnox-xBOM@2 task to azure-pipelines.yml. Pick the example that matches the BOM you want.

Scans a checked-out source tree and lists every package and dependency it finds.

trigger:
  - main

pool:
  name: <agent-pool-name>

steps:
  - checkout: self

  - task: AccuKnox-xBOM@2
    inputs:
      bomType: 'sbom'
      scanPath: '.'
      accuknoxToken: '$(ACCUKNOX_TOKEN)'
      accuknoxEndpoint: '$(ACCUKNOX_ENDPOINT)'
      accuknoxLabel: '$(ACCUKNOX_LABEL)'
      projectName: '<your-project-name>'
      projectClassifier: 'application'

Builds the image in the same job, then reads the image layers. imageRef takes precedence over scanPath when you supply both.

steps:
  - script: |
      IMAGE="myapp:$(Build.SourceVersion)"
      docker build -t "$IMAGE" .
      echo "##vso[task.setvariable variable=IMAGE]$IMAGE"
    displayName: 'Build image'

  - task: AccuKnox-xBOM@2
    inputs:
      bomType: 'sbom'
      imageRef: '$(IMAGE)'
      accuknoxToken: '$(ACCUKNOX_TOKEN)'
      accuknoxEndpoint: '$(ACCUKNOX_ENDPOINT)'
      accuknoxLabel: '$(ACCUKNOX_LABEL)'
      projectName: '<your-project-name>'
      projectClassifier: 'container'

Catalogues every cryptographic algorithm, key size, and library in the source.

- task: AccuKnox-xBOM@2
  inputs:
    bomType: 'cbom'
    scanPath: '.'
    accuknoxToken: '$(ACCUKNOX_TOKEN)'
    accuknoxEndpoint: '$(ACCUKNOX_ENDPOINT)'
    accuknoxLabel: '$(ACCUKNOX_LABEL)'
    projectName: '<your-project-name>'
    projectClassifier: 'application'

Captures provenance, model size, and license for one HuggingFace model. For a gated model, your HuggingFace account must have accepted the model license on huggingface.co first.

- task: AccuKnox-xBOM@2
  inputs:
    bomType: 'aibom'
    aibomSource: 'huggingface'
    aibomModel: 'google-bert/bert-base-uncased'
    accuknoxToken: '$(ACCUKNOX_TOKEN)'
    accuknoxEndpoint: '$(ACCUKNOX_ENDPOINT)'
    accuknoxLabel: '$(ACCUKNOX_LABEL)'
    projectName: '<your-project-name>'
    projectClassifier: 'machine-learning-model'

Inventories every foundation model available in one Bedrock region. Store AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY as secret pipeline variables.

- task: AccuKnox-xBOM@2
  inputs:
    bomType: 'aibom'
    aibomSource: 'bedrock'
    awsRegion: 'us-east-1'
    awsAccessKeyId: '$(AWS_ACCESS_KEY_ID)'
    awsSecretAccessKey: '$(AWS_SECRET_ACCESS_KEY)'
    accuknoxToken: '$(ACCUKNOX_TOKEN)'
    accuknoxEndpoint: '$(ACCUKNOX_ENDPOINT)'
    accuknoxLabel: '$(ACCUKNOX_LABEL)'
    projectName: '<your-project-name>'
    projectClassifier: 'machine-learning-model'

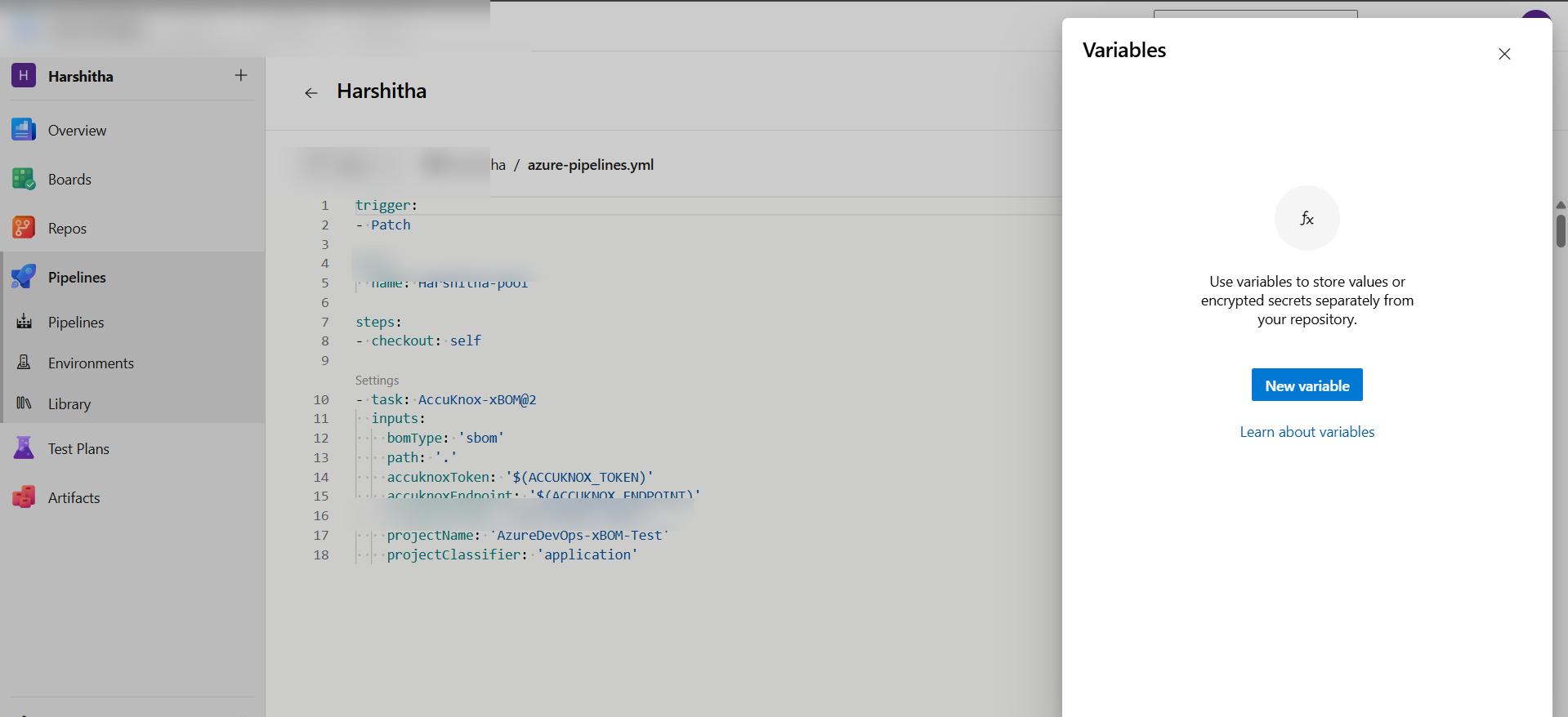

Azure DevOps YAML editor showing the AccuKnox-xBOM task configured for an SBOM scan

Task inputs¶

Input Required Default Description
bomType Yes — sbom, cbom, or aibom
accuknoxEndpoint Yes — AccuKnox hostname with no https://, for example cspm.accuknox.com
accuknoxToken Yes — AccuKnox API token. Always supply it through a secret variable
accuknoxLabel Yes — Label used to group results in AccuKnox
projectName Yes — Must match the project name created in Step 3 exactly
projectClassifier Yes — application, container, firmware, library, or machine-learning-model
scanPath No . Directory to scan for SBOM and CBOM source-tree scans
imageRef No — Container image reference. Takes precedence over scanPath
aibomSource No huggingface huggingface or bedrock
aibomModel No — HuggingFace model ID. Required when aibomSource is huggingface
awsRegion No — AWS region for the Bedrock inventory
awsAccessKeyId No — AWS access key for Bedrock
awsSecretAccessKey No — AWS secret key for Bedrock
outputFile No — Path to write the BOM file locally
knoxctlVersion No v0.10.0 CLI release tag, downloaded at runtime
skipTlsVerify No false Disable TLS verification on upload. Do not use this in production

Step 6. Run the pipeline¶

Trigger the pipeline manually or push a commit, then watch the logs for the AccuKnox xBOM task.

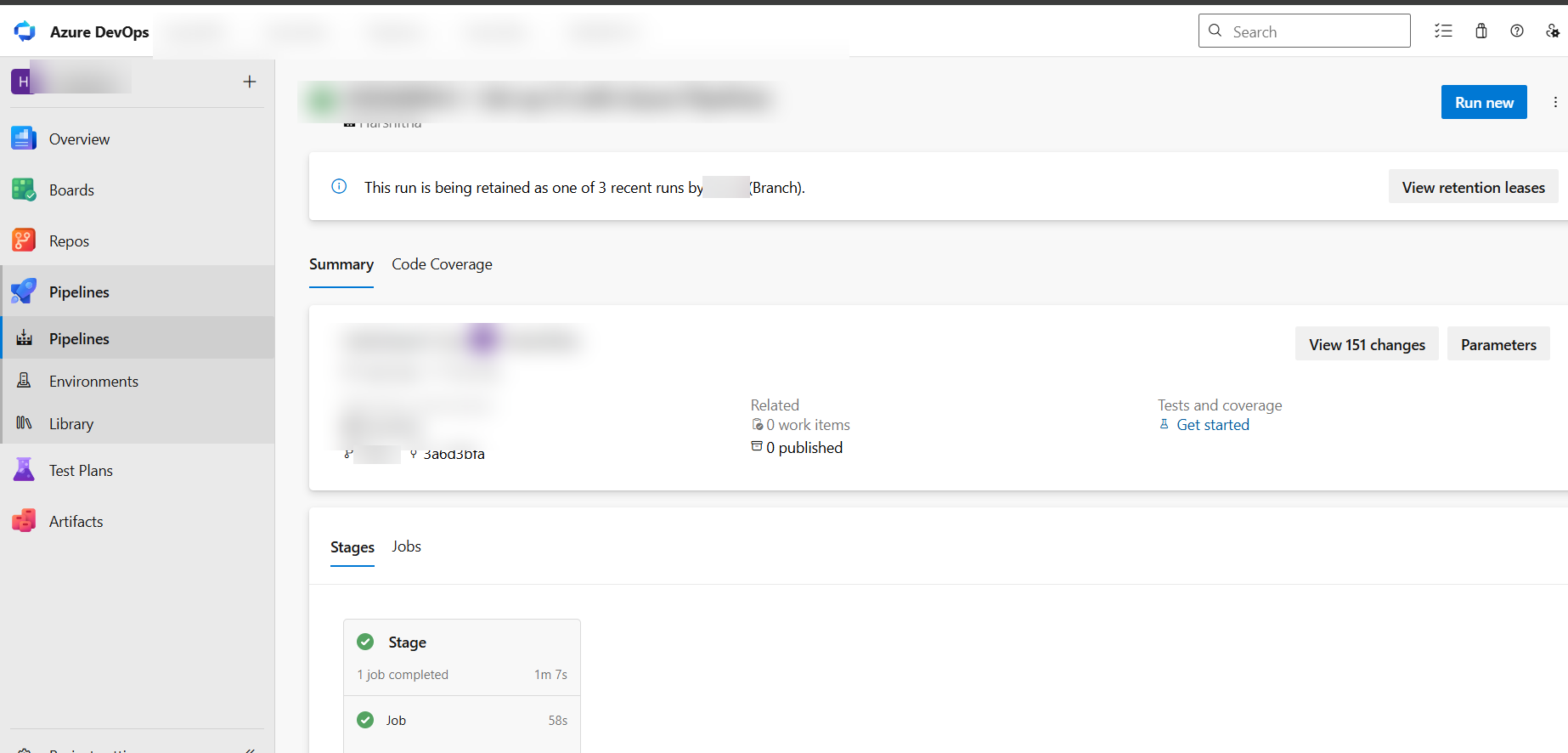

Azure DevOps pipeline run with the AccuKnox xBOM task completed successfully

The BOM is attached to the run as an artifact named <bomType>-<buildId>. Open the run and go to Related > Published artifacts to download it.

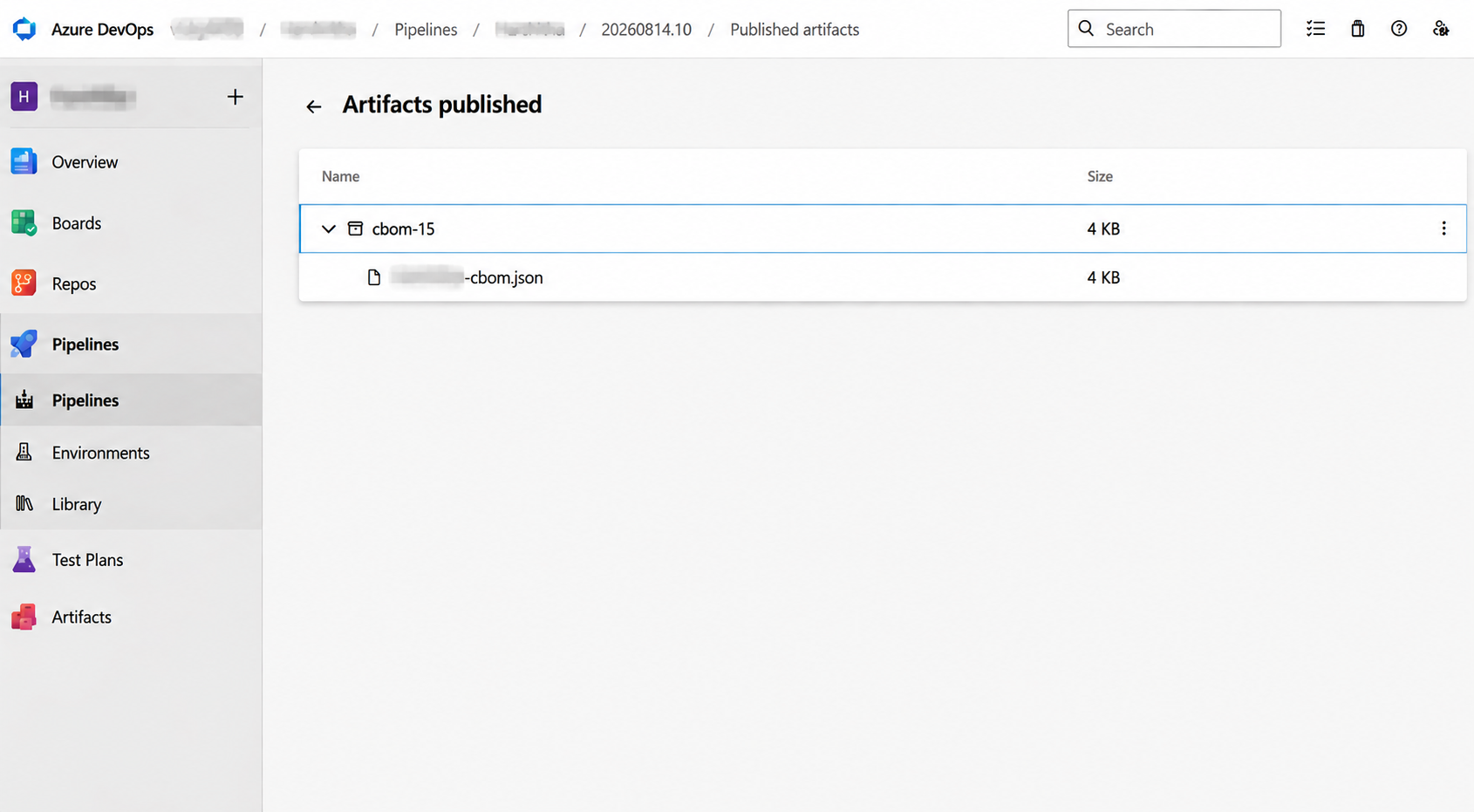

Azure DevOps Artifacts published view showing a cbom-15 artifact holding one CycloneDX JSON file

View the results in AccuKnox¶

Step 1. Go to SBOM > Projects and open the project you created in Step 3. The entry shows the component count, the license count, and the Critical, High, Medium, and Low vulnerability breakdown.

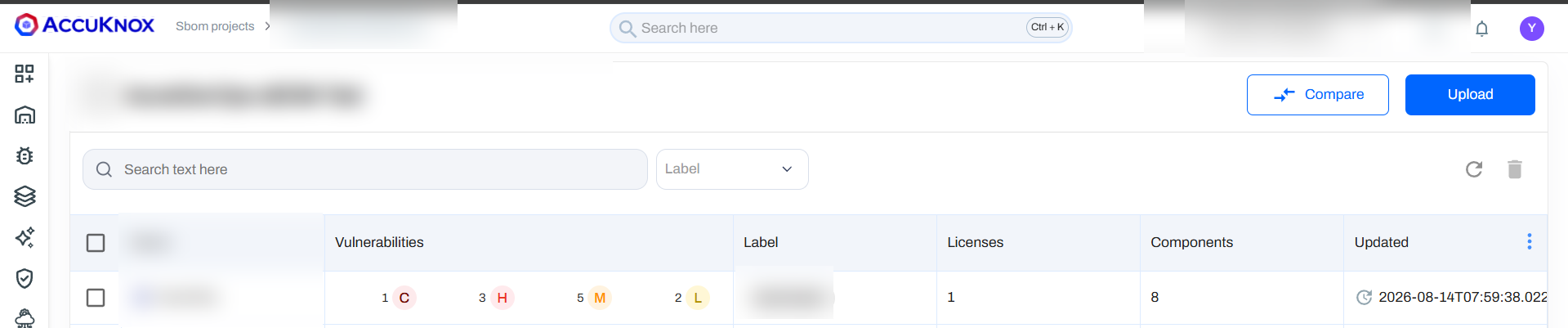

AccuKnox SBOM project view showing component count, license count, and the severity breakdown

Step 2. Open Components to browse every package, cryptographic asset, or AI model discovered, and confirm coverage.

Step 3. Go to Issues > Findings and select SBOM Findings. Open any finding to see the severity, the CVE or GHSA identifier, the affected component and version, the description, and the remediation guidance.

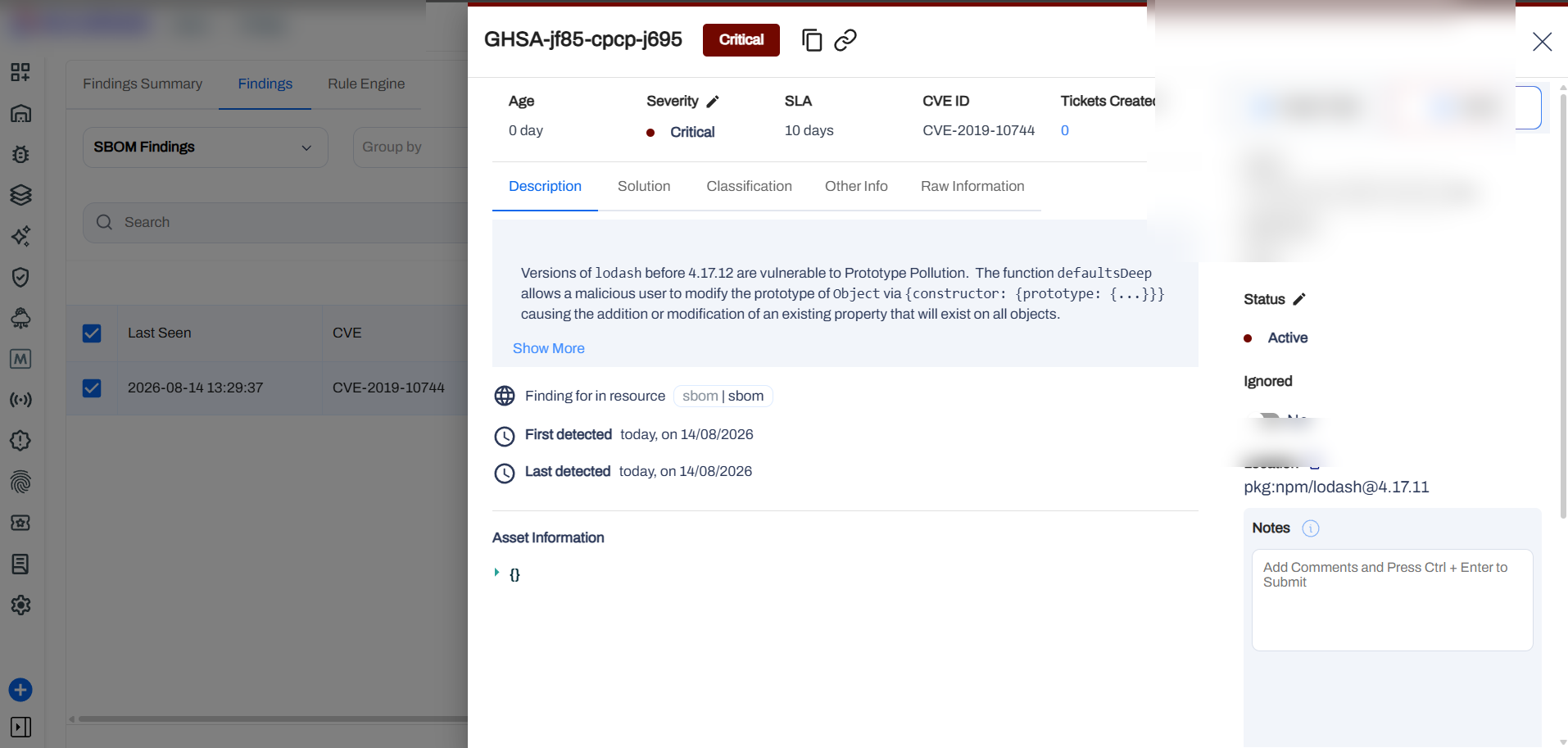

AccuKnox SBOM finding detail showing severity, CVE identifier, affected component, and version

Step 4. Use the Solution tab for the fix, which is usually an upgrade to a patched version of the affected dependency.

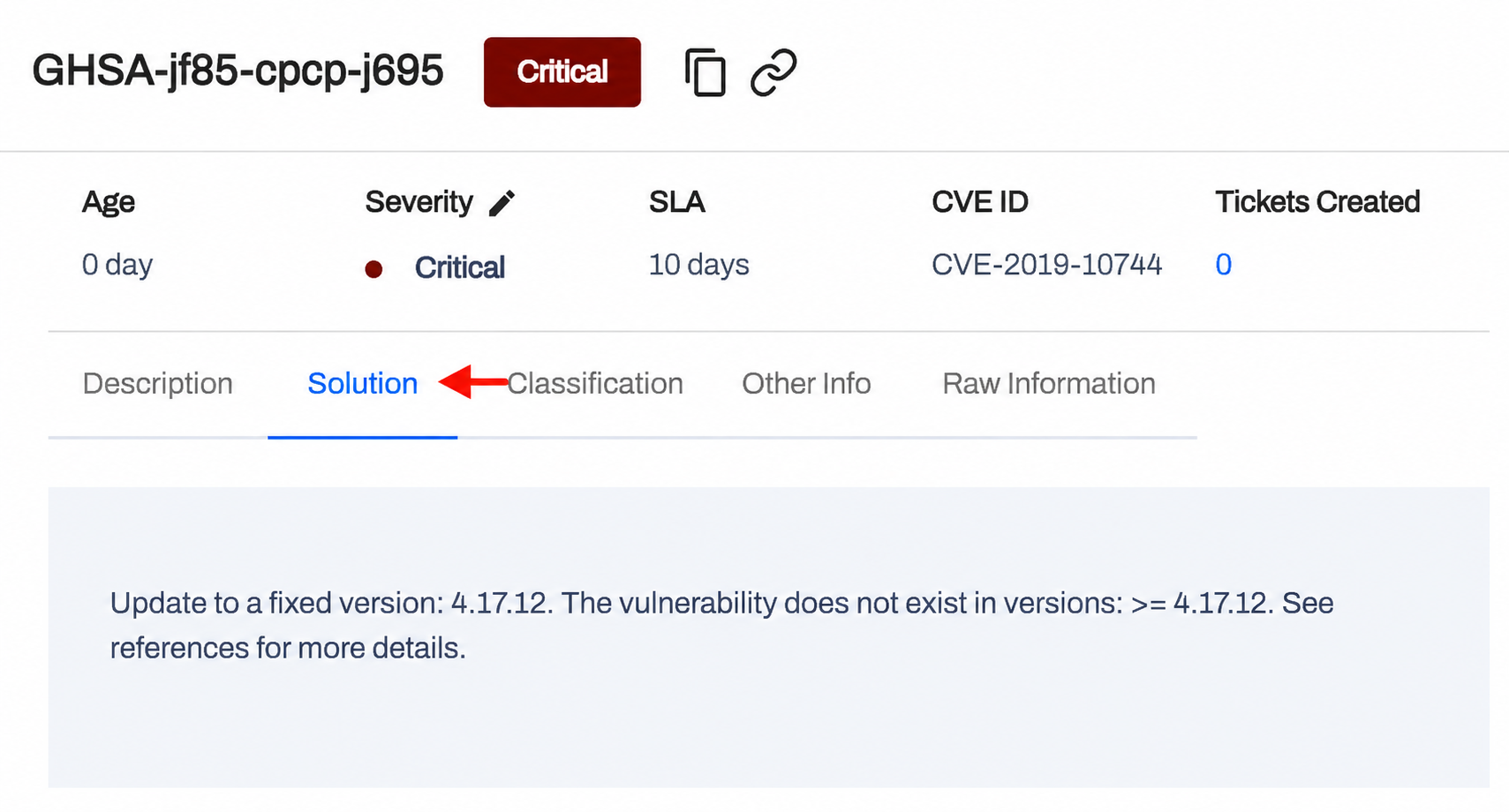

Solution tab of an AccuKnox SBOM finding showing the patched version to upgrade to

Step 5. Create a ticket straight from the finding. AccuKnox connects to Jira, ServiceNow, Freshservice, and other ticketing systems.

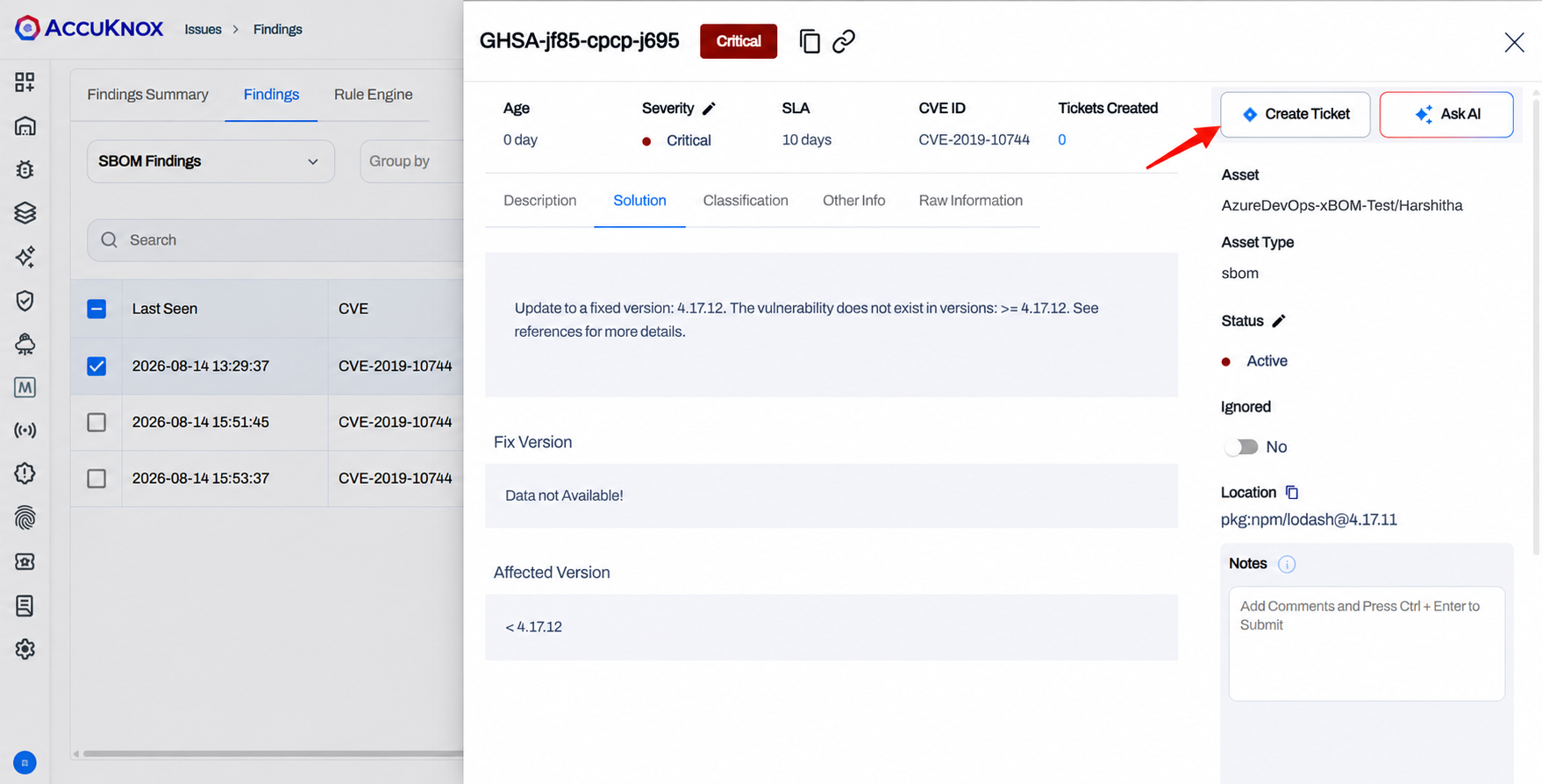

Create ticket dialog opened from an AccuKnox SBOM finding

Step 6. Apply the fix, then rerun the pipeline. A fresh BOM uploads and the finding drops off the list.
