Encryption as a Service: Transit Secret Engine

The Transit secret engine runs cryptographic operations on data in transit. Secrets Manager never stores the data you send it. Think of Transit as cryptography as a service.

Transit signs and verifies data, generates hashes and HMACs, and returns random bytes.

The main use case is application data. Your application sends plaintext, gets ciphertext back, and stores the ciphertext in its own database. This moves the job of correct encryption away from application developers and onto the Secrets Manager operators.

Transit also protects credentials and sensitive text that people share inside an organisation. Person A encrypts the text in Secrets Manager and sends the ciphertext to Person B. Person B signs in to Secrets Manager and decrypts it.

What Transit Is For

Task Example
Encrypt data at rest A database password, an API key, or a config value. Store the ciphertext, never the plaintext.
Sign and verify Detect tampering on a payload.
HMAC Run integrity checks and message authentication.
Key rotation Rotate a key without re-encrypting old data. Old ciphertext still decrypts.

Transit stores keys, not data

Secrets Manager holds the encryption key and throws the plaintext away. Your application keeps the ciphertext. Losing the Transit key means losing access to every value it encrypted.

Step 1: Enable the Transit Engine

  1. Under Secrets Engines, select Transit.
  2. Set Path to transit.
  3. Click Enable Engine.

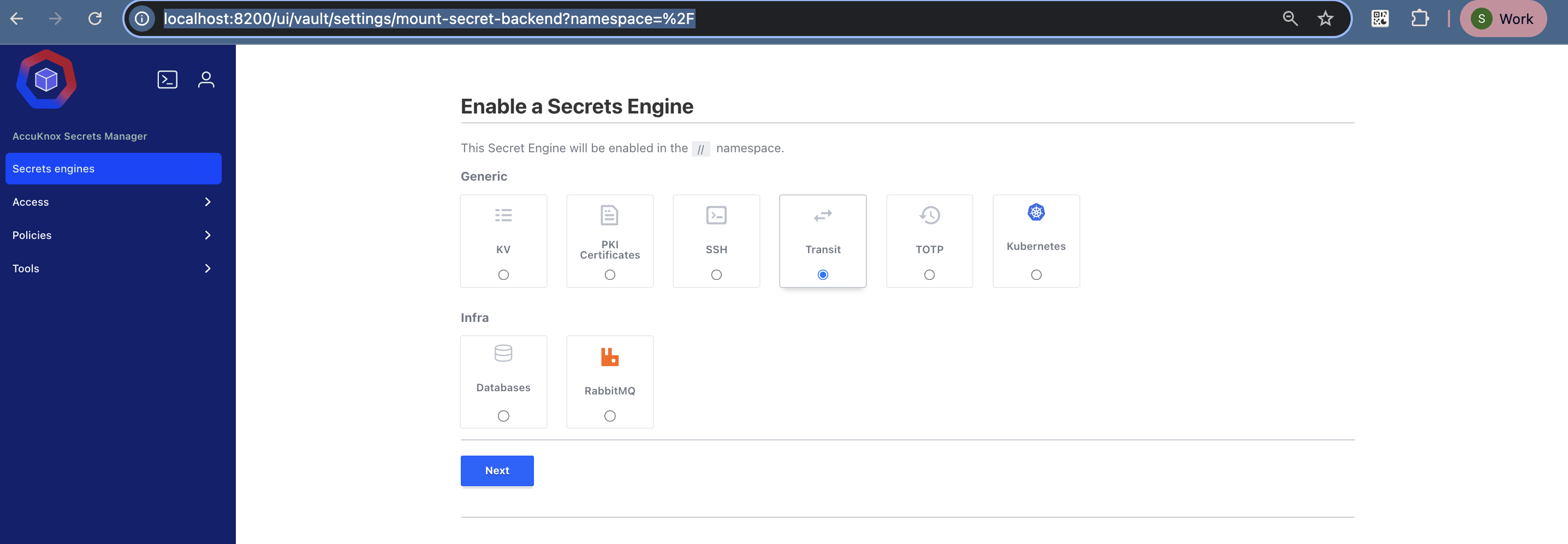

Enabling the Transit secret engine

Step 2: Create an Encryption Key

Click transit/ in your Secrets list, then click Create encryption key.

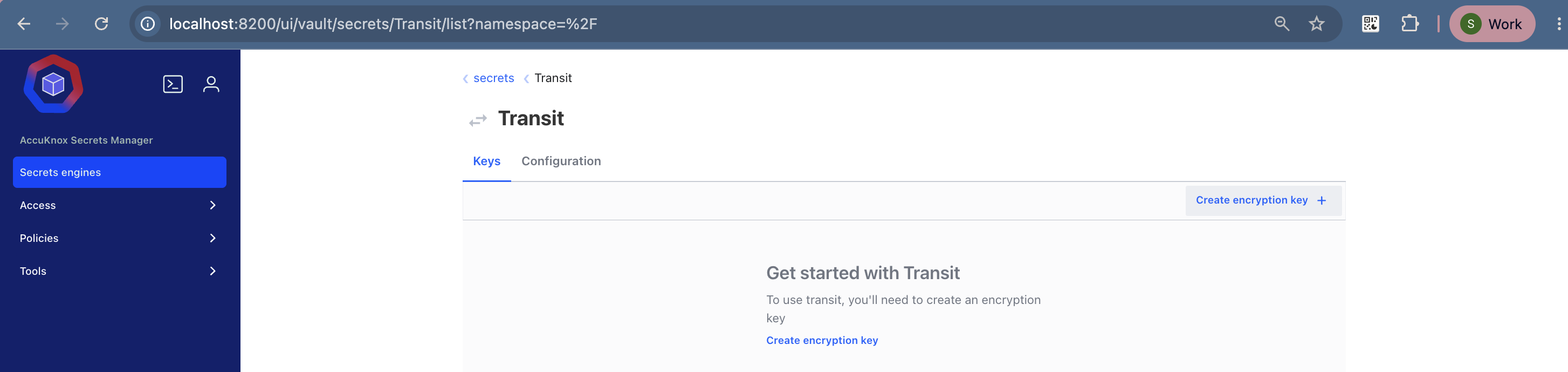

The empty Transit engine with the Create encryption key button

Fill in these fields:

Field Value
Name my-key
Type aes256-gcm96

aes256-gcm96 is the default symmetric type. Use it unless you need signing, in which case pick an asymmetric type such as ed25519.

Click Create key.

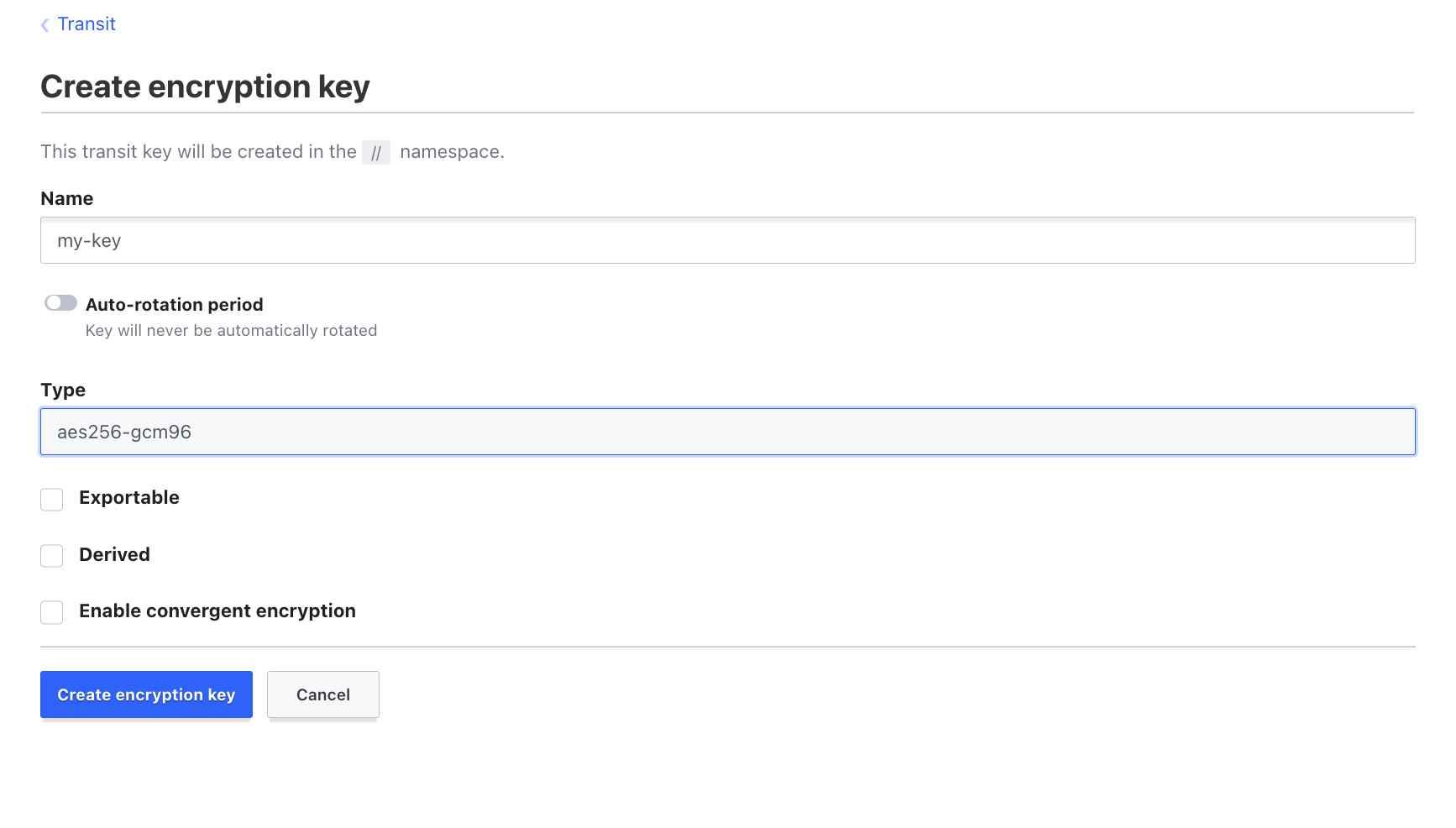

The encryption key creation form

The key now appears with its version and its supported operations.

The details page of the created key

Step 3: Encrypt a Value

On the transit/my-key page, open the Encrypt tab.

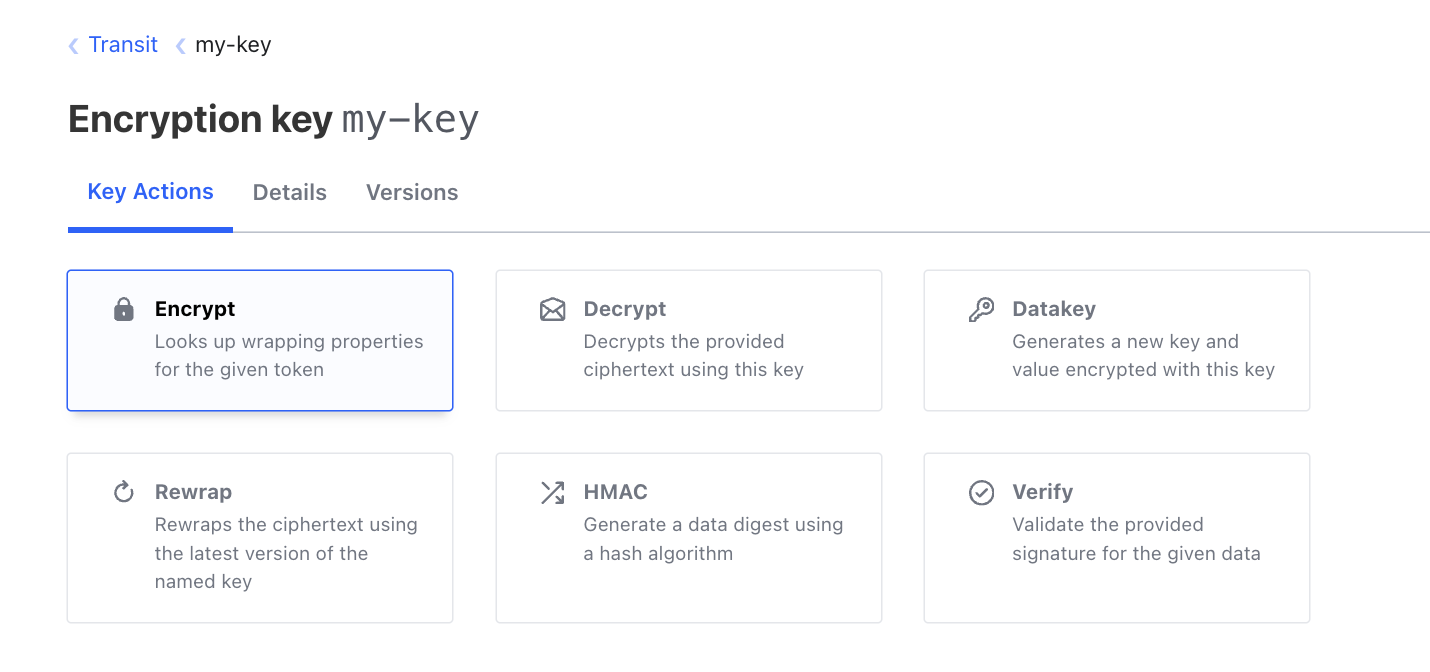

The Encrypt tab on the key page

Type your value into Plaintext. This example uses Accuknox@Demo#2026.

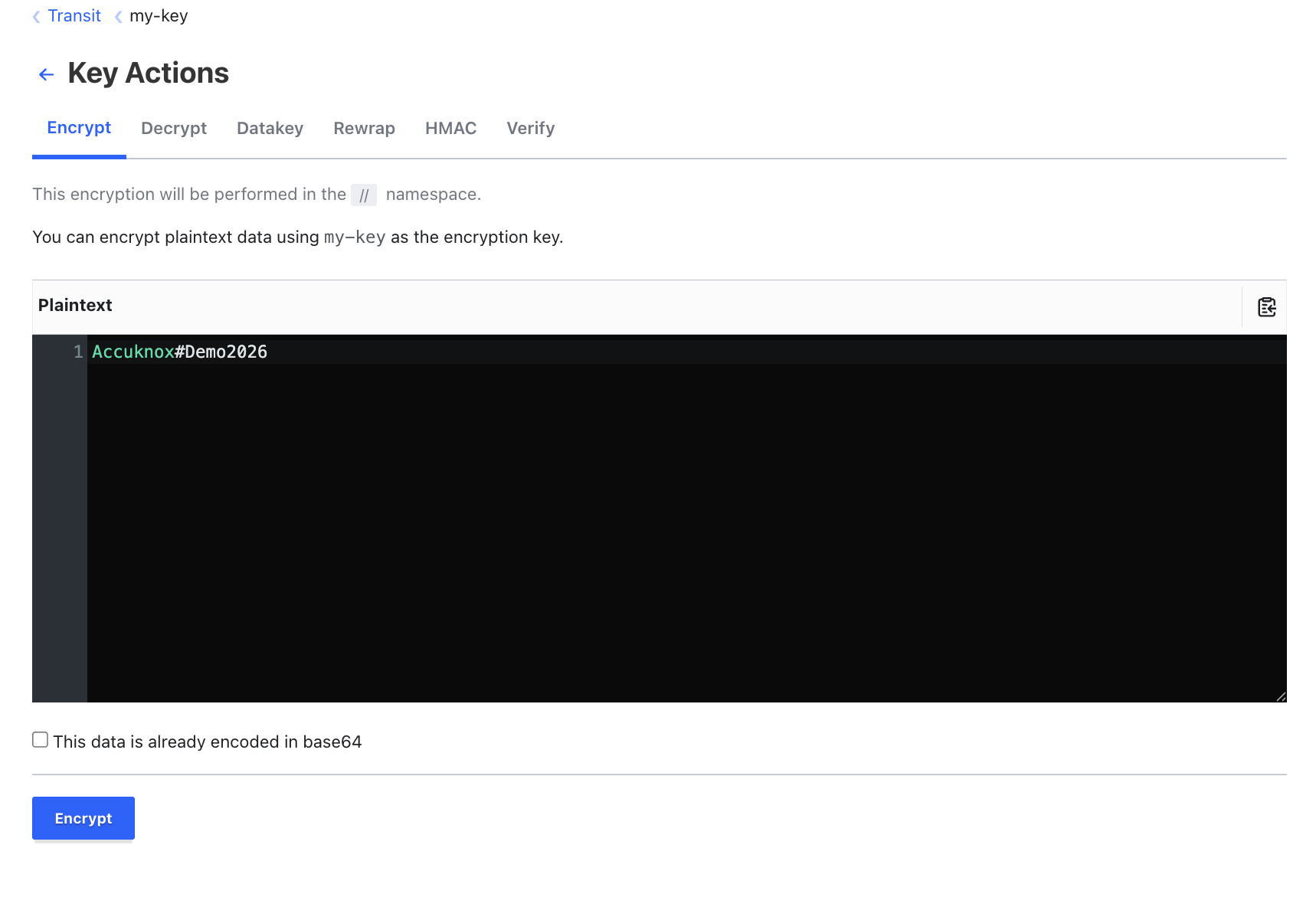

Entering plaintext to encrypt

Click Encrypt. Transit returns a ciphertext that starts with a key version prefix:

vault:v1:cnciIwMaR6dF1MWyUaJYPqHP4U8SOCUNY8Hag1bU9pQNWHuGoThZxzNQ8n2j

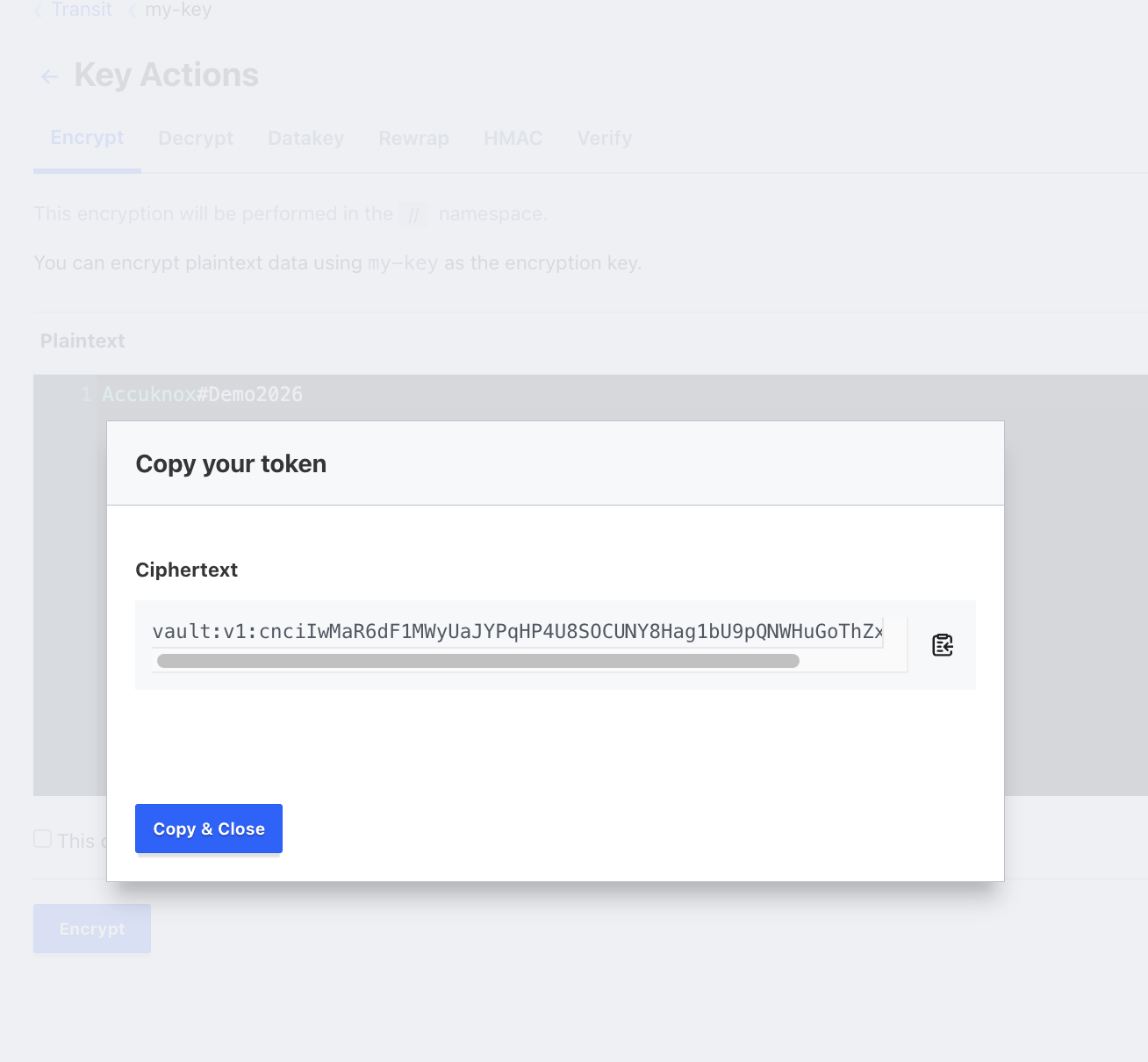

The returned ciphertext

Copy the ciphertext. This is the value you store in your config file or your database. The plaintext is gone, and only Secrets Manager can decrypt it.

The v1 prefix records which key version encrypted the value. After you rotate the key, new values carry v2, and Transit still decrypts the v1 values.

Step 4: Decrypt the Value

  1. Open the Decrypt tab on the same key.
  2. Paste the ciphertext.
  3. Click Decrypt.

Transit returns the plaintext base64-encoded:

QWNjdWtub3gjRGVtbzIwMjY=

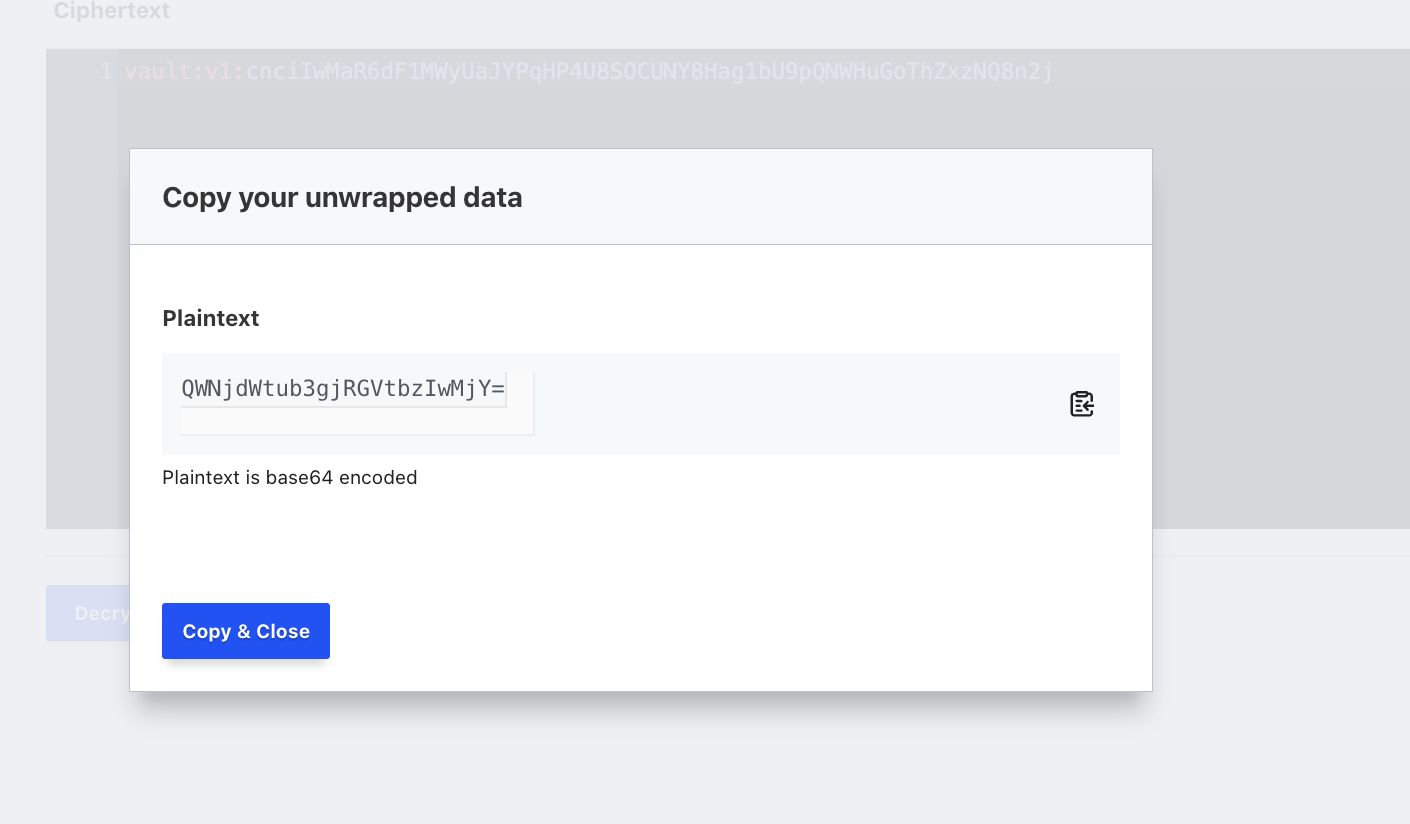

The Decrypt tab returning base64 plaintext

Transit always returns base64

Transit encodes plaintext as base64 on the way out. Decode it once to read the real value.

Step 5: Decode the Plaintext

echo "QWNjdWtub3gjRGVtbzIwMjY=" | base64 -d

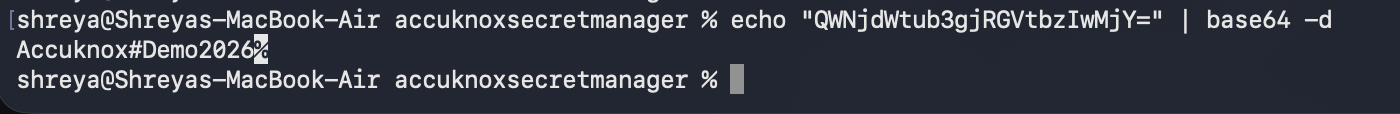

Decoding the base64 plaintext in a shell

The command prints your original value.
