Running Code Analysis Scans with AccuKnox in a GitHub CI/CD Pipeline

Overview

The AccuKnox Code Analysis GitHub Action is a single action that runs any combination of AccuKnox ASPM code analysis scans, SAST, SCA, Secret, IaC, ML Static Scan, and SBOM, and pushes the results to the AccuKnox Console for centralized visibility, risk tracking, and remediation.

Rather than setting up a separate action for each scanner, you configure one step, choose the scans you need with scan_type, and catch security issues across your codebase before they reach production.

Key Features

• Six scanners in one action: SAST (OpenGrep), SCA (Trivy), Secret (TruffleHog), IaC (Checkov), ML Static Scan (ModelScan), and SBOM (image and filesystem).
• Run any combination: select one or several scans through a single scan_type input, separated by commas or spaces.
• A command input per scan: every scanner has its own <type>_command input that maps straight to the CLI's --command flag, so you decide exactly what each tool runs.
• IaC scans by framework: limit IaC scans to one or more frameworks, for example Kubernetes,Terraform.
• SBOM for image or filesystem: generate a CycloneDX SBOM from a container image or your source tree.
• Shift left security: run every check directly inside your CI/CD pipeline for early detection.
• Seamless AccuKnox Console integration: findings flow into the AccuKnox dashboard automatically.

Prerequisites

Before setting up this GitHub Action, make sure you have the following in place:

1. AccuKnox Console Access: sign in to your AccuKnox tenant.
2. API Token: retrieve this from the AccuKnox Console (see Step 1 below).
3. A Label Created in Console: used to tag your uploaded scan reports.
4. GitHub Secrets Configured: store the required credentials securely in your repository's GitHub Secrets.

Steps for Integration

Step 1: Retrieve Your AccuKnox Credentials

1. Log in to your AccuKnox Console.

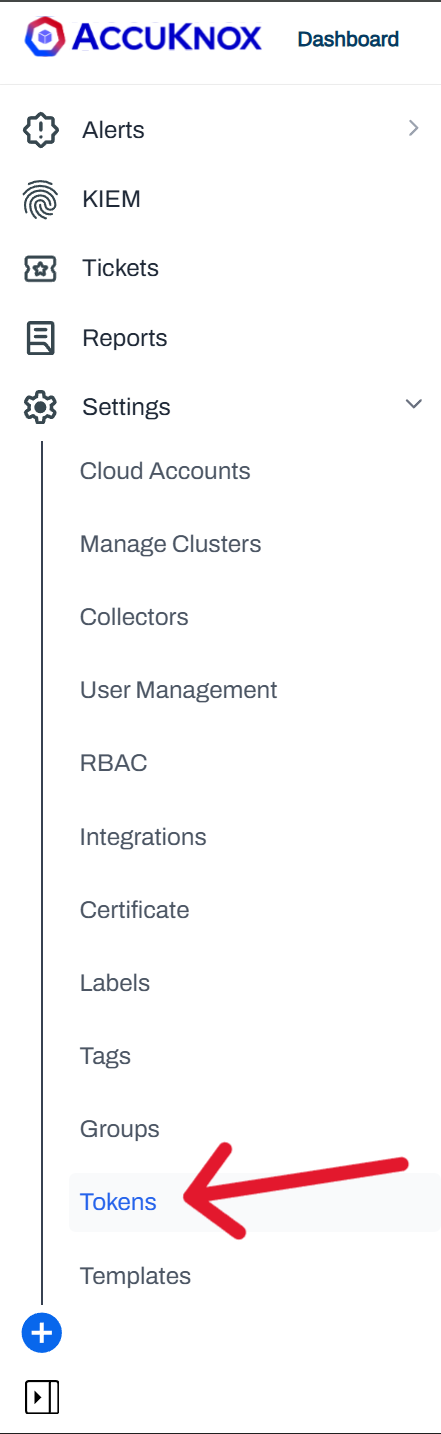

2. Navigate to Settings → Tokens.

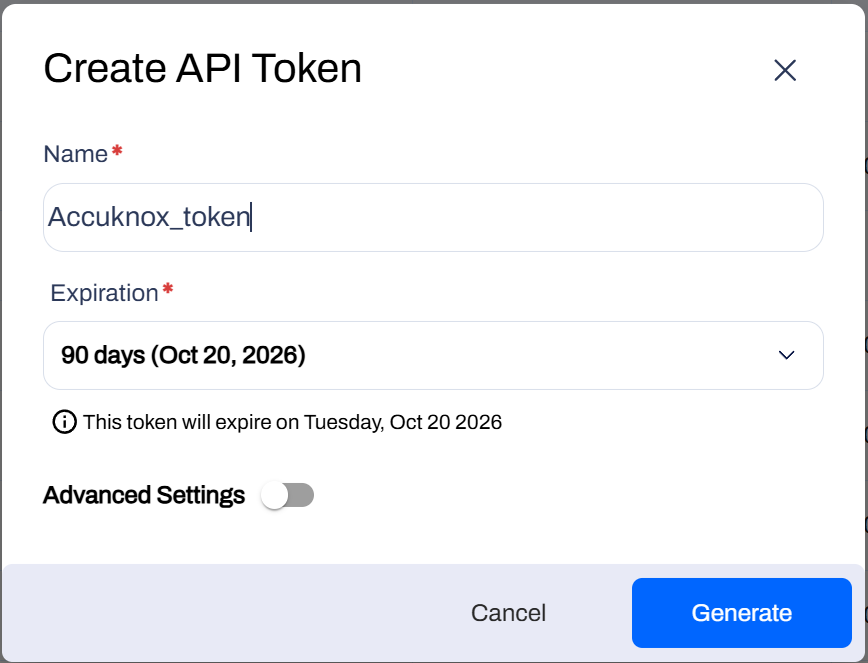

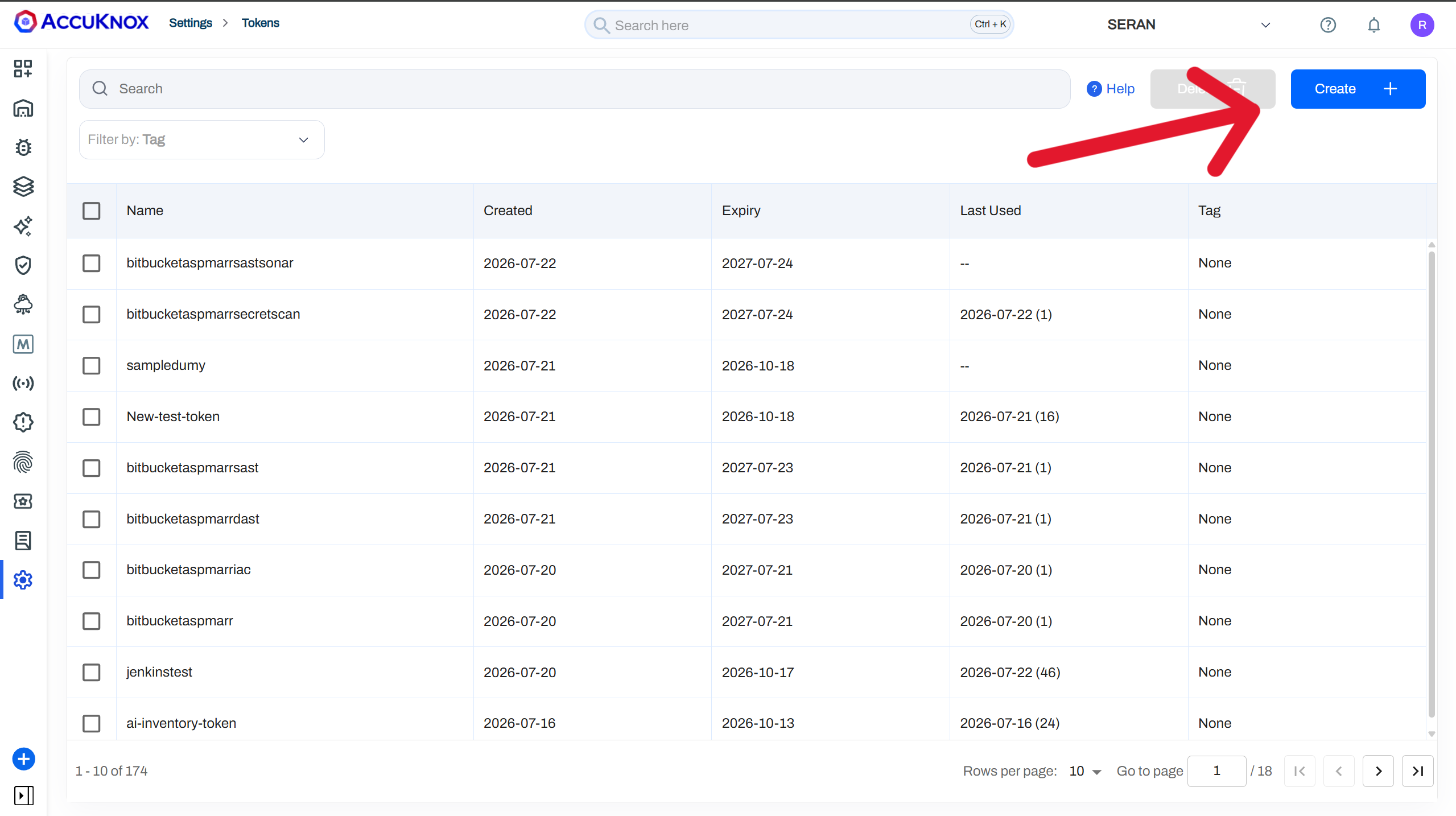

1. Click Create Token and save the token value securely (you will add it to GitHub Secrets as ACCUKNOX_TOKEN in Step 2).

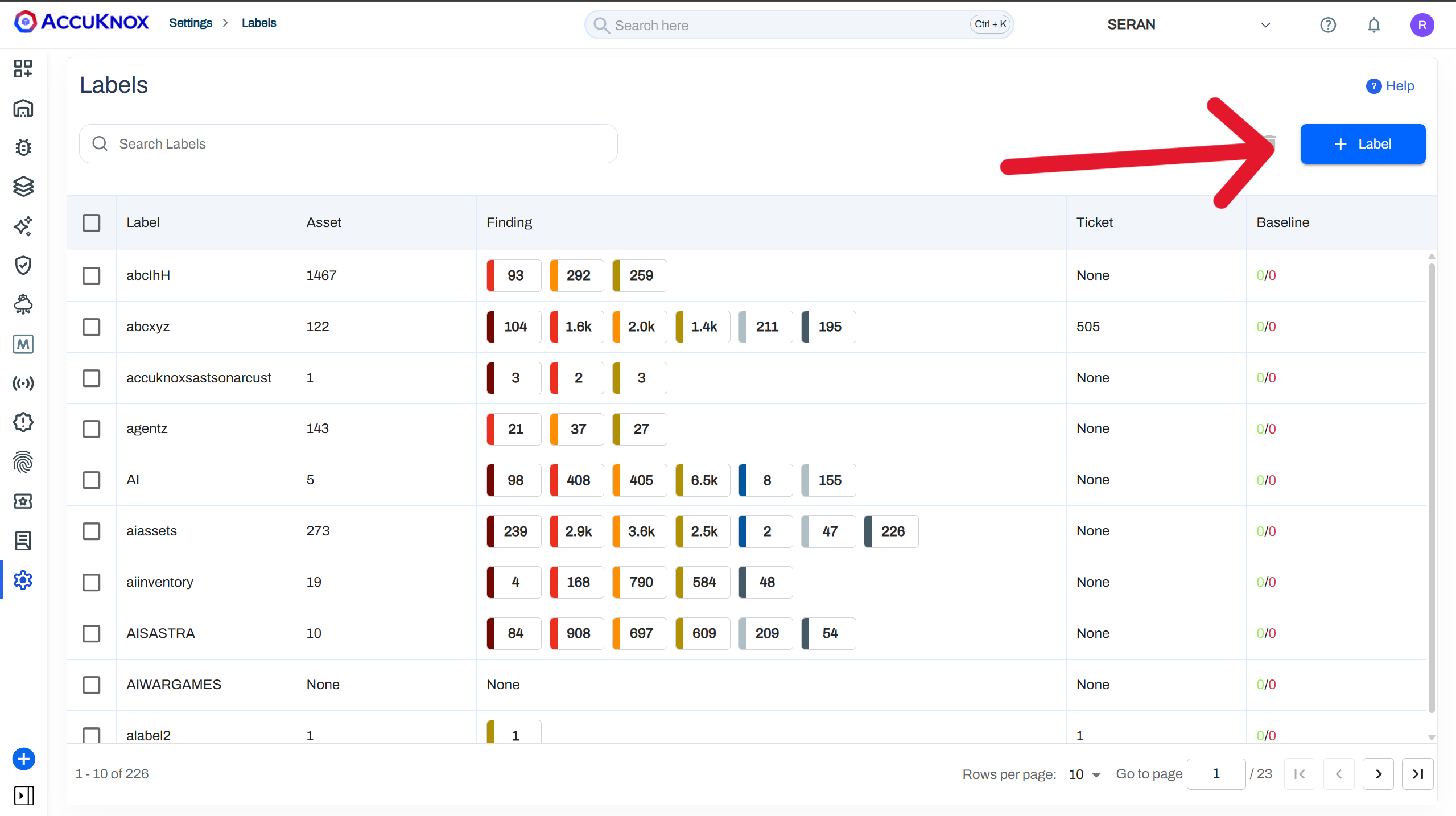

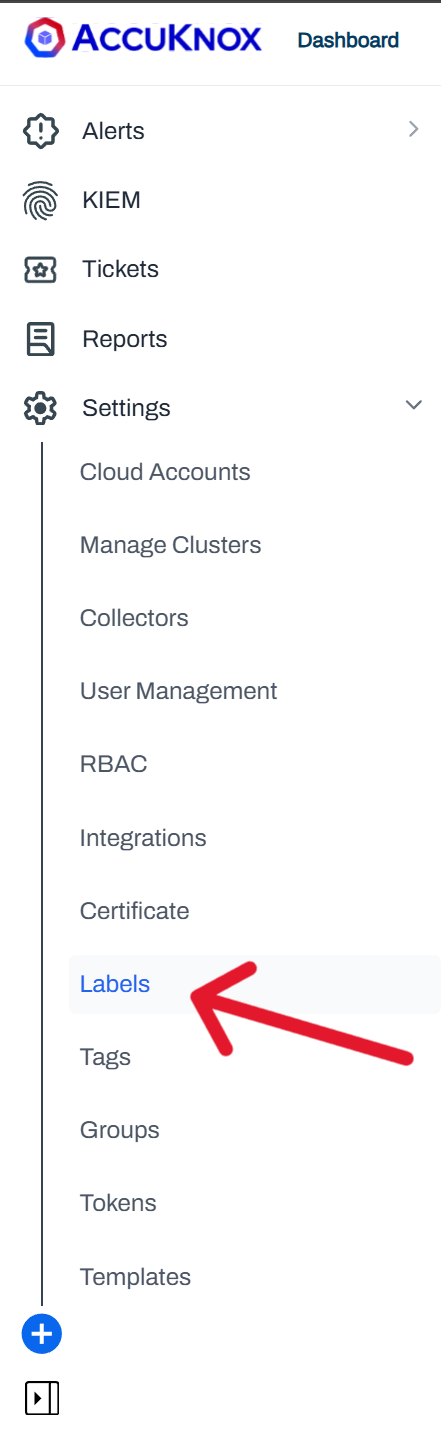

1. Create a label under Dashboard → Labels to tag your scan results.

Step 2: Configure GitHub Secrets

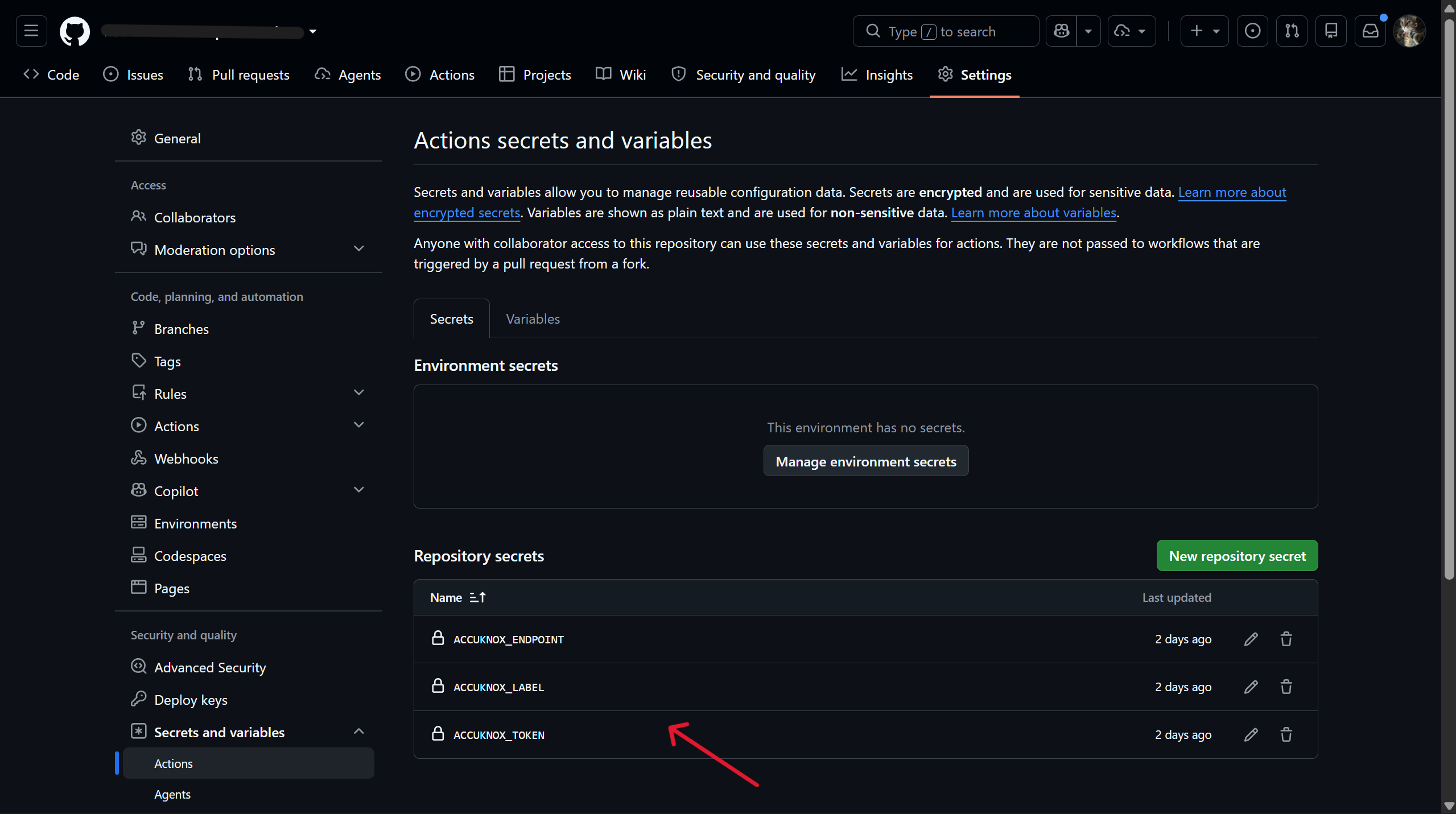

Go to your repository's Settings → Secrets and variables → Actions → New repository secret, and add each of the following:

Secret Name	Description
ACCUKNOX_TOKEN	Your AccuKnox API token, used for authentication
ACCUKNOX_ENDPOINT	The AccuKnox API URL (for example cspm.demo.accuknox.com)
ACCUKNOX_LABEL	Label used to tag and group your scan results

Step 3: Define Your GitHub Workflow

Create a workflow file (for example .github/workflows/accuknox-code-analysis.yml) with the following configuration:

name: AccuKnox Code Analysis Workflow

on:
  push:
    branches:
      - main
  pull_request:
    branches:
      - main

jobs:
  code-analysis:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout code
        uses: actions/checkout@v7.0.0

      - name: Run AccuKnox Code Analysis
        uses: accuknox/accuknox-code-analysis@latest
        with:
          # Pick any combination of scans
          scan_type: "sast, sca, secret, iac, ml, sbom"

          # AccuKnox credentials
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}

          # Common options
          soft_fail: true            # Continue the pipeline on findings
          upload_artifact: true      # Upload kept result files as an artifact

          # SBOM – image or filesystem (project_name required)
          sbom_scan_type: "image"
          sbom_image_ref: "myapp:latest"
          sbom_project_name: "my-project"

Only the inputs tied to the scans you list in scan_type are actually used, everything else gets ignored, so your workflow file can stay minimal.

Configuration Options (Inputs)

Common

Input	Description	Optional/Required	Default
scan_type	Scans to run, separated by commas or spaces: sast, sca, secret, iac, ml, sbom	Required	—
accuknox_token	API token for authenticating with AccuKnox SaaS	Required	—
accuknox_endpoint	URL of the AccuKnox Console where results get pushed	Required	—
accuknox_label	Label used in AccuKnox SaaS to organize and identify results	Required	—
soft_fail	Keeps CI from failing on findings (applies to all scans)	Optional	true
upload_artifact	Uploads kept result files (results*.json, results*.jsonl) as a GitHub artifact	Optional	false

SAST (sast)

Input	Description	Optional/Required	Default
sast_command	Command text passed to --command (the target to scan)	Optional	.
sast_severity	Comma separated severities (LOW, MEDIUM, HIGH, CRITICAL)	Optional	HIGH

SCA (sca)

Input	Description	Optional/Required	Default
sca_command	Command text passed to --command (for example fs .)	Optional	fs .
sca_severity	Comma-separated severities to fail on	Optional	""

Secret (secret)

Input	Description	Optional/Required	Default
secret_command	Command text passed to --command (for example git file://. or filesystem .)	Optional	git file://.
secret_additional_arguments	Extra arguments appended to the command (for example --results verified --branch main)	Optional	""

IaC (iac)

Input	Description	Optional/Required	Default
iac_command	Raw command text passed to --command. Overrides the structured inputs below when set	Optional	""
iac_directory	Directory holding the infrastructure code to scan	Optional	.
iac_file	Specific file to scan; cannot be combined with iac_directory	Optional	""
iac_framework	One or more frameworks, comma separated, for example Kubernetes,Terraform	Optional	"" (all)
iac_compact	Hides code blocks in the output	Optional	true
iac_quiet	Shows only failed checks	Optional	true

ML Static Scan (ml)

Input	Description	Optional/Required	Default
ml_command	Command text passed to --command (for example scan -p . -r json)	Optional	scan -p . -r json
ml_model_name	Custom collector or model identifier	Optional	""
ml_source_type	Source type used for metadata	Optional	github

SBOM (sbom)

Input	Description	Optional/Required	Default
sbom_scan_type	Target type, image or filesystem	Optional	filesystem
sbom_image_ref	Image reference (required when sbom_scan_type is image)	Optional	""
sbom_scan_path	Filesystem path (used when sbom_scan_type is filesystem)	Optional	.
sbom_command	Raw command text passed to --command. Overrides the structured inputs above when set	Optional	""
sbom_severity	Comma separated severities	Optional	""
sbom_project_name	Project name (the AccuKnox entity). Required for SBOM	Optional*	""

*Required only when sbom is part of scan_type.

Examples

Each example below is a complete workflow you can copy directly. The per scanner examples show the minimum inputs needed for a single scan, and the unified example runs every scanner in one step.

All examples assume you have already configured the ACCUKNOX_TOKEN, ACCUKNOX_ENDPOINT, and ACCUKNOX_LABEL secrets.

1. SAST

name: AccuKnox SAST
on:
  push:
    branches: [main]
jobs:
  sast:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7.0.0
      - name: Run AccuKnox SAST
        uses: accuknox/accuknox-code-analysis@latest
        with:
          scan_type: "sast"
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}
          sast_severity: "HIGH,CRITICAL"
          soft_fail: true

2. SCA

name: AccuKnox SCA
on:
  push:
    branches: [main]
jobs:
  sca:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7.0.0
      - name: Run AccuKnox SCA
        uses: accuknox/accuknox-code-analysis@latest
        with:
          scan_type: "sca"
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}
          sca_severity: "HIGH,CRITICAL"
          soft_fail: true

3. Secret

name: AccuKnox Secret Scan
on:
  push:
    branches: [main]
jobs:
  secret:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7.0.0
        with:
          fetch-depth: 0   # full history for git-based secret scanning
      - name: Run AccuKnox Secret Scan
        uses: accuknox/accuknox-code-analysis@latest
        with:
          scan_type: "secret"
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}
          soft_fail: true

4. IaC

name: AccuKnox IaC
on:
  push:
    branches: [main]
jobs:
  iac:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7.0.0
      - name: Run AccuKnox IaC Scan
        uses: accuknox/accuknox-code-analysis@latest
        with:
          scan_type: "iac"
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}
          soft_fail: true

5. ML Static Scan

name: AccuKnox ML Static Scan
on:
  push:
    branches: [main]
jobs:
  ml:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7.0.0
      - name: Run AccuKnox ML Static Scan
        uses: accuknox/accuknox-code-analysis@latest
        with:
          scan_type: "ml"
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}
          soft_fail: true

6. SBOM

Note

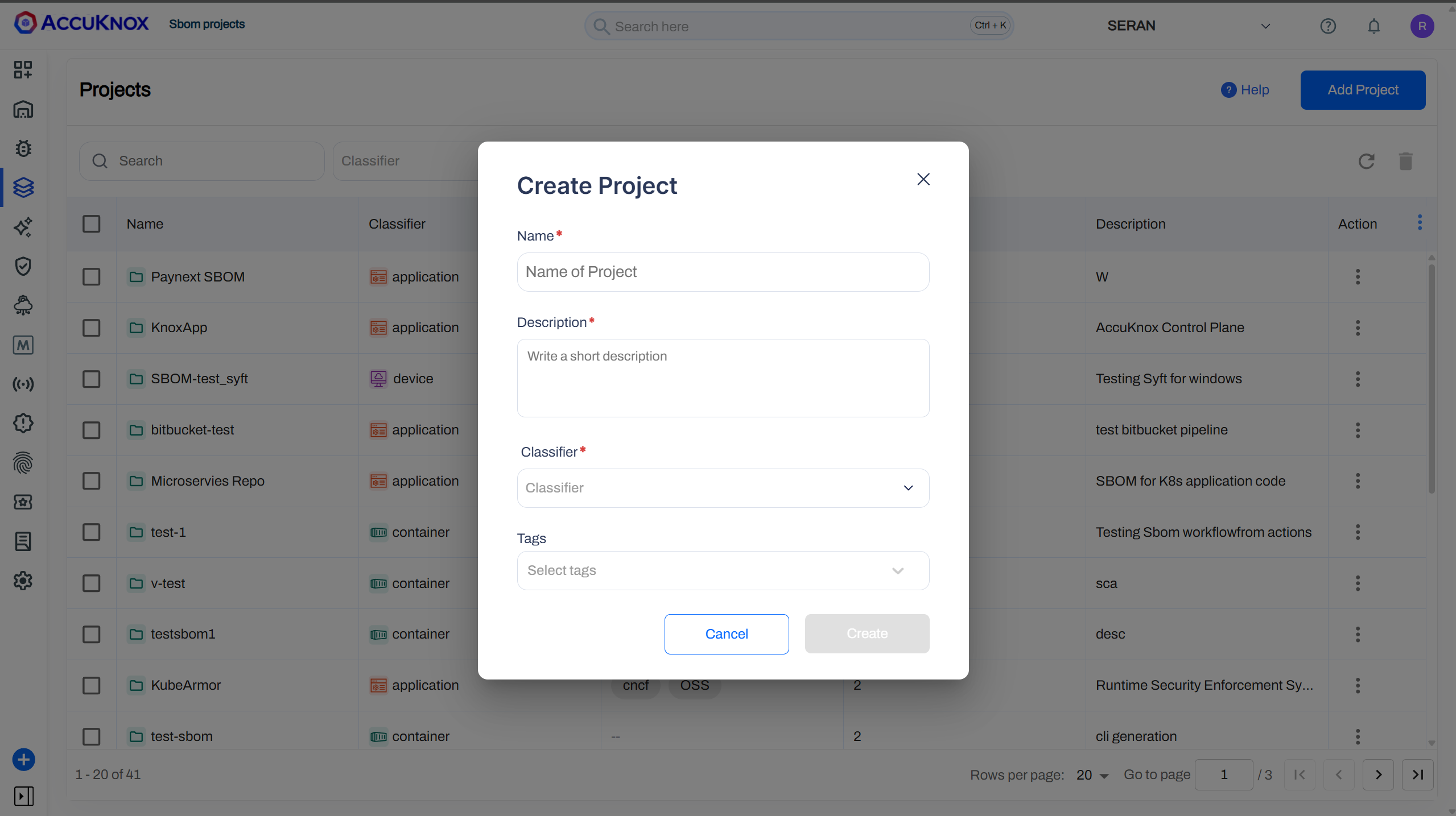

Prerequisite; create a Project. To tie SBOM data to the right entity, you need to create a Project in the AccuKnox Console first.

1. Log in to the AccuKnox Dashboard.
2. Navigate to SBOM → Projects.
3. Click New Project.
4. Fill in the required details:
5. Name* – Project name (use this same value for sbom_project_name in the workflow).
6. Description – a short description of the project.
7. Classifier* – choose Container for an image SBOM, or Application for a filesystem SBOM.
8. Tags – (Optional) add relevant tags.
9. Click Create.

name: AccuKnox SBOM
on:
  push:
    branches: [main]
jobs:
  sbom:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7.0.0
      - name: Run AccuKnox SBOM (filesystem)
        uses: accuknox/accuknox-code-analysis@latest
        with:
          scan_type: "sbom"
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}
          sbom_scan_type: "filesystem"
          sbom_scan_path: "."
          sbom_project_name: "my-project"   # required for SBOM
          soft_fail: true

For an image SBOM, set sbom_scan_type: "image" and sbom_image_ref: "myapp:latest" (build or pull the image earlier in the same job).

7. Unified, All Scans in One Step

name: AccuKnox Code Analysis (Unified)
on:
  push:
    branches: [main]
  pull_request:
    branches: [main]
jobs:
  code-analysis:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7.0.0

      - name: Run AccuKnox Code Analysis
        uses: accuknox/accuknox-code-analysis@latest
        with:
          # Run every scanner in a single step
          scan_type: "sast, sca, secret, iac, ml, sbom"

          # AccuKnox credentials
          accuknox_token: ${{ secrets.ACCUKNOX_TOKEN }}
          accuknox_endpoint: ${{ secrets.ACCUKNOX_ENDPOINT }}
          accuknox_label: ${{ secrets.ACCUKNOX_LABEL }}

          # Common options
          soft_fail: true
          upload_artifact: true

          # SAST – override default severity (HIGH)
          sast_severity: "HIGH,CRITICAL"

          # SBOM (project_name required)
          sbom_scan_type: "filesystem"
          sbom_scan_path: "."
          sbom_project_name: "my-project"

How It Works

1. Developer pushes code: a push or pull request triggers the GitHub Action.
2. Scanner setup (once): the action checks credentials, parses scan_type, and downloads the accuknox-aspm-scanner binary for the requested scanner_version.
3. Selected scans run: each enabled scan runs in --command mode inside a container, building its arguments from your <type>_command and scan specific inputs:
4. SAST → OpenGrep static analysis
5. SCA → Trivy dependency and composition analysis
6. Secret → TruffleHog secret detection
7. IaC → Checkov misconfiguration checks (per framework, if you set one)
8. ML → ModelScan static ML model analysis
9. SBOM → CycloneDX bill of materials for an image or filesystem
10. Results uploaded to AccuKnox Console: using the accuknox_token and accuknox_label you provided.
11. Optional artefact upload: when upload_artifact: true, kept result files get saved as a GitHub artifact.
12. Review findings: available in the AccuKnox Console under Dashboard → Issues → Findings, filtered by scan type.
13. Pipeline decision: if soft_fail: false, the pipeline fails once findings are detected.

Viewing Results in AccuKnox Console

Step 1: Once the workflow finishes, open the AccuKnox SaaS dashboard.

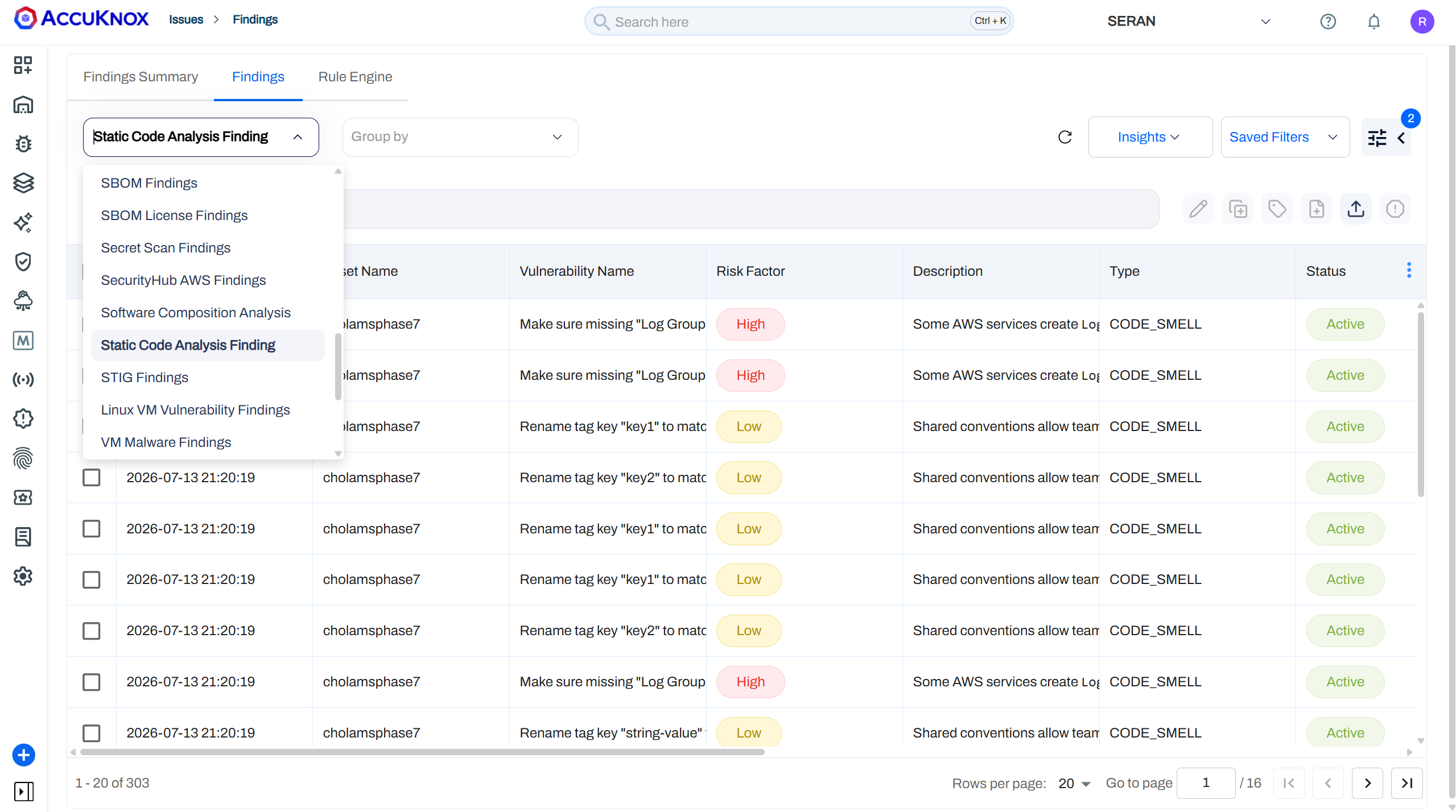

Step 2: Go to Issues → Findings and select the finding type that matches the scan you ran (for example, Static Code Analysis Findings for SAST, or the equivalent view for SCA, Secret, IaC, ML, or SBOM).

Step 3: Click on a finding to see the full detail.

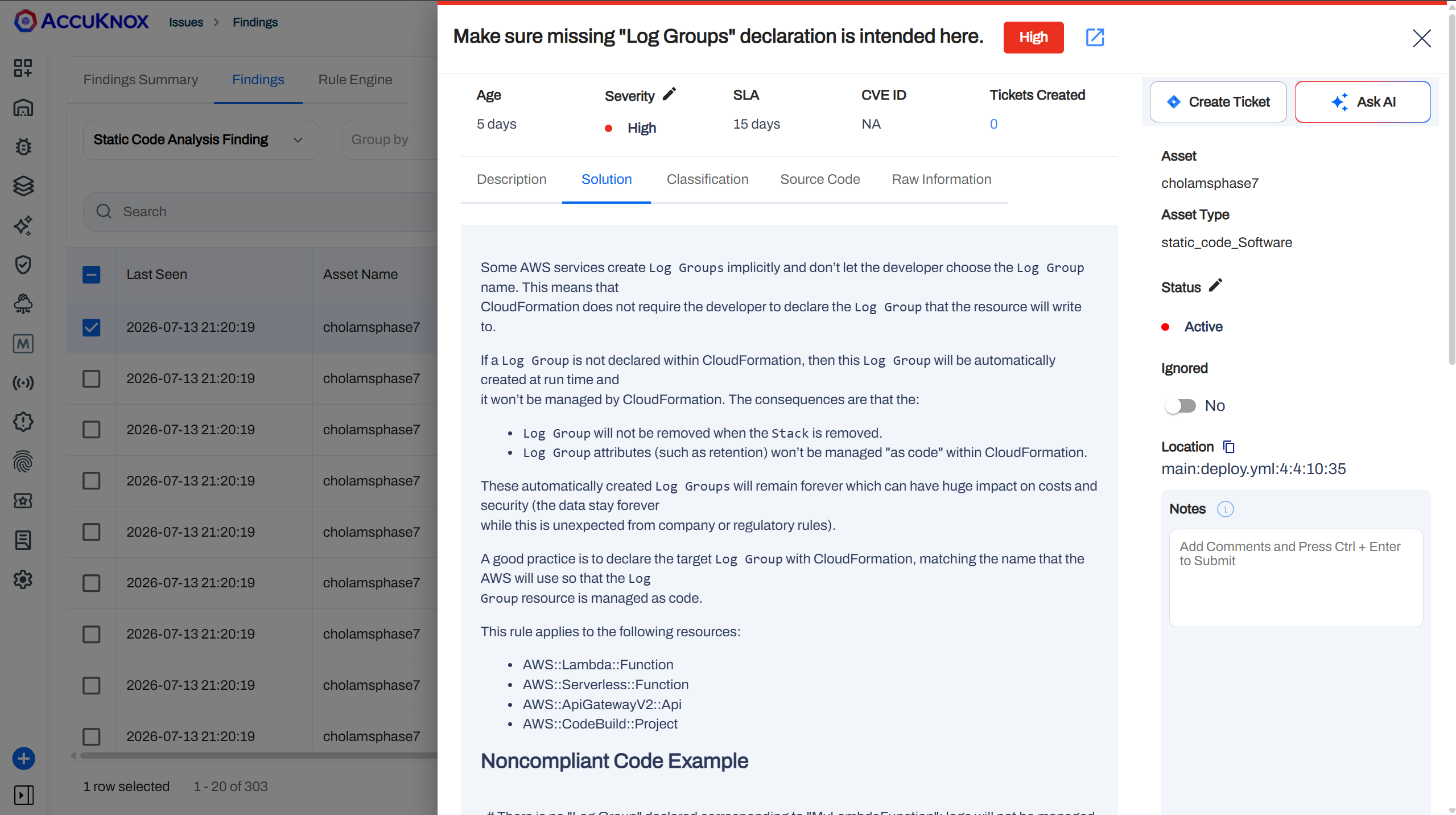

Step 4: Fix the finding using the instructions in the Solutions tab, or use Ask AI for a suggested fix.

Step 5: Create a ticket in your issue tracking system to assign and track the fix.

Step 6: Review the updated results. After the fix ships, rerun your GitHub Actions pipeline, then check the AccuKnox SaaS dashboard to confirm the finding is resolved.

Benefits of Integration

• Centralized monitoring and reporting across all six scan types
• Early detection of issues during the development lifecycle, before code reaches production
• Actionable remediation guidance for every finding
• One action to configure instead of stitching together six separate integrations
• Drops into an existing GitHub Actions pipeline with minimal setup

Support & Documentation

• Read more in the AccuKnox Docs
• Contact support at support@accuknox.com

Conclusion

The AccuKnox Code Analysis GitHub Action brings seven scanners, SAST, SCA, Secret, IaC, ML, and SBOM, into one configurable step. Run them together, review findings in the AccuKnox Console, and enforce policy gates across your CI/CD pipeline from a single action, all the way from commit to cloud.
