Cloud Infrastructure Entitlement Management¶

Coming soon

CIEM releases soon in a newer version of AccuKnox. The screens on this page come from the current build and can change before the release.

AccuKnox Cloud Infrastructure Entitlement Management (CIEM) lists the users, groups and roles in your AWS, GCP, Azure and Oracle cloud accounts. For each identity, CIEM shows the attached policies, the risk classes those policies carry, and the last time the identity was used. The access graph draws the chain from an identity through its groups to its policies. To turn on CIEM for a cloud account, see Onboard a Cloud Account for CIEM.

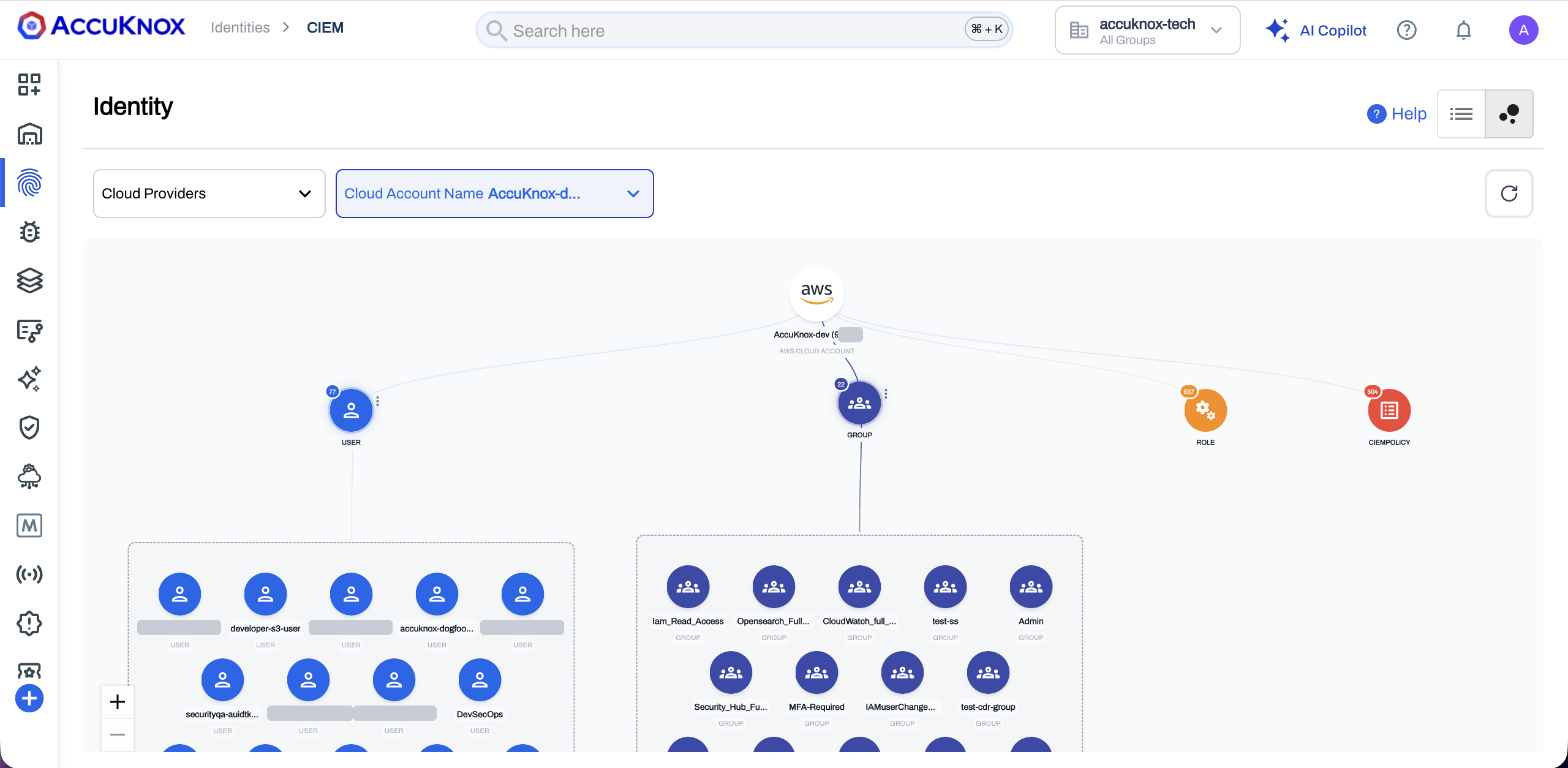

The CIEM organization graph for one AWS account, with the account node at the top, count badges on the user, group, role and policy nodes, and the user and group nodes expanded to show their members

  • The cloud account sits at the top. The user, group, role and policy nodes carry a count badge.
  • Select a node to expand its members. Select a member to open its access graph.

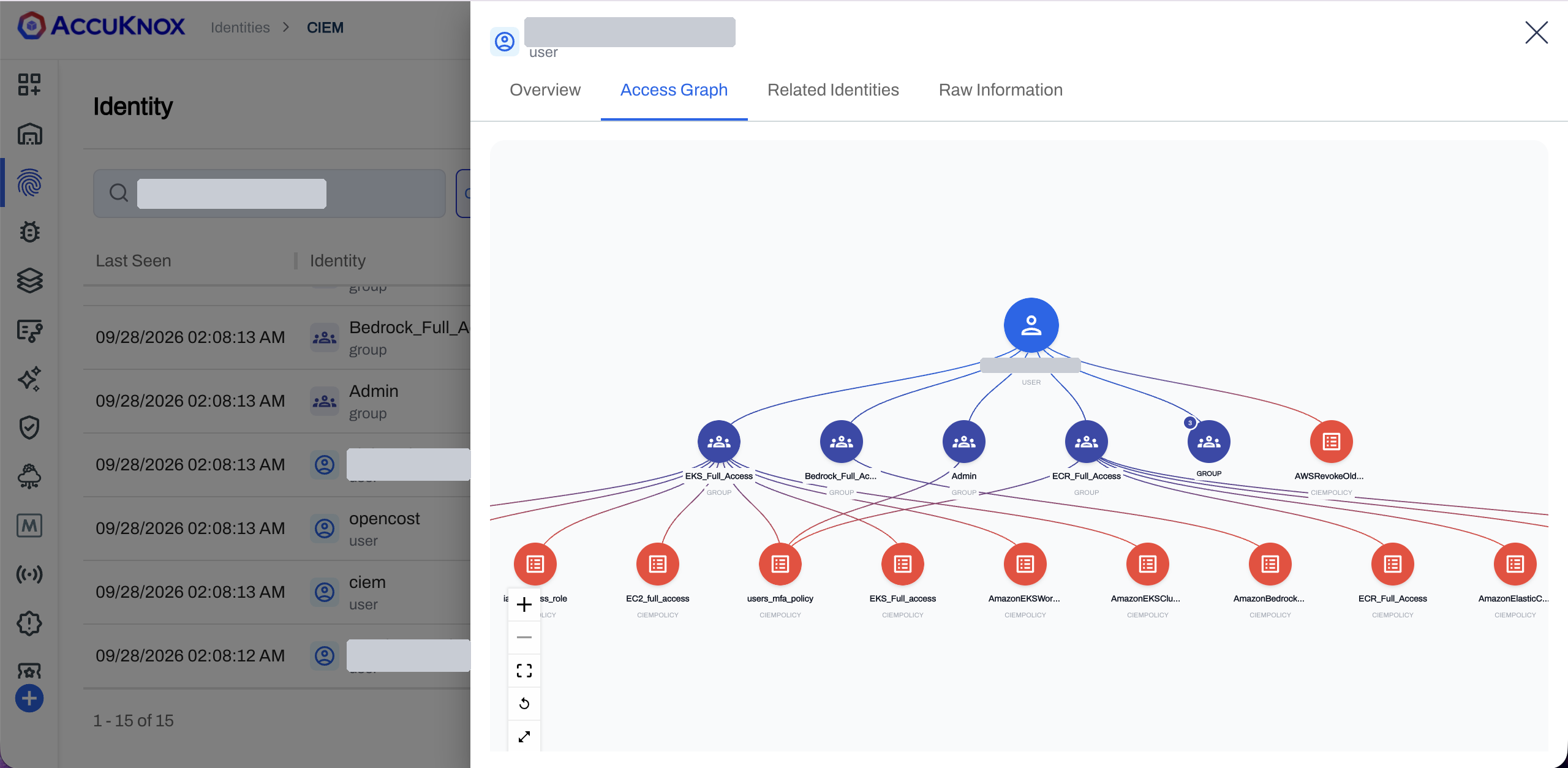

The access graph of one AWS user, with the user at the top, its groups such as EKS_Full_Access, Bedrock_Full_Access and Admin in the middle, and the policies each group grants at the bottom

  • The identity sits at the top, its groups in the middle, and the policies each group grants at the bottom.
  • A policy attached straight to the identity sits in the same row as the groups.

Standalone accounts only

CIEM supports standalone cloud accounts today. Organization accounts are not supported yet.

CIEM Covers Four Clouds and Three Identity Types¶

Item What CIEM does
Clouds AWS, GCP, Azure and Oracle Cloud Infrastructure (OCI)
Identity types Users, groups and roles
Classification Each identity is human or machine. A CI/CD pipeline account is a machine identity
Policies CIEM reads the policies attached to each identity from the cloud account, with the policy type and the policy ID
Risk classes CIEM calculates the risk classes from the attached policies. Examples are Privilege Escalation, Data Exfiltration, Credentials Exposure and Infrastructure Modification
Where to find it Identities > CIEM in the left navigation

The Identity List Shows Who Holds Access¶

Go to Identities > CIEM. The list view opens by default. Use the two icons at the top right to switch between the list view and the graph view.

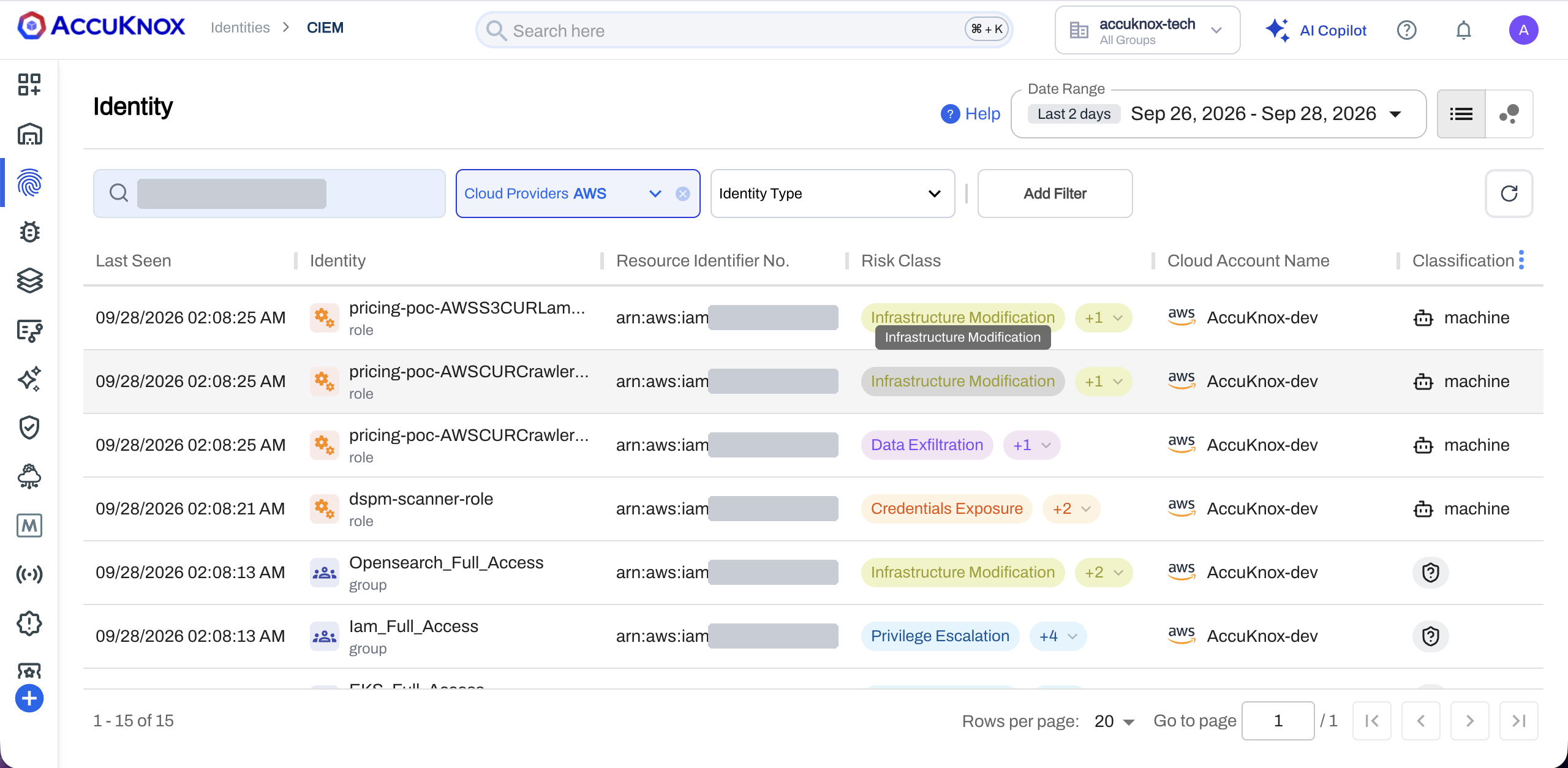

The CIEM identity list filtered to AWS, with the Last Seen, Identity, Resource Identifier No., Risk Class, Cloud Account Name and Classification columns

Filter the list with Search by Identity Name, Cloud Providers, Identity Type, Add Filter and Date Range. A risk class chip with +1 or +2 hides more risk classes. Open the chip to see them all.

Column What it shows
Identity The identity name, and its type: user, group or role
Resource Identifier No. The cloud-specific ID. An ARN on AWS, the service account ID on GCP, and the OCID on OCI.
Risk Class The risk classes from the attached policies
Cloud Account Name The cloud account that holds the identity
Classification Human or machine

Scroll the table to the right for the lifecycle columns.

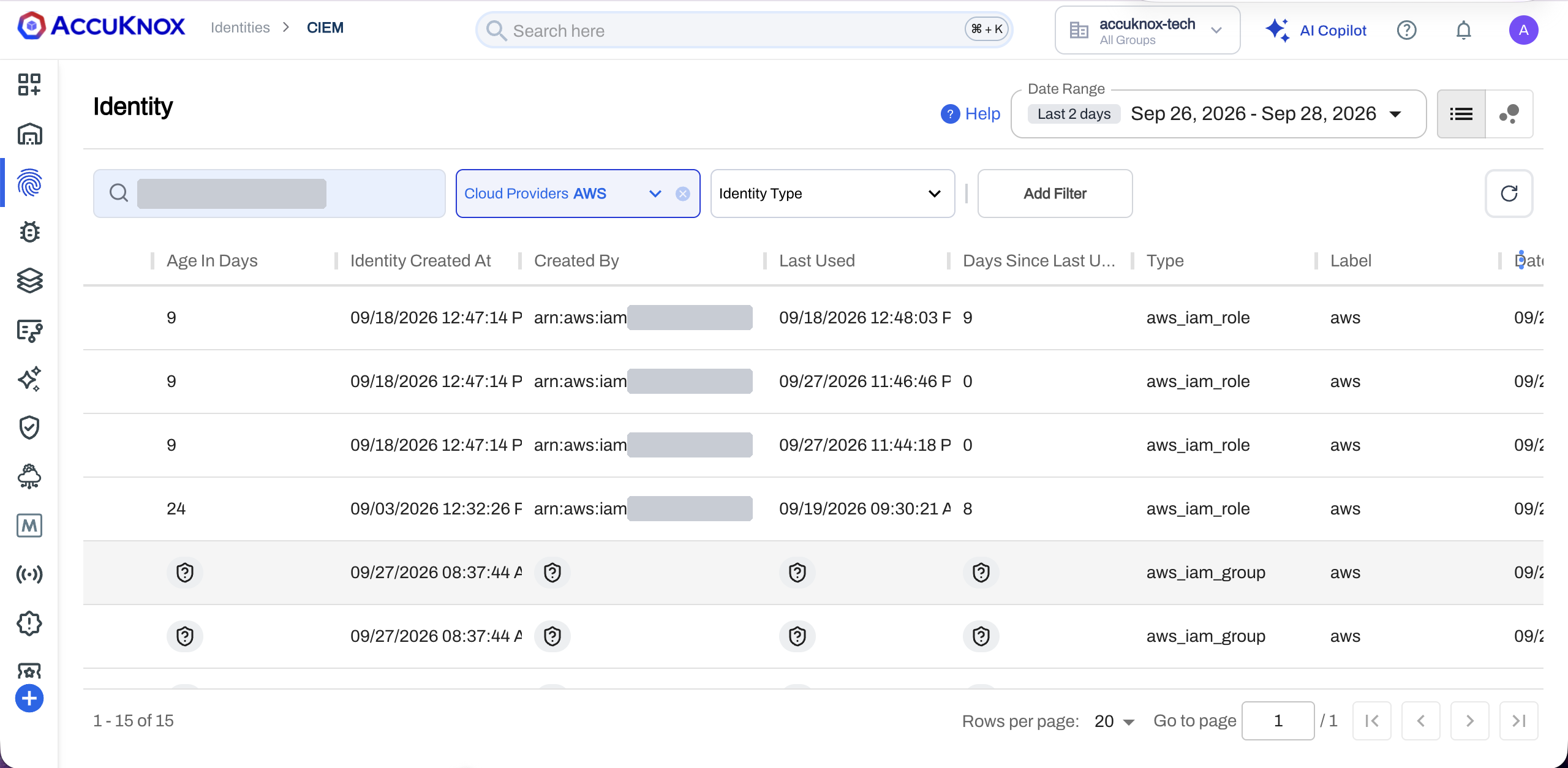

The same CIEM identity list scrolled right, with the Age In Days, Identity Created At, Created By, Last Used, Days Since Last Used, Type and Label columns

Column What it shows
Age In Days The days since the identity was created
Identity Created At The creation time
Created By The user or account that created the identity
Last Used The last time the identity was active
Days Since Last Used The days since the last use. A value of 0 means the identity was used today
Type The cloud resource type, such as aws_iam_role or aws_iam_group
Label The label of the cloud account

An Identity's Overview Lists Its Policies¶

Select an identity in the list. A panel opens with four tabs: Overview, Access Graph, Related Identities and Raw Information.

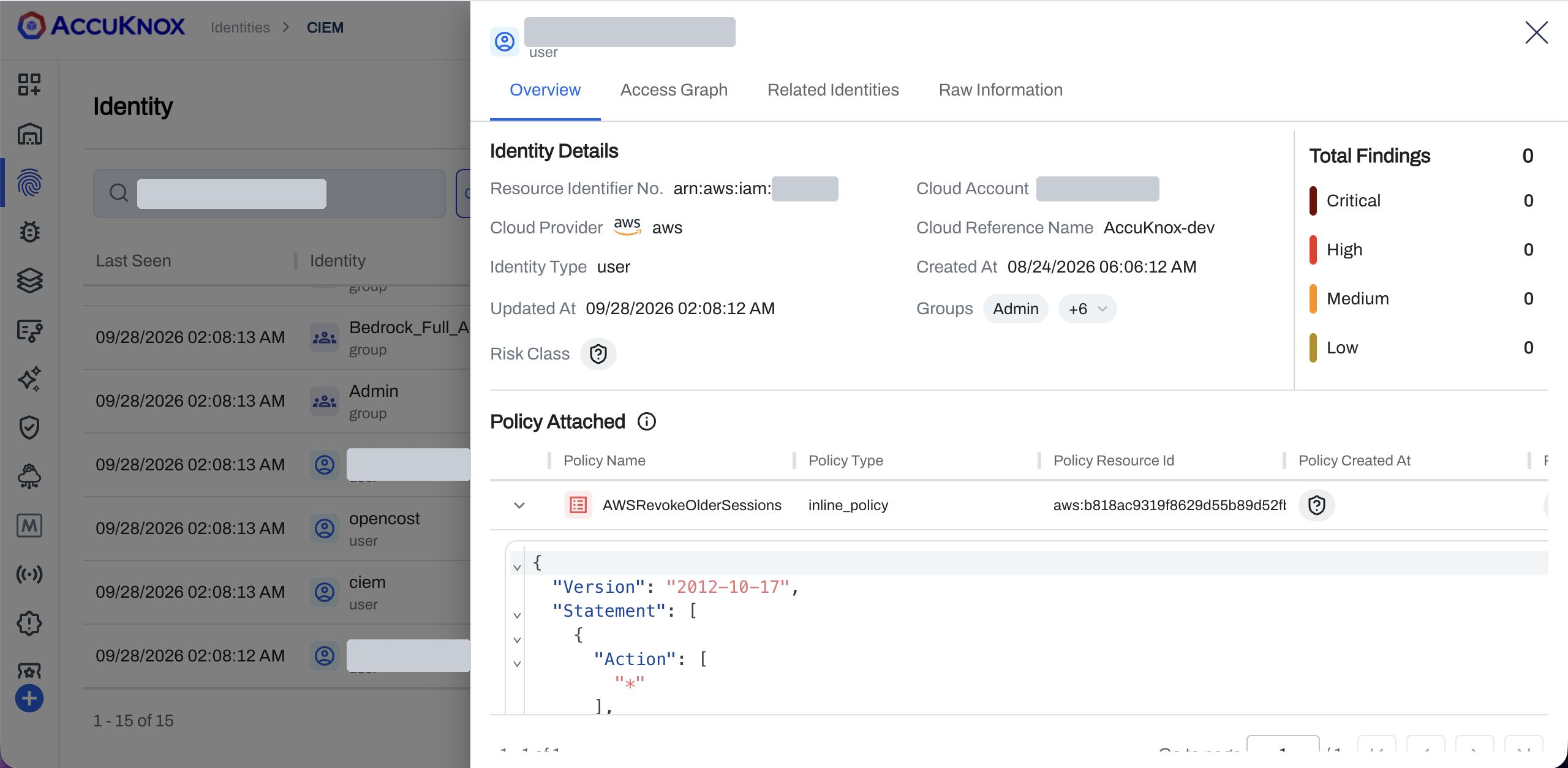

The Overview tab of an AWS user, with Identity Details, Total Findings by severity, and the Policy Attached table expanded to show an inline policy document

Identity Details shows the resource ID, cloud provider, identity type, cloud account, cloud reference name, creation and update times, groups and risk class. Total Findings counts the findings on the identity by severity: Critical, High, Medium and Low.

Policy Attached lists each policy with its name, type, resource ID and creation time. Expand a policy row to read the policy document as JSON. A policy has one of three types.

Policy type Source
Cloud managed A policy the cloud provider maintains
Inline policy A policy embedded in one identity. The console shows it as inline_policy
User managed A policy your team created

The Access Graph Traces an Identity to Its Policies¶

Open the Access Graph tab. The graph reads from top to bottom: the identity, the groups it belongs to, and the policies each group grants. A policy attached straight to the identity sits beside the groups. The graph shows which permissions reach the identity and through which group.

Use the controls at the lower left of the graph to zoom in, zoom out, fit the graph to the panel, reset the layout and expand to full screen.

Open the Related Identities tab. The tab lists the other identities in the same cloud account. The identity you opened is not in the list.

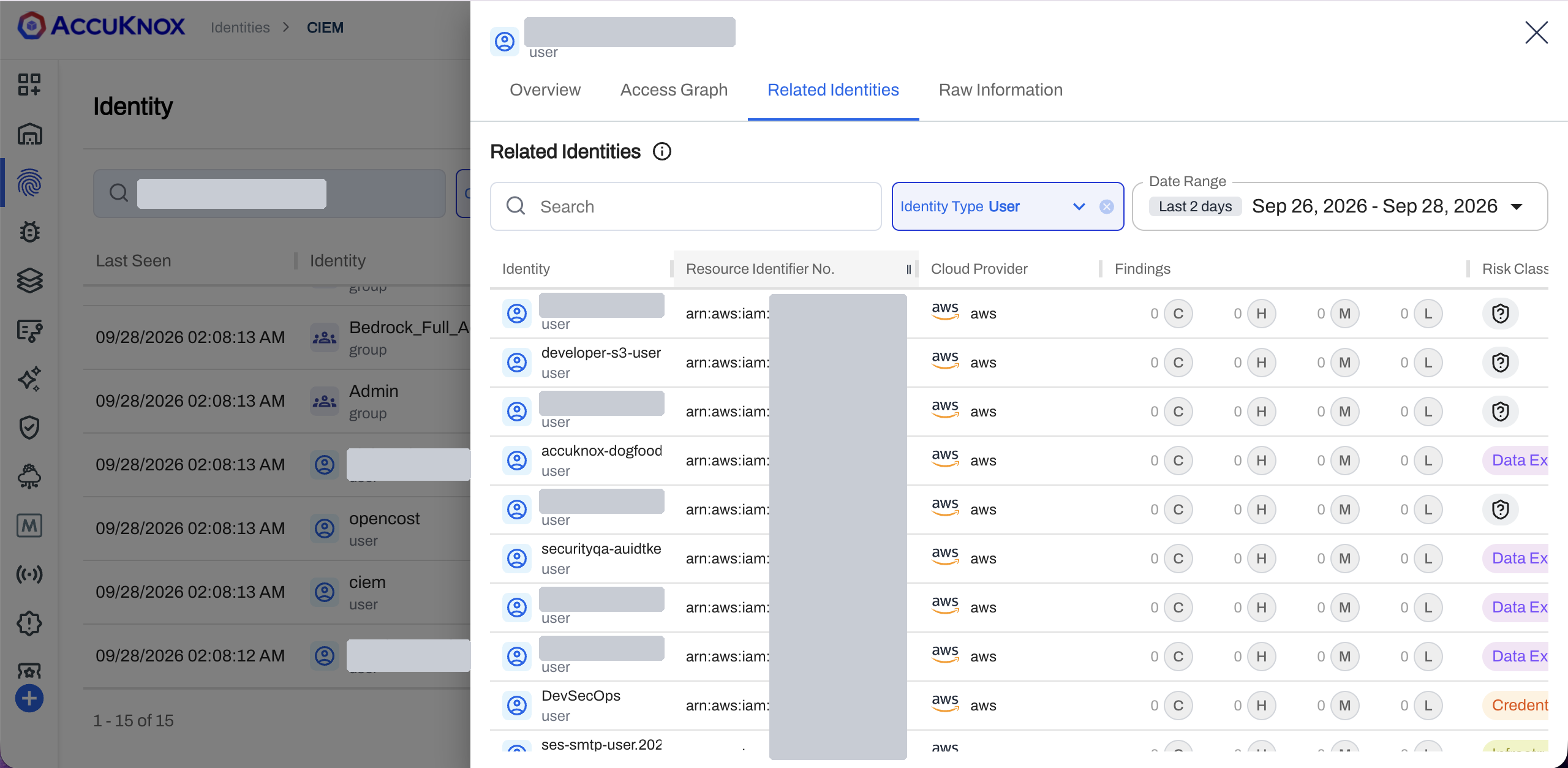

The Related Identities tab filtered to users, with each identity's resource ID, cloud provider, finding counts by severity and risk class

Filter by Identity Type and Date Range. Each row shows the resource ID, the cloud provider, the finding counts for Critical, High, Medium and Low, and the risk class.

Raw Information Holds the Full Identity Record¶

Open the Raw Information tab to read the identity record as JSON. Use the copy icon at the top right to copy the record.

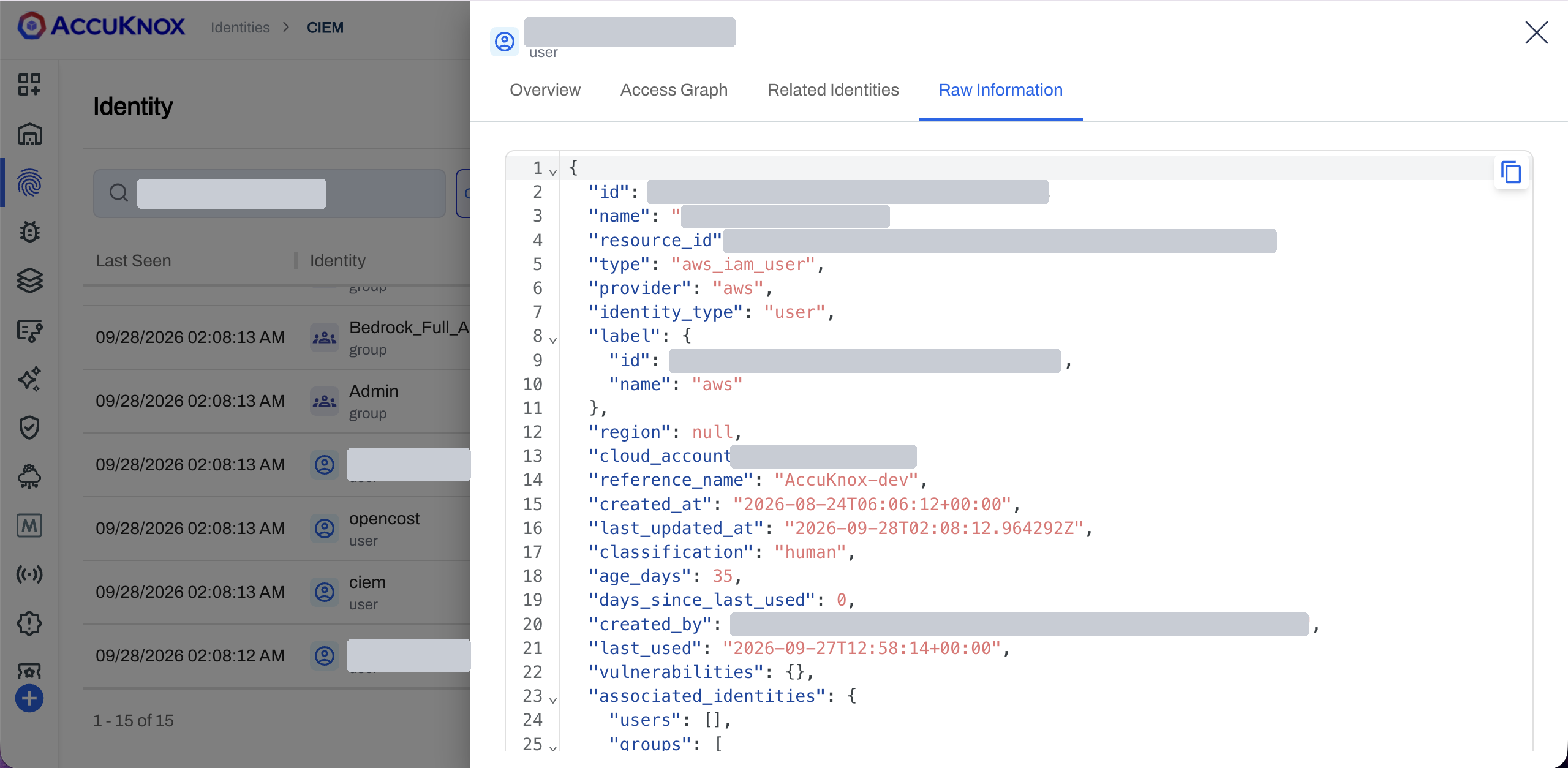

The Raw Information tab of an AWS user, with the JSON fields type, provider, identity_type, classification, age_days, days_since_last_used, created_by and last_used

The record holds the same fields as the list and the Overview tab, including classification, age_days, days_since_last_used, created_by, last_used and associated_identities.

The Organization Graph Shows Every Identity in an Account¶

Select the graph icon at the top right of Identities > CIEM. Filter by Cloud Providers and Cloud Account Name.

The cloud account node sits at the top, with one node each for users, groups, roles and policies. The badge on each node is the count. In the sample AWS account, the badges read 77 users, 22 groups, 637 roles and 504 policies. Select a node to expand its members, then select a member to open that identity's access graph.
