Generating Filesystem SBOMs in Jenkins

This guide adds an SBOM (Software Bill of Materials) stage to a Jenkins pipeline using the AccuKnox ASPM Scanner plugin. A CycloneDX SBOM is generated from a Git repository's filesystem and uploaded to AccuKnox under a named project.

Prerequisites

• A Jenkins controller (2.387.3 LTS or newer) with at least one build agent.
• An AccuKnox SaaS account with a tenant / label you can upload findings to.
• Network egress from the Jenkins agent to the AccuKnox control plane (or a mirrored scanner image for air-gapped agents).
• An AccuKnox project pre-created with classifier application. The SBOM upload fails otherwise.

Step 1: Install the AccuKnox ASPM Plugin

See Installing the AccuKnox ASPM Jenkins Plugin for the one-time plugin installation steps.

Step 2: Configure Jenkins and pre-create the SBOM project

• Store the AccuKnox token as a Jenkins Secret text credential.
• Set the endpoint, label, and token credential on the global config.

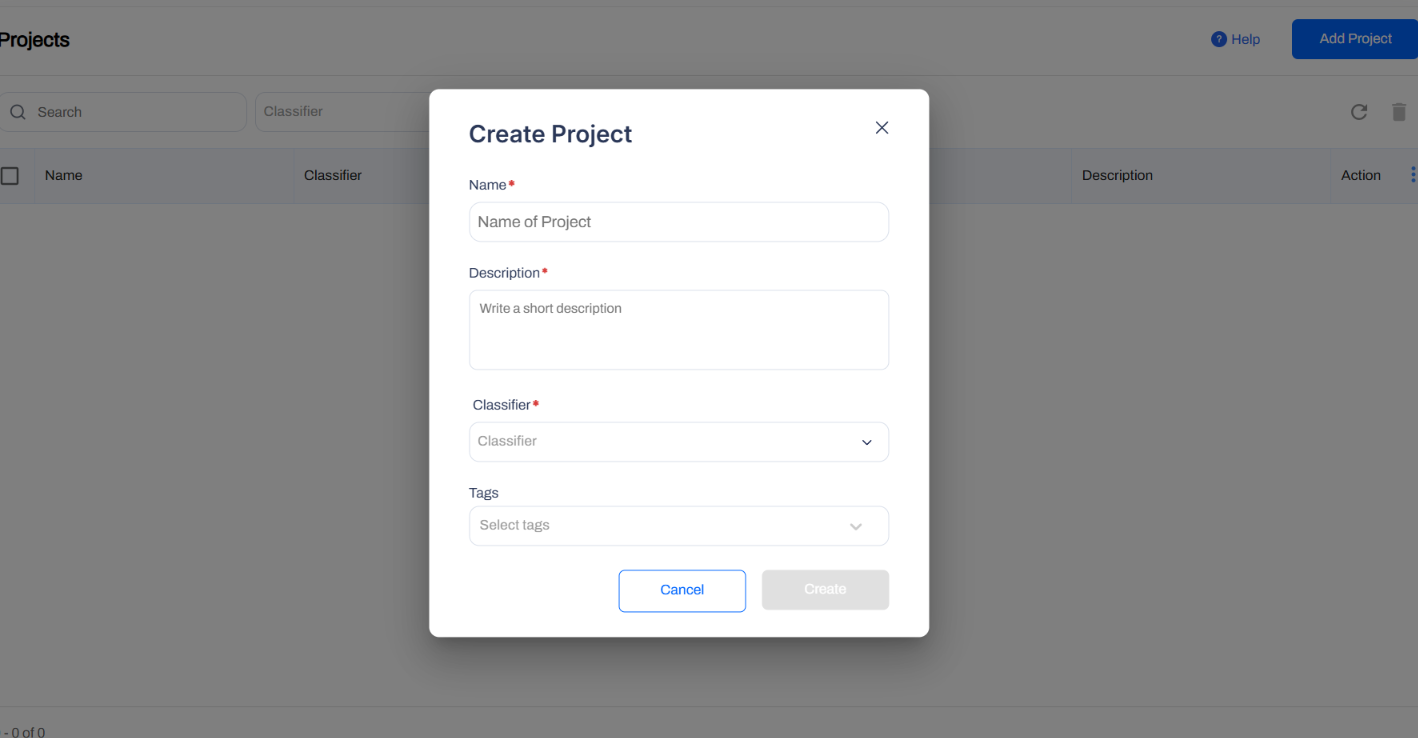

• On the AccuKnox console, go to Projects → Add Project and create the project name you plan to pass as projectName, with classifier application.

Step 3: Define the Jenkins Pipeline

// AccuKnox filesystem SBOM generation, standalone Jenkinsfile.
//
// Clones a Git repo, generates a CycloneDX SBOM from its filesystem, and
// uploads it to AccuKnox. PROJECT_NAME is what the SBOM is attached to in
// the AccuKnox UI.

pipeline {
  agent any

  parameters {
    string(name: 'REPO_URL',
           defaultValue: 'https://github.com/YOUR_USER/YOUR_REPO.git',
           description: 'Git repo to clone and SBOM.')

    booleanParam(name: 'REPO_IS_PRIVATE',
                 defaultValue: false,
                 description: 'Tick if the repo is private.')

    string(name: 'REPO_BRANCH',
           defaultValue: 'main',
           description: 'Branch to clone.')

    string(name: 'PROJECT_NAME',
           defaultValue: 'SBOM',
           description: 'AccuKnox project to receive the SBOM.')

    string(name: 'ENDPOINT',
           defaultValue: 'cspm.accuknox.com',
           description: 'AccuKnox control plane host, no scheme.')

    string(name: 'LABEL',
           defaultValue: 'jenkins-sbom',
           description: 'Label to tag the SBOM.')

    string(name: 'ACCUKNOX_CREDENTIAL',
           defaultValue: 'ACCUKNOX_TOKEN',
           description: 'Jenkins credential ID for AccuKnox token.')

    string(name: 'GITHUB_CREDENTIAL',
           defaultValue: 'github_creds',
           description: 'Jenkins credential ID for GitHub PAT.')
  }

  options {
    timestamps()
    timeout(time: 30, unit: 'MINUTES')
    disableConcurrentBuilds()
  }

  environment {
    REPO_DIR = "${params.REPO_URL.tokenize('/').last() - '.git'}"
  }

  stages {
    stage('Checkout - public repo') {
      when { expression { !params.REPO_IS_PRIVATE } }
      steps {
        sh """
          set -eu
          rm -rf "${env.REPO_DIR}"
          git clone --depth=1 --branch "${params.REPO_BRANCH}" "${params.REPO_URL}" "${env.REPO_DIR}"
        """
      }
    }

    stage('Checkout - private repo') {
      when { expression { params.REPO_IS_PRIVATE } }
      steps {
        script { sh "rm -rf ${env.REPO_DIR}" }
        dir(env.REPO_DIR) {
          git branch: params.REPO_BRANCH,
              url: params.REPO_URL,
              credentialsId: params.GITHUB_CREDENTIAL
        }
      }
    }

    stage('SBOM') {
      steps {
        dir(env.REPO_DIR) {
          knoxctlSbom(path: '.',
                      projectName: params.PROJECT_NAME,
                      endpoint: params.ENDPOINT,
                      label: params.LABEL,
                      credentialsId: params.ACCUKNOX_CREDENTIAL)
        }
      }
    }
  }
}

Pipeline inputs

Every parameter, its default value, and whether you need to change it before running.

Parameter	Default	Change	Notes
REPO_URL	https://github.com/YOUR_USER/YOUR_REPO.git	Yes, always	Set to the Git repo you want to scan.
REPO_IS_PRIVATE	false	Only if private	Tick when scanning a private repo, uses GITHUB_CREDENTIAL.
REPO_BRANCH	main	Only if different	Change to master or your actual branch if not main.
PROJECT_NAME	SBOM	Only if named differently	Must match the project you created in AccuKnox.
ENDPOINT	cspm.accuknox.com	If on different tenant	Use cspm.demo.accuknox.com, cspm.stag.accuknox.com, or your customer subdomain.
LABEL	jenkins-sbom	Only if named differently	Must match the label you created in AccuKnox.
ACCUKNOX_CREDENTIAL	ACCUKNOX_TOKEN	Only if named differently	Case-sensitive, must match Jenkins credential ID exactly.
GITHUB_CREDENTIAL	github_creds	Only if private + named differently	Used only when REPO_IS_PRIVATE=true.

Without AccuKnox vs With AccuKnox

Without AccuKnoxWith AccuKnox

An SBOM JSON file is left on the agent. Asset inventory and vulnerability matching are someone else's problem.

The CycloneDX SBOM is shipped to AccuKnox and attached to the named project, where it powers asset inventory, supply-chain queries, and the runtime correlation views.

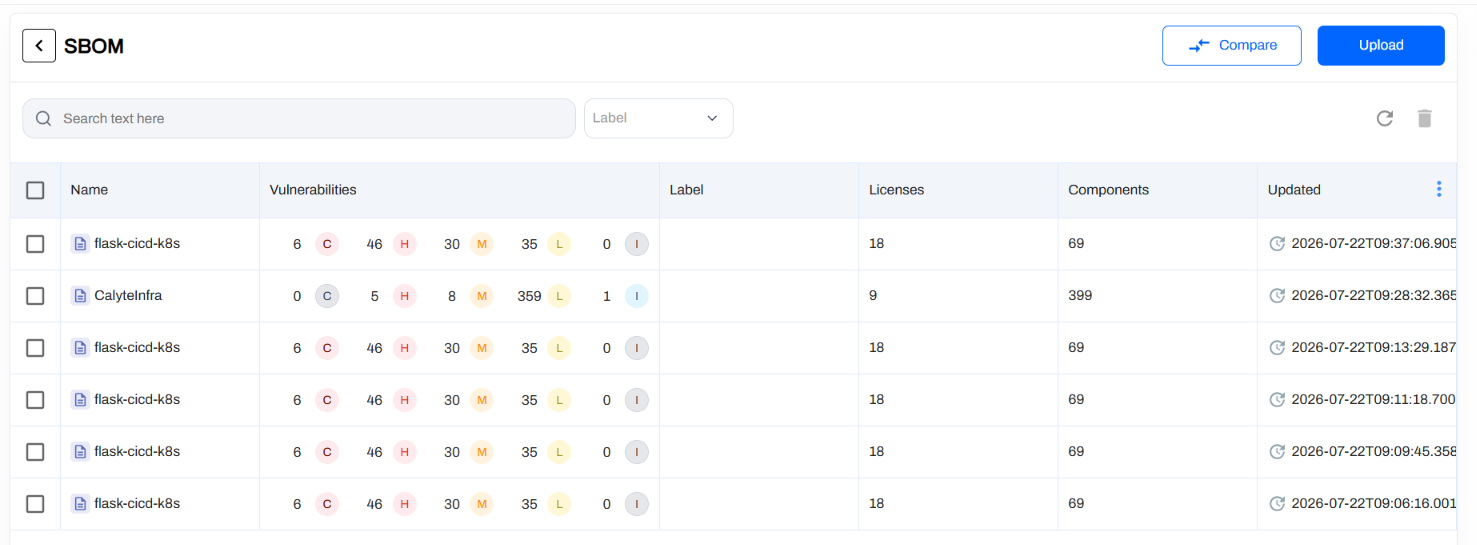

Figure 1. SBOM attached to a project on AccuKnox.

Viewing Results in AccuKnox

Once the Jenkins job uploads its SBOM, the project view is updated in the AccuKnox SaaS console.

1. Log in to the AccuKnox console and switch to the tenant whose label you configured in Jenkins.
2. Open Projects and pick the project name you passed as projectName.
3. Inspect the components, licenses, and supply-chain graph attached to the SBOM.
4. Cross-reference components with CVEs via the asset inventory.
5. Re-run the Jenkins job whenever the repo changes. The latest SBOM replaces the previous one on the project.

Conclusion

Wiring filesystem SBOM generation into Jenkins via the AccuKnox ASPM plugin gives you continuous, automated supply-chain visibility on every build, straight from your repository's source tree. Combine it with the other scan types (SAST, IaC, Secret, Container, SCA) for full-coverage ASPM directly from your pipelines. To add CBOM and AIBOM in the same pipeline, see xBOM.
