Air-Gapped Deployment¶

AccuKnox Secrets Manager installs and runs with no internet access. You move the Helm chart and its images inside your network once. After that, nothing in the cluster calls out, and your own key holders unseal the server.

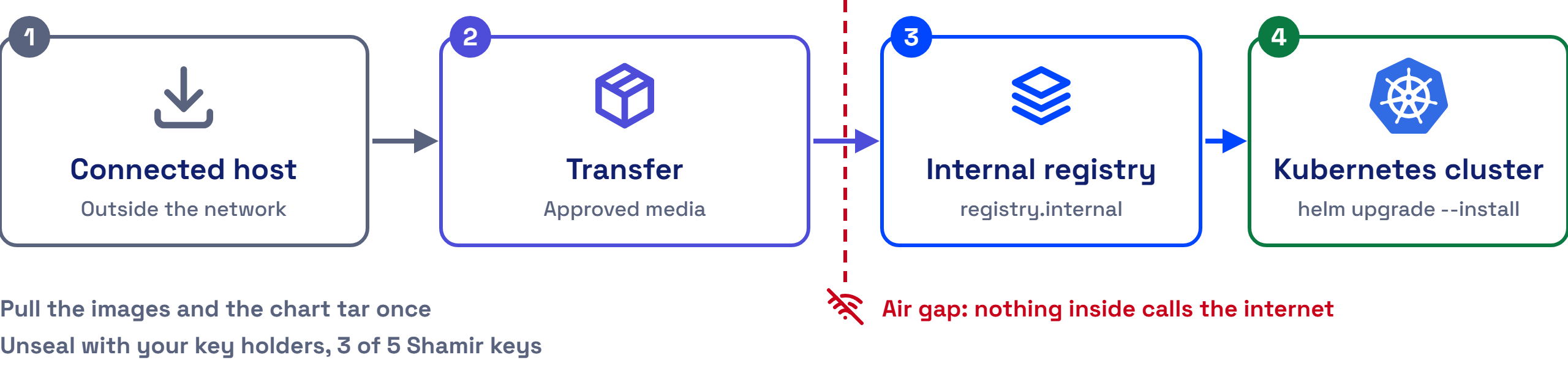

Air-gapped install: pull on a connected host, transfer on approved media, push to the internal registry, install on the Kubernetes cluster

1. Bring the Chart Inside¶

The chart ships as one tar file, accuknoxsecretmanager.tar, from your AccuKnox point of contact. Copy it to a host inside your network. No Helm repository is needed.

2. Mirror the Images Into Your Registry¶

On a host with internet access, pull each image, then move it inside on approved media and push it to your internal registry.

Image Source named in the chart Needed
Secrets Manager server harbor.do.accuknox.com/secrets-manager/ak-secrets-mgr:v2.5.4-amd64 Yes
Snapshot agent ghcr.io/accuknoxsecretmanager/accuknoxsecretmanager-snapshot-agent:0.3.0 When snapshots are on
External Secrets Operator The images its own Helm chart names When you use the operator

[Confirm the External Secrets Operator version to mirror.]

docker pull harbor.do.accuknox.com/secrets-manager/ak-secrets-mgr:v2.5.4-amd64
docker save harbor.do.accuknox.com/secrets-manager/ak-secrets-mgr:v2.5.4-amd64 -o ak-secrets-mgr.tar

Inside the network, load the archive, tag it for your registry and push it.

docker load -i ak-secrets-mgr.tar
docker tag harbor.do.accuknox.com/secrets-manager/ak-secrets-mgr:v2.5.4-amd64 <your-registry>/secrets-manager/ak-secrets-mgr:v2.5.4-amd64
docker push <your-registry>/secrets-manager/ak-secrets-mgr:v2.5.4-amd64

3. Point the Chart at Your Registry¶

Write a values file that names your registry and its pull secret.

global:
  imagePullSecrets:
    - name: <registry-pull-secret>
server:
  image:
    registry: "<your-registry>"
injector:
  enabled: false

The injector stays off, because neither integration method uses it, so its images need no mirroring.

4. Install From Inside the Network¶

helm upgrade --install vault . -n accuknox -f airgap-values.yaml

Then initialize and unseal the server as the Deployment Guide shows.

5. Unseal With Your Own Key Holders¶

The default seal splits the root key into 5 Shamir key shares, and any 3 unseal the server. No cloud key service is involved, so the unseal works fully offline. Give the shares to different people inside your organisation.

[Confirm whether the AccuKnox build supports auto-unseal through an on-premises HSM or a Transit seal.] The auto-unseal example in values.yaml uses Google Cloud KMS, which needs internet access.

Sign-In Methods Behave Differently Offline¶

LDAP sign-in works fully offline. OIDC with a cloud identity provider, such as Microsoft Entra ID, needs a network path from Secrets Manager to that provider.
